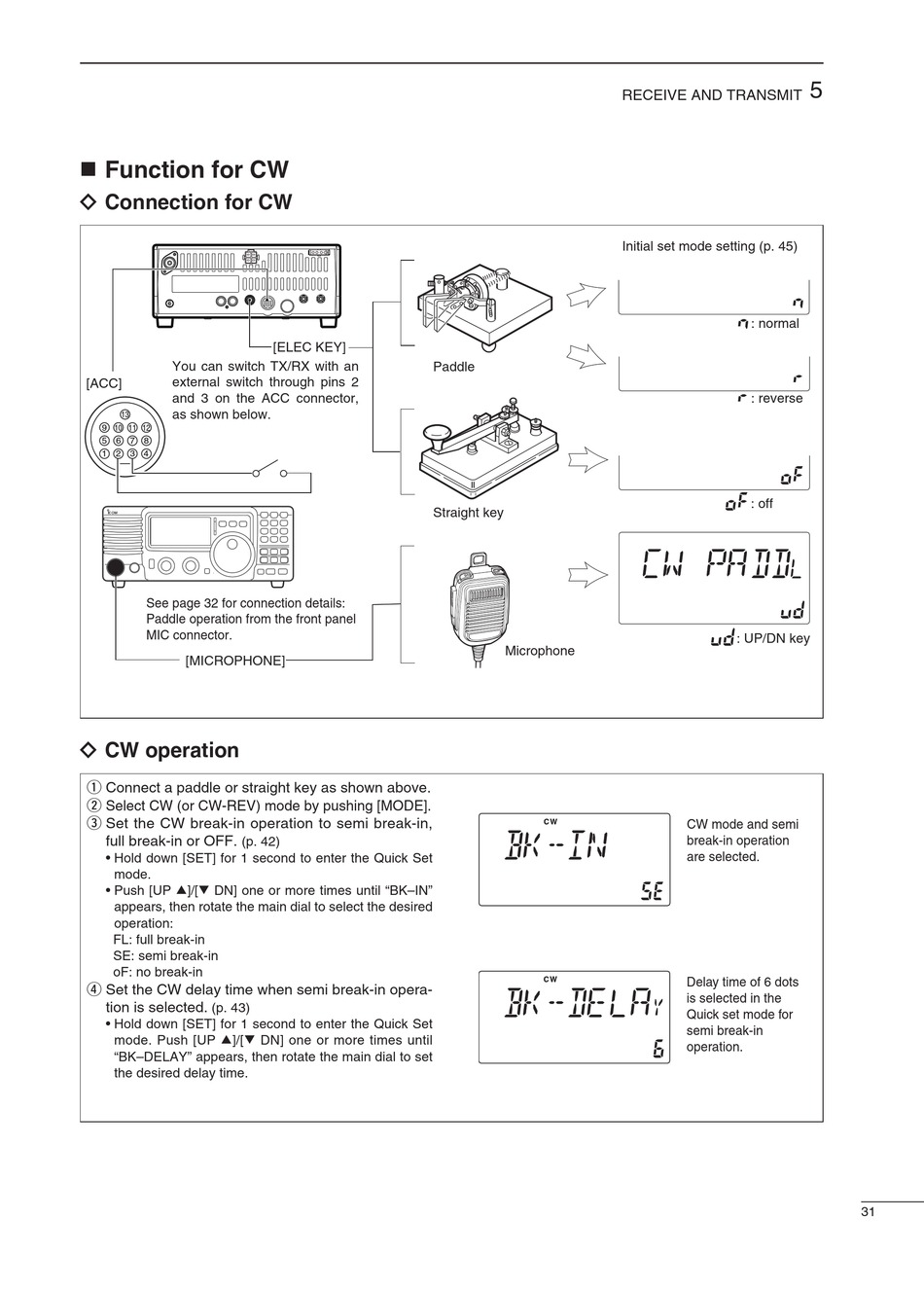

 Function for CW
ï Connection for CW
You can switch TX/RX with an
external switch through pins 2
[ACC]
and 3 on the ACC connector,
as shown below.
13
9 10 11 12
5 6 7 8
1 2 3 4
See page 32 for connection details:
Paddle operation from the front panel
MIC connector.
[MICROPHONE]
ï CW operation
q Connect a paddle or straight key as shown above.
w Select CW (or CW-REV) mode by pushing [MODE].
e Set the CW break-in operation to semi break-in,
full break-in or OFF.
(p. 42)
• Hold down [SET] for 1 second to enter the Quick Set
mode.
• Push [UP ∫]/[√ DN] one or more times until "BK–IN"
appears, then rotate the main dial to select the desired
operation:
FL: full break-in
SE: semi break-in
oF: no break-in
r Set the CW delay time when semi break-in opera-
tion is selected.
(p. 43)
• Hold down [SET] for 1 second to enter the Quick Set
mode. Push [UP ∫]/[√ DN] one or more times until
"BK–DELAY" appears, then rotate the main dial to set
the desired delay time.
13
9 10 11 12
5 6 7 8
1 2 3 4
[ELEC KEY]
Paddle
Straight key
RECEIVE AND TRANSMIT
Initial set mode setting (p. 45)
Microphone
5
: normal
: reverse
: off
: UP/DN key
CW mode and semi
break-in operation
are selected.
Delay time of 6 dots
is selected in the
Quick set mode for
semi break-in
operation.
31
