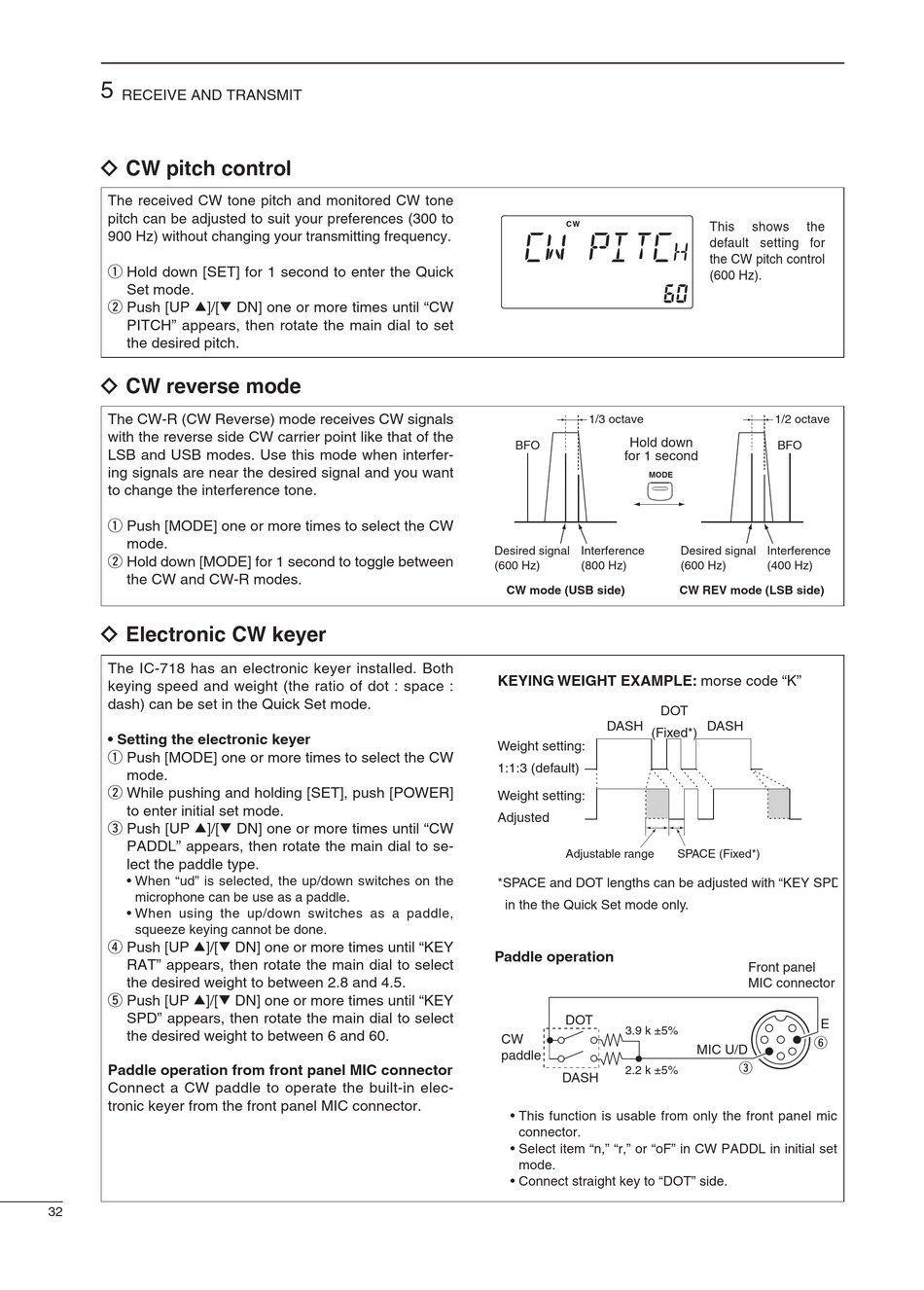

Cw Pitch Control; Cw Reverse Mode; Electronic Cw Keyer - Icom ic-718 Instruction Manual

5
RECEIVE AND TRANSMIT
ï CW pitch control
The received CW tone pitch and monitored CW tone
pitch can be adjusted to suit your preferences (300 to
900 Hz) without changing your transmitting frequency.
q Hold down [SET] for 1 second to enter the Quick
Set mode.
w Push [UP ∫]/[√ DN] one or more times until "CW
PITCH" appears, then rotate the main dial to set
the desired pitch.
ï CW reverse mode
The CW-R (CW Reverse) mode receives CW signals
with the reverse side CW carrier point like that of the
LSB and USB modes. Use this mode when interfer-
ing signals are near the desired signal and you want
to change the interference tone.
q Push [MODE] one or more times to select the CW
mode.
w Hold down [MODE] for 1 second to toggle between
the CW and CW-R modes.
ï Electronic CW keyer
The IC-718 has an electronic keyer installed. Both
keying speed and weight (the ratio of dot : space :
dash) can be set in the Quick Set mode.
• Setting the electronic keyer
q Push [MODE] one or more times to select the CW
mode.
w While pushing and holding [SET], push [POWER]
to enter initial set mode.
e Push [UP ∫]/[√ DN] one or more times until "CW
PADDL" appears, then rotate the main dial to se-
lect the paddle type.
• When "ud" is selected, the up/down switches on the
microphone can be use as a paddle.
• When using the up/down switches as a paddle,
squeeze keying cannot be done.
r Push [UP ∫]/[√ DN] one or more times until "KEY
RAT" appears, then rotate the main dial to select
the desired weight to between 2.8 and 4.5.
t Push [UP ∫]/[√ DN] one or more times until "KEY
SPD" appears, then rotate the main dial to select
the desired weight to between 6 and 60.
Paddle operation from front panel MIC connector
Connect a CW paddle to operate the built-in elec-
tronic keyer from the front panel MIC connector.
32
1/3 octave
Hold down
BFO
for 1 second
MODE
Desired signal Interference
(600 Hz) (800 Hz)
CW mode (USB side)
KEYING WEIGHT EXAMPLE: morse code "K"
DOT
DASH
(Fixed*)
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
Adjustable range
*SPACE and DOT lengths can be adjusted with "KEY SPD
in the the Quick Set mode only.
Paddle operation
DOT
3.9 k ±5%
CW
paddle
2.2 k ±5%
DASH
• This function is usable from only the front panel mic
connector.
• Select item "n," "r," or "oF" in CW PADDL in initial set
mode.
• Connect straight key to "DOT" side.
This shows the
default setting for
the CW pitch control
(600 Hz).
1/2 octave
BFO
Desired signal Interference
(600 Hz) (400 Hz)
CW REV mode (LSB side)
DASH
SPACE (Fixed*)
Front panel
MIC connector
E
y
MIC U/D
e
