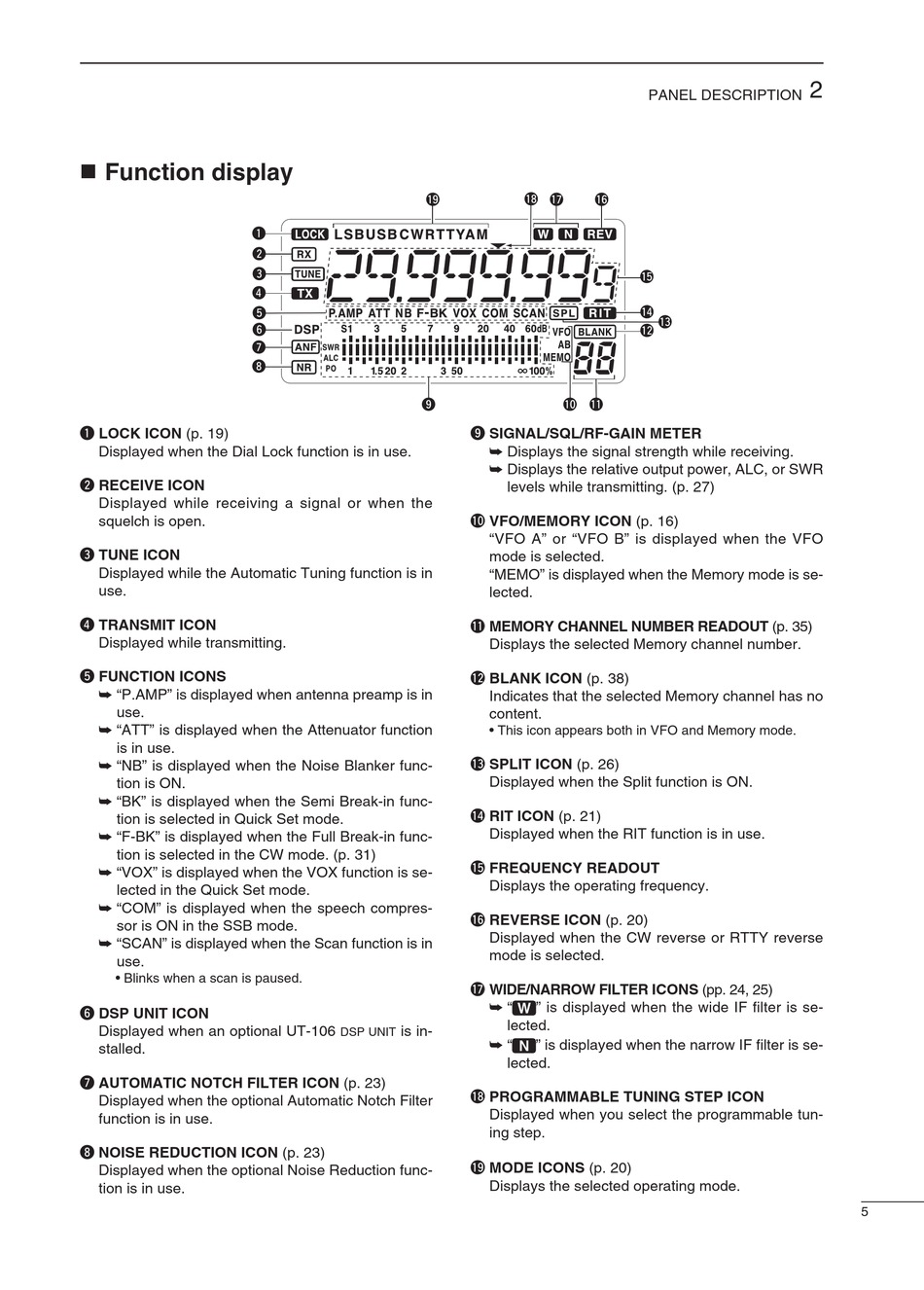

 Function display
q
w
e
r
t
y
u
i
q LOCK ICON (p. 19)
Displayed when the Dial Lock function is in use.
w RECEIVE ICON
Displayed while receiving a signal or when the
squelch is open.
e TUNE ICON
Displayed while the Automatic Tuning function is in
use.
r TRANSMIT ICON
Displayed while transmitting.
t FUNCTION ICONS
➥ "P.AMP" is displayed when antenna preamp is in
use.
➥ "ATT" is displayed when the Attenuator function
is in use.
➥ "NB" is displayed when the Noise Blanker func-
tion is ON.
➥ "BK" is displayed when the Semi Break-in func-
tion is selected in Quick Set mode.
➥ "F-BK" is displayed when the Full Break-in func-
tion is selected in the CW mode. (p. 31)
➥ "VOX" is displayed when the VOX function is se-
lected in the Quick Set mode.
➥ "COM" is displayed when the speech compres-
sor is ON in the SSB mode.
➥ "SCAN" is displayed when the Scan function is in
use.
• Blinks when a scan is paused.
y DSP UNIT ICON
Displayed when an optional UT-106
stalled.
u AUTOMATIC NOTCH FILTER ICON (p. 23)
Displayed when the optional Automatic Notch Filter
function is in use.
i NOISE REDUCTION ICON (p. 23)
Displayed when the optional Noise Reduction func-
tion is in use.
!9
o
o SIGNAL/SQL/RF-GAIN METER
➥ Displays the signal strength while receiving.
➥ Displays the relative output power, ALC, or SWR
levels while transmitting. (p. 27)
!0 VFO/MEMORY ICON (p. 16)
"VFO A" or "VFO B" is displayed when the VFO
mode is selected.
"MEMO" is displayed when the Memory mode is se-
lected.
!1 MEMORY CHANNEL NUMBER READOUT (p. 35)
Displays the selected Memory channel number.
!2 BLANK ICON (p. 38)
Indicates that the selected Memory channel has no
content.
• This icon appears both in VFO and Memory mode.
!3 SPLIT ICON (p. 26)
Displayed when the Split function is ON.
!4 RIT ICON (p. 21)
Displayed when the RIT function is in use.
!5 FREQUENCY READOUT
Displays the operating frequency.
!6 REVERSE ICON (p. 20)
Displayed when the CW reverse or RTTY reverse
mode is selected.
!7 WIDE/NARROW FILTER ICONS (pp. 24, 25)
➥ "
lected.
is in-
DSP UNIT
➥  " " is displayed when the narrow IF fi lter is se-
lected.
!8 PROGRAMMABLE TUNING STEP ICON
Displayed when you select the programmable tun-
ing step.
!9 MODE ICONS (p. 20)
Displays the selected operating mode.
PANEL DESCRIPTION
!8 !7 !6
!5
!4
!3
!2
!0 !1
" is displayed when the wide IF fi lter is se-
2
5
