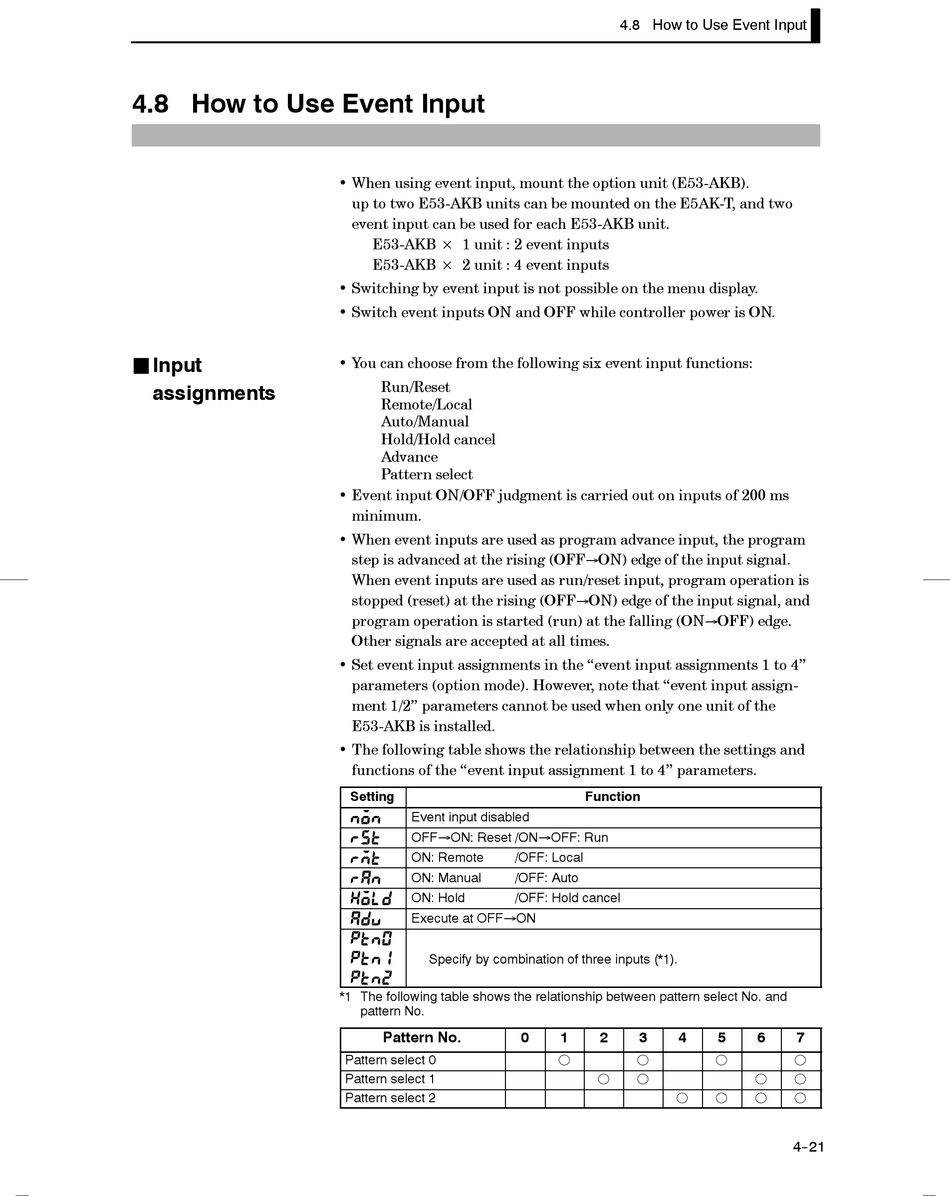

4.8 How to Use Event Input

J Input
assignments
• When using event input, mount the option unit (E53-AKB).
up to two E53-AKB units can be mounted on the E5AK-T, and two
event input can be used for each E53-AKB unit.
E53-AKB × 1 unit : 2 event inputs
E53-AKB × 2 unit : 4 event inputs
• Switching by event input is not possible on the menu display.
• Switch event inputs ON and OFF while controller power is ON.
• You can choose from the following six event input functions:
Run/Reset
Remote/Local
Auto/Manual
Hold/Hold cancel
Advance
Pattern select
• Event input ON/OFF judgment is carried out on inputs of 200 ms
minimum.
• When event inputs are used as program advance input, the program
step is advanced at the rising (OFF
When event inputs are used as run/reset input, program operation is
stopped (reset) at the rising (OFF
program operation is started (run) at the falling (ON
Other signals are accepted at all times.
• Set event input assignments in the "event input assignments 1 to 4"
parameters (option mode). However, note that "event input assign-
ment 1/2" parameters cannot be used when only one unit of the
E53-AKB is installed.
• The following table shows the relationship between the settings and
functions of the "event input assignment 1 to 4" parameters.
Setting
Event input disabled
OFF→ON: Reset /ON→OFF: Run
ON: Remote
ON: Manual
ON: Hold
Execute at OFF→ON
Specify by combination of three inputs ( 1). Specify by combination of three inputs (*1).
*1 The following table shows the relationship between pattern select No. and
pattern No.
Pattern No.
Pattern select 0
Pattern select 1
Pattern select 2

4.8 How to Use Event Input

ON) edge of the input signal.
→
ON) edge of the input signal, and
→
Function
/OFF: Local
/OFF: Auto
/OFF: Hold cancel
0 1 2 3
f f
f f
OFF) edge.
→
4 5 6 7
f f
f f
f f f f
4--21
