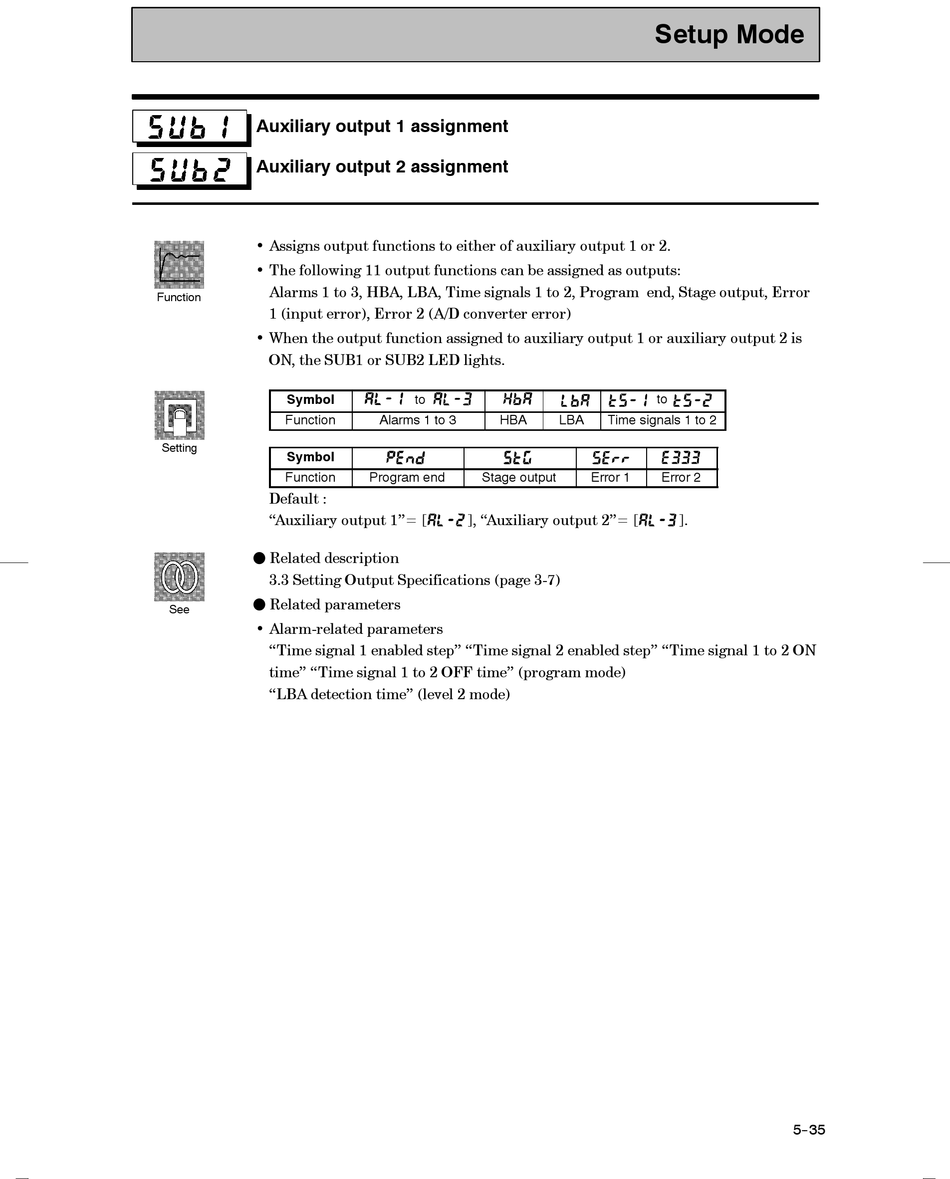

Auxiliary output 1 assignment
Auxiliary output 2 assignment
• Assigns output functions to either of auxiliary output 1 or 2.
• The following 11 output functions can be assigned as outputs:
Alarms 1 to 3, HBA, LBA, Time signals 1 to 2, Program end, Stage output, Error
Function
1 (input error), Error 2 (A/D converter error)
• When the output function assigned to auxiliary output 1 or auxiliary output 2 is
ON, the SUB1 or SUB2 LED lights.
Symbol
Function
Setting
Symbol
Function
Default :
"Auxiliary output 1"= [
F Related description
3.3 Setting Output Specifications (page 3-7)
F Related parameters
See
• Alarm-related parameters
"Time signal 1 enabled step" "Time signal 2 enabled step" "Time signal 1 to 2 ON
time" "Time signal 1 to 2 OFF time" (program mode)
"LBA detection time" (level 2 mode)
to
Alarms 1 to 3 HBA
Program end Stage output
], "Auxiliary output 2"= [
Setup Mode
to
LBA Time signals 1 to 2
Error 1 Error 2
].
5--35
