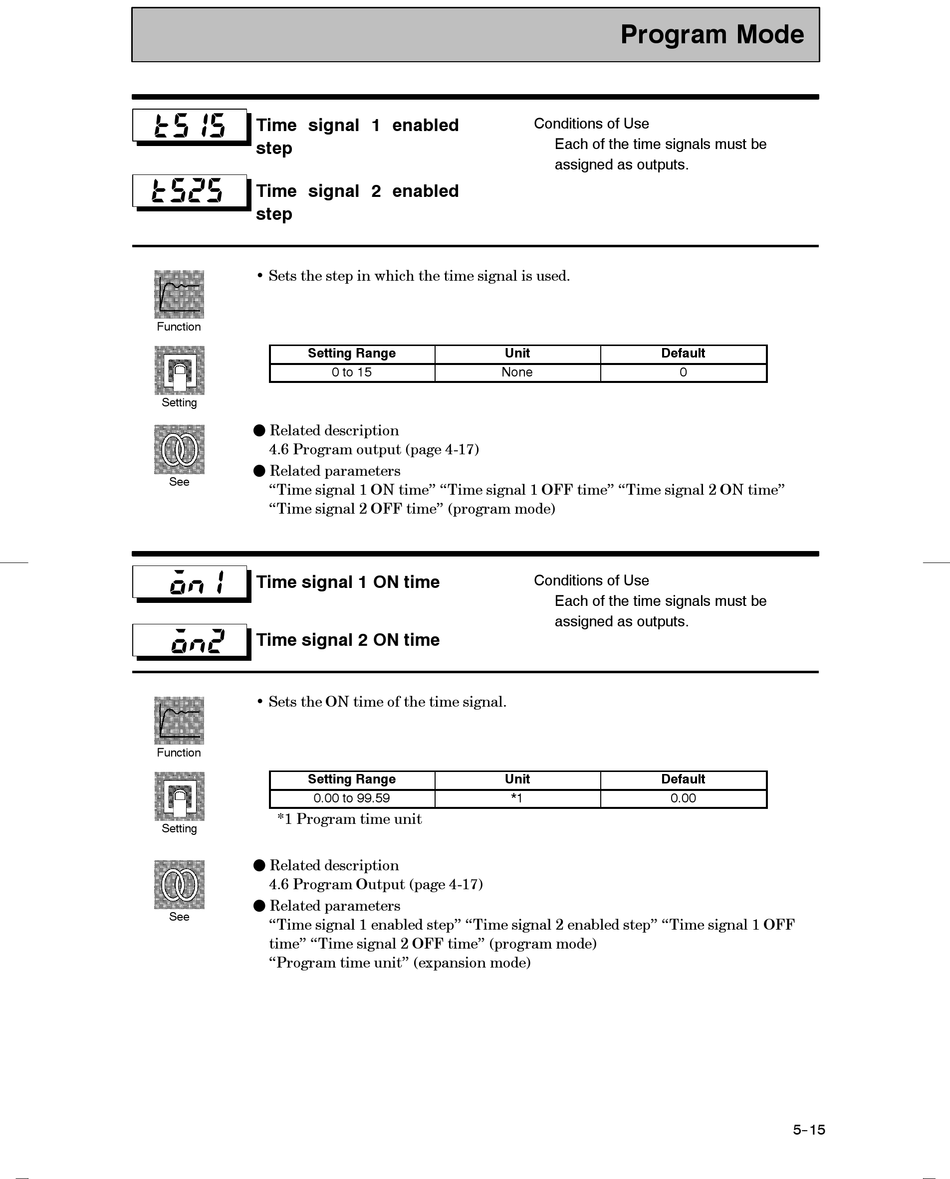

Time signal 1 enabled
step
Time signal 2 enabled
step
• Sets the step in which the time signal is used.
Function
Setting
F Related description
4.6 Program output (page 4-17)
F Related parameters
See
"Time signal 1 ON time" "Time signal 1 OFF time" "Time signal 2 ON time"
"Time signal 2 OFF time" (program mode)
Time signal 1 ON time
Time signal 2 ON time
• Sets the ON time of the time signal.
Function
*1 Program time unit
Setting
F Related description
4.6 Program Output (page 4-17)
F Related parameters
See
"Time signal 1 enabled step" "Time signal 2 enabled step" "Time signal 1 OFF
time" "Time signal 2 OFF time" (program mode)
"Program time unit" (expansion mode)
Setting Range
0 to 15
Setting Range
0.00 to 99.59
Program Mode
Conditions of Use
Each of the time signals must be
assigned as outputs.
Unit
None
Conditions of Use
Each of the time signals must be
assigned as outputs.
Unit
*1
Default
0
Default
0.00
5--15
