Omron E5AK-T Manual

Ramp/soak process controller
Hide thumbs Also See for E5AK-T:

Advertisement

Quick Links

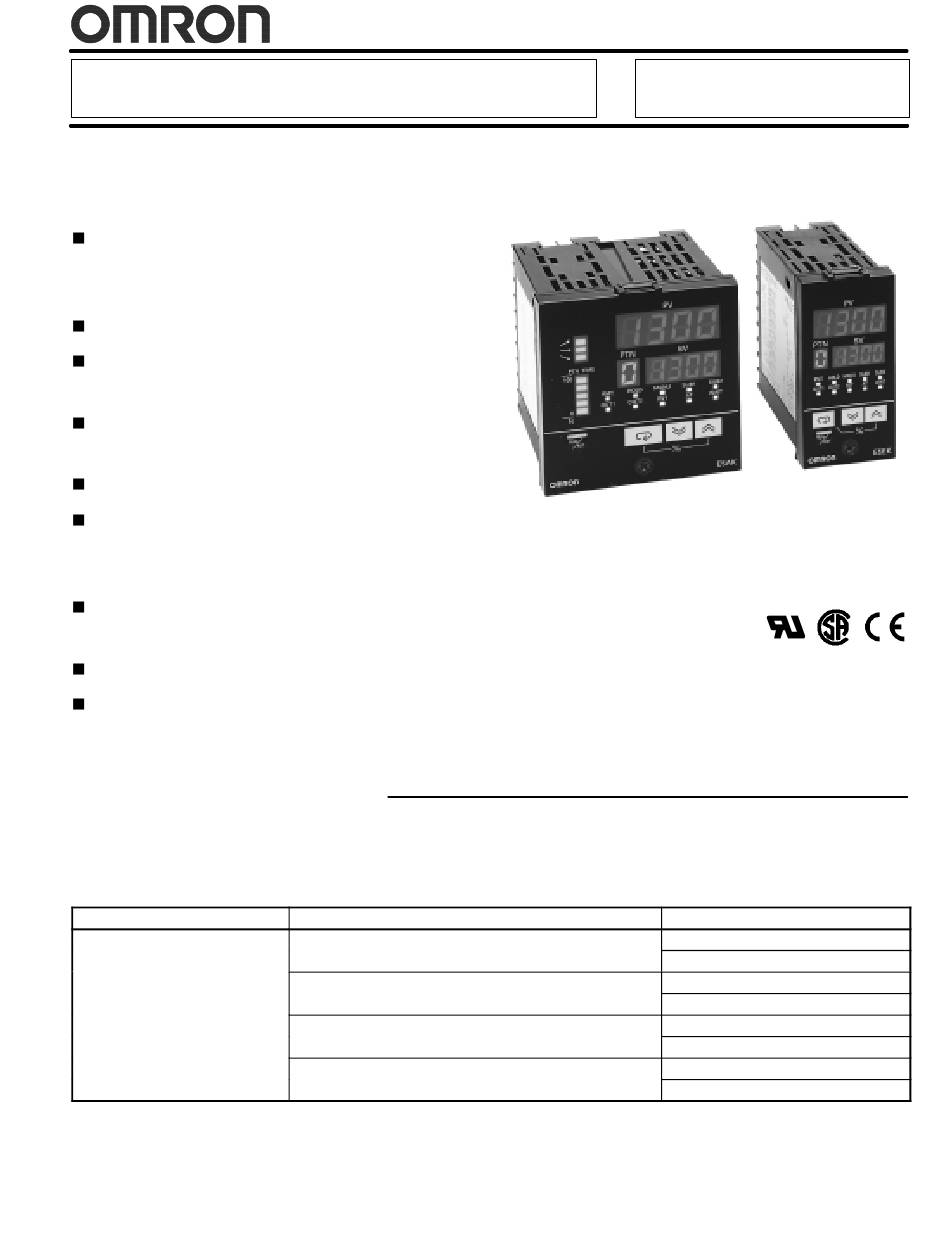

Ramp/Soak Process Controller
Advanced Ramp/Soak Process
Controllers Ideal for Worldwide Use
E5AK-T offers up to eight patterns of
simple programming control (4 patterns
for E5EK-T), with 16 steps per pattern
Modular structure, one-stock type
High-accuracy: 100 ms sampling (for
analog input)
Conforms to international EMC and
safety standards.
IP66/NEMA4 (indoor use) front face
Serial communications (RS-232C,
RS-422 and RS-485) and transfer
output (4 to 20 mA)
Position-proportional control model is
offered
Heat/Cool control
24 V AC/DC types also available
Ordering Information
When ordering, order control output boards and option boards separately. Example: for a relay control output, order the E53-R output
board in addition to the standard Process Controller (E5AK-T/E5EK-T). Also specify the current transformer.

PROCESS CONTROLLERS
Item
Base unit
Note: 1. When using the heater burnout alarm function with a standard model, the linear output board cannot be used for the control
outputs (heat).
2. The Process Controller provides transfer outputs at 4 to 20 mA for the PV and other values and control outputs at 4 to 20 mA
for the current outputs.

Description
Standard model with terminal cover
Position-proportional model with terminal cover
Standard model with terminal cover
Position-proportional model with terminal cover
E5AK-T/E5EK-T
Part number
E5AK-TAA2-500 AC100-240
E5AK-TAA2-500 AC/DC24
E5AK-TPRR2-500 AC100-240
E5AK-TPRR2-500 AC/DC24
E5EK-TAA2-500 AC100-240
E5EK-TAA2-500 AC/DC24
E5EK-TPRR2-500 AC100-240
E5EK-TPRR2-500 AC/DC24

Advertisement

loading

Summary of Contents for Omron E5AK-T

  • Page 1 24 V AC/DC types also available Ordering Information When ordering, order control output boards and option boards separately. Example: for a relay control output, order the E53-R output board in addition to the standard Process Controller (E5AK-T/E5EK-T). Also specify the current transformer. PROCESS CONTROLLERS Item...
  • Page 2 Note: 1. The option board can be used either by the E5AK or E5EK. 2. The E5AK-T allows a maximum of three option boards to be mounted. Refer to the Operations Section for mounting combina- tions. The E5EK-T allows only one option board to be mounted.
  • Page 3 E5AK-T/E5EK-T E5AK-T/E5EK-T TEMPERATURE RANGES Platinum Resistance Thermometer Input JPt100 Pt100 (See Note.) °C Range --199.9° to 650.0° --199.9° to 650.0° °F --199.9° to 999.9° --199.9° to 999.9° Setting (°C/°F) (main setting and alarm) Note: Switch selectable. Thermocouple Input (see note) °C...
  • Page 4 4 to 20 mA, permissible load impedance: 600 Ω max., Transmission output resolution: approx. 2,600 steps Current transformer input Connect only Omron Current Transformer (E54-CT1 or E54-CT3) Additional functions Standard Manual output, heating/cooling control, SP limiter, loop burnout alarm, MV...
  • Page 5 Set time 0 to 99 hrs 59 min or 0 to 99 min 59 s Program capacity 8 patterns (E5AK-T) or 4 patterns (E5EK-T), 16 steps Programming method Time or ramp setting method ±0.2% (±500 ms) of the set value...
  • Page 6 E5AK-T/E5EK-T E5AK-T/E5EK-T Characteristics Table -- continued from previous page Emission Enclosure: EN55011 Group 1 class A Emission AC Mains: EN55011 Group 1 class A Immunity ESD: EN61000-4-2: 4 kV contact discharge (level 2) 8 kV air discharge (level 3) Immunity RF-interference:...
  • Page 7 E5AK-T/E5EK-T E5AK-T/E5EK-T Nomenclature E5AK-T Display 1 Pattern Number Displays the process value or Indicates the pattern number. parameter code. Program Status Indicators Display 2 The top indicator indicates the rising step, Displays the present SP, manip- the middle indicator indicates the constant...
  • Page 8 E5AK-T/E5EK-T E5AK-T/E5EK-T Operation Note: Before changing any switch settings, always turn OFF the power supply to the Process Controller SETTINGS Setting Up the Option Board 1. On a standard model, set up the output boards for control E5AK-T outputs 1 and 2 before mounting the Controller.
  • Page 9 Mounting 2. Insert the option board into the socket for option 1. The fol- 1. Insert the E5AK-T Controller into the panel’s mounting hole lowing diagram shows the relationship between the option at the position shown in the figure below.
  • Page 10 E5AK-T/E5EK-T E5AK-T/E5EK-T E53-COV0809, E53-COV08 Terminal Cover (Order Separately) Fasten the terminals covers as follows by using the snap pins. Note: Snap pins are provided with the terminal covers. E5AK-T E5EK-T Dimensions Unit: mm (inch) E5AK-T Panel Cutouts 13.5 (0.53) 96 x 96 (3.78 x 3.78) 100 (3.94)
  • Page 11 E5AK-T/E5EK-T E5AK-T/E5EK-T E5EK-T Panel Cutouts (2.36) (1.89) 100 (3.94) min. (4.72) (3.78) min. Note: 1. Recommended panel thickness is 1 to 8 mm. 2. Maintain the specified vertical and horizontal mounting space between each Unit. Units must not be closely mounted vertically or horizontally.
  • Page 12 E5AK-T/E5EK-T E5AK-T/E5EK-T Unit: mm (inch) E54-CT3 2.36 (0.09)dia. 30 (1.18) 12 dia. 9 (0.35) 40 (1.57) 40 (1.57) Two, M3 (depth: 4) 15 (0.59) 30 (1.18) Installation INSTALLATION SETTING UP THE OUTPUT BOARD Main Parts 1. Two rectangular holes are provided on the power board (right side of Controller).
  • Page 13 E5AK-T/E5EK-T E5AK-T/E5EK-T MOUNTING THE CONTROLLER 1. Insert the Controller into the panel’s mounting hole at the position shown in the figure below. 2. Push the adapter along the Controller body from the terminals up to the panel, and fasten temporarily.
  • Page 14 Tighten the terminal screws using a torque no greater than 0.78 N m, or 8 kgf cm max. Be careful not to tighten the terminal screws too tightly. Power Blocks for E5AK-T/EK-T The E5AK/E5EK has independent power supplies for each of the terminal blocks shown below. E5AK-T E5EK-T...
  • Page 15 E5AK-T/E5EK-T E5AK-T/E5EK-T E5AK-T WIRING In the following wiring diagrams, the left side of the terminal numbers indicate the inside of the Controller. Power Supply Input 100 to 240 VAC or AC/DC 24 V to terminal numbers 9 and 10 according to the specifications.
  • Page 16 CT input For details on CT inputs, refer to Appendix, About Current Transformer in the E5AK-T/E5EK-T User’s Manual (H83/H85) . For details on the potentiometer, refer to the Instruction Manual for the valve connected to the Controller. The variable resistance range is...
  • Page 17 E5AK-T/E5EK-T E5AK-T/E5EK-T Remote SP Input Connect the input (RSP) to be used as the remote SP to terminal numbers 21 and 22. Only 4 to 20 mA inputs can be connected. Connect the input as follows: 31 32 4 to 20 mA Event Input Connect event inputs 1 and 2 (EV1/2) to terminal numbers 18 to 20, and events 3 and 4 (EV3/4) to terminal numbers 24 to 26.
  • Page 18 Terminal numbers 18 to 20, 31 and 32 can be used only on Controllers with communications boards (E53-AK01/02/03). For details on wiring, refer to Chapter 6, Using the Communications Function in the E5AK-T/E5EK-T User Manuals (H83 and H85) . E5EK-T WIRING In the following wiring diagrams, the left side of the terminal numbers indicate the inside of the Controller.
  • Page 19 E5AK-T/E5EK-T E5AK-T/E5EK-T Control Output Terminal numbers 7 and 8 are for control output 1 (OUT1), and terminal numbers 5 and 6 are for control output 2 (OUT2). The following diagrams show the available output boards and their internal equalizing circuits.
  • Page 20 CT input For details on CT inputs, refer to Appendix, About Current Transformer in the E5AK-T/E5EK-T User’s Manual (H83/H85) . For details on the potentiometer, refer to the Instruction Manual for the valve connected to the Controller. The variable resistance range is 100 Ω...
  • Page 21 Resolution: Approx. 2600 Communications Terminal numbers 18 to 22 can be used only on controllers with communications boards (E53-AK01/02/03). For details on wiring, refer to Chapter 6, Using the Communications Function in the E5AK-T/E5EK-T User Manuals (H088-E3-1 and H089-E3-1) .
  • Page 22 E5AK-T/E5EK-T E5AK-T/E5EK-T AFTER TURNING POWER ON INPUT TYPE Determine the I/O specifications of the Process Controller in setup Set the code according to the following table. Default is mode. “2: K1 thermocouple.” Platinum Resistance Thermometer Power ON Input type In ut ty e...
  • Page 23 E5AK-T/E5EK-T E5AK-T/E5EK-T PARAMETER INITIALIZE STANDARD MODELS Parameter initialization sets all parameters to default values Control Auxiliary Assignment except for the input type, scaling upper limit, scaling lower limit, output output destination destination decimal point, and °C/°F selection parameters. Output function...
  • Page 24 E5AK-T/E5EK-T E5AK-T/E5EK-T ALARM MODE SELECTORS Alarm outputs are available if they are allocated as outputs. Factory setting is “2: Upper-limit alarm (deviation).” Alarm operation Alarm output Switch setting setting When X is positive When X is negative Upper- and lower-limit alarm (deviation)
  • Page 25 E5AK-T/E5EK-T E5AK-T/E5EK-T CLOSE IN ALARM/OPEN IN ALARM When the Controller is set to “close in alarm,” the status of the alarm output function is output as it is. When set to “open in alarm,” the status of the alarm output function is output inverted.
  • Page 26 PARAMETERS AND MENUS For more details on the functions of each part and display contents, refer to the E5AK-T/E5EK-T User Manuals . All functions selected with the Controller in setup or expansion mode or all optional functions of the Process Controller may not be displayed.
  • Page 27 E5AK-T/E5EK-T E5AK-T/E5EK-T PARAMETER OPERATION PROTECT MODE Refer to the E5AK-T and E5EK-T User Manuals (H83 and H85) RUN/RST for each parameter and the calibration mode in detail. Press twice Also refer to “Settings” in the Operation Section . for 1 s min.
  • Page 28 E5AK-T/E5EK-T E5AK-T/E5EK-T LEVEL 1 MODE AT Execute/Cancel Proportional Band Available if the Controller is in advanced PID control. Integral Time Available if the Controller is in advanced PID control. Derivative Time Available if the Controller is in advanced PID control.
  • Page 29 E5AK-T/E5EK-T E5AK-T/E5EK-T Input Shift LEVEL 2 MODE When temperature input is selected, scaling is not required. This is because input is treated as the “temperature” as it is Remote/Local matched to the input type. However, note that the upper- and Used for the communications function.
  • Page 30 PV Start (used for setting time) Transfer Output Type Set when the transfer output function is being used. Weight Width (available for E5AK-T or E5EK-T) Transfer Output Upper Limit Set when the transfer output function is being used. Alarm Valid During Ramping Transfer Output Lower Limit Set when the transfer output function is being used.
  • Page 31 E5AK-T/E5EK-T E5AK-T/E5EK-T PROGRAM MODE Pattern number Synchronized with the pattern number of level 0 mode. Step number Refer to the Changed to the ramp setting method. Operation Manual for the ramp setting method. Target value 0 Time setting method Step 0 target value...
  • Page 32 E5AK-T/E5EK-T E5AK-T/E5EK-T Number of patterns executed Alarm value 1 (displayed only if the alarm is allocated) Alarm value 2 (displayed only if the Time Signal alarm is allocated) Two types of time signal patterns can be set in each pattern.
  • Page 33 E5AK-T/E5EK-T E5AK-T/E5EK-T HOW TO USE THE ERROR DISPLAY When an error has occurred, the No.1 display alternately indicates error codes together with the current display item. This section describes how to check error codes on the display, and the actions that must be taken to remedy the problem.
  • Page 34 E5AK-T/E5EK-T E5AK-T/E5EK-T Display Range Over Meaning Though not an error, this is displayed when the process value exceeds the display range when the control range (setting range ±10%) is larger than the display range (--1999 to 9999). • When less than “--1999”...
  • Page 35 E5AK-T/E5EK-T E5AK-T/E5EK-T Precautions OPERATING ENVIRONMENT OPERATION • • Operate the Controller within the rated ambient operating The alarm outputs of a model with an alarm function may not temperature, ambient operating humidity, and storage tem- turn ON correctly when the model malfunctions. The use of perature ranges.
  • Page 36 E5AK-T/E5EK-T E5AK-T/E5EK-T Connection Example of Process Controller and SSR Digital Controller Load Voltage output Heater Power supply terminal INPUT LOAD for load (for driving SSR) Connectable Power SSR Process Controller with Voltage Output (12 VDC, 40 mA max.) E5CK-T Controller with...
  • Page 37 E5AK-T/E5EK-T E5AK-T/E5EK-T Omron Europe B.V. EMA-ISD, tel:+31 23 5681390, fax:+31 23 5681397, http://www.eu.omron.com/ema Cat. No. GCTC12 1/99 Specifications subject to change without notice. Printed in U.S.A.
