CHAPTER 5 PARAMETERS

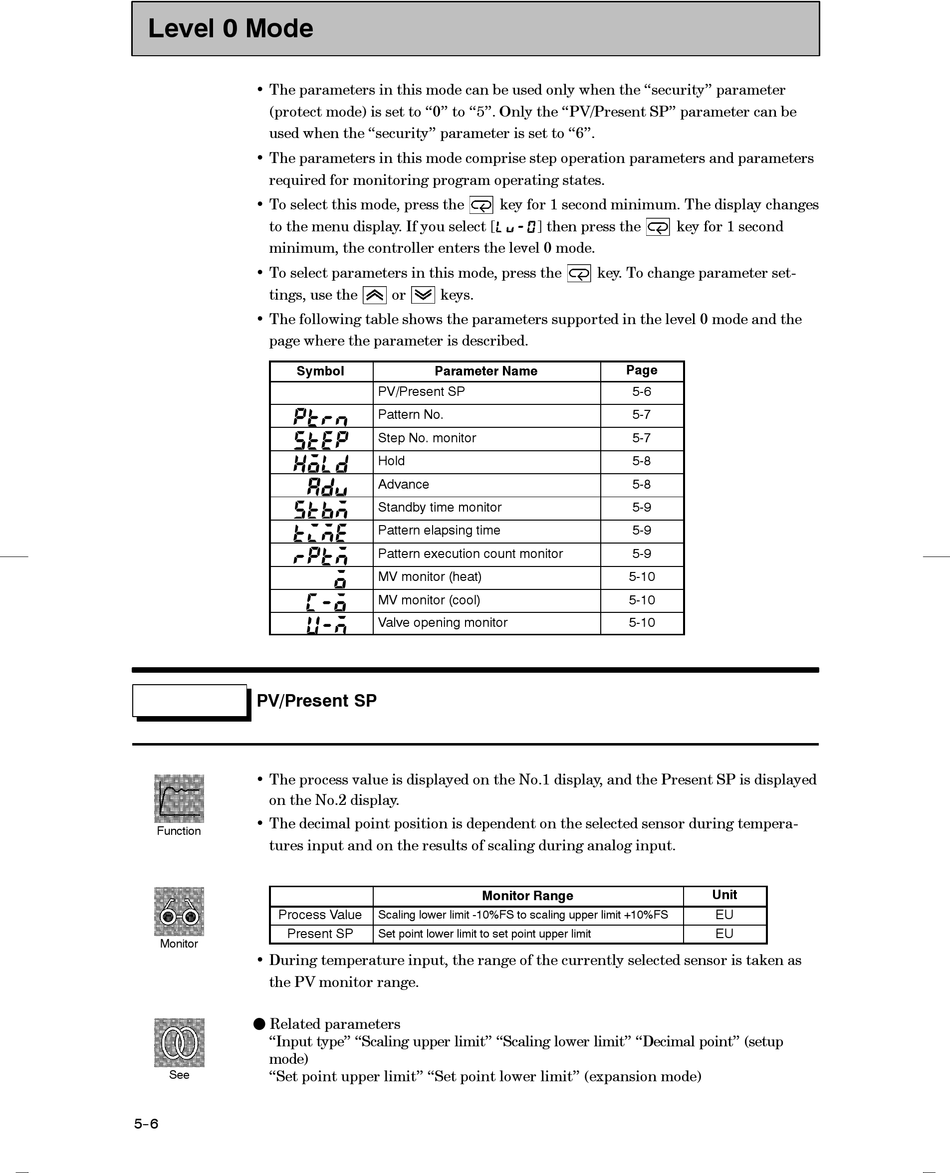

Level 0 Mode

• The parameters in this mode can be used only when the "security" parameter
(protect mode) is set to "0" to "5". Only the "PV/Present SP" parameter can be
used when the "security" parameter is set to "6".
• The parameters in this mode comprise step operation parameters and parameters
required for monitoring program operating states.
• To select this mode, press the
to the menu display. If you select [
minimum, the controller enters the level 0 mode.
• To select parameters in this mode, press the
tings, use the
• The following table shows the parameters supported in the level 0 mode and the
page where the parameter is described.
PV/Present SP
• The process value is displayed on the No.1 display, and the Present SP is displayed
on the No.2 display.
• The decimal point position is dependent on the selected sensor during tempera-
Function
tures input and on the results of scaling during analog input.
Process Value
Monitor
• During temperature input, the range of the currently selected sensor is taken as
the PV monitor range.
F Related parameters
"Input type" "Scaling upper limit" "Scaling lower limit" "Decimal point" (setup
mode)
"Set point upper limit" "Set point lower limit" (expansion mode)
See
5--6
or
Symbol
PV/Present SP
Pattern No.
Step No. monitor
Hold
Advance
Standby time monitor
Pattern elapsing time
Pattern execution count monitor
MV monitor (heat)
MV monitor (cool)
Valve opening monitor
Scaling lower limit -10%FS to scaling upper limit +10%FS
Present SP
Set point lower limit to set point upper limit
key for 1 second minimum. The display changes
] then press the
keys.
Parameter Name
Monitor Range
key for 1 second
key. To change parameter set-
Page
5-6
5-7
5-7
5-8
5-8
5-9
5-9
5-9
5-10
5-10
5-10
Unit
EU
EU
