Digital Controller
E5@K-T
The E5@K-T Programmable Type Digital
Controllers Expand the Variety of E5@K
Digital Controllers and are Available in Three
Sizes (1/4, 1/8, and 1/16 DIN).
1/4 DIN
E5@K-T Series
1/8 DIN
Contents
E5AK-T/E5EK-T ...........................................
E5CK-T.........................................................
E5CK-T
1/16 DIN
I-125
I-127
E5@K-T
®
I-123
Advertisement
Related Manuals for Omron E5 K-T
Summary of Contents for Omron E5 K-T

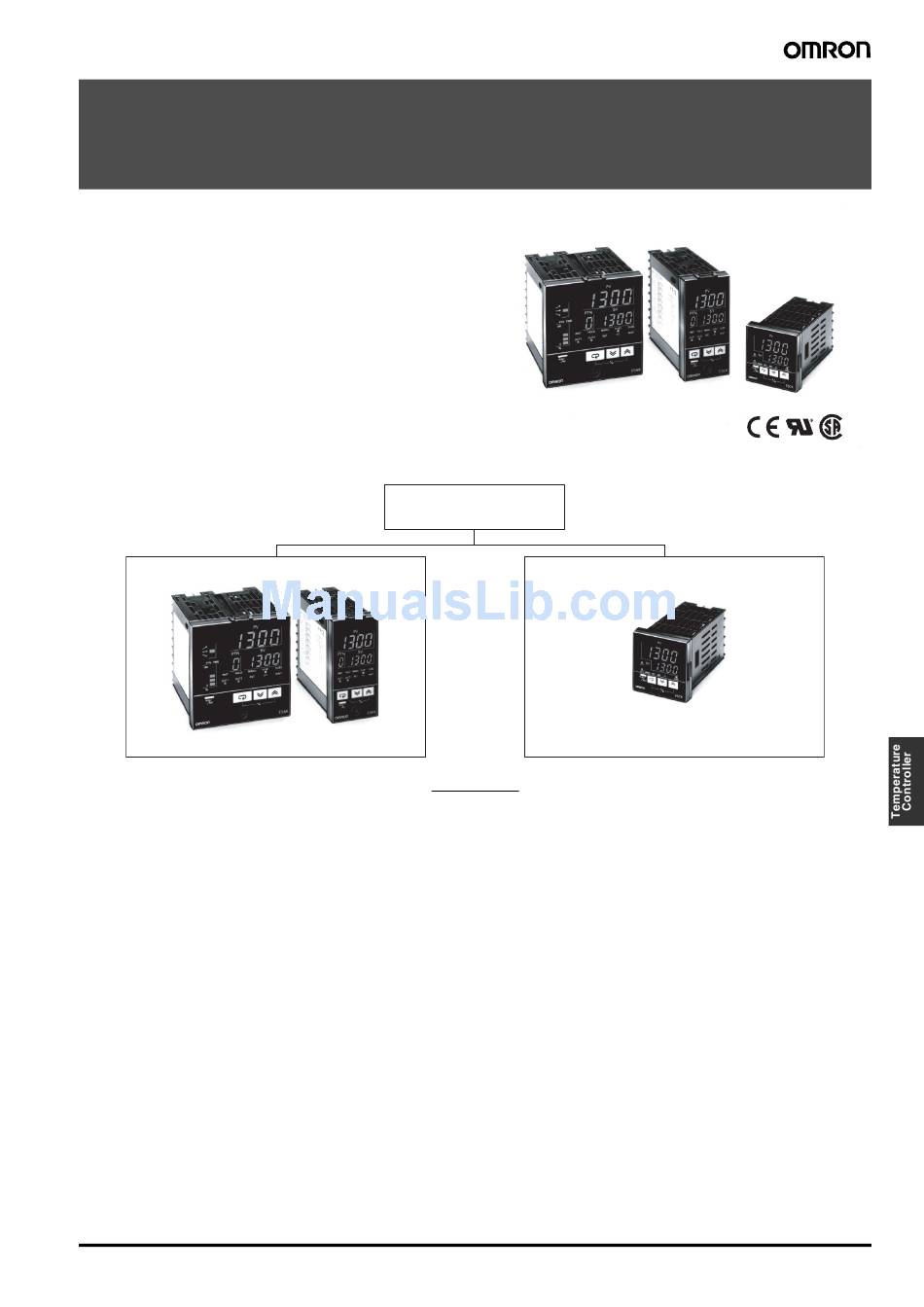

- Page 1 Digital Controller E5@K-T The E5@K-T Programmable Type Digital Controllers Expand the Variety of E5@K Digital Controllers and are Available in Three Sizes (1/4, 1/8, and 1/16 DIN). ® E5@K-T Series E5AK-T/E5EK-T E5CK-T 1/16 DIN 1/4 DIN 1/8 DIN Contents Digital Controllers E5AK-T/E5EK-T ...........
