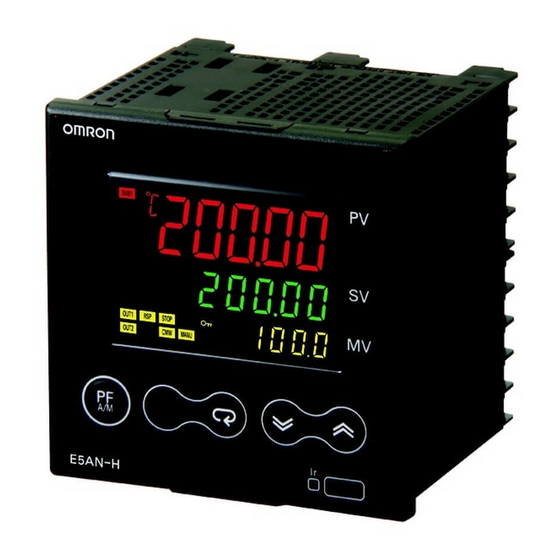

Omron E5AN-H Instruction Manual

E5AN-H
Digital Controller
EN
INSTRUCTION MANUAL
Thank you for purchasing the OMRON E5AN-H Digital Controller.
This manual describes the functions, performance,
and application methods needed for optimum use of
the product.
Please observe the following items when using the product.
• This product is designed for use by qualified personnel with a
knowledge of electrical systems.
• Before using the product, thoroughly read and understand this
manual to ensure correct use.
• Keep this manual in a safe location so that it is available for
reference whenever required.
OMRON Corporation
©All Rights Reserved
For detailed operating instructions, please refer to the E5CN-H/E5AN-H/E5EN-H
Digital Controllers User's Manual Advanced Type (Cat. No. H157).
Significance of WARNINGs and CAUTIONs
Safety Precautions
Key to Warning Symbols
Indicates a potentially hazardous situation which, if
not avoided, is likely to result in minor or moderate
injury or property damage. Read this manual
CAUTION
carefully before using the product.
AH1 1660639-6E
Wiring
Dimensions
Dimensions (mm)
79.2
6
78
2
Watertight
Terminal
Mounting
packing cover
bracket
* The internal mechanisms can be drawn out for maintenance without removing terminal wiring.
* Do not remove the terminal block. Doing so may result in failure or malfunction.
* A Setup Tool port is provided on the bottom of the product. Use this port to connect a personal computer to the
product when using the Setup Tool. E58-CIFQ1 USB-Serial Conversion Cable is required to connect the personal
computer to the product. (Do not use the product with the USB-Serial Conversion Cable left permanently
connected.)
Refer to the instruction manual provided with the USB-Serial Conversion Cable for details on connection methods.
Names of parts on front panel
• Level key
Use this key to change levels:
• Mode key
Press this key to change the contents
of the display.
Press this button for 1 s or longer
for reverse scroll.
• Press the key and the M key
together for at least 3 seconds to
switch to protect level .
• Function key/Auto/Manual key
Press this function key to operate
the function set with the PF Setting.
Operation menu
Input Type
Input Setting range
Input type Input Setting
0 -200.0 to 850.0(°C) / -300.0 to 1500.0 (°F)
Platinum Pt100 1 -199.9 to 500.0(°C)
/ -199.9 to 900.0 (°F)
resistance
2 0.0 to 100.0(°C) / 0.0 to 210.0 (°F)
thermometer
3 -199.9 to 500.0(°C) / -199.9 to 900.0 (°F)
JPt100
4 0.0 to 100.0(°C)
/ 0.0 to 210.0 (°F)
K 5 -200.0 to 1300.0(°C) /-300.0 to 2300.0 (°F)
6 -20.0 to 500.0(°C) / 0.0 to 900.0 (°F)
Thermocouple
-100.0 to 850.0(°C)
J 7 /-100.0 to 1500.0 (°F)
8 -20.0 to 400.0(°C) / 0.0 to 750.0 (°F)
9 -200.0 to 400.0(°C) /-300.0 to 700.0 (°F)
T
-199.9 to 400.0(°C)
10 /-199.9 to 700.0 (°F)
11
E -200.0 to 600.0(°C) /-300.0 to 1100.0 (°F)
12 -100.0 to 850.0(°C) /-100.0 to 1500.0 (°F)
L
13 -200.0 to 400.0(°C)
U /-300.0 to 700.0 (°F)
14
-199.9 to 400.0(°C) /-199.9 to 700.0 (°F)
15 -200.0 to 1300.0(°C) /-300.0 to 2300.0 (°F)
N
16 0.0 to 1700.0(°C)
R / 0.0 to 3000.0 (°F)
17
S 0.0 to 1700.0(°C) / 0.0 to 3000.0 (°F)
18 100.0 to 1800.0(°C) / 300.0 to 3200.0 (°F)
B
19
0.0 to 2300.0(°C) / 0.0 to 3200.0 (°F)
W
20
0.0 to 1300.0 (°C) / 0.0 to 2300.0 (°F)
PLII
21 -50.00 to 200.00(°C) / -50.00 to 200.00(°F)
K
22
-50.00 to 200.00(°C) / -50.00 to 200.00(°F)
J
23
-50.00 to 200.00(°C) / -50.00 to 200.00(°F)
T
Platinum
24
Pt100 -50.00 to 200.00(°C) / -50.00 to 200.00(°F)
resistance
thermometer
25
4 to 20mA One of the following ranges is used depending on scaling.
Current input
0 to 20mA 26
-19999 to 32400
1 to 5V 27 -1999.9 to 3240.0
Voltage input
0 to 5V -199.99 to 324.00
28
-19.999 to 32.400
0 to 10V 29
*The default is"5".
*s.err will be displayed when a platinum resistance thermometer is mistakenly connected while
input type is not set for it. To clear the s.err display, correct the wiring and cycle the power supply.
Alarms
Alarm output function
Setting Alarm type
Positive alarm value (X) Negative alarm value (X)
Output off
0 No alarm function
Deviation upper/lower limit
*1 1
X
ON
2
Deviation upper limit
OFF
SP
X
ON
3
Deviation lower limit
OFF
SP
L H
4
*1 Deviation upper/lower range ON
OFF
SP
L H
Deviation upper/lower limit ON
5
*1
standby sequence ON OFF
SP
X
Deviation upper limit
ON
6
standby sequence ON
OFF
SP
X
Deviation lower limit
ON
7
standby sequence ON
OFF
SP
X
ON
Absolute value upper limit
8
OFF
0
X
ON
9 Absolute value lower limit
OFF
0
X
Absolute value upper limit
ON
10
standby sequence ON
OFF
0
Absolute value lower limit X
ON
11
standby sequence ON
OFF
0
LBA (only for alarm 1)
12
13
PV change rate alarm
X
ON
RSP absolute value upper limit
14
OFF
0
X
ON
RSP absolute value lower limit
15
OFF
0
*1: Upper and lower limits can be set for parameters 1, 4 and 5 to provide for
different types of alarm. These are indicated by the letter "L" and "H".
• The default alarm type is "2"
Error display (troubleshooting)
When an error has occurred, the No.1 display shows the error code. Take
necessary measure according to the error code, referring the table below.
No.1 display Meaning Action
Check the setting of the Input Type parameter, check
Input error the input wiring, and check for broken or shorts in the
s.err
(S. Err)
*2 temperature sensor.
After the correction of A/D converter error, turn the
power OFF then back ON again. If the display
remains the same, the controller must be repaired.
A/D converter error
e333
If the display is restored to normal, then a
(E333)
*2
probable cause can be external noise affecting the
control system. Check for external noise.
Turn the power OFF then back ON again. If the
display remains the same, the controller must be
repaired. If the display is restored to normal, then
e111 Memory error
(E111)
a probable cause can be external noise affecting
the control system. Check for external noise.
If the input value exceeds the display limit ( - 19999 to 32400), though it is within the control
range, [[[[ will be displayed under −19999 and ]]]] above 32400. Under these conditions,
control output and alarm output will operate normally.
Refer to E5CN-H/E5AN-H/E5EN-H User's Manual Advanced Type (Cat. No. H157) for details of control range.
*2: Error shown only for "Process value / Set point". Not shown for other status.
Warning Symbols
CAUTION
Do not touch the terminals while power is being supplied.
Doing so may occasionally result in minor injury due to electric shock.
Do not allow pieces of metal, wire clippings, or fine metallic shavings or filings from installation to
enter the product. Doing so may occasionally result in electric shock, fire, or malfunction.
Do not use the product where subject to flammable or explosive gas. Otherwise, minor injury from
explosion may occasionally occur.
Never disassemble, modify, or repair the product or touch any of the internal parts. Minor electric
shock, fire, or malfunction may occasionally occur.
CAUTION - Risk of Fire and Electric Shock
a) This product is UL listed as Open Type Process Control Equipment. It must be mounted in an enclosure that
does not allow fire to escape externally.
b) More than one disconnect switch may be required to de-energize the equipment before servicing.
c) Signal inputs are SELV, limited energy.
d) Caution: To reduce the risk of fire or electric shock, do not interconnect the outputs of different Class 2 circuits.
If the output relays are used past their life expectancy, contact fusing or burning may occasionally occur. Always
consider the application conditions and use the output relays within their rated load and electrical life expectancy.
The life expectancy of output relays varies considerably with the output load and switching conditions.
Tighten the terminal screws to between 0.74 and 0.90 N•m. Loose screws may occasionally result in fire.
Set the parameters of the product so that they are suitable for the system being controlled. If they are not suitable,
unexpected operation may occasionally result in property damage or accidents.
A malfunction in the Digital Controller may occasionally make control operations impossible or prevent
alarm outputs, resulting in property damage. To maintain safety in the event of malfunction of the Digital
Controller, take appropriate safety measures, such as installing a monitoring device on a separate line.
Suitability for Use
OMRON shall not be responsible for conformity with any standards, codes, or regulations that
apply to the combination of the products in the customer's application or use of the product.
Take all necessary steps to determine the suitability of the product for the systems, machines,
and equipment with which it will be used.
Know and observe all prohibitions of use applicable to this product.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE
OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN
DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY
RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT
OR SYSTEM.
See also Product catalog for Warranty and Limitation of Liability.
Installation
In the pack:
Individual mounting (mm)
• Main unit
• Watertight packing
+ 0.8
92
• Two mounting brackets 0
• Instruction manual
• Terminal cover
(Provided only for models
with "-500" suffix.)
Solderless terminal size: M3.5
Terminal cover:
(Model: E53-COV16)
USB-Serial Conversion Cable
(Sold Separately)(E58-CIFQ1)
• No.1 display
Operation indicators
Process value or set data symbol
• No.2 display
Set point, set data read-out value or changed • SUB1: Auxiliary output 1 indicator
input value
Lit when the function assigned to
• No. 3 display
auxiliary output 1 is ON.
MV, Soak Time Remain, and Bank No. .
• SUB2: Auxiliary output 2 indicator
• Up and Down keys
Lit when the function assigned to
Use the keys to change the values displayed on
auxiliary output 2 is ON.
the No.2 display.
Each press of U key increments or advances the • SUB3: Auxiliary output 3 indicator
values displayed on the No.2 display.
Lit when the function assigned to
D
Each press of key decrements or returns the
auxiliary output 3 is ON.
values displayed on the No.2 display.
• HA: Heater burnout alarm/Heater short
alarm/Heater overcurrent alarm indicator
Lit when a heater burnout alarm, heater
short alarm, or heater overcurrent alarm
has occurred.
Initial Setting Level
Operation stopped.
(Control/alarm are both stopped.)
in-t
*3
Input Type
5
in-h
Scaling Upper Limit
*6
(only when setting analog input)
100
in-l
Scaling Lower Limit
*6
(only when setting analog input)
0
dp
Decimal Point
*6
(only when setting analog input)
0
c
°C=
Temperature Unit
d-u
f
°F=
*6
c
(C stands for Celsius, F for Fahrenheit)
sl-h
SP Upper Limit
1300.0
sl-l
:
SP Lower Limit
-200.0
cntl PID ON/OFF
onof
In ON/OFF control =
pid pid
In 2-PID control =
Standard or Heating/Cooling
s-hc stnd
Standard control =
h-c
Heating and cooling control =
stnd
(Select standard control or heating
and cooling control as required)
st
ST (Self-tuning)
*6
on
ST ON =
on
off
ST OFF =
ptrn Program Pattern
off
Vary with "L", "H" values
cp
*6 Control Period (Heating)
X
20
ON (Unit: Seconds)
OFF
SP
X
c-cp
ON Control Period (Cooling)
*6
OFF
(Unit: Seconds)
SP 20
Vary with "L", "H" values Direct/Reverse Operation
orev
or-r
In Reverse Operation (Heating) =
or-r or-d
In Direct Operation (Cooling) =
Vary with "L", "H" values
alt1
X
ON
*6 Alarm 1 Type: Specified models only
OFF
2
SP
X
ON
OFF alh1
SP
*6
Alarm 1 Hysteresis
X 0.2
ON
OFF
0
alt2
X
*6
ON Alarm 2 Type: Specified models only
2
OFF
0
X
ON
alh2
OFF
*6
0 Alarm 2 Hysteresis
0.2
X
ON
OFF
0
tr-t
*6
Transfer Output Type
off
tr-h
*6
Transfer Output Upper Limit
100.0
X
ON
OFF
0
tr-l
X *6
Transfer Output Lower Limit
ON
0.0
OFF
0
sqr
Extraction of Square Root Enable
*6
(Only when analog input is set)
off
amov
Move to Advanced
*6
Function Setting Level
0
Status at error
Control
Alarm
output
Operates
Initial setting level enables users to specify their
as above the
OFF preferred operating conditions (input type, alarm type,
upper limit.
control method, etc.)
OFF OFF
* 3: Refer to the adjoining tables for details of input types and alarm types.
* 4: Applicable only to models with alarm functions.
* 5: Operation is stopped when moved to the initial setting level.
(control/alarm are both stopped.)
OFF OFF
* 6: The grayed-out setting items may not be displayed according to the models
and setting.
* 7: This function is supported only by models with heater burnout detection.
Be sure to observe the following precautions to prevent operation failure, malfunction, or adverse affects on the
performance and functions of the product. Not doing so may occasionally result in unexpected events.
Use the product within specifications.
(1) The product is designed for indoor use only. Do not use the product outdoors. Do not use or store the product in
any of the following locations.
• Places directly subject to heat radiated from heating equipment.
• Places subject to splashing liquid or oil atmosphere.
• Places subject to direct sunlight.
• Places subject to dust or corrosive gas (in particular, sulfide gas and ammonia gas).
• Places subject to intense temperature change.
• Places subject to icing and condensation.
• Places subject to vibration and large shocks.
(2) Use/store within the rated temperature and humidity ranges.
Provide forced-cooling if required.
(3) To allow heat to escape, do not block the area around the product.
Do not block the ventilation holes on the product.
(4) Be sure to wire properly with correct polarity of terminals.
(5) Use specified size (M3.5, width 7.2 mm or less) crimped terminals for wiring. To connect bare wires to the
terminal block, use copper braided or solid wires with a gage of AWG24 to AWG14 (equal to a cross-sectional
area of 0.205 to 2.081 mm
crimped terminals can be inserted into a single terminal.
(6) Do not wire the terminals which are not used.
(7) Allow as much space as possible between the controller and devices that generate a powerful high-frequency or
surge.
Separate the high-voltage or large-current power lines from other lines, and avoid parallel or common wiring
with the power lines when you are wiring to the terminals.
(8) Use this product within the rated load and power supply.
(9) Make sure that the rated voltage is attained within two seconds of turning ON the power using a switch or relay
contact. If the voltage is applied gradually, the power may not be reset or output malfunctions may occur.
(10) Make sure that the Digital Controller has 30 minutes or more to warm up after turning ON the power before
starting actual control operations to ensure the correct temperature display.
(11) When executing self-tuning, turn the load and the unit ON simultaneously, or turn the load ON before you turn
the controller ON.
(12) A switch or circuit breaker should be provided close to this unit.
The switch or circuit breaker should be within easy reach of the operator, and must be marked as a
disconnecting means for this unit.
(13) Always turn OFF the power supply before pulling out the interior of the product, and never touch nor apply
shock to the terminals or electronic components. When inserting the interior of the product, do not allow the
electronic components to touch the case.
(14) Do not use paint thinner or similar chemical to clean with. Use standard grade alcohol.
(15) Design system (control panel, etc) considering the 2 second of delay that the controller's output to be set after
power ON.
(16) The output may turn OFF when shifting to certain levels. Take this into consideration when performing control.
(17) The number of non-volatile memory write operations is limited. Therefore, use RAM write mode when frequently
overwriting data during communications or other operations.
(18) Refer to the instruction sheet for installing Option unit (E53-AKB/E53-EN01/E53-EN03).
(19) Read the information provided in the catalog and manual and be sure you understand it before attaching a
Control Output Unit.
(20) When disassembling the Temperature Controller for disposal, use suitable tools.
(21) Do not use the Temperature Controller if the front sheet is peeling or torn.
Mounting the output unit
OUT1
{OUT}
OUT2
E53-RN
When waterproofing is
E53-QN
required, fit watertight
E53-Q3
packing on the backside of
E53-Q4
front panel.
E53-C3N
E53-C3DN
E53-V34N
E53-V35N
Clamps
Output placement is not required on the E5AN-HPRR@@
• Insert the main unit through the mounting hole in the panel (1-8 mm
thickness). Insert the mounting brackets (supplied) into the fixing slots
located on the top and bottom of the rear case.
• Alternately tighten the top and bottom screws on the mounting fixtures
applying equal pressure a little at a time until the rachet rotates freely.
• When more than one machine is installed, make sure that the ambient
temperature does not exceed the specified limit.
• OUT1: Control output 1 indicator
Lit when control output 1 is ON and not
lit when it's OFF.
For a current output, lit except for a 0% output.
• OUT2: Control output 2 indicator
Lit when control output 2 is ON and not
lit when it's OFF.
For a current output, lit except for a 0% output.
• STOP: control stop indicator
Lit when event input or "Run/Stop" is
stopped during operation.
During control stop, functions other than
control output are valid.
• CMW: communications writing enable/
disable indicator
Lit when communications writing is
"enabled" and is out when it is "disabled".
• RSP:Lit when Remote SP Mode is set.
The setting data for the E5AN-HAA2HBF is shown here as an example.
Check the wiring before turning ON the power supply.
POWER ON
*5
Operation Level
PV/SP
25.0
s.err is displayed when
connected sensor is
0.0
25.0
different from input type.
0.0
bank
*6
Bank No.
0
Hold down
rsp
*6
for at least Remote SP Monitor
0.0
3 seconds
(No.1display flushes,
sp-m
Set Point During
then the control stops.) *6
SP Ramp
0.0
ct1 Heater Current 1
Hold down
*6 Value Monitor
for at least
0.0
(Unit: A)
1 second
Leakage Current 1
lcr1
*6
Value Monitor
0.0
(Unit: A)
prst
*6 Program Start
rset
sktr
*6
Soak Time Remain
0
RUN/STOP
r-s
*6
When control start
run
When control stop
al-1
*6
Alarm Value 1
0.0
al1h
*6
Alarm Value Upper Limit 1
0.0
al1l
*6
Alarm Value Lower Limit 1
0.0
al-2
*6
Alarm Value 2
0.0
al2h
*6
Advanced Function Alarm Value Upper Limit 2
0.0
Setting Level
*3
*4
al2l
*6
Alarm Value Lower Limit 2
init
0.0
Hold down
Parameter
off
for at least Initialization
1 second
Operation level should normally
be used during operations.
*3
*4
Moving to the next level is
possible when the
and M keys down
Hold
password(-169) is input.
for at least 1 seconds
Protect Level
oapt
Operation / Adjustment
Protect
0
icpt
Initial Setting /
AT (auto-tuning)
Communication Protect
0
• AT in Adjustment level
Designate "at-2: 100% AT execute" or
wtpt
at-1: 40%
Setting Change Protect
AT execute" to execute AT and
"at-1 : 40%
off
"off : AT cancel" to cancel AT.
"at" flashes pfpt
"100%AT Execute"
PF Key Protect
off
at at
U
prlp
off at-2
D Password to Move
"AT cancel" 0 to Protect Level
Also when AT execution ends, the
off ".
display automatically returns to "
Restricts which settings can be displayed
or changed, and restricts change by key
operation.
Other functions
For details about advanced function
setting level, bank setting level,pid
setting level,monitor/setting item
level, or manual control level, refer to
E5CN-H/E5AN-H/E5EN-H Digital Con-
trollers User's Manual Advanced Type
(Cat. No. H157).
For communications details, refer to
E5CN-H/E5AN-H/E5EN-H Digital
Controllers Communications Manual
Advanced Type (Cat. No. H159).
Precautions for Safe Use
2 ). (The stripping length is 5 to 6 mm.). Up to two wires of same size and type, or two
Connections
(The applicability of the electric terminals varies with the type of machine.)
• 100 to 240 VAC
Event Inputs
• 24 VAC/VDC (no polarity)
1 21 11
Control output 1, 2
Input power supply
Relay output EV2
2 22 12
250 VAC, 5A
EV1
(resistive load)
+
3 23 13
SSR output
Control output 1 CT2
75-250 VAC, 1A Potentiometer
(resistive load) 4 24 14
-
O
CT1
Control Output Unit +
5 25 15
Control output 1, 2
W
Control output 2
CT2
6 26 16
-
C
DO NOT
DO NOT
7 27 17
USE USE
Auxiliary output Auxiliary output 2
A
DO NOT
1, 2, 3
8 28 18
USE
Relay outputs
- B
9 29 19
250 VAC, 3 A
Auxiliary output 1
(resistive load)
B
10 30 20
+
The E5@N-H is set for a K thermocouple (input type of 5) by default. If a different sensor is
used, an input error (s.err) will occur. Check the setting of the Input Type parameter.
• The last character of the lot number "R" indicates that reinforced insulation is provided between input power supply, relay outputs, and between other
terminals.
• °C / °F : temperature unit
The temperature unit is displayed when
the displayed value is a temperature.
When this parameter is set to "°C",
"C" is displayed, and when set to
"°F", " F " is displayed.
This flashes while ST (Self-Tuning) is
activated.
• : Protection indicator
Lit when Setting Change Protect is ON
(disables the Up and Down Keys).
• MANU: Manual output indicator
Lit when the Auto/Manual Mode is set
to Manual Mode.
Adjustment Level
*6
(The No. 3 display
has been omitted.)
*6
Press
*6
(less than
1 second)
*6
●
*6
Bank Setting Level
*7
d.bnk
Display Bank
*6
*7
Selection
0
Press
(less than
*6
1 second)
Press
(less than
*6
1 second)
●
PID Setting Level
run
= *6
stop
=
d.pid
Display PID
1
Selection
*4
*6
Press
*6
(less than
*4
1 second)
*6
*4
*4
Protection function
Protection function, to prevent unwanted settings, restricts the setting items to be used
or designates if operation of the key is valid or invalid.
Operation / Adjustment protection
*4
The following table shows the relationship between settings and protect limits related to
Operation level and Adjustment level.
*4
Level
Process value
Operation level PV/SP
Others
Adjustment level
and M keys down
Hold
Initial setting/Communications protection
for at least 3 seconds
This protect level restricts movement to the initial setting level,
communications setting level and advanced function setting level.
Initial setting
Set value
level
0
1
×
2
Setting change protection
Setting changes by key operation are restricted.
OFF "off": Setting can be changed by key operation
ON "on" : Setting cannot be changed by key operation ("
(Protect level settings can all be changed.)
PF key protection
PF Key operation can be enabled or disabled.
OFF "off": PF Key enabled.
ON "on" : PF Key disabled.
OMRON EUROPE B.V.
Wegalaan 67-69, NL-2132 JD Hoofddorp The Netherlands
Phone 31-2356-81-300
FAX 31-2356-81-388
OMRON ELECTRONICS LLC
One Commerce Drive Schaumburg, IL 60173-5302 U.S.A
Phone 1-847-843-7900
FAX 1-847-843-7787
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road # 05-05/08 (Lobby 2),
Alexandra Technopark, Singapore 119967
Phone 65-6835-3011
FAX 65-6835-2711
OMRON Corporation
Shiokoji Horikawa, Shimogyo-ku, Kyoto 600-8530 JAPAN
Specifications
Power supply voltage 100 to 240 VAC, 50/60 Hz or
24 VAC, 50/60 Hz /
24VDC
Operating voltage range 85 to 110% of the rated voltage
Power consumption Approx. 12 VA (100 to 240 VAC)
Approx. 8.5 VA (24 VAC)/5.5 W (24 VDC)
Indication accuracy Thermocouple:
(Ambient temperature: 23°C) (±0.1 % of indication value or ±1°C,
whichever is greater) ±1 digit max.
Platinum resistance thermometer:
(±0.1 % of indication value or ±0.5°C,
whichever is greater) ±1 digit max.
Analog input: ±0.1 % FS ±1 digit max.
Event input Output current: approx. 7 mA per contact.
ON:1 k Ω max., OFF: 100 k Ω min.
Contact input
No-contact input ON: residual voltage 1.5 V max.,
OFF: leakage current 0.1 mA max.
Control output 1,2 Relay output: SPST-NO,
250 VAC, 5 A (resistive load)
Electrical life of relay: 100,000 operations
SSR output 75-250 VAC, 1A (resistive load)
Control Output Unit
Control method ON/OFF or 2-PID control
Auxiliary outputs Relay outputs: SPST-NO,250 VAC, 3 A
(resistive load),
Electrical life of relay: 100,000 operations
Ambient temperature –10 to 55°C
(Avoid freezing or condensation)
Ambient humidity RH25 to 85%
Storage temperature –25 to 65°C
(Avoid freezing or condensation)
Altitude Max. 2,000 m
Recommended fuse T2A, 250 VAC, time-lag,
low-breaking capacity
Weight Approx. 310 g (main unit only)
Degree of protection Front panel: IP66
Rear case: IP20, Terminal section: IP00
Installation environment Installation category II, pollution
degree 2 (as per IEC61010-1)
Memory protection Non-volatile memory
(Number of write operations: 1,000,000)
Input Position proportional potentiometer input,
Remote SP input
4 to 20 mA DC, Load: 600 Ω max.
Transfer output
Communications
RS-232C RS-422 RS-485
SD RDB B(+)
11 11 11
RD RDA A(-)
12 12 12
SG SG DO NOT USE
13 13 13
21
DO NOT USE SDB B(+)
21 21 21
Auxiliary
22
DO NOT USE SDA A(-)
output 3 22 22 22
14
23
EV3
15 24
EV4
25
16
+
DO NOT
DO NOT 26
USE A heater burnout alarm, Heater Short USE
+
+ alarm, heater overcurrent alarm, or 27
DO NOT
Transfer output
USE input alarm is output to the output to 4-20mA DC
V mA
(Load: 600 Ω
28 max.)
which the alarm 1 function is assigned. -
-
-
+
29
DO NOT DO NOT
4-20 mA DC
Remote SP input
USE USE
30
-
Conformance to EN/IEC Standards
This is a class A product.
In residential areas it may cause radio
interference, in which case the user may
be required to take adequate measures
to reduce interference.
Conformance to Safety Standards
Reinforced insulation is
provided between input power
supply, relay outputs, and
between other terminals.
Only the value set to the "ins: Temperature Input Shift" parameter is
applied to the entire temperature input range. When the process value is
200 °C, the process value is treated as 201.2 °C after input shift if the
input shift value is set to 1.2 °C.
The process value is treated as 198.8 °C after input shift if the input shift
value is set to –1.2 °C.
l.adj d
*6
Derivative Time
Adjustment Level
40.0 (Unit: secs)
AT Execute/Cancel c-sc
at
at-2 Cooling Coefficient
*6
100%AT Execute
1.00
off
at-1
40%AT Execute
c-db
spmd
Dead Band
*6
SP Mode
0.0
lsp
Heater Current 1 of-r
ct1
Manual Reset Value
*6
Value Monitor
(Unit: %)
50.0
0.0
(Unit: A) *7
Heater Burnout
hys
hb1
Hysteresis
*6
Detection 1
(Heating)
1.0
0.0
(Unit: A) *7
chys
oc1 Heater Overcurrent
Hysteresis
*6
Detection 1
1.0 (Cooling)
50.0
*7
(Unit: A)
Leakage Current 1 soak
lcr1
Value Monitor *6 Soak Time
1
0.0
*7
(Unit: A)
hs1 wt-b
HS Alarm 1
*6 Wait Band
*7
(Unit: A)
50.0 off
ins sprt
Temperature Input Shift
*6 SP Ramp Set Value
(Unit:°C or°F)
0.00 off
Upper Limit Temperature
insh
ol-h
Input Shift Value
MV Upper Limit
*6
0.00 when 2 point input shift
105.0
is selected
Lower Limit Temperature
insl ol-l
Input Shift Value
*6 MV Lower Limit
when 2 point input shift
0.00 -5.0
is selected
p
orl
*6
Proportional Band MV Change Rate Limit
8.0 0.0
i sqrp
Extraction of Square
Integral Time
*6
Root Low-cut Point
(Unit: secs)
233.0 0.0
Adjustment level is for entering set
values and shift values for control.
: Can be displayed and changed
Set value
: Can be displayed
0 1 2 3
× : Display or shifting to another
level is not possible.
× ×
× × × Default setting : 0
: Change to
Communications Advanced function
other levels
setting level setting level
possible
× : Change to
other levels
×
not possible
×
×
Default setting : 0
" will light.)
