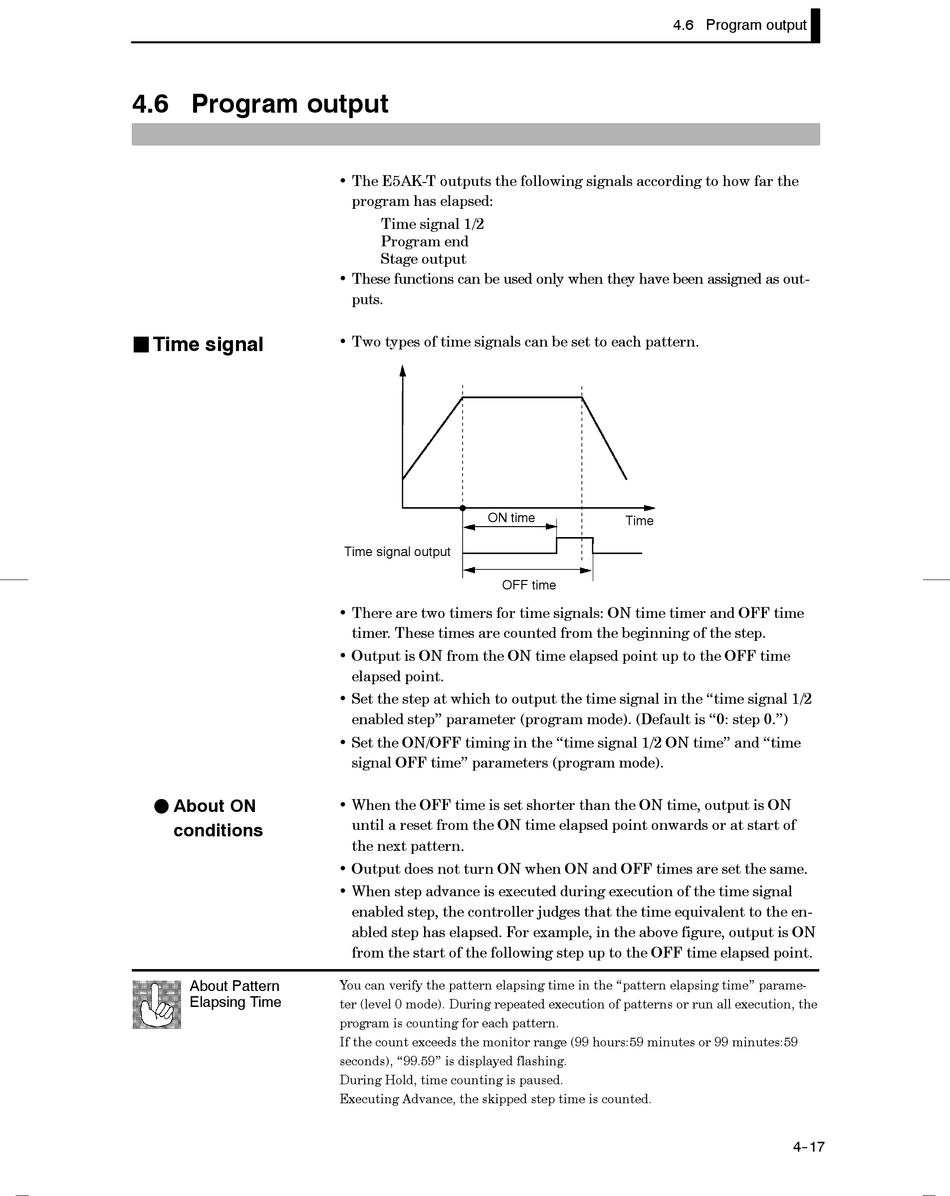

4.6 Program output

J Time signal
F About ON
conditions
About Pattern
Elapsing Time
• The E5AK-T outputs the following signals according to how far the
program has elapsed:

Time signal 1/2

Program end
Stage output
• These functions can be used only when they have been assigned as out-
puts.
• Two types of time signals can be set to each pattern.
ON time
Time signal output
• There are two timers for time signals: ON time timer and OFF time
timer. These times are counted from the beginning of the step.
• Output is ON from the ON time elapsed point up to the OFF time
elapsed point.
• Set the step at which to output the time signal in the "time signal 1/2
enabled step" parameter (program mode). (Default is "0: step 0.")
• Set the ON/OFF timing in the "time signal 1/2 ON time" and "time
signal OFF time" parameters (program mode).
• When the OFF time is set shorter than the ON time, output is ON
until a reset from the ON time elapsed point onwards or at start of
the next pattern.
• Output does not turn ON when ON and OFF times are set the same.
• When step advance is executed during execution of the time signal
enabled step, the controller judges that the time equivalent to the en-
abled step has elapsed. For example, in the above figure, output is ON
from the start of the following step up to the OFF time elapsed point.
You can verify the pattern elapsing time in the "pattern elapsing time" parame-
ter (level 0 mode). During repeated execution of patterns or run all execution, the
program is counting for each pattern.
If the count exceeds the monitor range (99 hours:59 minutes or 99 minutes:59
seconds), "99.59" is displayed flashing.
During Hold, time counting is paused.
Executing Advance, the skipped step time is counted.
Time
OFF time

4.6 Program output

4--17
