CHAPTER 5 PARAMETERS

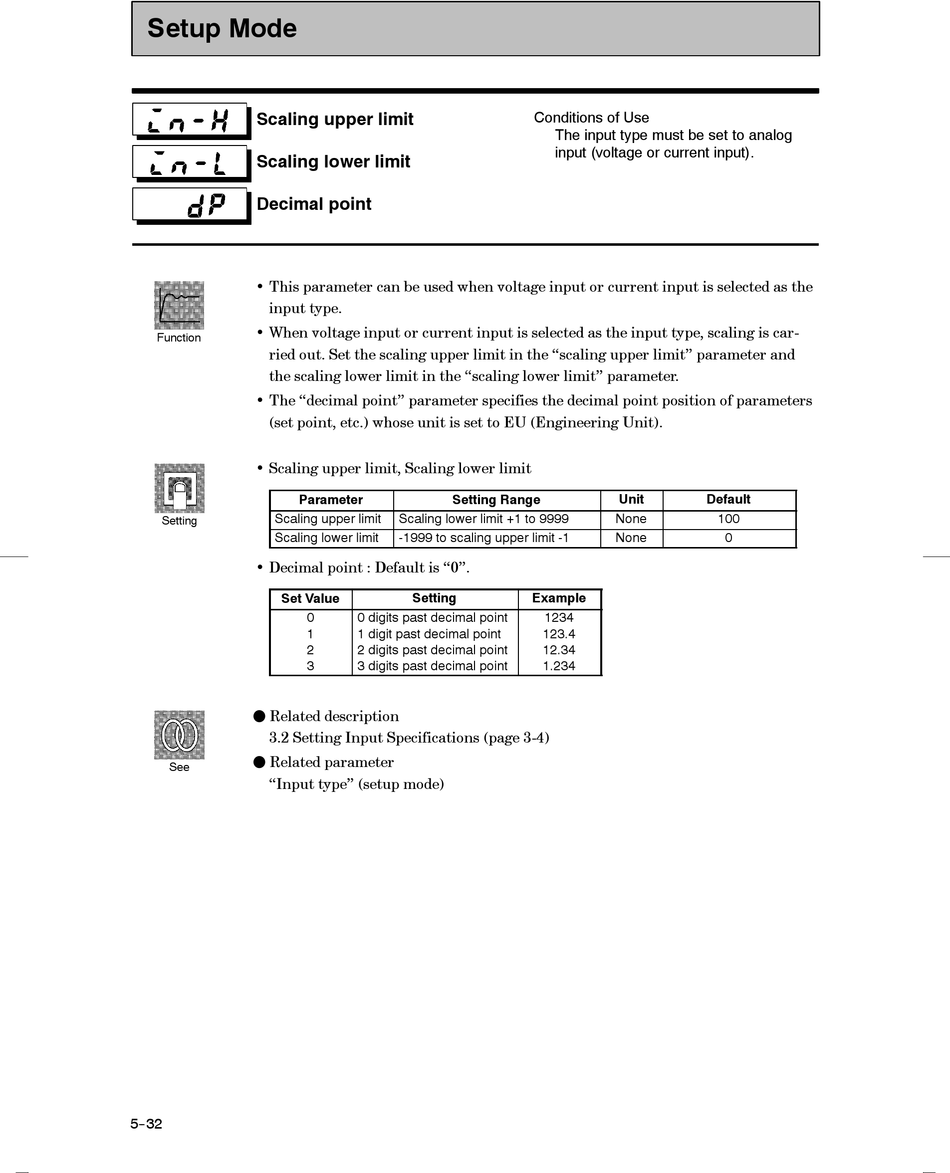

Setup Mode
Scaling upper limit
Scaling lower limit
Decimal point
• This parameter can be used when voltage input or current input is selected as the
input type.
• When voltage input or current input is selected as the input type, scaling is car-
Function
ried out. Set the scaling upper limit in the "scaling upper limit" parameter and
the scaling lower limit in the "scaling lower limit" parameter.
• The "decimal point" parameter specifies the decimal point position of parameters
(set point, etc.) whose unit is set to EU (Engineering Unit).
• Scaling upper limit, Scaling lower limit
Scaling upper limit
Setting
Scaling lower limit
• Decimal point : Default is "0".
F Related description
3.2 Setting Input Specifications (page 3-4)
F Related parameter
See
"Input type" (setup mode)
5--32
Parameter
Scaling lower limit +1 to 9999
-1999 to scaling upper limit -1
Setting
Set Value
0 0 digits past decimal point
1 1 digit past decimal point
2 2 digits past decimal point
3 3 digits past decimal point
Conditions of Use
The input type must be set to analog
input (voltage or current input).
Setting Range
Example
1234
123.4
12.34
1.234
Unit Default
None 100
None 0
