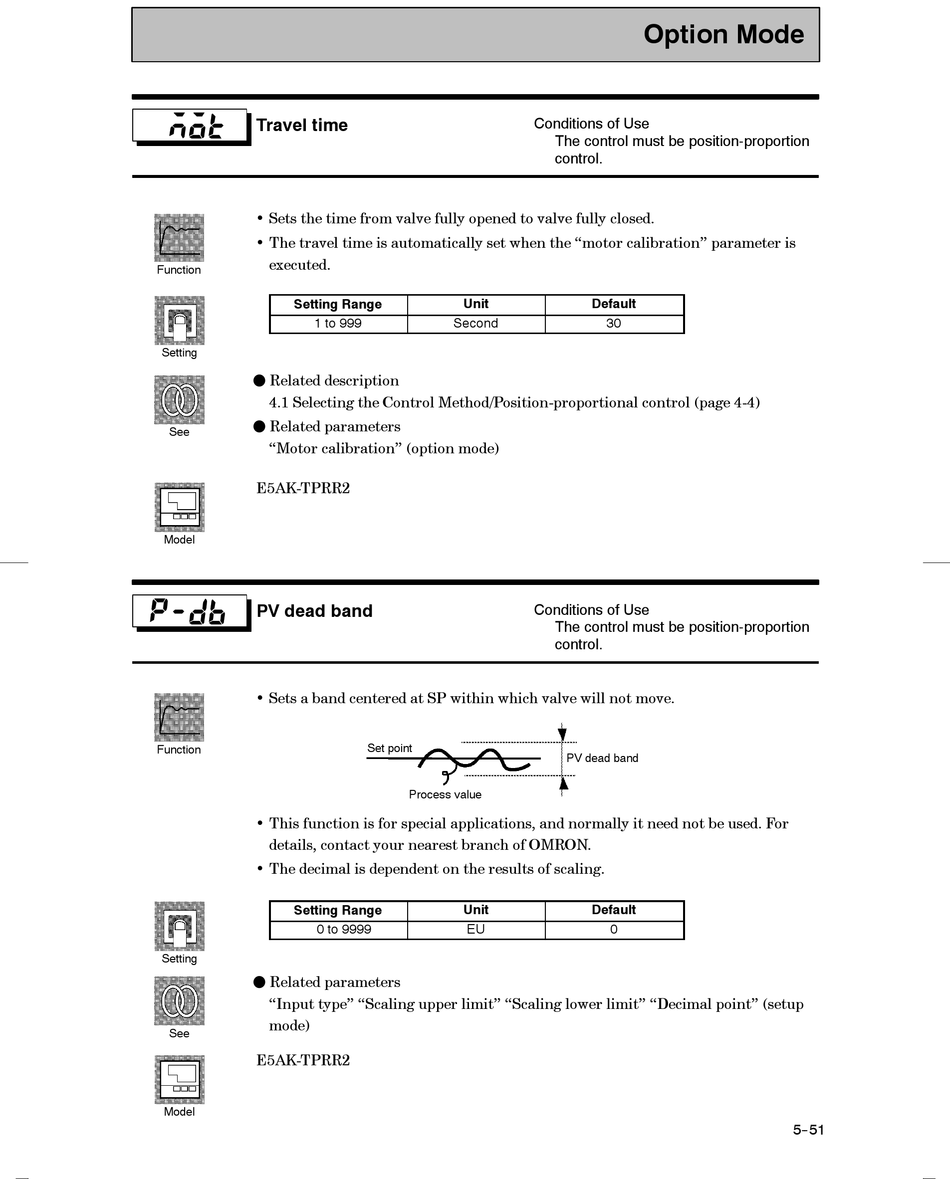

Travel time
• Sets the time from valve fully opened to valve fully closed.
• The travel time is automatically set when the "motor calibration" parameter is
executed.
Function
Setting Range
Setting
F Related description
4.1 Selecting the Control Method/Position-proportional control (page 4-4)
F Related parameters
See
"Motor calibration" (option mode)
E5AK-TPRR2
Model
PV dead band
• Sets a band centered at SP within which valve will not move.
Function
• This function is for special applications, and normally it need not be used. For
details, contact your nearest branch of OMRON.
• The decimal is dependent on the results of scaling.
Setting Range
Setting
F Related parameters
"Input type" "Scaling upper limit" "Scaling lower limit" "Decimal point" (setup
mode)
See
E5AK-TPRR2
Model
1 to 999 Second
Set point
Process value
0 to 9999
Conditions of Use
The control must be position-proportion
control.
Unit Default
30
Conditions of Use
The control must be position-proportion
control.
PV dead band
Unit Default
EU
Option Mode
0
5--51
