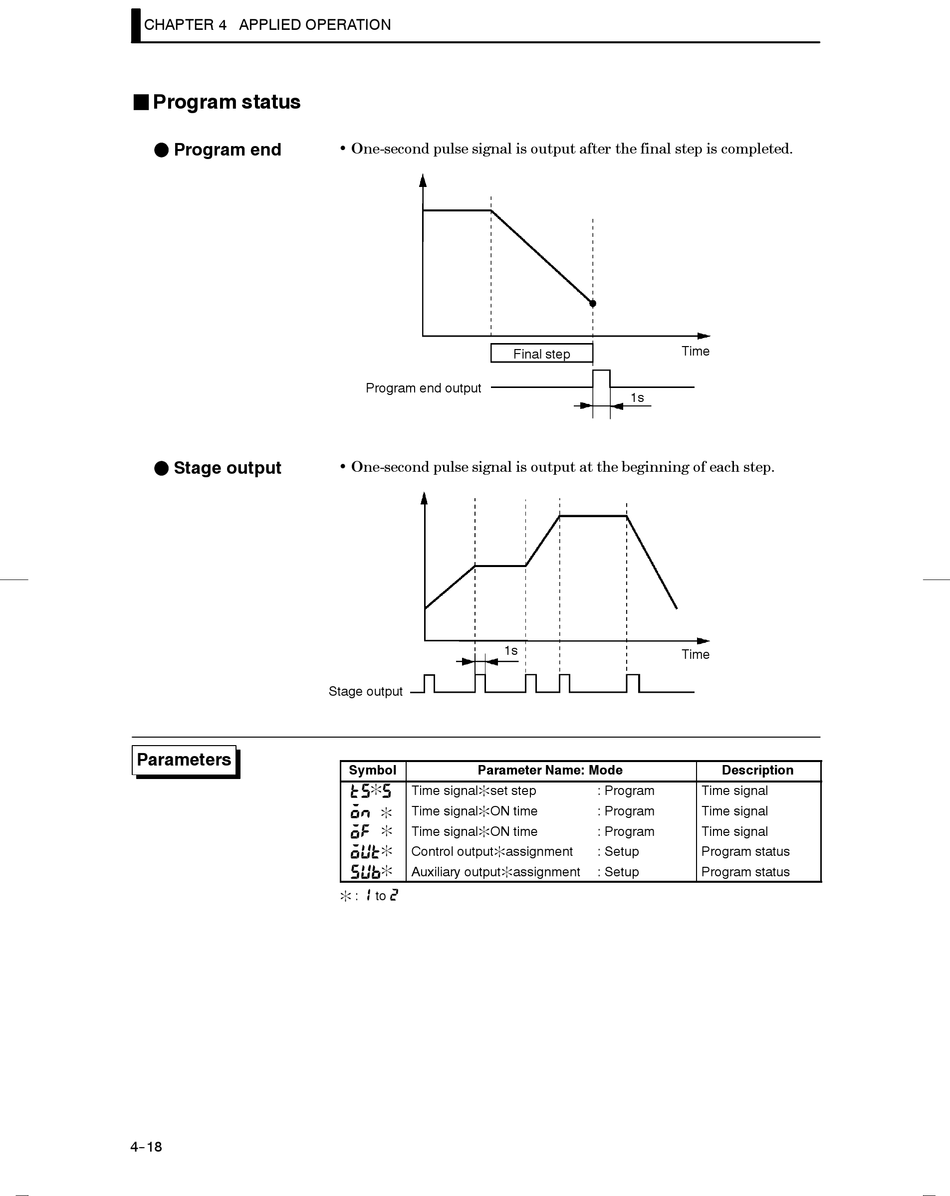

CHAPTER 4 APPLIED OPERATION
J Program status
F Program end
F Stage output
Parameters
4--18
• One-second pulse signal is output after the final step is completed.
Program end output
• One-second pulse signal is output at the beginning of each step.
Stage output
Symbol Parameter Name: Mode
Time signal:set step
:
Time signal:ON time
:
Time signal:ON time
:
Control output:assignment
:
Auxiliary output:assignment
:
: : to
Final step
1s
1s
: Program
: Program
: Program
: Setup
: Setup
Time
Time
Description
Time signal
Time signal
Time signal
Program status
Program status
