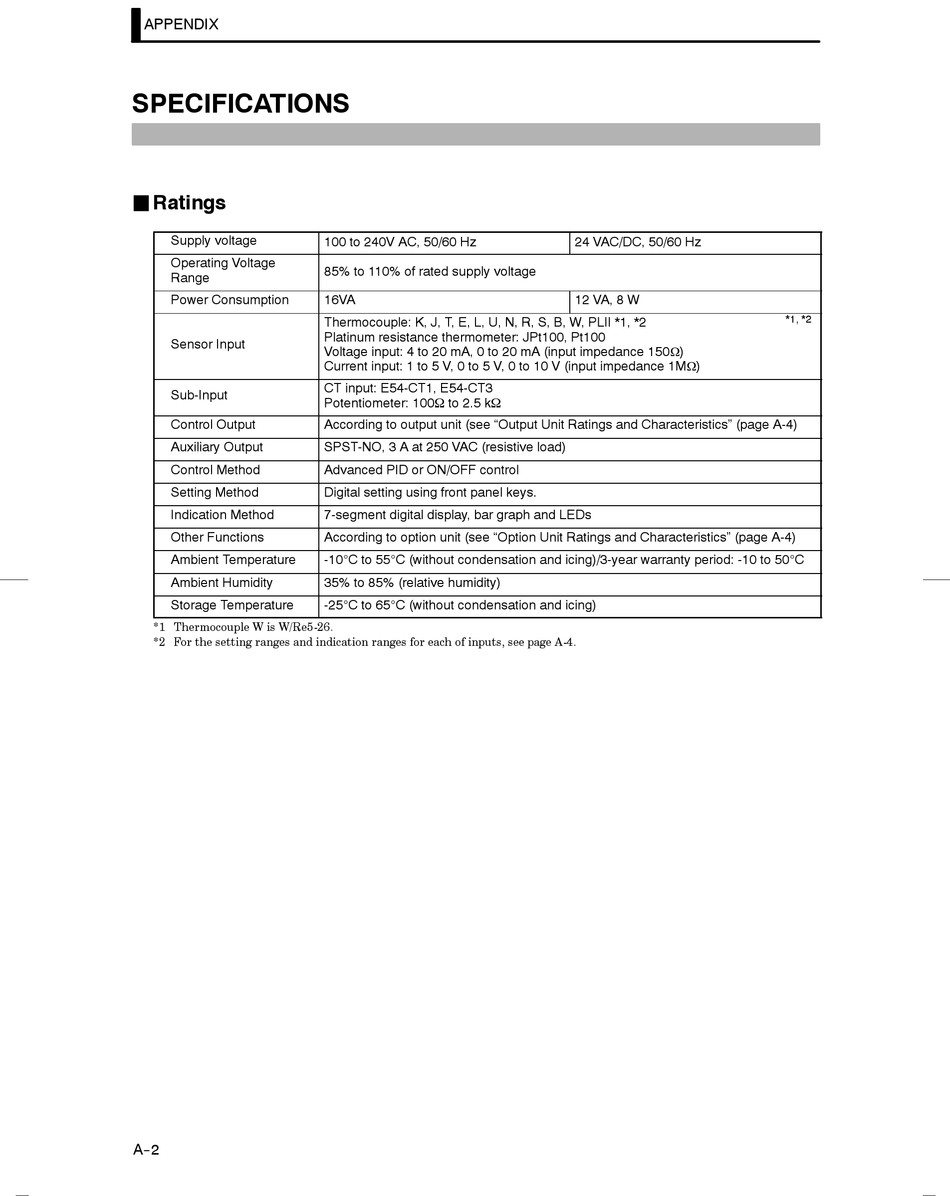

APPENDIX

SPECIFICATIONS

J Ratings
Supply voltage
Operating Voltage
Range
Power Consumption
Sensor Input
Sub-Input
Control Output
Auxiliary Output
Control Method
Setting Method
Indication Method
Other Functions
Ambient Temperature
Ambient Humidity
Storage Temperature
*1 Thermocouple W is W/Re5-26.
*2 For the setting ranges and indication ranges for each of inputs, see page A-4.
A--2
100 to 240V AC, 50/60 Hz
85% to 110% of rated supply voltage
16VA
Thermocouple: K, J, T, E, L, U, N, R, S, B, W, PLII *1, *2
Platinum resistance thermometer: JPt100, Pt100
Voltage input: 4 to 20 mA, 0 to 20 mA (input impedance 150Ω)
Current input: 1 to 5 V, 0 to 5 V, 0 to 10 V (input impedance 1MΩ)
CT input: E54-CT1, E54-CT3
Potentiometer: 100Ω to 2.5 kΩ
According to output unit (see "Output Unit Ratings and Characteristics" (page A-4)
SPST-NO, 3 A at 250 VAC (resistive load)
Advanced PID or ON/OFF control
Digital setting using front panel keys.
7-segment digital display, bar graph and LEDs
According to option unit (see "Option Unit Ratings and Characteristics" (page A-4)
-10°C to 55°C (without condensation and icing)/3-year warranty period: -10 to 50°C
35% to 85% (relative humidity)
-25°C to 65°C (without condensation and icing)
24 VAC/DC, 50/60 Hz
12 VA, 8 W
*1, *2
