CHAPTER 5 PARAMETERS

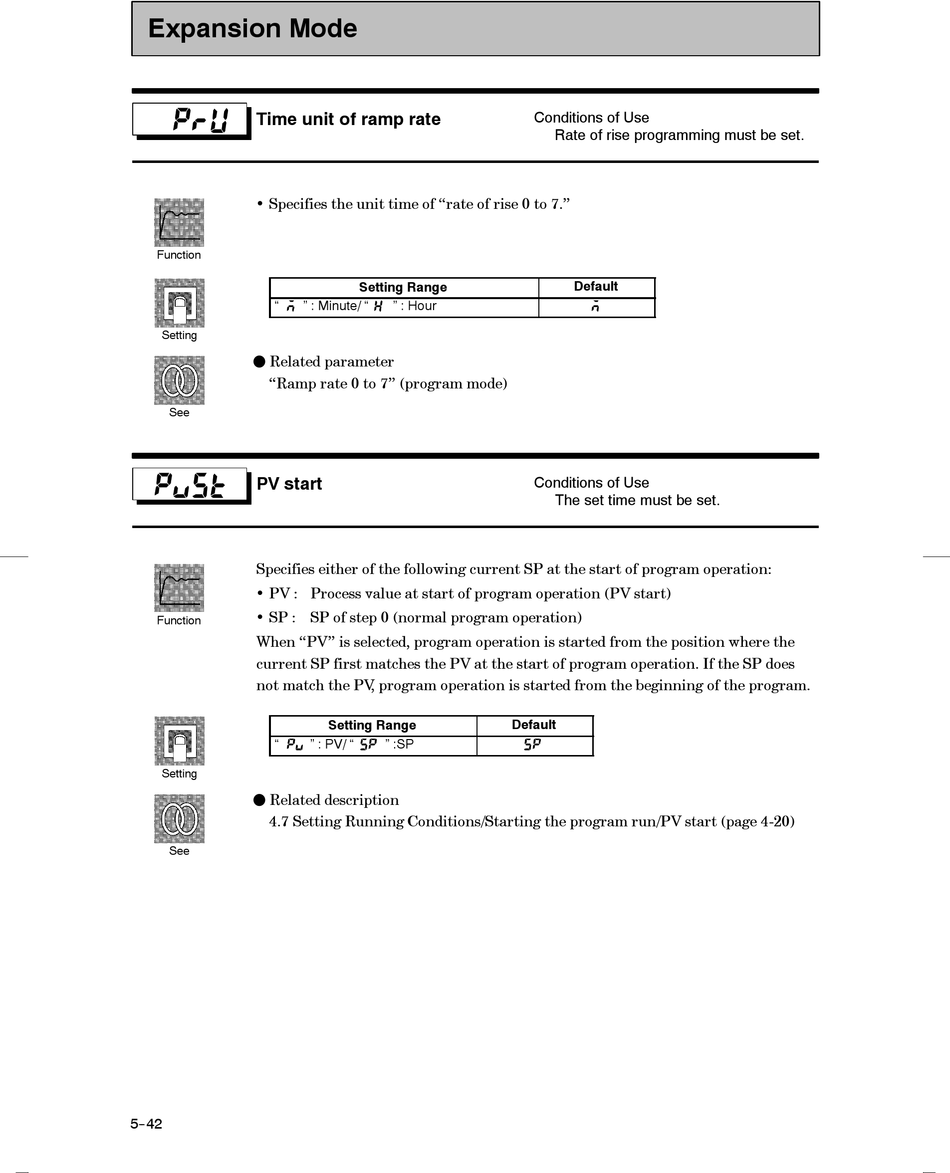

Expansion Mode
Time unit of ramp rate
• Specifies the unit time of "rate of rise 0 to 7."
Function
"
Setting
F Related parameter
"Ramp rate 0 to 7" (program mode)
See
PV start
Specifies either of the following current SP at the start of program operation:
• PV : Process value at start of program operation (PV start)
• SP : SP of step 0 (normal program operation)
Function
When "PV" is selected, program operation is started from the position where the
current SP first matches the PV at the start of program operation. If the SP does
not match the PV , program operation is started from the beginning of the program.
"
Setting
F Related description
4.7 Setting Running Conditions/Starting the program run/PV start (page 4-20)
See
5--42
Setting Range
" : Minute/ " " : Hour
Setting Range
" : PV/ " " :SP
Conditions of Use
Rate of rise programming must be set.
Default
Conditions of Use
The set time must be set.
Default
