CHAPTER 4 APPLIED OPERATION
J Starting the
program run
F PV start
F Standby
operation
J End condition
Parameters
4--20

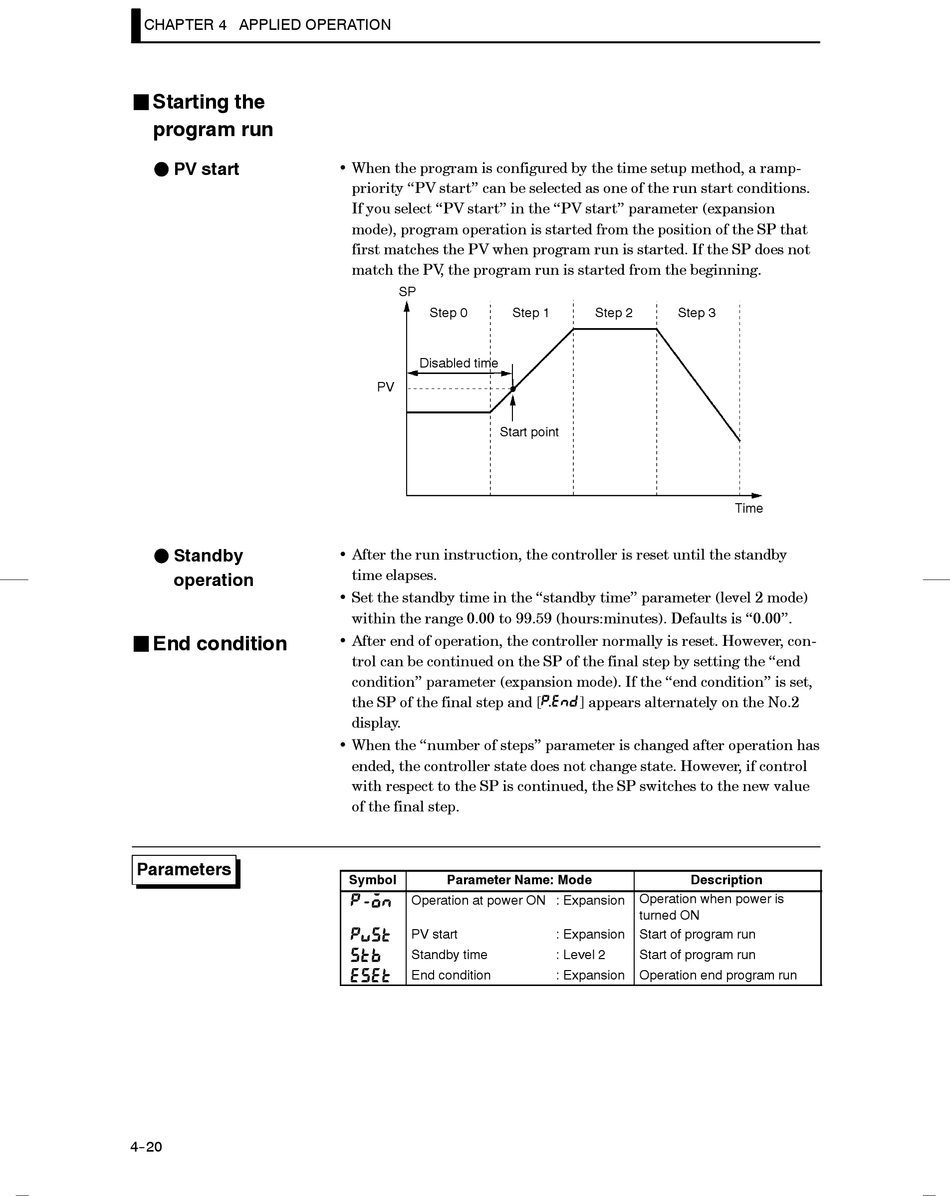

• When the program is configured by the time setup method, a ramp-
priority "PV start" can be selected as one of the run start conditions.
If you select "PV start" in the "PV start" parameter (expansion
mode), program operation is started from the position of the SP that
first matches the PV when program run is started. If the SP does not
match the PV , the program run is started from the beginning.
SP
Step 0
Disabled time
PV
• After the run instruction, the controller is reset until the standby
time elapses.
• Set the standby time in the "standby time" parameter (level 2 mode)
within the range 0.00 to 99.59 (hours:minutes). Defaults is "0.00".
• After end of operation, the controller normally is reset. However, con-
trol can be continued on the SP of the final step by setting the "end
condition" parameter (expansion mode). If the "end condition" is set,
the SP of the final step and [
display.
• When the "number of steps" parameter is changed after operation has
ended, the controller state does not change state. However, if control
with respect to the SP is continued, the SP switches to the new value
of the final step.
Symbol Parameter Name: Mode
Operation at power ON : Expansion
PV start
Standby time

End condition

Step 1 Step 2
Start point
] appears alternately on the No.2
Operation when power is
turned ON
: Expansion Start of program run
: Level 2 Start of program run
: Expansion Operation end program run
Step 3
Time
Description
