CHAPTER 5 PARAMETERS

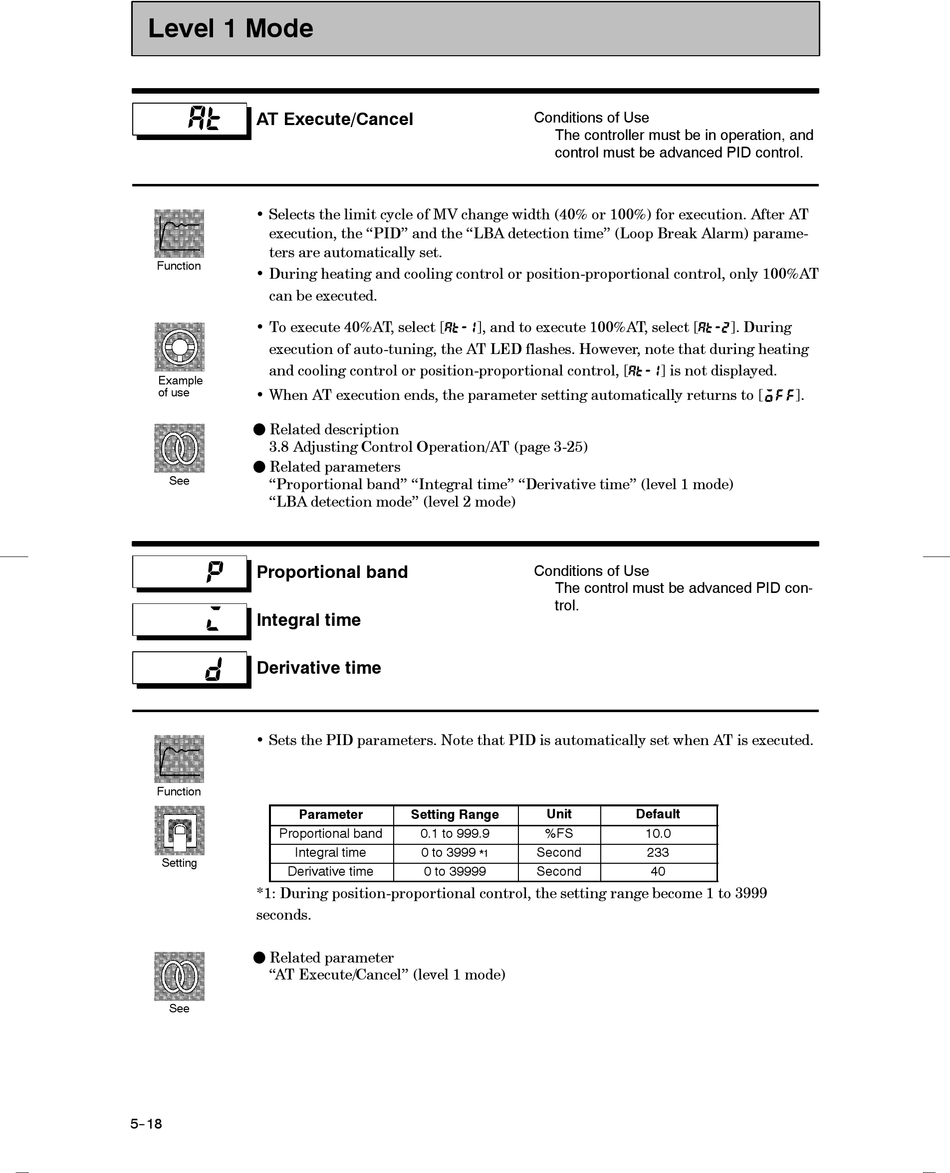

Level 1 Mode
AT Execute/Cancel
• Selects the limit cycle of MV change width (40% or 100%) for execution. After AT
execution, the "PID" and the "LBA detection time" (Loop Break Alarm) parame-
ters are automatically set.
Function
• During heating and cooling control or position-proportional control, only 100%AT
can be executed.
• To execute 40%AT, select [
execution of auto-tuning, the AT LED flashes. However, note that during heating
and cooling control or position-proportional control, [
Example
of use
• When AT execution ends, the parameter setting automatically returns to [
F Related description
3.8 Adjusting Control Operation/AT (page 3-25)
F Related parameters
See
"Proportional band" "Integral time" "Derivative time" (level 1 mode)
"LBA detection mode" (level 2 mode)
Proportional band
Integral time
Derivative time
• Sets the PID parameters. Note that PID is automatically set when AT is executed.
Function
Setting
*1: During position-proportional control, the setting range become 1 to 3999
seconds.
F Related parameter
"AT Execute/Cancel" (level 1 mode)
See
5--18
Parameter Setting Range
Proportional band 0.1 to 999.9
Integral time 0 to 3999
Derivative time 0 to 39999
Conditions of Use
The controller must be in operation, and
control must be advanced PID control.
], and to execute 100%AT, select [
Conditions of Use
The control must be advanced PID con-
trol.
Unit
%FS
Second
*1
Second
]. During
] is not displayed.
Default
10.0
233
40
].
