Omron E5AK PROGRAMMABLE TYPE User Manual page 185

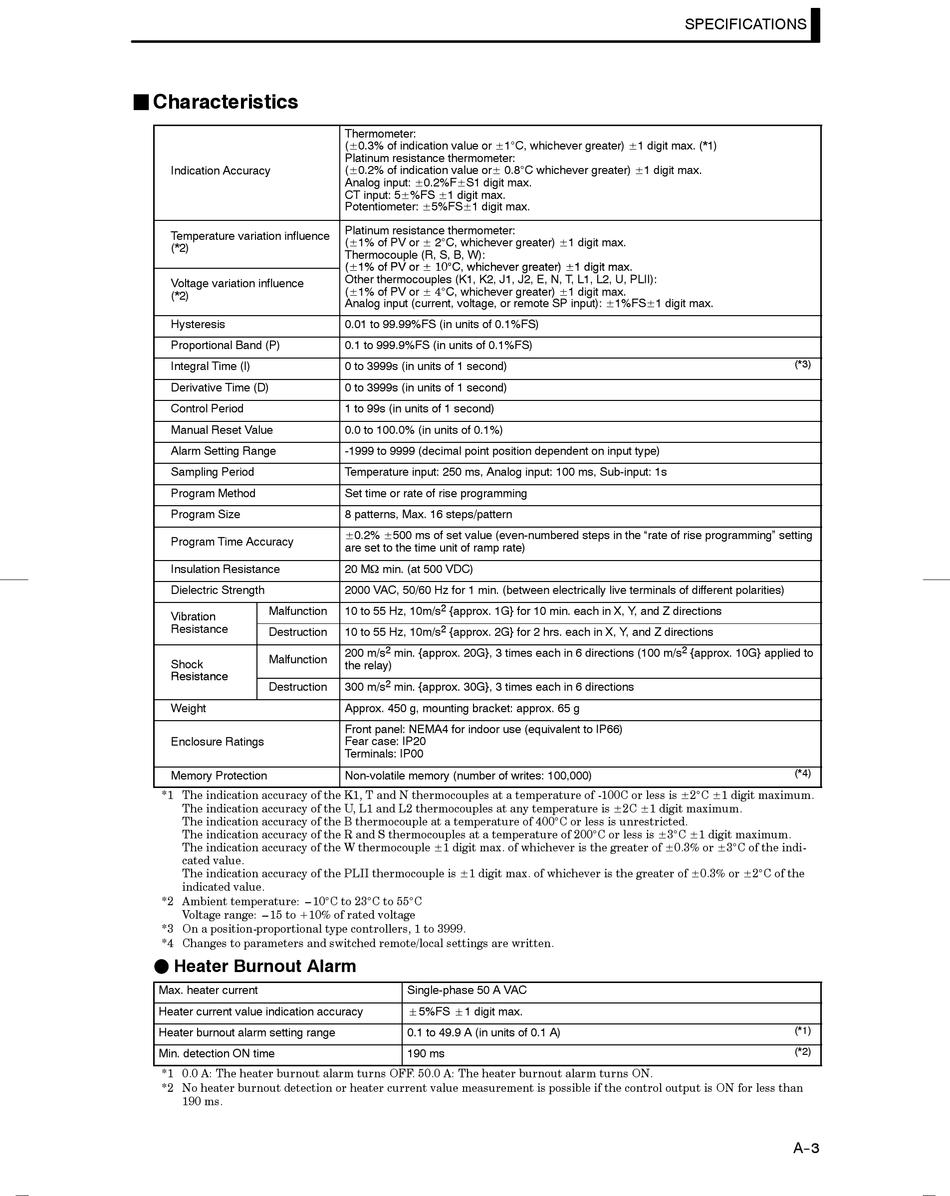

J Characteristics
Indication Accuracy
Temperature variation influence
(*2)
Voltage variation influence
(*2)
Hysteresis
Proportional Band (P)
Integral Time (I)
Derivative Time (D)
Control Period
Manual Reset Value
Alarm Setting Range
Sampling Period
Program Method
Program Size
Program Time Accuracy
Insulation Resistance
Dielectric Strength
Malfunction
Vibration Vibration
Resistance
Destruction
Malfunction
Shock
Resistance Resistance
Destruction
Weight
Enclosure Ratings
Memory Protection
*1 The indication accuracy of the K1, T and N thermocouples at a temperature of -100C or less is ±2°C ±1 digit maximum.
The indication accuracy of the U, L1 and L2 thermocouples at any temperature is ±2C ±1 digit maximum.
The indication accuracy of the B thermocouple at a temperature of 400°C or less is unrestricted.
The indication accuracy of the R and S thermocouples at a temperature of 200°C or less is ±3°C ±1 digit maximum.
The indication accuracy of the W thermocouple ±1 digit max. of whichever is the greater of ±0.3% or ±3°C of the indi-
cated value.
The indication accuracy of the PLII thermocouple is ±1 digit max. of whichever is the greater of ±0.3% or ±2°C of the
indicated value.
*2 Ambient temperature: ---10°C to 23°C to 55°C
Voltage range: ---15 to +10% of rated voltage
*3 On a position-proportional type controllers, 1 to 3999.
*4 Changes to parameters and switched remote/local settings are written.
F Heater Burnout Alarm
Max. heater current
Heater current value indication accuracy
Heater burnout alarm setting range
Min. detection ON time
*1 0.0 A: The heater burnout alarm turns OFF. 50.0 A: The heater burnout alarm turns ON.
*2 No heater burnout detection or heater current value measurement is possible if the control output is ON for less than
190 ms.
Thermometer:
(±0.3% of indication value or ±1°C, whichever greater) ±1 digit max. (*1)
Platinum resistance thermometer:
(±0.2% of indication value or± 0.8°C whichever greater) ±1 digit max.
Analog input: ±0.2%F±S1 digit max.
CT input: 5±%FS ±1 digit max.
Potentiometer: ±5%FS±1 digit max.
Platinum resistance thermometer:
(±1% of PV or ± 2°C, whichever greater) ±1 digit max.
Thermocouple (R, S, B, W):
(±1% of PV or ± 10°C, whichever greater) ±1 digit max. (±1% of PV or ± 10°C whichever greater) ±1 digit max
Other thermocouples (K1, K2, J1, J2, E, N, T, L1, L2, U, PLII):
(±1% of PV or ± 4°C, whichever greater) ±1 digit max.
Analog input (current, voltage, or remote SP input): ±1%FS±1 digit max.
0.01 to 99.99%FS (in units of 0.1%FS)
0.1 to 999.9%FS (in units of 0.1%FS)
0 to 3999s (in units of 1 second)
0 to 3999s (in units of 1 second)
1 to 99s (in units of 1 second)
0.0 to 100.0% (in units of 0.1%)
-1999 to 9999 (decimal point position dependent on input type)
Temperature input: 250 ms, Analog input: 100 ms, Sub-input: 1s
Set time or rate of rise programming
8 patterns, Max. 16 steps/pattern
±0.2% ±500 ms of set value (even-numbered steps in the "rate of rise programming" setting
are set to the time unit of ramp rate)
20 MΩ min. (at 500 VDC)
2000 VAC, 50/60 Hz for 1 min. (between electrically live terminals of different polarities)
2
10 to 55 Hz, 10m/s {approx. 1G} for 10 min. each in X, Y, and Z directions
2
10 to 55 Hz, 10m/s {approx. 2G} for 2 hrs. each in X, Y, and Z directions
2
200 m/s min. {approx. 20G}, 3 times each in 6 directions (100 m/s
the relay)
2
300 m/s min. {approx. 30G}, 3 times each in 6 directions
Approx. 450 g, mounting bracket: approx. 65 g
Front panel: NEMA4 for indoor use (equivalent to IP66)
Fear case: IP20
Terminals: IP00
Non-volatile memory (number of writes: 100,000)
Single-phase 50 A VAC
5%FS 1 digit max.
0.1 to 49.9 A (in units of 0.1 A)
190 ms
SPECIFICATIONS
(*3)
2
{approx. 10G} applied to
(*4)
(*1)
(*2)
A--3
