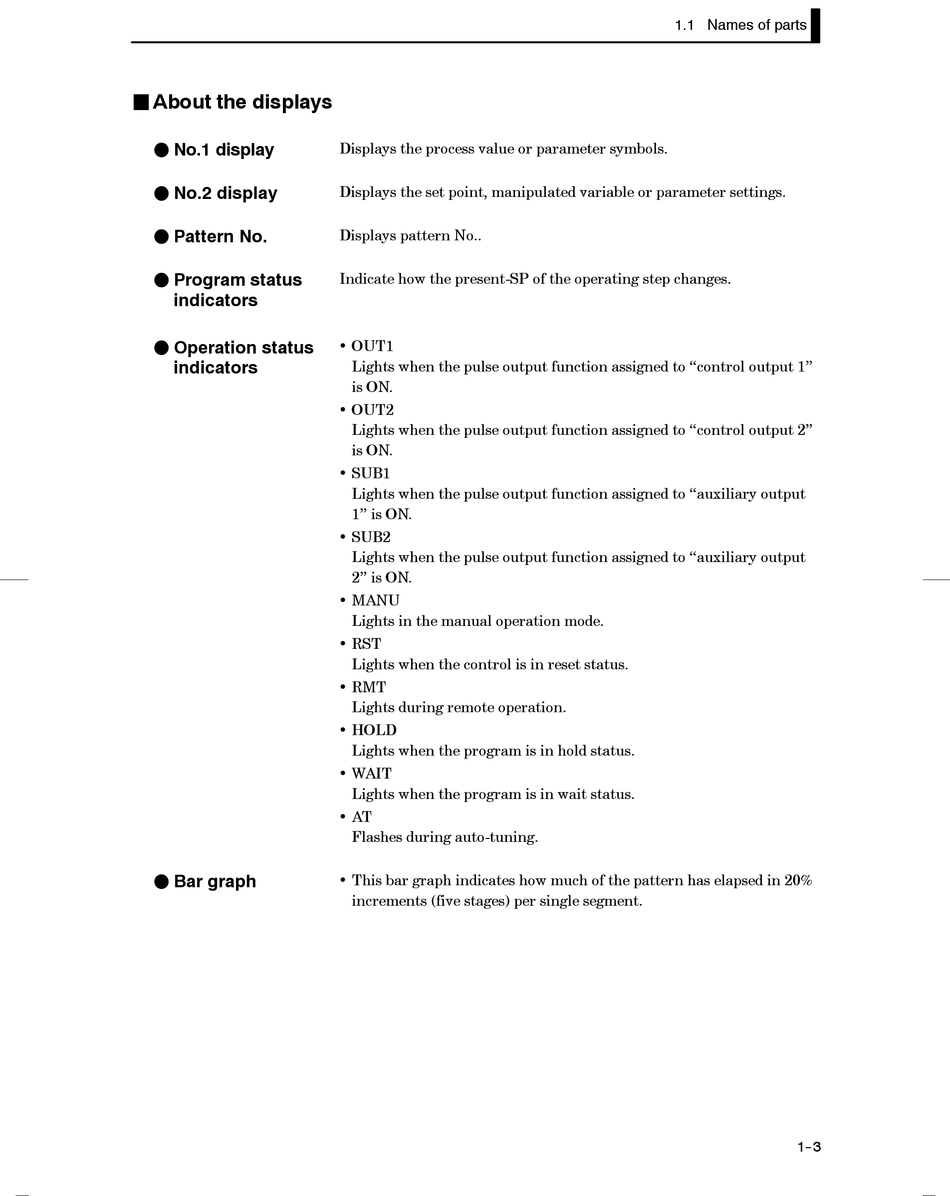

J About the displays
F No.1 display
F No.2 display
F Pattern No.
F Program status
indicators
F Operation status
indicators
F Bar graph
Displays the process value or parameter symbols.
Displays the set point, manipulated variable or parameter settings.
Displays pattern No..
Indicate how the present-SP of the operating step changes.
• OUT1
Lights when the pulse output function assigned to "control output 1"
is ON.
• OUT2
Lights when the pulse output function assigned to "control output 2"
is ON.
• SUB1
Lights when the pulse output function assigned to "auxiliary output
1" is ON.
• SUB2
Lights when the pulse output function assigned to "auxiliary output
2" is ON.
• MANU
Lights in the manual operation mode.
• RST
Lights when the control is in reset status.
• RMT
Lights during remote operation.
• HOLD
Lights when the program is in hold status.
• WAIT
Lights when the program is in wait status.
• AT
Flashes during auto-tuning.
• This bar graph indicates how much of the pattern has elapsed in 20%
increments (five stages) per single segment.
