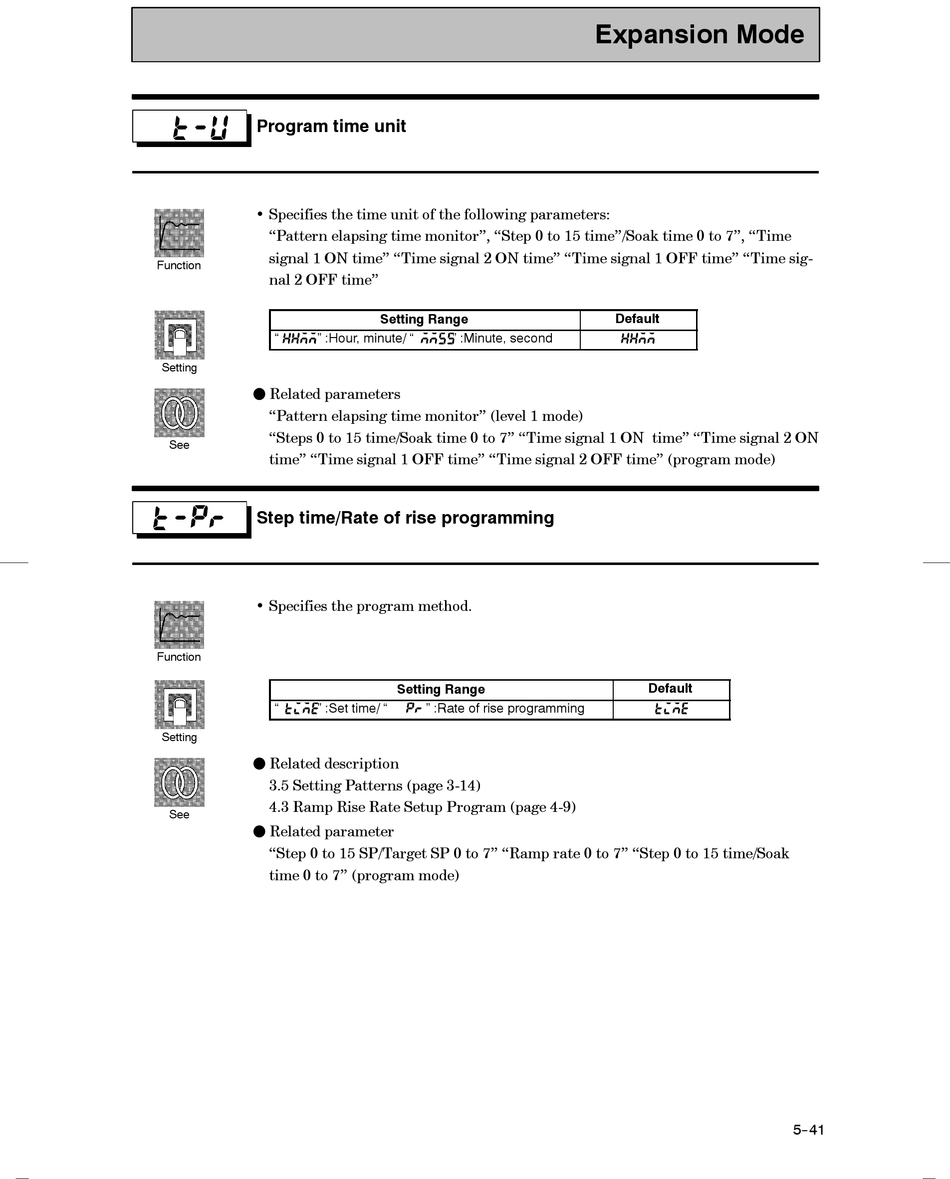

Omron E5AK PROGRAMMABLE TYPE User Manual page 131

Program time unit
• Specifies the time unit of the following parameters:
"Pattern elapsing time monitor", "Step 0 to 15 time"/Soak time 0 to 7", "Time
signal 1 ON time" "Time signal 2 ON time" "Time signal 1 OFF time" "Time sig-
Function
nal 2 OFF time"
"
Setting
F Related parameters
"Pattern elapsing time monitor" (level 1 mode)
"Steps 0 to 15 time/Soak time 0 to 7" "Time signal 1 ON time" "Time signal 2 ON
See
time" "Time signal 1 OFF time" "Time signal 2 OFF time" (program mode)
Step time/Rate of rise programming
• Specifies the program method.
Function
"
Setting
F Related description
3.5 Setting Patterns (page 3-14)
4.3 Ramp Rise Rate Setup Program (page 4-9)
See
F Related parameter
"Step 0 to 15 SP/Target SP 0 to 7" "Ramp rate 0 to 7" "Step 0 to 15 time/Soak
time 0 to 7" (program mode)
Setting Range
" :Hour, minute/ " " :Minute, second
Setting Range
" :Set time/ " " :Rate of rise programming
Expansion Mode
Default
Default
5--41
