J Setting up the output unit
F Before setup
F Procedure
• Check the type of the output unit you are about to set up.
• For details on types of output unit and main specifications, see page
2-7.

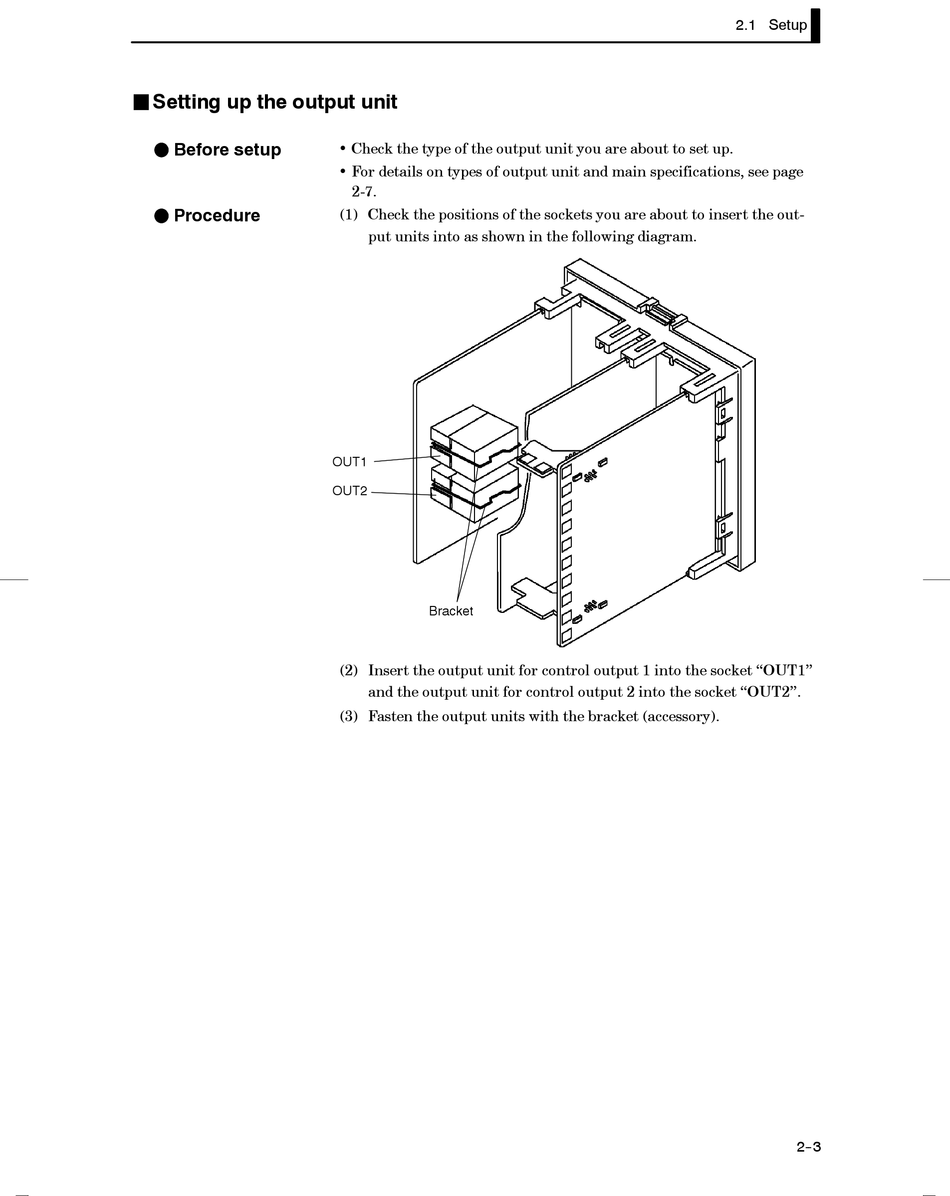

(1) Check the positions of the sockets you are about to insert the out-
put units into as shown in the following diagram.
OUT1
OUT2
Bracket
(2) Insert the output unit for control output 1 into the socket "OUT1"
and the output unit for control output 2 into the socket "OUT2".
(3) Fasten the output units with the bracket (accessory).
2.1 Setup
2--3
