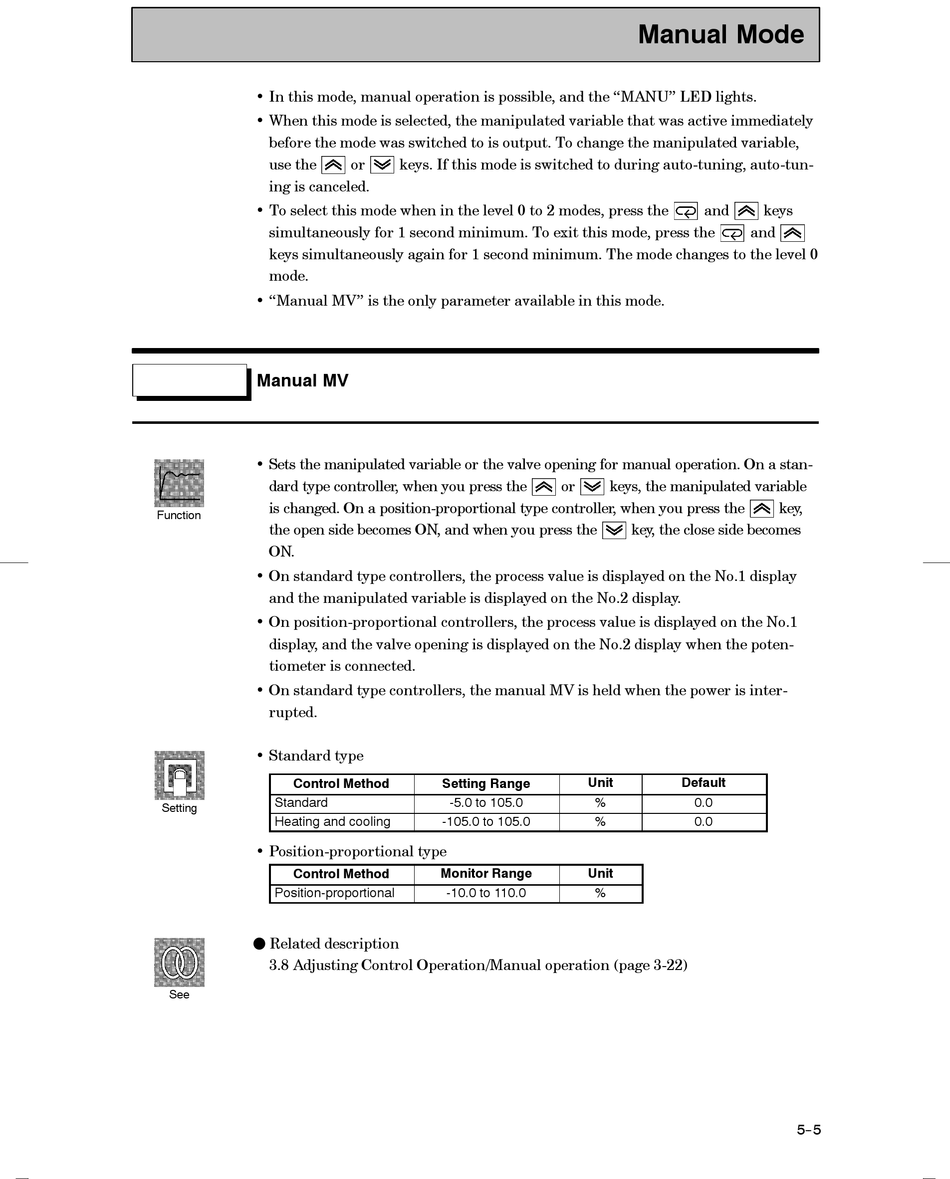

• In this mode, manual operation is possible, and the "MANU" LED lights.
• When this mode is selected, the manipulated variable that was active immediately
before the mode was switched to is output. To change the manipulated variable,
use the
ing is canceled.
• To select this mode when in the level 0 to 2 modes, press the
simultaneously for 1 second minimum. To exit this mode, press the
keys simultaneously again for 1 second minimum. The mode changes to the level 0
mode.
• "Manual MV" is the only parameter available in this mode.
Manual MV
• Sets the manipulated variable or the valve opening for manual operation. On a stan-
dard type controller, when you press the
is changed. On a position-proportional type controller, when you press the
Function
the open side becomes ON, and when you press the
ON.
• On standard type controllers, the process value is displayed on the No.1 display
and the manipulated variable is displayed on the No.2 display.
• On position-proportional controllers, the process value is displayed on the No.1
display, and the valve opening is displayed on the No.2 display when the poten-
tiometer is connected.
• On standard type controllers, the manual MV is held when the power is inter-
rupted.
• Standard type
Control Method
Standard
Setting
Heating and cooling
• Position-proportional type
Control Method
Position-proportional
F Related description
3.8 Adjusting Control Operation/Manual operation (page 3-22)
See
or keys. If this mode is switched to during auto-tuning, auto-tun-
Setting Range
-5.0 to 105.0
-105.0 to 105.0
Monitor Range
-10.0 to 110.0

Manual Mode

and
or keys, the manipulated variable
key, the close side becomes
Unit Default
% 0.0
% 0.0
Unit
%
keys
and
key,
