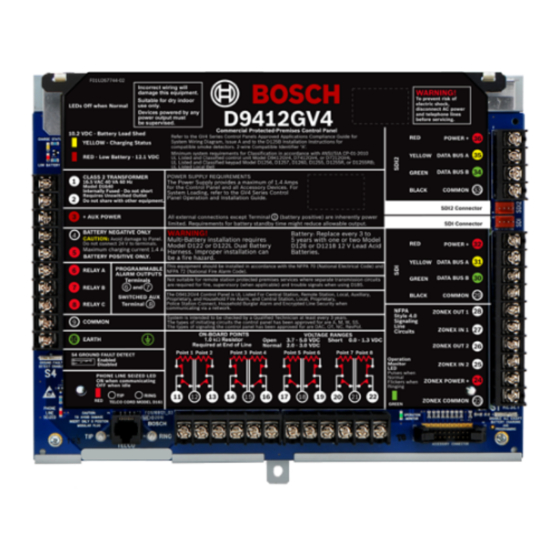

D9412GV4/D7412GV4/D7212GV4
Control Panels
en
Program Entry Guide

Advertisement

Table of Contents
loading

Related Manuals for Bosch D9412GV4

Summary of Contents for Bosch D9412GV4

  • Page 1 D9412GV4/D7412GV4/D7212GV4 Control Panels Program Entry Guide...

  • Page 3: Table Of Contents

    System Requirements Introduction Using this Program Entry Guide Guide to UL 864 Programming Requirements for D9412GV4 and D7412GV4 Control Panels Guide to UL 636 Programming Requirements for D9412GV4/ D7412GV4/D7212GV4 Control Panels 10 Guide to Programming Descriptions Guide to Keypad Tools 2.5.1...
  • Page 4 Cross Point Parameters COMMAND 7 and COMMAND 9 Schedules (Skeds) Windows 6.1.1 Opening and Closing 6.1.2 User Group Windows 6.1.3 Holiday Indexes for User Group Windows Schedules (Skeds) Holiday Indexes F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 5 B820 SDI2 Inovonics Interface Module Wireless Repeater 8.5.1 RF Repeaters Keypad Menu (RFID Wireless Repeaters) 8.5.2 RF Diagnostics Keypad Menu (RFID Wireless Repeaters) ACCESS CONTROL (D9412GV4/D7412GV4) Door Profile Strike Profile Event Profile SIA CP-01 Quick Reference Keypad Tools Menu (Options Not Available in RPS) 11.1...

  • Page 6: System Requirements

    WARNING! Minimum system requirements for Classification in accordance with ANSI/SIA CP-01-2007: UL Listed and Classified control unit Model D9412GV4 or D7412GV4 or D7212GV4. UL Listed and Classified keypad Model D1256, D1257, D1260, D1255, D1255R, or D1255 RW. UL Listed Local Bell.

  • Page 7: Introduction

    F01U214958 RPS Installation Guide 4998141259 Table 2.1 Referenced Literature Guide to UL 864 Programming Requirements for D9412GV4 and D7412GV4 Control Panels This section identifies the programming requirements you must make in order to comply with UL 864 Commercial Fire applications.
  • Page 8 5 min (check with AHJ) CC# Supervised Yes / No Set to Yes CC# Trouble Tone Yes / No Set to Yes CC# Scroll Lock Yes / No Set to Yes F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 9 Program a valid IP or 4) address Path 1 Poll Rate 0, 5 to 65535 Program as sec* necessary Path 1 Ack Wait 0, 5 to 65535 Program as sec* necessary Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 10: Guide To Ul 636 Programming Requirements For D9412Gv4/ D7412Gv4/D7212Gv4 Control Panels

    Table 2.2 UL 864 Programming Requirements Guide to UL 636 Programming Requirements for D9412GV4/ D7412GV4/D7212GV4 Control Panels When using a D9412GV4/D7412GV4/D7212GV4 control panel for hold-up operation, a hold-up point should have the following setting applied to it: – P## Type = 0 (Point is constantly armed regardless of the status of the system.) F.01U.218.312 | 04 | 2012.03...

  • Page 11: Guide To Programming Descriptions

    IP Diagnostics. For a list of diagnostic items you can perform using the keypad’s IP Diagnostics menu, refer to Section 8.3.1 IP Diagnostics Keypad Menu (B420), page 189. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 12: Keypad Programming Menu

    CC NUM 1 - 16 ............80 and COMMAND CENTER [ENT] USER PASSCODE [ENT]..................... 126 PT NUM 1-247 ............POINT PARAMETERS [ENT] (1-75 for D7412GV4)(1-40 for D7212GV4) DISABLE KP PROG [ENT]..................101 F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 13 CC Number 1-16............80 and Command Center [ENTER] User Passcode [ENTER]....................126 PT NUM 1-247............Point Parameters [ENTER] (1-75 for D7412GV4)(1-40 for D7212GV4) Disable Keypad Programming [ENT]................101 Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 14: Service Bypass Menu

    Press the Next softkey to move through the RF Points menu and submenus. Press [ENTER] to open a menu or submenu. Press the Exit softkey to exit to the previous level. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 15: Rf Repeaters Menu

    Press Next softkey to move through the RF Diagnostics menu and submenus. Press [ENTER] to open a menu or submenu. Press the Exit softkey to exit to the previous level. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 16: Ip Diagnostics Menu

    Press Next softkey to move through the IP Diagnostics menu and submenus. Press [ENTER] to open a menu or submenu. Press the Exit softkey to exit to the previous level. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 17: Panel And Area Wide Parameters

    Refer to Section 3.3 Routing, page 23 for information about event report routing and communication protocols. NOTICE! When using PSTN telephone lines, program two telephone numbers to meet UL 864 requirements (D9412GV4 and D7412GV4). Phone # Default: Blank Selection:...
  • Page 18 If the current phone number is longer than 20 characters, the Previous and Next softkeys appear. Use the softkeys to scroll to view the additional characters. Press the Edit softkey to change the phone number. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 19: Phone Parameters

    Select the softkey for the option you wish to change. Press the Save softkey. When the keypad reads Parameter Saved, your selection has been configured. Point/User Flag Default: Selection: Yes or No Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 20 Communication Format Reports to the receiver. Point/User Flag affects Bosch ModemIIIa Communication Format data as shown in Table 3.1, Page 20. The Bosch Security Systems, Inc. D6500 or D6600 Receiver adds the leading zero in the User ID number with Point/User Flag programmed No.

  • Page 21: Special Point/User Reporting

    Dials the programmed phone number(s) using DTMF. Pulse dialing only. Use dual-tone multi-frequency (DTMF) to dial the central station receiver phone number(s) for event reports, or to dial the remote programming software (RPS). Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 22 Phone, Trouble, and Restoral Events report when they occur. They report also when a Diagnostic Report is initiated from a keypad or by a Sked. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set this parameter to a non-zero value. Alarm On Fail...

  • Page 23: Routing

    COMM FAIL. D928 Dual Phone Line Module is not installed. NOTICE! When using two telephone lines, set this parameter to Yes to meet UL 864 requirements (D9412GV4 and D7412GV4). NOTICE! Program Phone Supervision Time when using two phone lines. NOTICE! The D7212GV4 does not support the use of the D928 Dual Phone Line Switcher.

  • Page 24: Call Party Disconnect

    - Routing (Refer to Section 3.3 Routing, page 23.) Select Route Group 1 Program a SDI 88 Path 1 for RG1 Primary Destination F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 25: Programming A Duplicate Report

    Panic, Duress, Medical, Intrusion Alarm, Supervisory, and all troubles and restorals. NOTICE! To comply with NFPA and UL 864 (D9412GV4 and D7412GV4), program Route 1 to send a report of only Fire Alarm Events to ensure the fastest reporting time. Bosch Security Systems, Inc.
  • Page 26 | Panel and Area Wide Parameters D9412GV4/D7412GV4/D7212GV4 Event Priority Table 3.5, Page 29 shows the description of each event, its priority, and Modem IIIa Event Code. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 27 S: Fire Supervision S: Fire Alarm S: Fire Trouble S: Missing Fire (Trouble) S: Missing Burglary (Trouble) S: Missing Burglary (Alarm) S: Fire Supervision Missing S: Burglary Supervision Missing Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 28 Delete User User Code Change Area Watch Card Assigned Change Level Access Granted No Entry Door Left Open Cycle Door Door Unlocked Door Secure Door Request Door Locked F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 29: Route Group Parameters

    LAN/WAN and over the Internet (even if they have different IP/port settings). – Either the primary or the backup path (not both) has a Communication Trouble condition. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 30: Communication Attempts

    R# Primary Device Default: No Device Selection: No Device, Phone 1..4, SDI ## Path 1..4 Phone 1 Phone 1 is this group’s primary destination. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 31 SDI2-2 Path 4 Path 4 on SDI2-2 is this group's primary destination. NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), program a Primary Device. Select the communication device and the primary destination.
  • Page 32 Path 4 on SDI2-2 is this group's backup destination if the primary destination fails. NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), program a Backup Device. Select the communication device and the backup destination. The backup device is used when the primary device fails to reach the programmed destination.

  • Page 33: Route Group Categories

    When the keypad reads Parameter Saved, your selection has been configured. 3.3.10 Route Group Categories Fire Reports NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), enable Fire Reports. Selecting Yes enables a report to be sent when the event occurs. Report Selection...
  • Page 34 Yes, No Perimeter Instant Armed Event R# Perimeter Delay Arm Yes, No Perimeter Delay Armed Event R# Send User Text Yes, No User text Table 3.8 User Reports F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 35 Panel and Area Wide Parameters | en Test Reports NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), enable Test Reports. Sending Test Reports Automatic: To send a single Test Report (R# Test Report) automatically, enable Sked Function Code #9 (Test Report) in the Skeds section of the program.
  • Page 36 1 in Table 3.10, Page 37 still exists, the events report when a Test Report is enabled and Expanded Test Report is programmed Yes. Refer to the Test Reports sub-prompt in Section 3.3.9 Communication Attempts, page 30. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 37 This event is included in the Expanded Test Report when an off normal condition exists. To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), enable AC Fail, Battery Missing, Low Battery, Battery Restoral, and AC Restoral reports.
  • Page 38 Successful local programming R# Program Access Fail Yes, No Local programming failed Table 3.11 RPS Reports Point Reports Selecting Yes enables a report to be sent when the event occurs. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 39 Reports Door Held Closed (Secured) Events Door Request Yes, No Reports Request to Enter and Request to Exit Events Door Locked Yes, No Reports Door Locked Events Table 3.14 Access Reports Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 40: Programming Path Numbers And Network Addresses For Enhanced Communications

    NOTICE! If using a network as the communication means for UL 864 Commercial Fire applications (D9412GV4 and D7412GV4), set this parameter to Yes. Determines if the control panel allows enhanced communications over the SDI bus. Events can be routed to as many as four possible network destinations over communication modules on either the SDI or SDI2 bus.
  • Page 41 If using a network as the communication means for UL 864 Commercial Fire applications (D9412GV4 and D7412GV4), set Path # Network Address as necessary. Path # Network Address contains the network host name or the IPV4 address for each of the four enhanced communication paths available.
  • Page 42 The keypad only accepts byte numbers valid for the current prompt. Repeat Step 5 to enter the correct numbers for each byte. Press [ENT] to save the changes. When the keypad reads PARAMETER SAVED, your selection is configured. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 43 Use the softkeys and the number buttons on the keypad to enter the new poll rate. 14. Press the Save softkey to save the changes. When the keypad reads Parameter Saved, your selection is configured. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 44 COMM TRBL SDI ## event occurs. When this condition occurs, all events routed to this path go immediately to the backup path destination. Entries are made in one-sec increments. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 45: Anti-Replay Security Feature

    SDI ### values. NOTICE! If using Network Addresses as the communication means for UL 864 Commercial Fire applications (D9412GV4 and D7412GV4), program this parameter as necessary. The default settings meet or exceed the UL specifications. 3.4.1 Anti-Replay Security Feature The Anti-Replay feature is enabled by default in the control panel and must be supported by the central station receiver.

  • Page 46: Configuration For Rps Over Network

    IP address. NOTICE! If the Reset switch (labeled S1) label is in the locked position, network RPS programming is allowed even if this prompt is set to No. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 47 D9412GV4/D7412GV4/D7212GV4 Panel and Area Wide Parameters | en Figure 3.2 COMMAND 43 Flow Chart (D1255) Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 48 RPS computer is connected. If a B420 Ethernet Communication Module is installed, then the control panel has the option to use a host name (for example, www.bosch.com), for the RPS Network Address . Refer to Section RPS Network Address, page 48 and Section RPS Port Number, page 48.
  • Page 49 Use the softkeys and the number buttons on the keypad to enter the new port number. 10. Press the Exit softkey to save the changes. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 50: Power Supervision

    60 – 180 min delay is also included.” To meet UL 864 requirements (D9412GV4 and D7412GV4), program AC Fail Time with 1:00. Always check with the Authority Having Jurisdiction for local requirements.
  • Page 51 If AC Tag Along is set to Yes and a subsequent event is generated, the AC Fail Event is sent first, before sending any subsequent events. NOTICE! AC Tag Along is required for NFPA and UL 864 Commercial Fire systems (D9412GV4 and D7412GV4). Be sure to program AC Fail/Restoral Report as No if AC Tag Along is programmed Yes.

  • Page 52: Printer Parameters

    (D9412GV4 and D7412GV4), program this item as Yes. Printer Parameters Up to three D9131A Parallel Printer Interface Modules can be connected to a D9412GV4 (one printer for a D7412GV4 and a D7212GV4) SDI bus. Each printer is identified by an address of 17, 18, or 19.
  • Page 53 Selection: Yes or No P## Test Event Default: Yes (Printer 1 only) Selection: Yes or No P## Diag Event Default: Yes (Printer 1 only) Selection: Yes or No Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 54: Rps Parameters

    Unattended RPS over phone or network. If communication with RPS is unsuccessful, or if not properly configured, the control panel generates Log Threshold and Fail to Call RPS events. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 55: Panel Initiated Unattended Rps

    Backspace softkey allows you to erase characters. The Clear softkey allows you to clear the entire passcode. When entering a letter character, press the letter’s softkey to select Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 56 RPS Phone # are programmed, then the control panel will attempt to contact Unattended RPS as described in Section 3.8.3 Panel Initiated Unattended RPS, page 55. RPS Call Back Default: Selection: Yes or No F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 57 Set the telephone ring counter to answer when all areas are master armed. If any area in the control panel is perimeter armed or disarmed, the Answer Disarmed ring counter is used. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 58 Refer to Section 3.5 SDI RPS/Enhanced Communications Configuration, page 45 for other connection methods. NOTICE! Refer to Section Phone #, page 17 descriptions of special programming values for the RPS Phone number. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 59: Miscellaneous

    1 as the last digit of the passcode. If the last digit of the passcode is 9, a duress alarm occurs when the user enters 0 as the last digit of the passcode. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 60 Perform firmware updates using RPS. RPS Online Help includes instructions for using the Firmware update feature. NOTICE! It is recommend that a full system test be performed whenever firmware is updated locally or remotely. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 61: Area Parameters

    All user authority in this area is turned off while the area is disabled. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set A# Area On to Yes. Area# Account Number Default:...
  • Page 62 Users can bypass more points than the number entered here during the disarmed state. It is only when the user attempts to Bypass Arm an area (or areas) that this restriction is enforced. Area# Delay Restorals Default: Selection: Yes or No F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 63 Use separate area alarm-verification relays. To enable alarm verification on a point, program Point Index, Fire Point, Alarm Verify, and Resettable as Yes. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 64 60 sec Total Cycle time 80 sec Table 3.15 Verify Time NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set A# Verify Time to 60 sec. A# Duress Enable Default: Selection: Yes or No Enable Duress alarm for this area Disable Duress alarm for this area Refer to Duress Type in Section 3.9 Miscellaneous, page 59 for an explanation of duress.

  • Page 65: Shared-Area Characteristics

    Passcode, key switch, sub-controls, or RPS cannot arm shared areas. To display faulted points at associate areas, the shared and associate areas must have the same account number. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 66: Bell Parameters

    3.10.3 Bell Parameters The D9412GV4 and the D7412GV4 have two main types of annunciation: Fire Bell and Burg Bell. Both Fire and Burg Bells share the same terminal (Terminal 6) on the control panel as shipped from the factory.
  • Page 67 Fire Time for 2 min or more to ensure you have ample output time. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), program A# Fire Time for at least 5 min. Check with your AHJ to determine the appropriate bell time for your geographical area.
  • Page 68 | Panel and Area Wide Parameters D9412GV4/D7412GV4/D7212GV4 NOTICE! For D9412GV4 and D7412GV4 Control Panels, use: 4 min for UL 5 min for ULC Enter the number of minutes the bell rings for Burglary Alarm points. The relay activated for this time is programmed in A# Alarm Bell in Area Relays.

  • Page 69: Open/Close Options

    An Opening Report is sent if the user is disarming during an alarm condition or unbypasses points when disarming. If the system is normal, no Opening or Closing Report is sent. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 70 Fail To Close all work independently of the A# Account O/C feature. To use these features, program O/C Windows. A# Account O/C Default: Selection: Yes or No F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 71 Report is generated when each individual area is closed (armed). NOTICE! Do not program this item as Yes if the control panel reports to an automation system that cannot interpret multiple Area Opening and Closing Reports. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 72 Use to determine if a Fail to Open Report is sent for this area. This can determine if a user failed to disarm the area before the Opening Window expiring. Normal Opening and Closing Reports do not need to be programmed to use this feature. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 73 To suppress reports before midnight, use one window (for example, 20:00 start to 23:59 stop). – To suppress reports immediately after midnight, use another window (for example, 00:01 start to 02:00 stop). Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 74: Arming Features

    A# Two Man Rule Default: Selection: Yes or No Two valid unique passcodes are required to disarm the area. A single passcode with a valid authority level can disarm the area. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 75 User ID of the first user. If the second code entered is the same as the first code, is invalid, or does not have L## Disarm authority, the keypad shows NO AUTHORITY and returns to idle text or entry delay. D1260 Keypad Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 76 After the first valid passcode is entered, the area is disarmed and the keypad displays the disarmed idle text normally. This function operates only when you use Passcode Disarm. The D1260 Keypad sounds the Watch Mode tone and the following text appears. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 77 NOTICE! To avoid the possibility of false alarms in Associate areas, do not use the A# Exit Restart feature in areas with A# Area Type set to Shared. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 78: Keypad (Command Center)

    For SIA CP-01 Compliance A# Entry Warning must be set to Yes. 3.11 Keypad (Command Center) This programming module contains three programming categories: Command Center Assignments, Area Text, and Custom Function. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 79: Keypad (Command Center) Assignment

    D9412GV4/D7412GV4/D7212GV4 Panel and Area Wide Parameters | en Command Center Default: Selection: 1 to 16 for D9412GV4 and D7412GV4 1 to 8 for D7212GV4 DIP Switch Setting SDI Address (CC#) Enter the keypad (CC) number for the SDI address you are programming. This number corresponds to the DIP switch address settings shown.
  • Page 80 | Panel and Area Wide Parameters D9412GV4/D7412GV4/D7212GV4 NOTICE! To meet UL 864 requirements (D9412GV4 and D7212GV4), set CC# Supervised to Yes for the fire annunciation keypad. NOTICE! Keypads that share the same address setting display the same text and emit the same tones, regardless of which keypad’s keys are pressed.
  • Page 81 CC# Area Assign Default: Selection: 1 to 32 on D9412GV4 1 to 8 on D7412GV4 1 to 4 on D7212GV4 Enter the area number where you are installing this keypad or keypads with this address and the same DIP switch settings.
  • Page 82 The user must have authority enabled in L## Passcode Arm and L## Passcode Disarm. This feature does not affect the Function List arming and disarming commands. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 83 CC# Enter Key Relay Default: Selection: 0 to 128, A, B, C for D9412GV4 0 to 64, A, B, C for D7412GV4 0 to 24, A, B, C for D7212GV4 The [ENTER] key is not used to activate a relay.
  • Page 84 For SIA CP-01 Compliance CC# Passcode Enter Function must be left at its default value Arm/Disarm. CC# Dual Authentication (D9412GV4/D7412GV4 Only) This parameter enables or disables the Dual Authentication feature. With Dual Authentication, a user must enter a passcode AND present a credential to a card reader to gain access through a door.
  • Page 85 NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set CC# Trouble Tone to Yes. NOTICE! Panel-wide trouble tones do not include Point Troubles, Buzz on Fault, or (for D9412GV4 and D7412GV4) Close Door Now. NOTICE! Assign two CCs to the same area so one keypad emits the tone and another does not.
  • Page 86 CC# Arm Now Warning Tone Default: Selection: Yes or No This keypad activates a tone and displays PLEASE CLOSE NOW. This keypad does not activate the tone or display PLEASE CLOSE NOW. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 87 This keypad shows the Alarm Aborted message for all aborted alarms within its scope. This keypad does not show the Alarm Aborted message for all aborted alarms within its scope. For SIA CP-01 Compliance Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 88: Area Text

    Area # Is On text is replaced by the ACCOUNT IS ON text if the area is armed before all other areas with the same account number. Blank Entry F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 89: Custom Function

    Custom Function Default: Blank Selection: Blank, 128 to 143 (on D9412GV4), 128 to 131 (on D7412GV4/ D7212GV4) Enter the Custom Function number you want to program. You can program up to sixteen Custom Functions, which are numbered 128 to 143.
  • Page 90 * Softkey selections are stored as two keystrokes The keystrokes simulate any sequence of keystrokes the user can perform at a keypad. You can program up to 32 keystrokes for each Custom Function. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 91 – 128 to 143 Enable Custom Function 128 through 143 (128 through 131 for D7412GV4/ D7212GV4) (Menu Function only): This function determines if a passcode is needed to Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 92 D1260: C8C7C5 NOTICE! The custom functions in Example 1 are not compatible between keypad types. Example 2 Instant master Arm (CMD 11): – D1255: A11 – D1260: A11 F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 93: User Interface

    Commands method provides continuity in the arming commands across product lines and makes an easy transition for dealers using other Bosch Security Systems, Inc. products. With commands, the end user presses [COMMAND] and then the numeral of the command to initiate.
  • Page 94 Entry and exit delays are not provided with this arming function. This function causes a Perimeter Delay point to act as a Perimeter Instant point. For SIA CP-01 Compliance NOTICE! This feature is not allowed in SIA CP-01 compliant installations. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 95 ON (master delay armed), ALL ON INSTANT (master instant armed), and AREA # PERIMETER ON (perimeter instant armed or perimeter delay armed). All area types, master, associate, regular, and shared can be viewed using this function. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 96: Access Control Functions

    Routing. The Test Report includes additional information if Expand Test Report is enabled in Section 3.1 Phone, page 17. 3.12.3 Access Control Functions Door Control Default: Selection: -, E, or P F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 97 NOTICE! Regardless of whether an E or a P is entered when a COMMAND 55 is performed, the keypad asks for the user’s current passcode first. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 98 (Menu function only) Use this function to print all the events stored in the control panel beginning at the start date and ending with the last event in the log. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 99 P## Resettable in Section 5.1 Point Index, page 130. Points within the scope of the keypad where the function is entered reset. Refer to Section 3.11.1 Keypad (Command Center) Assignment, page 79. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 100 Use this function to Walk Test all points in the entire control panel regardless of the P## Type. NOTICE! The Service Walk Test is available on the D9412GV4 using the Service Menu [9][9][ENT]. The D7412GV4 and D7212GV4 do not include the Service Walk Test in the Service Menu. In the D7412GV4 and D7212GV4, the Service Walk Test function must be enabled in the Function List to access the Service Walk Test.

  • Page 101: Custom Functions

    Custom Function. If a passcode is not entered within 10 sec, the Custom Function times out and the display returns to idle text. 3.12.5 Configuration Authority Keypad Programming Default: Selection: - or P Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 102: Authority Level Selections

    Disabled: This function is not authorized for the user who is assigned this authority level. Enabled: This function is authorized for the user who is assigned this authority level. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 103 Use COMMAND 11 carefully because all Perimeter and Interior points become Instant Armed. L## Perimeter Instant Default: Authority Levels 1-4: Enabled (E)Authority Levels 5-15: Blank (-) Selection: - or E Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 104 View Event Memory [COMMAND][4][0] View all memory events that occurred since the last time the system was armed for all areas within the scope of the keypad in this area. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 105 This test includes a 2-sec Bell Test (Fire Bell relay) for each Fire point that is tested. – The test ends when all points are tested or the test times out after 20 min of no activity. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 106 The following prompts are sub-functions of Door Control. NOTICE! Cycle Door must be enabled for all three sub-functions to operate. If Cycle Door is disabled, all three sub-functions do not operate. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 107 [ENTER] secures door number 2, which is indicated by an X in the display. Secure Door allows the user with this authority level to access the SECURE? 12345678 keypad display. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 108: General Functions

    Change the date and time for the control panel in this area. L## Change Passcode Default: Authority Levels 1, 15: Enabled (E)Authority Levels 2-14: Blank (-) Selection: - or E Function No. Function Name Alternate Keystroke Change Passcodes [COMMAND][5][5] F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 109 Print all panel-wide events from the log to the printer in the area where the user is executing this function. NOTICE! This item can also be accessed using the Service Menu ([9][9][ENT]). Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 110 Do not use the Change Relays function to toggle relays reserved for special functions. Special function relays are Area and Panel Wide Relay functions as well as relays assigned to CC# Enter Key Relay? F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 111 The D1255 Keypad displays ALL PNTS TESTED. – If enabled in Routing, Service Start and Service End are reported at the central station receiver for the beginning and end of the test. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 112 (if programmed) when the last point is tested. – Walk Start and Walk End Reports are sent to the central station receiver for the beginning and end of the test (if programmed in phone routing). F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 113: Report Levels

    L## Passcode Disarm Default: Authority Levels 1-5, 14: Enabled (E) Authority Levels 6-13, 15: Blank (-) Selection: - or E Disarm an area by entering a passcode and pressing [ENTER]. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 114: Access Control Levels

    Activate the custom function assigned to the door in this area while the area is Master Armed or Disarmed only. Activate the custom function assigned to the door in this area while the area is Disarmed only. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 115 When local authorization is required, only a security user with the Remote Firmware Update authority enabled shall be able to authorize the update. By default, Remote Firmware Update authority is only enabled for the Service Passcode (Authority level 15). Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 116: Sia Duress Passcode Options

    Enter the function number indicated in the “#” column of the program record sheet or next to the function in Section 3.12 User Interface, page 93. NOTICE! Function numbers 128 to 143 are custom functions and show the text programmed for CF ### Text. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 117: Relay Parameters

    Reset (Relays B and C require the optional D136 Relays). – Off-Board Relays: The D9412GV4 can also control 128 (64 for the D7412GV4) dry- contact form C relays when up to sixteen optional D8129 OctoRelay Modules are installed. These relays are used for Area Relay, Panel-Wide Relay, and Individual Point Fault Relays.

  • Page 118: Area Relays

    A# Alarm Bell Default: Selection: 0, 1 to 128, A, B, C for D9412GV4 0, 1 to 64, A, B, C for D7412GV4 0, 1 to 24, A, B, or C for D7212GV4 This voltage output relay activates and provides 12 VDC output when a Non-fire point (P## Fire is No) assigned to this area activates an alarm.
  • Page 119 A# Verify Time must be the same number of seconds for all areas that share the relay. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set A# Reset Sensors to a value other than 0. A# Fail to Close...
  • Page 120 A# Force Armed Default: Selection: 0, 1 to 128 A, B, or C for D9412GV4 0, 1 to 64, A, B, C for D7412GV4 0, 1 to 24, A, B, or C for D7212GV4 This relay activates when this area is Force Armed. It remains active until the area disarms or the control panel resets.

  • Page 121: Panel-Wide Relays

    A# Duress Relay Default: Selection: 0, 1 to 128 A, B, or C for D9412GV4 0, 1 to 64, A, B, C for D7412GV4 0, 1 to 24, A, B, or C for D7212GV4 Activates when a Duress alarm is generated from a keypad assigned to the specified area.
  • Page 122 Battery Trouble Default: Selection: 0, 1 to 128 A, B, or C for D9412GV4 0, 1 to 64, A, B, C for D7412GV4 0, 1 to 24, A, B, or C for D7212GV4 Activates when battery voltage falls below 85% of capacity (12.1 VDC) for a fully charged (13.8 VDC) battery, or when the battery is in a missing condition.
  • Page 123 Summary Fire Default: Selection: 0, 1 to 128 A, B, or C for D9412GV4 0, 1 to 64, A, B, C for D7412GV4 0, 1 to 24, A, B, or C for D7212GV4 Enter the number of the relay that activates when any Fire point in the system (P## Type 0, P## Fire Yes) enters into alarm.

  • Page 124: Relay/Output Configuration

    Summary Supervisory Burg Default: Selection: 0, 1 to 128 A, B, or C for D9412GV4 0, 1 to 64, A, B, C for D7412GV4 0, 1 to 24, A, B, or C for D7212GV4 Activates when any Non-fire Supervisory point in the control panel is in a supervisory condition, or if a Supervisory Burg point is missing.

  • Page 125: Passcodes, Access Credentials, And User Groups

    – a User Group Window. 4.1.1 User Credentials For the D9412GV4, there are 999 users (399 for D7412GV4 and 99 for D7212GV4) consisting of no more than one passcode, one access credential and one key fob each. 4.1.2 Passcodes In a control panel with factory default settings, only the master user has an assigned passcode.

  • Page 126: Tokens And Cards

    Three to six digits ( 0 to 9) Enter three to six digits to enable a passcode for the master user in this group. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), enter at least one Passcode. F.01U.218.312 | 04 | 2012.03 Program Entry Guide...
  • Page 127 Assign an authority level to the user for this area. A setting of 0 means the user has no authority in this area. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), assign an authority level of 1 to 14 to the Passcode to silence bells. U### Name...
  • Page 128 This is the first byte (bits 2 through 9) of data for a 26-bit Wiegand card. This is called the site number. Tokens and cards with a site code of 255 are not compatible with the D9412GV4/ D7412GV4 Control Panels.
  • Page 129 Duplicate ID detection must be based on the RFID value stored in configuration memory, not on the number printed on the device. NOTICE! Keyfobs are not supervised when assigned to a User. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 130: Points

    Point Assignments. Each unique point index number determines the control panel’s responses to specific conditions occurring on the Protective points. The D9412GV4/D7412GV4/D7212GV4 Program Record Sheet (P/N: F01U214958) and RPS contain the default settings and descriptions for point indexes.
  • Page 131 Alarm and Restoral Reports are not sent if Local Disarmed is Yes. Short: The point is disarmed and sends a Point Opening Report. A Point Opening Report is not sent if Local Armed is Yes. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 132: Point Responses

    Combining Point Response 9 with the Local While Disarmed feature provides off-site reporting when the area is armed, but only local alarm annunciation when the area is disarmed. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 133: Characteristics Of A Fire Point

    2 sec. NOTICE! To provide remote annunciation for a restored Fire Supervisory point, use P## Relay Response Type set to 1 and connect the corresponding relay to an annunciator. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 134 With Passcode Length set to a non-zero value, entering a valid Passcode during Entry Delay disarms the system as soon as the last digit is entered. No other keys are required. When the F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 135 Controlled point (P## Type 1, 2, 3) with a delayed response (D) (P## Pt Response) of 4, 5, 6, 7, or 8. DISARM NOW appears for the duration of the time programmed when the point is faulted in the delay condition. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 136 136 en | Points D9412GV4/D7412GV4/D7212GV4 NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set this parameter to No. NOTICE! If you want this point to ring the bell because the message failed to reach the central station receiver, program P## Audible After 2 Failures as Yes.
  • Page 137 Points | en 137 NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set this parameter to No. Use this option to determine whether the point appears in the keypad display upon an alarm condition. For LED keypads, the LED does not illuminate upon an alarm condition. Point text appears and annunciation is made for Invisible points programmed for a trouble condition in point response.
  • Page 138 Use this option to cause a relay (1 to 127 for D9412GV4; 1 to 64 for D7412GV4) to respond when a corresponding point with the same number (1 to 127) is faulted. This requires connecting D8129 OctoRelays to Zonex Bus 1 and Zonex Bus 2 (D9412GV4 only).
  • Page 139 Swinger bypass) condition occurred when the area disarmed, and the point restored. NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), set this parameter to No. Use this option to allow a Controlled point (P## Type 1, 2, 3), to report Alarms, Troubles, and Restoral Reports only when the area is armed.
  • Page 140 Swinger bypass) condition occurred when the area disarmed, and the point restored. NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), set this parameter to No. Use this option to disable any Restoral Reports from this point after it returns to normal from an alarm or trouble condition.
  • Page 141 Sked programmed to arm the area. NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set this parameter to No. Bypassing a 24-hour point: When a 24-hour point or 24-hour Supervisory point is bypassed, 24 HOUR BYPASS scrolls continuously at the keypad.
  • Page 142 Use this option to prevent P## Type (0 to F) points that are bypassed by the user (COMMAND BYPASS) from occurring until the area is armed. When the area is armed, the bypassed points F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 143 P## Cross Point can be set to Yes or No. P## Fire Point Default: Refer to the program record sheet Selection: Yes or No This point is a Fire point. This point is not a Fire point. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 144 144 en | Points D9412GV4/D7412GV4/D7212GV4 NOTICE! To meet UL 864 requirements (D9412GV4 and D7412GV4), set this parameter to Yes for all applicable Fire points. Use this option to make a 24-hour point a Fire point. This option makes this point the highest priority event in the control panel when an alarm occurs for both reporting and displaying on the keypad.
  • Page 145 Fire Point setting is Yes, then the Wireless Point Supervision Time setting must be set to 4 hours. This is an alternate supervision interval to the global System Supervision Time setting. Refer to Section System Supervision Time, page 190. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 146: Point Assignments

    D9412GV4/D7412GV4/D7212GV4 Point Assignments These entries assign point indexes to Points 1 to 127, 129 to 247 for the D9412GV4, Points 1 to 75 for the D7412GV4, Points 1 to 40 for the D7212GV4, and assign the points to the areas.
  • Page 147 When the keypad reads Parameter Saved, your selection has been configured. P### Area Assign Default: Selection: 1 to 32 for D9412GV4 1 to 8 for D7412GV4 1 to 4 for D7212GV4 Select the area number to which the point is assigned.
  • Page 148 Use an entry of two or higher. Interior Follower points need a Debounce value of at least three. NOTICE! Door points assigned to D9210C modules need a Debounce value of at least four (D9412GV4 and D7412GV4). NOTICE! P### debounce does not apply to wireless points.

  • Page 149: Cross Point Parameters

    It provides a unique way for the Wireless Receiver and Wireless Repeaters to identify what device is transmitting. Cross Point Parameters This section discusses the requirements necessary to program Cross Point functions. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 150 Alarm Events are generated. These points must have P## Cross Point set to Yes to generate this event. There are 31 Cross Point Groups in the D9412GV4 and ten in the D7412GV4. Each Cross Point Group consists of eight points and is identified by the point numbers in them (for example, Cross Points 1 to 8, Cross Points 9 to 16, and so on).

  • Page 151: Command 7 And Command

    Group assignments. COMMAND 7 and COMMAND 9 These entries assign point indexes, associated relays that activate, and the text for the COMMAND 7 and COMMAND 9 keypad functions. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 152 Selection: 0 to 8 This entry selects a relay (73 to 80 for the D9412GV4 or 9 to 16 for the D7412GV4 and D7212GV4) when COMMAND 7 is initiated (refer to the Section P### Relay Codes/Relays, page 148 for relay number association).
  • Page 153 Selection: 0 to 8 This entry selects a relay (73 to 80 for the D9412GV4 or 9 to 16 for the D7412GV4 and D7212GV4) when COMMAND 9 is initiated (refer to Section P### Relay Codes/Relays, page 148 for relay number association).

  • Page 154: Schedules (Skeds)

    Open Close Open Close Table 6.1 Window Selections Windows W# Sunday Default: Selection: Yes or No Activate this window on Sundays. Do not activate this window on Sundays. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 155 If Disable O/C in Window is set to No and the area is disarmed at any time, an Opening Event is sent without an Early to Open or Late to Open modifier. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 156 This program item is one of three required to create an Opening Window. To program an Opening Window, Open Early Begin and Open Window Stop must also be programmed. Refer to Section W# Open Early Begin, page 155 for explanations of report features. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 157 Do not use a time of 23:59 as a window stop time unless another window begins on the next day at 00:00. Fail to Open Reports are not sent for windows that stop at 23:59. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 158 For example, if three windows are programmed to execute on Tuesday, Window 1 (W1) must occur before Window 2 (W2), and Window 2 must occur before Window 3 (W3). F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 159 For example, to program windows for an area that closes between 11:30 PM and 12:30 AM, five days a week, use two windows as shown in Figure 6.5, Page 161. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 160 Do not use Holiday Index 3 with this window. W# Holiday 4 Default: Selection: Yes or No Use Holiday Index 4 with this window. Do not use Holiday Index 4 with this window. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 161 Eight separate program items determine whether a particular window activates in each of the eight areas of the control panel. Figure 6.5 Opening and Closing Windows Worksheet Figure 6.6 Opening and Closing Windows Figure 6.7 Normal Store Hours* Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 162: User Group Windows

    NOTICE! A User Group can be assigned to more than one window in a 24-hour period, but the windows must not overlap or exceed the midnight boundary. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 163 If the window must activate on the same day that you program it, reboot the control panel to activate it immediately. UW# Group Disable Time Default: 00:00 Selection: HH:MM (hours and minutes) Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 164: Holiday Indexes For User Group Windows

    The functions and their associated parameters are listed in the Sked Function Code Table in the D9412GV4/D7412GV4/D7212GV4 Program Record Sheet (P/N: F01U214958), and they are explained in detail following the S## Function Code prompt 119.
  • Page 165 129 to 247 Point to bypass this sked bypasses. The point can be 129 to 247 for D9412GV4, bypassed only if Bypassable is programmed 1 to 75 for D7412GV4, 1 to Yes in the point index assigned to the point.
  • Page 166 S## Relay Number prompt Selections: Blank, 1 to 128 Relay to activate. defines the specific relay this sked activates. for D9412GV4, 1 to 64 for The sked can activate one relay. D7412GV4, 1 to 24 for D7212GV4...
  • Page 167 S## Time. To send a Test Report every hour, program S## Hourly Report. Note: To meet UL 864 requirements (D9412GV4 and D7412GV4), use the Sked function to meet the daily Test Report requirement. Status Report: This function generates a...
  • Page 168 Custom Function activation. S## Custom Func Default: Blank (0) Blank (0) Selections: Blank (0), 128 to 143 for D9412GV4, 128 128 to 143 No Custom to 131 for D7412GV4 and Function is D7212GV4 activated. Enter the custom function Custom Function this sked executes.
  • Page 169 Yes. authority level. NOTICE! The D9412GV4 supports eight doors; the D7412GV4 supports two doors. NOTICE! To regulate a user’s access for certain doors, assign the user a different authority level # with the same authority functions enabled. For example, a user can be assigned Authority Level 1 for Door 1 and Authority Level 2 for the remaining doors.
  • Page 170 Enable the sked to unlock the doors programmed Yes to the secured state. Lock Door: (D9412GV4 and D7412GV4) This S## Door 1 [through 8] Lock Door #. function returns an unlocked (Function 18) or Default: No secured (Function 19) door to a normal Selection: Yes or No Do not lock Door #.
  • Page 171 Table 6.2 NOTICE! To meet UL 864 daily Test Report requirements (when using two phone lines) (D9412GV4 and D7412GV4), you must still use Sked Function Code 9, Test Report and program it to occur on a daily basis as per AHJ requirements.
  • Page 172 NOTICE! To meet UL 864 requirements for Central Station and Remote Station applications (D9412GV4 and D7412GV4), program each day of the week to Yes for the required Test Report Sked.

  • Page 173: Holiday Indexes

    Add/Change/Delete section to program the Holiday Indexes. The View Holidays section is a view-only section provided for your convenience. Use View Holidays to review the dates programmed in the Holiday Indexes. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 174: Auxparm

    – turning relays on and off. The items described in this section allow some simple configuration options. To receive the SIM automation protocol; however, you must contact Bosch Security Systems, Inc. Technical Support at (888) 886-6189. Supervise SDI 80 Default...

  • Page 175: Miscellaneous

    Supervision point restores to normal. The control panel sends a FIRE SUPERVISION RESTORE when a Fire Supervision point restores to normal. Determines how the control panel sends a Fire Supervision Restoral Event. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 176 NOTICE! This feature does not apply to Fire Alarms or invisible point alarms. For SIA CP-01 Compliance: Abort Window is a required parameter. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 177 Upon remote arming, the output pulses on for 2 sec. Upon remote disarming, the output pulses on, off, on, off for 2 sec each. For SIA CP-01 Compliance: Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 178 Disabled The control panel clock is not adjusted for daylight saving time. US Calendar The control panel clock is adjusted to the US start/end dates for daylight saving. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 179: Sdi2 Modules

    NetCom Central Station Receiver (CSR) reporting, and history retrieval. Module bus supervision is enforced when the SDI2 communication module is used in a central station reporting route. D9412GV4 D7412GV4 D7212GV4 Table 8.3 B420 Module Capacities Per Control Panel Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 180 Refer to Section 2.5.1 Keypad Programming Menu, page 12 to access the TOOLS MENU and navigate to the PROGRAMMING option. Press [ENT] to enter the PROGRAMMING option. Press [ENT] at the ADDRESS PARAM option to enter it. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 181 The [PREV] button acts as a [Backspace] key. Press [PREV] to delete the characters of the byte, and then enter the new byte numbers, or press [NEXT] to move to the next byte. NOTICE! The keypad does not accept invalid byte numbers. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 182 Press [ENTER] to enter the Programming option. Press [ENTER] at the Address Parameters option to enter it. Press [ENTER] at the Default Gateway option. The current configured default gateway shows. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 183 The Clear softkey allows you to clear the entire address. Use the softkeys and the number buttons on the keypad to enter the new address. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 184 Selection: 1 to 65535 Use this option to configure the port number for the B420 web server. ARP Cache Timeout Default: Selection: 1 to 600 (in 1-sec increments) F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 185 Refer to Section 2.5.1 Keypad Programming Menu, page 12 to access the TOOLS MENU and navigate to the PROGRAMMING option. Press [ENT] to enter the PROGRAMMING option. Press [ENT] at the ENCRYPTION option to enter it. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 186 Once set, this hostname can be used to contact the control panel via RPS over network. If enabled, a web browser can connect to this communication module at this host name for the purposes of configuration and diagnostics. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 187 D1255 Refer to Section 2.5.1 Keypad Programming Menu, page 12 to access the TOOLS MENU and navigate to the PROGRAMMING option. Press [ENT] to enter the PROGRAMMING option. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 188 This will verify that the Ethernet Communicator has at least a limited Ethernet connection to the specific site or receiver to which reports will be sent. For example, receiver-01.your-company-domain.com. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 189: Ip Diagnostics Keypad Menu (B420)

    Press the corresponding soft button to enter the IP Diagnostics option. At the B420 Module 1-2 option, enter the number for the B420 module for which you want to review the settings, and press [ENTER]. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 190: B820 Sdi2 Inovonics Interface Module

    The Wireless Repeater is a device that is independent of the SDI2 bus. It provides an ability to extend the range of the B820 SDI2 Inovonics Interface Module. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 191: Rf Repeaters Keypad Menu (Rfid Wireless Repeaters)

    Press [ENT] to enter the RF Repeaters option. Press [ENT] to enter the Add Repeaters option. NOTICE! Attempting to enter a repeater with an assigned RFID generates an error tone. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 192 At the REPEATER 1-8 option, enter the repeater number you wish to remove and press [ENT] or scroll through the available devices to remove by pressing [NEXT], and then F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 193: Rf Diagnostics Keypad Menu (Rfid Wireless Repeaters)

    Refer to Section 2.5.1 Keypad Programming Menu, page 12 to access the TOOLS MENU and navigate to the RF DIAGNOSTICS option. Press [ENT] to enter the RF DIAGNOSTICS option. Press [ENT] to enter the SIGNAL STRENGTHS option. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 194 Press the Next softkey. Within the States option, the menu will scroll through the following sub-categories, with the results of the diagnostic check: – State – Missing – Tamper – Low-Battery – AC FAIL F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 195: Access Control (D9412Gv4/D7412Gv4)

    Allow for the Strike relay to activate upon a fire alarm – Programming the Interlock point Door Number NOTICE! The D9412GV4 supports up to eight doors. The D7412GV4 supports two doors. D# Entry Area # Default: Disabled Selection: Disabled, 1 to 32...
  • Page 196 196 en | ACCESS CONTROL (D9412GV4/D7412GV4) D9412GV4/D7412GV4/D7212GV4 Enter the keypad number (CC#) which determines the scope of the user ID’s disarming rights. Areas disarm on the basis of this keypad’s scope and the authority level of the user. D# Custom Function...
  • Page 197 D9412GV4/D7412GV4/D7212GV4 ACCESS CONTROL (D9412GV4/D7412GV4) | en 197 NOTICE! Door points must be programmed as Perimeter points. If a 24-hour point type is required for the Door point, you can use a Perimeter point type with a point response of 9 to C. Also, the debounce count must be set to 4 in Point Assignments.

  • Page 198: Strike Profile

    198 en | ACCESS CONTROL (D9412GV4/D7412GV4) D9412GV4/D7412GV4/D7212GV4 prompt programmed as Yes when a Fire Alarm occurs in any area. Relays that are activated by Fire Unlock can be returned to normal only through the keypad using the Door Control function.
  • Page 199 D9412GV4/D7412GV4/D7212GV4 ACCESS CONTROL (D9412GV4/D7412GV4) | en 199 D# Shunt Time Default: 10 sec Selection: 0 to 240 sec Shunt Time is not programmed for this door. 1 to 240 The shunt activates for the amount of time programmed. Enter the amount of time that the Door point is shunted to allow a user to open the door. The duration of time should be sufficient so that the opened door does not cause the point to enter into a trouble, alarm, or faulted condition.

  • Page 200: Event Profile

    200 en | ACCESS CONTROL (D9412GV4/D7412GV4) D9412GV4/D7412GV4/D7212GV4 NOTICE! To Reduce False Alarms, maintain D# Deactivate on Open? as the default (Yes). This helps prevent the door from bouncing open and causing a false alarm. D# RTE Shunt Only? Default: Selection: Yes or No Programmed shunt time activates so door can be manually opened.
  • Page 201 D9412GV4/D7412GV4/D7212GV4 ACCESS CONTROL (D9412GV4/D7412GV4) | en 201 D# Access Granted? Default: Selection: Yes or No Access Events from this door controller are sent to the control panel for processing. Access Events from this door controller are not sent to the control panel for processing.
  • Page 202 202 en | ACCESS CONTROL (D9412GV4/D7412GV4) D9412GV4/D7412GV4/D7212GV4 D# Exit Request? Default: Selection: Yes or No A Door REX Event from this door controller is sent to the control panel for processing. A Door REX Event from this door controller is not sent to the control panel for processing.

  • Page 203: Sia Cp-01 Quick Reference

    D9412GV4/D7412GV4/D7212GV4 SIA CP-01 Quick Reference | en 203 SIA CP-01 Quick Reference Product Name Bosch Recommended Settings for Shipping Default Reference SIA CP-01 Compliance Page Phone # (Prefix backup phone number with {Blank} Call Waiting disable command) Duress Type Option 3...

  • Page 204: Keypad Tools Menu (Options Not Available In Rps)

    Refer to Section 2.5.1 Keypad Programming Menu, page 12 to access the Tools Menu and navigate to the Service Bypass option. Press [ENTER] to enter the Service Bypass option. The Service Bypass prompt alternates with the number of points in service bypass. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.

  • Page 205: Rf Points Menu

    [ENT] when the desired device shows. The keypad indicates a transmission to the device. Press the [RESET] button on the device to enroll it. The keypad reads POINT ENROLLED. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...

  • Page 206: Remove Rf Point

    [ENTER] or to scroll through the available devices to enroll, press the Next softkey, and then press [ENTER] when the desired device shows. The keypad reads RF Point Removed. F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 207 Keypad Tools Menu (Options Not Available in RPS) | en 207 NOTICE! After selecting the RF Point for removal the panel instructs the Commercial Wireless module to delete the device. The point’s RFID is unassigned and saved. Bosch Security Systems, Inc. Program Entry Guide F.01U.218.312 | 04 | 2012.03...
  • Page 208 208 en | Keypad Tools Menu (Options Not Available in RPS) D9412GV4/D7412GV4/D7212GV4 F.01U.218.312 | 04 | 2012.03 Program Entry Guide Bosch Security Systems, Inc.
  • Page 210 Bosch Security Systems, Inc. 130 Perinton Parkway 14450 Fairport, NY www.boschsecurity.com © Bosch Security Systems, Inc., 2011...
