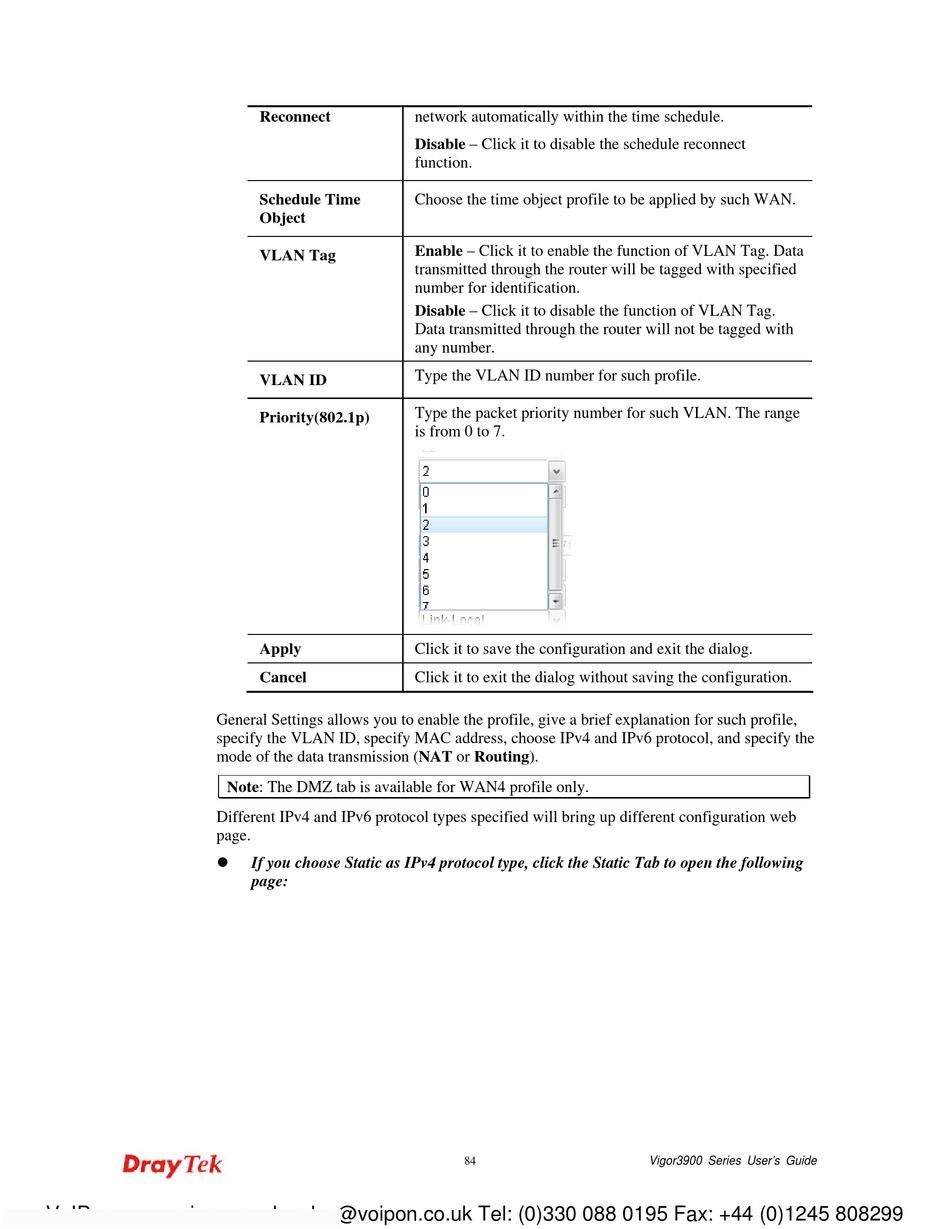

Draytek Vigor3900 User Manual page 92

VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
Reconnect
Schedule Time
Object
VLAN Tag
VLAN ID
Priority(802.1p)
Apply
Cancel
General Settings allows you to enable the profile, give a brief explanation for such profile,
specify the VLAN ID, specify MAC address, choose IPv4 and IPv6 protocol, and specify the
mode of the data transmission (NAT or Routing).
Note: The DMZ tab is available for WAN4 profile only.
Different IPv4 and IPv6 protocol types specified will bring up different configuration web
page.

If you choose Static as IPv4 protocol type, click the Static Tab to open the following
page:
network automatically within the time schedule.
Disable – Click it to disable the schedule reconnect
function.
Choose the time object profile to be applied by such WAN.
Enable – Click it to enable the function of VLAN Tag. Data
transmitted through the router will be tagged with specified
number for identification.
Disable – Click it to disable the function of VLAN Tag.
Data transmitted through the router will not be tagged with
any number.
Type the VLAN ID number for such profile.
Type the packet priority number for such VLAN. The range
is from 0 to 7.
Click it to save the configuration and exit the dialog.
Click it to exit the dialog without saving the configuration.
84 Vigor3900 Series User's Guide
