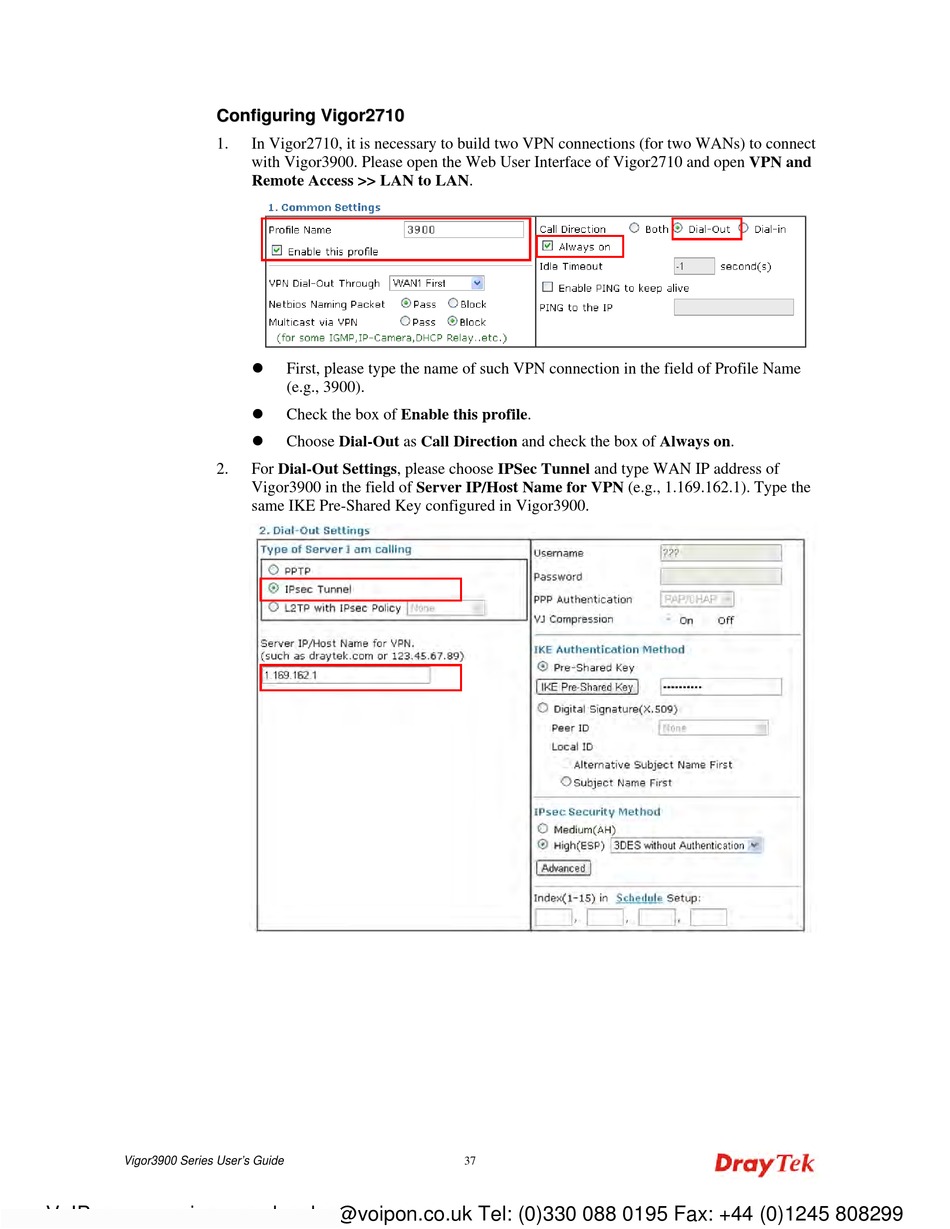

C C o o n n f f i i g g u u r r i i n n g g V V i i g g o o r r 2 2 7 7
1. In Vigor2710, it is necessary to build two VPN connections (for two WANs) to connect
with Vigor3900. Please open the Web User Interface of Vigor2710 and open VPN and
Remote Access >> LAN to LAN.

First, please type the name of such VPN connection in the field of Profile Name
(e.g., 3900).

Check the box of Enable this profile.

Choose Dial-Out as Call Direction and check the box of Always on.
2. For Dial-Out Settings, please choose IPSec Tunnel and type WAN IP address of
Vigor3900 in the field of Server IP/Host Name for VPN (e.g., 1.169.162.1). Type the
same IKE Pre-Shared Key configured in Vigor3900.
