Vigor3900 Series User's Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299


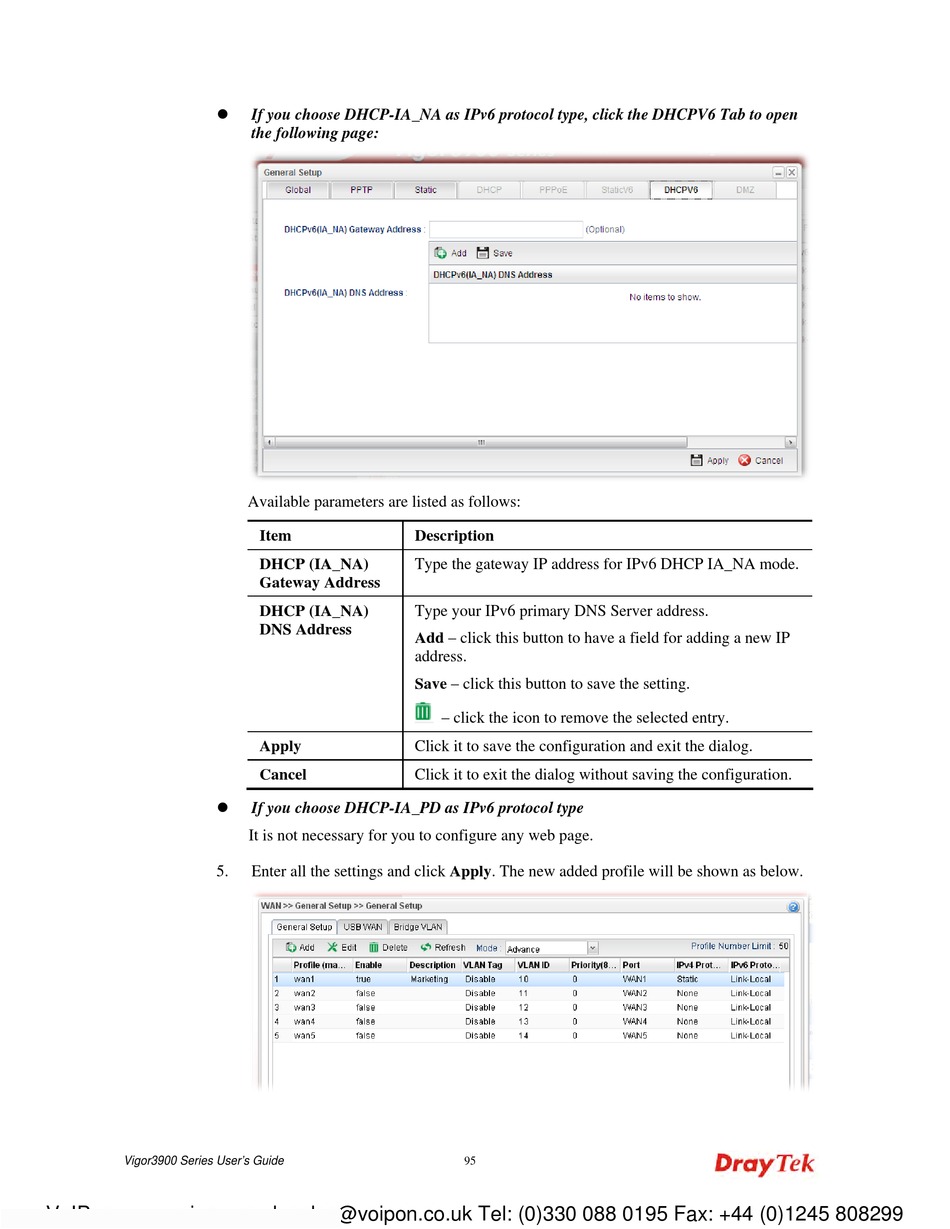

If you choose DHCP-IA_NA as IPv6 protocol type, click the DHCPV6 Tab to open
the following page:
Available parameters are listed as follows:
Item
DHCP (IA_NA)
Gateway Address
DHCP (IA_NA)
DNS Address
Apply
Cancel

If you choose DHCP-IA_PD as IPv6 protocol type
It is not necessary for you to configure any web page.
5. Enter all the settings and click Apply. The new added profile will be shown as below.
Description
Type the gateway IP address for IPv6 DHCP IA_NA mode.
Type your IPv6 primary DNS Server address.
Add – click this button to have a field for adding a new IP
address.
Save – click this button to save the setting.
– click the icon to remove the selected entry.
Click it to save the configuration and exit the dialog.
Click it to exit the dialog without saving the configuration.
95
