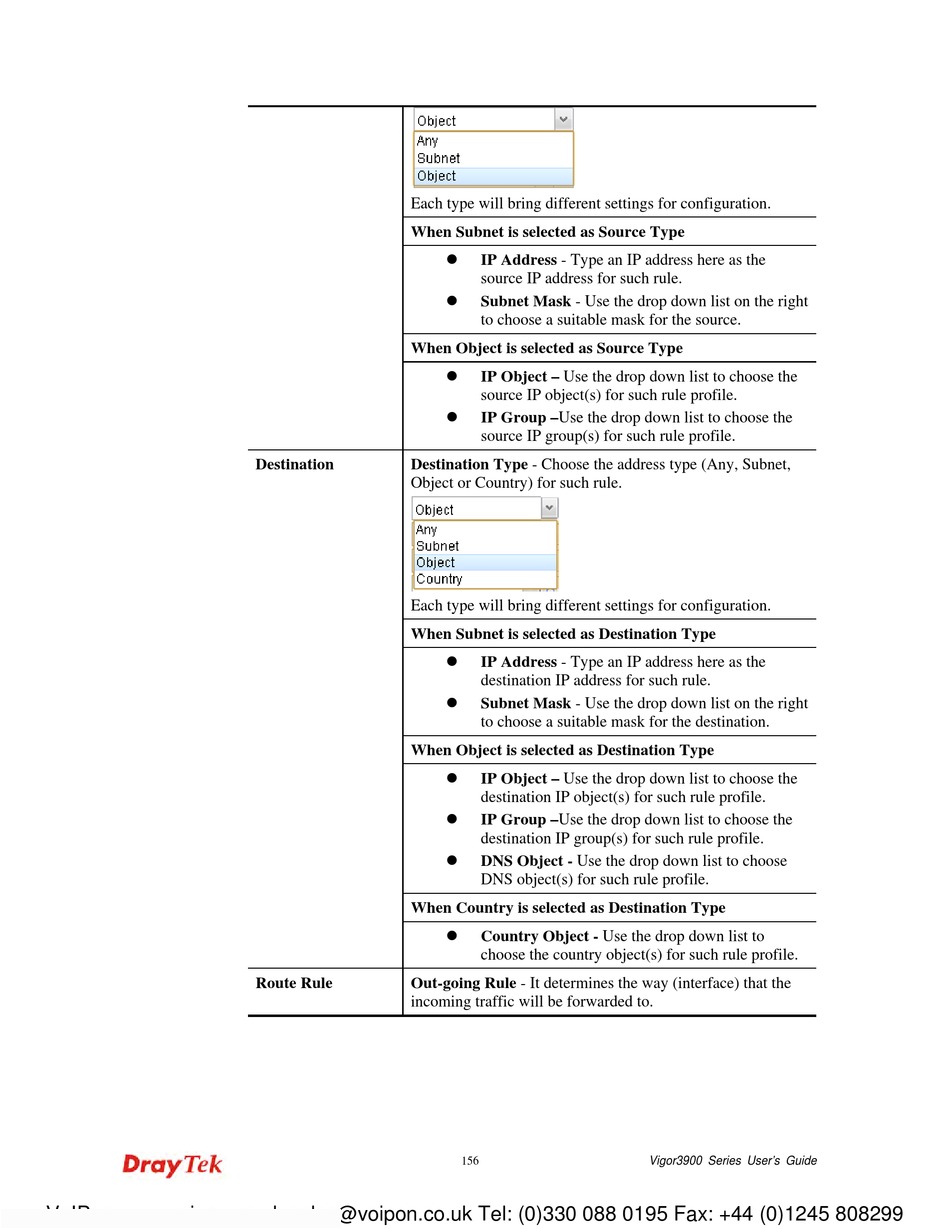

Each type will bring different settings for configuration.
When Subnet is selected as Source Type
When Object is selected as Source Type
Destination Destination Type - Choose the address type (Any, Subnet,
Object or Country) for such rule.
Each type will bring different settings for configuration.
When Subnet is selected as Destination Type
When Object is selected as Destination Type
When Country is selected as Destination Type
Out-going Rule - It determines the way (interface) that the
Route Rule
incoming traffic will be forwarded to.

IP Address - Type an IP address here as the
source IP address for such rule.

Subnet Mask - Use the drop down list on the right
to choose a suitable mask for the source.

IP Object – Use the drop down list to choose the
source IP object(s) for such rule profile.

IP Group –Use the drop down list to choose the
source IP group(s) for such rule profile.

IP Address - Type an IP address here as the
destination IP address for such rule.

Subnet Mask - Use the drop down list on the right
to choose a suitable mask for the destination.

IP Object – Use the drop down list to choose the
destination IP object(s) for such rule profile.

IP Group –Use the drop down list to choose the
destination IP group(s) for such rule profile.

DNS Object - Use the drop down list to choose
DNS object(s) for such rule profile.

Country Object - Use the drop down list to
choose the country object(s) for such rule profile.
156 Vigor3900 Series User's Guide
