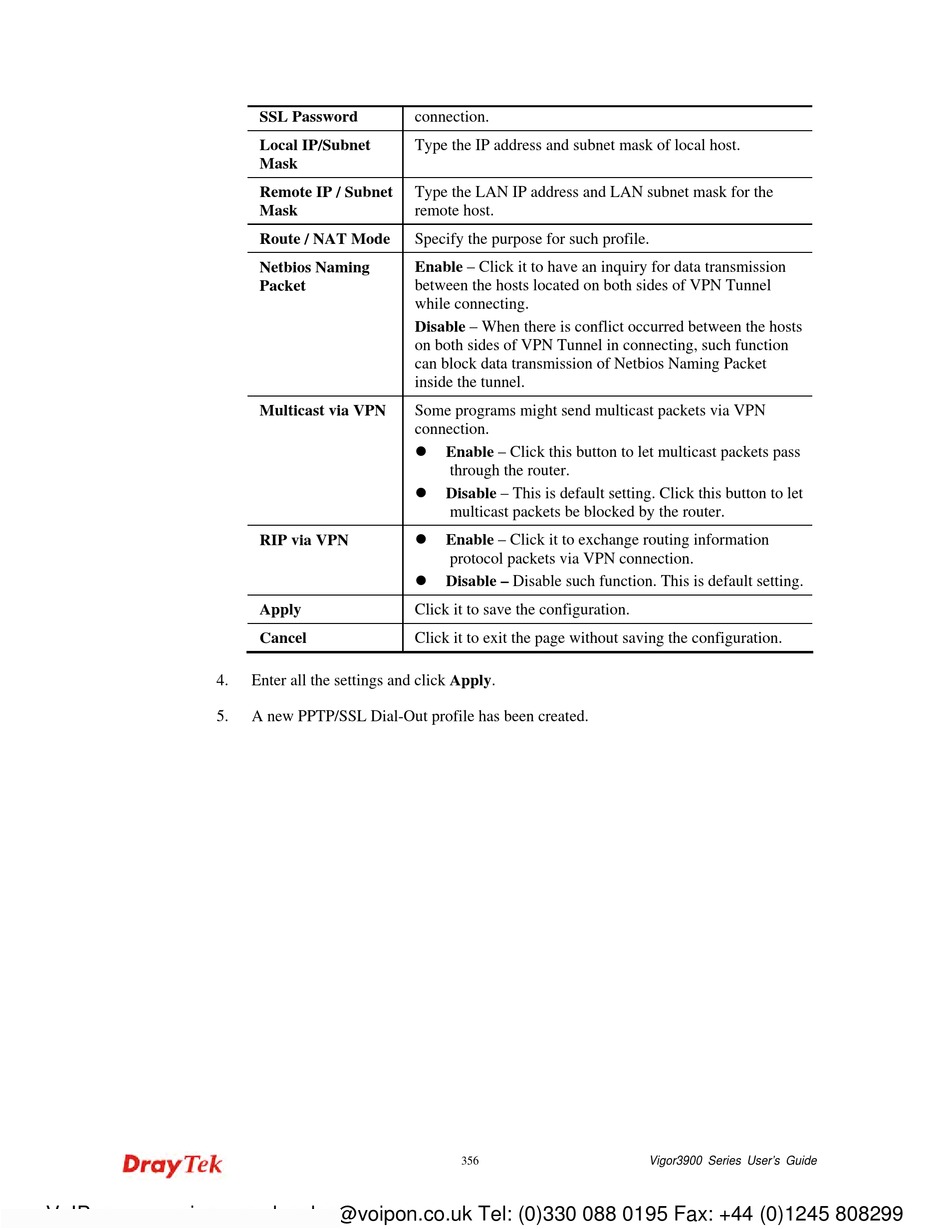

Draytek Vigor3900 User Manual page 364

VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
SSL Password
Local IP/Subnet
Mask
Remote IP / Subnet
Mask
Route / NAT Mode
Netbios Naming
Packet
Multicast via VPN
RIP via VPN
Apply
Cancel
4. Enter all the settings and click Apply.
5. A new PPTP/SSL Dial-Out profile has been created.
connection.
Type the IP address and subnet mask of local host.
Type the LAN IP address and LAN subnet mask for the
remote host.
Specify the purpose for such profile.
Enable – Click it to have an inquiry for data transmission
between the hosts located on both sides of VPN Tunnel
while connecting.
Disable – When there is conflict occurred between the hosts
on both sides of VPN Tunnel in connecting, such function
can block data transmission of Netbios Naming Packet
inside the tunnel.
Some programs might send multicast packets via VPN
connection.

Enable – Click this button to let multicast packets pass
through the router.

Disable – This is default setting. Click this button to let
multicast packets be blocked by the router.

Enable – Click it to exchange routing information
protocol packets via VPN connection.

Disable – Disable such function. This is default setting.
Click it to save the configuration.
Click it to exit the page without saving the configuration.
