Item
Subnet Mask
H o w t o c r e a t e a n e w
H o w t o c r e a t e a n e w
1. Open Objects Setting>>IP Object.
2. Simply click the Add button.

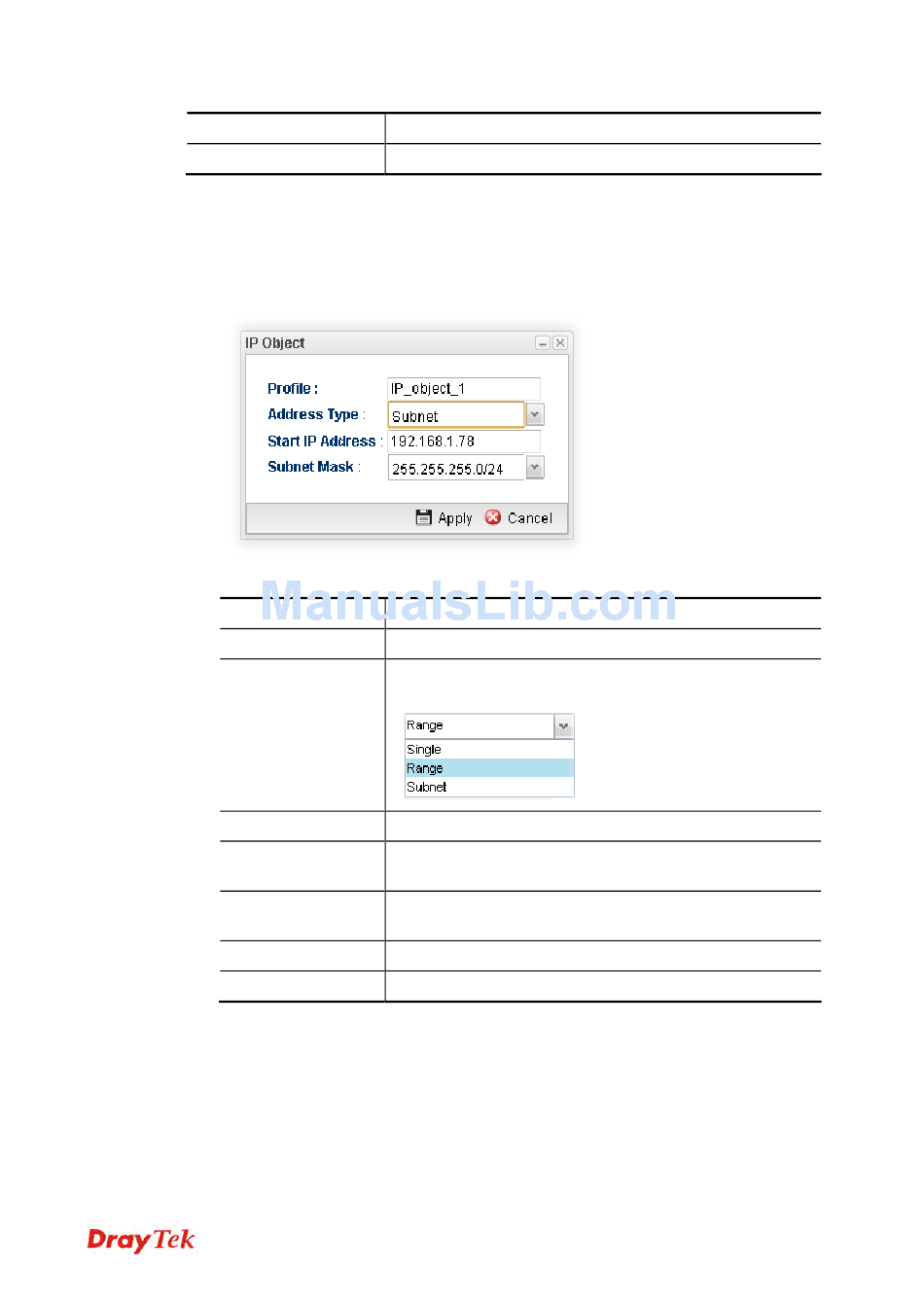

3. The following dialog will appear.
Available parameters are listed as follows:
Item
Profile
Address Type
Start IP Address
End IP Address
Subnet Mask
Apply
Cancel
4. Enter all the settings and click Apply.
5. A new IP object profile has been created.
Description
Display the subnet mask for such profile.
I P o b j e c t p r o f i l e
I P o b j e c t p r o f i l e
Description
Type the name of such profile.
Choose the address type (Single / Range /Subnet) for such
profile.
Type the IP address of the starting point for such profile.
Type the IP address of the ending point for such profile if
you choose Range as Address Type.
Use the drop down list to choose the subnet mask for such
profile if you choose Subnet as Address Type.
Click it to save and exit the dialog.
Click it to exit the dialog without saving anything.
224 Vigor3900 Series User's Guide
