RIP via VPN

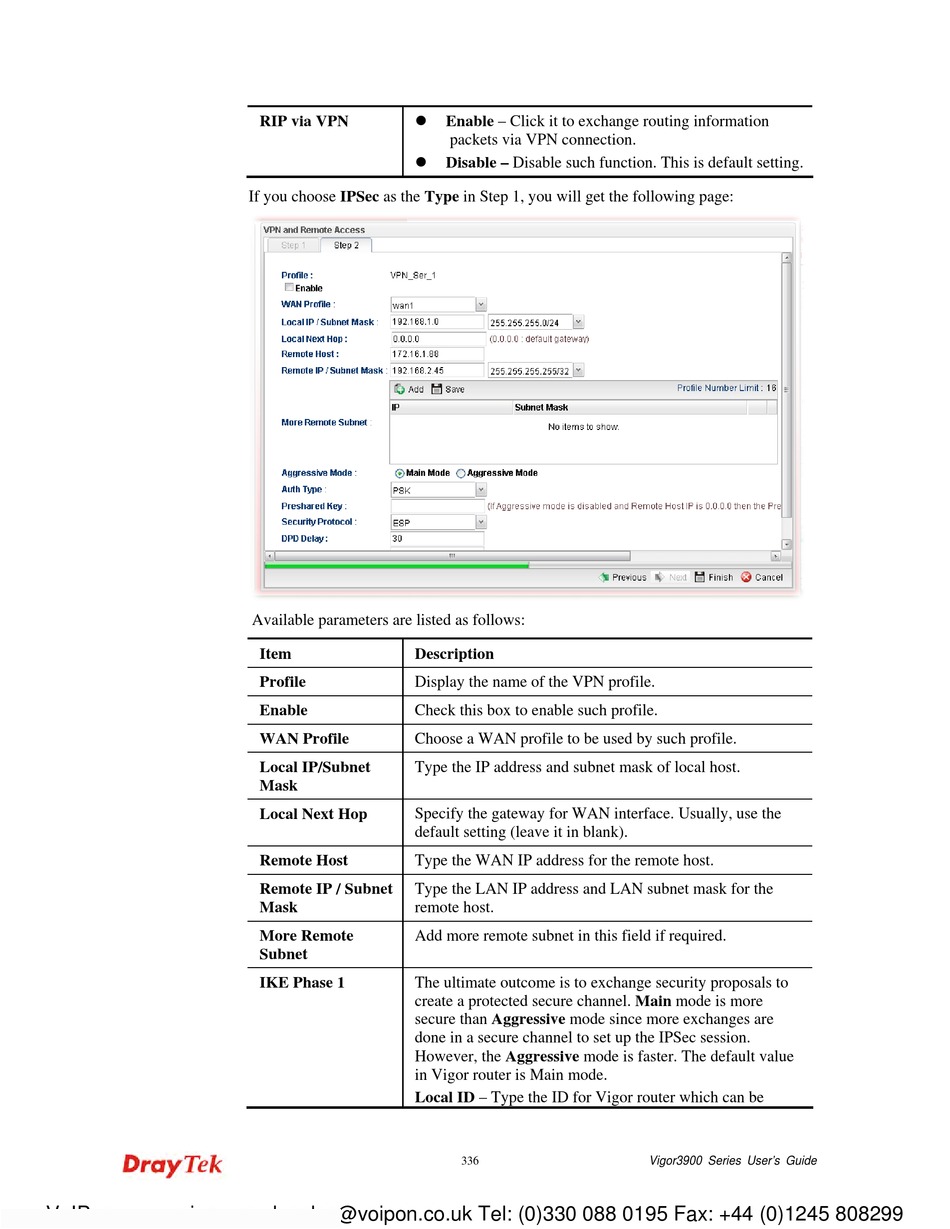

If you choose IPSec as the Type in Step 1, you will get the following page:
Available parameters are listed as follows:
Item
Profile
Enable
WAN Profile
Local IP/Subnet
Mask
Local Next Hop
Remote Host
Remote IP / Subnet
Mask
More Remote
Subnet
IKE Phase 1

Enable – Click it to exchange routing information
packets via VPN connection.

Disable – Disable such function. This is default setting.
Description
Display the name of the VPN profile.
Check this box to enable such profile.
Choose a WAN profile to be used by such profile.
Type the IP address and subnet mask of local host.
Specify the gateway for WAN interface. Usually, use the
default setting (leave it in blank).
Type the WAN IP address for the remote host.
Type the LAN IP address and LAN subnet mask for the
remote host.
Add more remote subnet in this field if required.
The ultimate outcome is to exchange security proposals to
create a protected secure channel. Main mode is more
secure than Aggressive mode since more exchanges are
done in a secure channel to set up the IPSec session.
However, the Aggressive mode is faster. The default value
in Vigor router is Main mode.
Local ID – Type the ID for Vigor router which can be
336 Vigor3900 Series User's Guide
