4 . 1 . 1 . 1 E t h e r n e t W A N
4 . 1 . 1 . 1 E t h e r n e t W A N

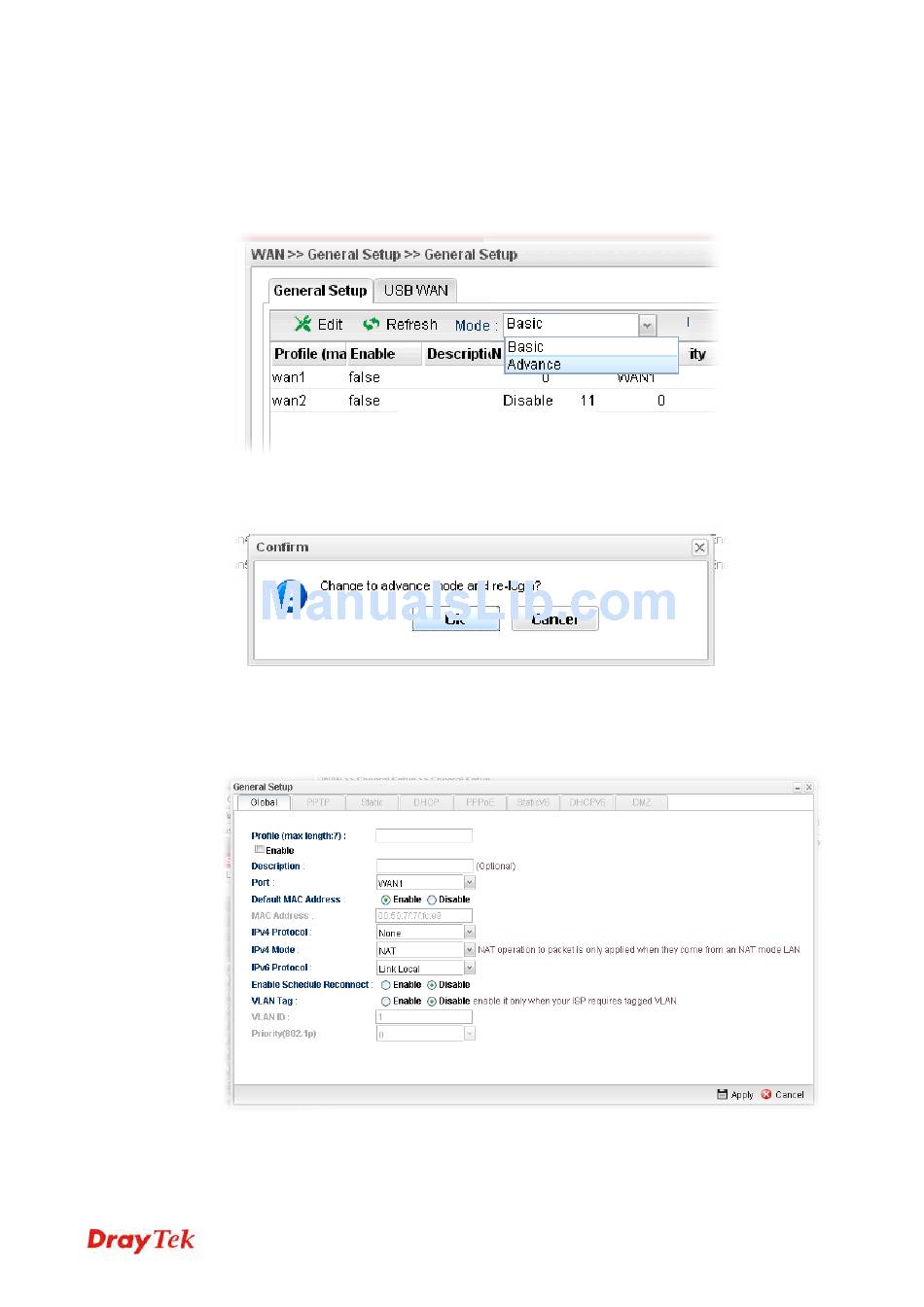

How to add a new WAN profile:
1. If the router is under Basic mode, you have to switch into Advance mode. If the router
is under Advance mode, go to Step 4 directly.
2. A confirmation dialog will appear. Click OK to apply the related settings for Advance
mode.
3. Re-login the system.
4. Open WAN>>General Setup. Click the Add button to open the following dialog.
Different protocol type selected will bring up different configuration web page.
Available parameters are listed as follows:
P r o f i l e s
P r o f i l e s
82 Vigor3900 Series User's Guide
