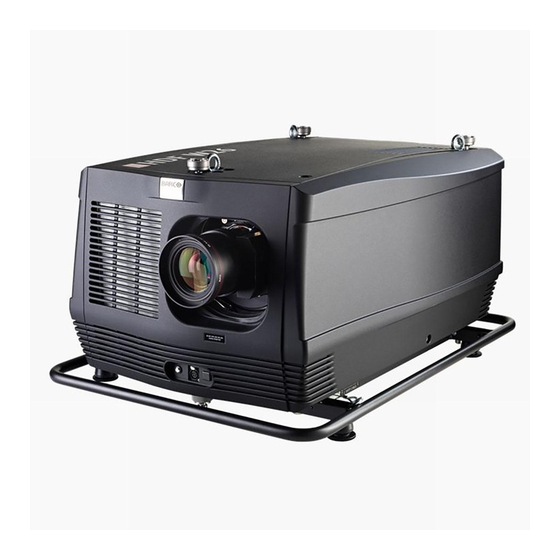

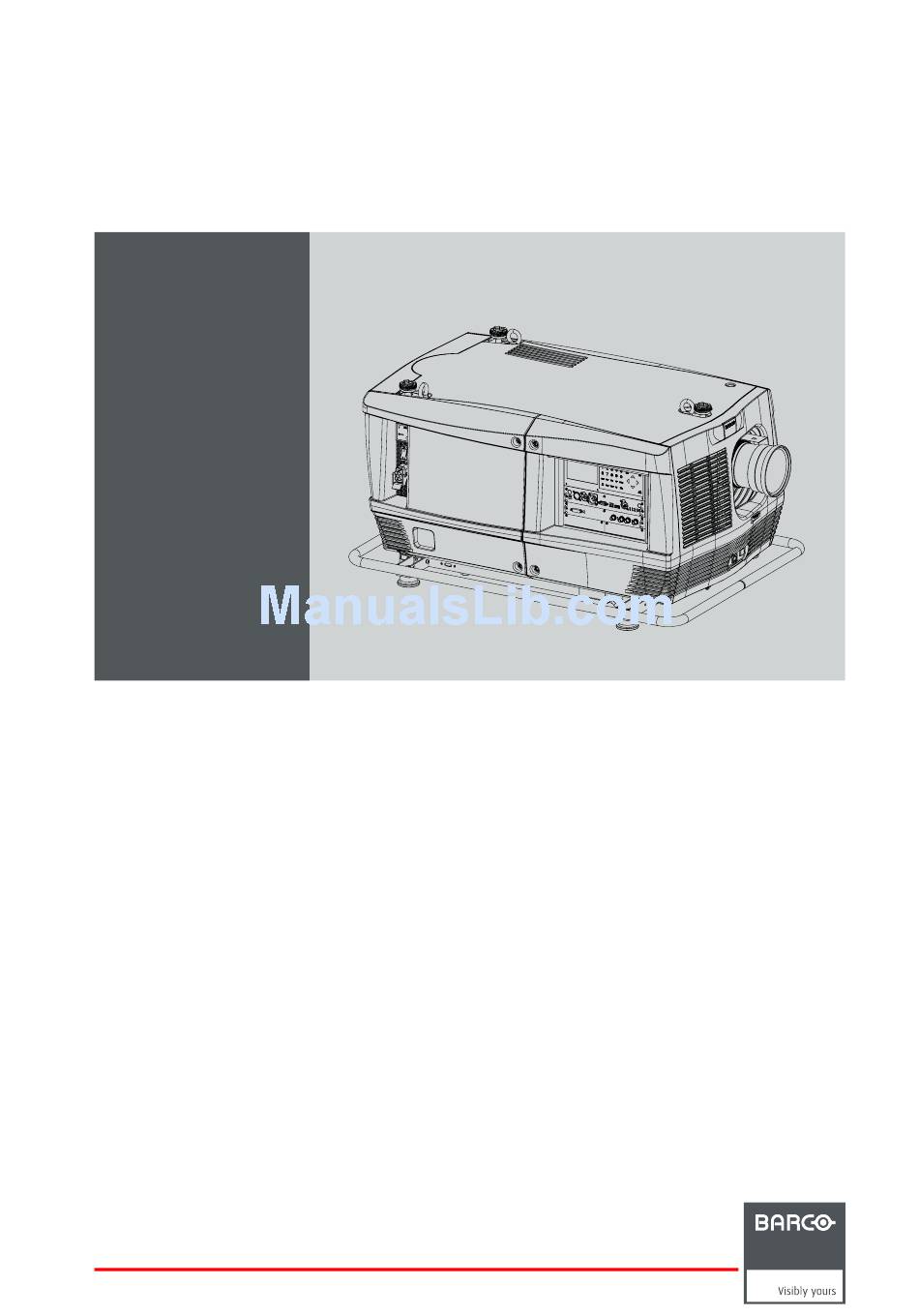

Page 1 HDF series User and Installation manual For HDF, HDF W22, HDF W26 and HDF W30 Flex R5905158/09 08/12/2016...
Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in Belgium...
Page 3 Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and ﬁtness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
Page 5: Table Of Contents
Table of contents TABLE OF CONTENTS 1. Safety ....................... .. 7 General considerations.
Page 6 Table of contents Input Selection ........................102 Advanced Settings.
Page 7 Table of contents 10.5.1 Load layout ﬁle .......................200 10.5.2 Rename layout ﬁle .
Page 8 Table of contents 13. Projector Control ....................293 13.1 Projector Control menu overview .
Page 9 Speciﬁcations of the HDF W22 ........
Page 10 Table of contents R5905158 HDF SERIES 08/12/2016...
Page 11: Safety
1. Safety 1. SAFETY About this chapter Read this chapter attentively. It contains important information to prevent personal injury while installing and using a HDF series projector. Furthermore, it includes several cautions to prevent damage to the HDF series projector. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing your HDF series projector.
Page 12: General Considerations
• Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualiﬁed Barco personnel or by authorized Barco service deal- ers. • All warnings on the projector and in the documentation manuals should be adhered to.
Page 13: Important Safety Instructions
1. Safety Important safety instructions To prevent the risk of electrical shock • This product should be operated from a mono phase AC power source. • This apparatus must be grounded (earthed) via the supplied 3 conductor AC power cable. If none of the supplied power cables are the correct one, consult your dealer.
Page 14 ﬁre extinguishers. Never use water on an electrical ﬁre. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
Page 15 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, ﬁre, electric shock or other hazards.
Page 16 1. Safety To prevent battery explosion • Danger of explosion if battery is incorrectly installed. • Replace only with the same or equivalent type recommended by the manufacturer. • For disposal of used batteries, always consult federal, state, local and provincial hazardous waste disposal rules and regulations to ensure proper disposal.
Page 17: Light Beam Hazard Distance (Hd)
1. Safety Light beam Hazard Distance (HD) Light beam Hazard Distance (HD) is the distance from the source at which the intensity or the energy per surface unit becomes lower than the applicable safety limit. The light beam can thus be considered as dangerous if the operator is closer from the source than the HD.
Page 18 1. Safety Image 1-2 R5905158 HDF SERIES 08/12/2016...
Page 19: Hd In Function Of The Lens Throw Ratio (Tr)
1. Safety HD in function of the lens Throw Ratio (TR) TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. HDF series projector Hazard Distance HDF-W30 HDF-W26 HDF-W22 10,3 11,0 11,8 12,5 13,3 14,0 Image 1-3 HD (in meter) in function of the Throw Ratio (TR)
Page 20: Important Warnings Concerning Hdf Series Flight Cases
1. Safety Important warnings concerning HDF series ﬂight cases Important warnings concerning stacking/transporting HDF series rental ﬂight cases • Stack maximum two (2) HDF series rental ﬂight cases high. Never higher. • Surface on which ﬂight case is standing must be level to ensure that the total load is evenly spread out among the four wheels. The surface must also be able to support the load safely.
Page 21: Conﬁgurations, Requirements And Restrictions
2. Configurations, requirements and restrictions 2. CONFIGURATIONS, REQUIREMENTS AND RESTRICTIONS About this chapter Read this chapter before installing your HDF series projector. It contains important information concerning installation requirements and restrictions for the HDF series projector, such as minimum and maximum allowed ambient temperature, humidity conditions, required safety area around the installed projector, required power net, tilt, etc.
Page 22: Installation Requirements
Main Power requirements The HDF series projector operates from a nominal mono phase power net with a separate earth ground PE. Projector Power requirements HDF W22 200-240VAC, 50-60Hz, 24A at 200 VAC HDF W26 200-240 VAC, 50-60Hz, 24A at 200 VAC...
Page 23: Unpacking The Projector
2. Configurations, requirements and restrictions Unpacking the projector What has to be done ? At delivery the projector is packed in a carton box upon a wooden pallet and secured with banding and fastening clips. Furthermore, to provide protection during transportation, the projector is surrounded with foam. Once the projector is arrived at the installation site, it has to be removed from the carton box and wooden pallet in a safe manner without damaging the projector.
Page 24 2. Configurations, requirements and restrictions Image 2-3 5. Remove the wooden plate from the projector bottom, by releasing the four bolts. Use an 8 mm Allen key. See image 2-3. 6. Gently turn the projector back on its feet. 7. Remove the foam rubber around the carrying handle. Save the original shipping carton and packing material, they will be necessary if you ever have to ship your projector.
Page 25: Hdf Series Flight Case
2. Configurations, requirements and restrictions HDF series ﬂight case Introduction of the HDF series ﬂight case The HDF series ﬂight case is designed to transport the HDF series projector in a safe and secure manner. The four caster wheels, provided with breaks, and the eight handles make the HDF series ﬂight case easy to handle. The ﬂoor of the ﬂight case wagon is equipped with two small covered compartments to store the remote control and the rigging clamps.
Page 26: Projector Conﬁgurations
2. Configurations, requirements and restrictions Projector conﬁgurations The drawings used in this chapter are not contractual. For convenience some options available in the HDF series projectors (e.g. standalone cooling unit in the laser version), are not shown here. The different conﬁgurations Depending on the installation the projector can be mounted in different ways, the 4 different conﬁgurations are: Front / Table (F/T) Front / Ceiling (F/C)
Page 27: Positioning The Projector
2. Configurations, requirements and restrictions Positioning the projector SCREEN FLOOR Image 2-8 Projector positioning The projector should be installed at right angles (horizontally and vertically) to the screen at a distance PD. Note the distance (A) between lens centre and table surface is slightly variable. This distance (A) is nominal 35 cm in case all feet are turned in completely and the vertical lens shift is set to zero (0).
Page 28 2. Configurations, requirements and restrictions SIDE VIEW +120% +120% -20% -50% +50% -50% TOP VIEW -20% +50% Image 2-9 Vertical and horizontal shift range DMD. Field of view. It is mechanical possible to shift outside the recommended ﬁeld of view, but it will result in a decline of image quality depending on the used lens and the zoom position of the used lens.
Page 29: Projector Air Inlets And Outlets
2. Configurations, requirements and restrictions Projector air inlets and outlets Air inlets and outlets Image 2-11 Airﬂow The HDF series has 5 air inlet channels and one air outlet. The air outlet is located at the rear of the projector. The air inlets are located at the front, bottom, top and right side of the projector.
Page 30: Free Download Of Projector Toolset
Projector Toolset is only available in a download version, no CD can be ordered. Where to ﬁnd the download ﬁle(s) The program and all necessary plug-ins, as well as the Reference manual can be downloaded for free from my.barco.com. Regis- tration is necessary.
Page 31: Installation Process Overview
2. Configurations, requirements and restrictions Installation process overview Quick setup The following steps describe brieﬂy how to setup your HDF series projector in a table mount front projection. Note that each step refers to a corresponding procedure, which is more detailed and illustrated. 1.
Page 32 2. Configurations, requirements and restrictions R5905158 HDF SERIES 08/12/2016...
Page 33: Physical Installation
3. Physical installation 3. PHYSICAL INSTALLATION About this projector This chapter describes how the mechanical set up of the projector has to be done and how to realize the electrical connections. Overview • Remote control unit (RCU) • Lenses • Power connection •...
Page 34: Remote Control Unit (Rcu)
3. Physical installation Remote control unit (RCU) Introduction The remote control unit (A) of the HDF series projector is equipped with a rugged case (B) and an XLR adaptor (C). The remote control unit can be used wired via mini-jack or via rugged XLR. Note that the backlight, of the remote control unit, illuminate contin- uously when wire connected.
Page 35: Rcu Battery Installation
3. Physical installation 3.1.1 RCU battery installation Where to ﬁnd the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time.
Page 36: Rcu Rugged Case Installation
3. Physical installation 3.1.2 RCU rugged case installation How to install the rugged case of the remote control ? 1. Slide the bottom of the RCU into the rugged case and then pull the top of the rugged case over the top of the RCU as illustrated. Image 3-5 R5905158 HDF SERIES 08/12/2016...
Page 37: Rcu Xlr Adaptor Installation
3. Physical installation 3.1.3 RCU XLR adaptor installation Install the rugged case before installing the XLR adaptor. Vice-versa, remove the XLR adaptor before removing the rugged case from the RCU. Necessary tools 5 mm ﬂat screw driver. How to install the XLR adaptor of the remote control unit ? 1.
Page 38: Using The Xlr Adaptor Of The Rcu
3. Physical installation 3.1.4 Using the XLR adaptor of the RCU How to use the XLR adaptor of the remote control unit ? 1. Connect a cable with XLR plug into the XLR adaptor. 2. Connect the other end of the cable with your HDF series projector. 3.
Page 39: Rcu Usage Possibilities
3. Physical installation 3.1.5 RCU usage possibilities Summarized possibilities Ref. Possibility description Comment RCU not wired RCU wired (mini-jack) Backlight illuminates continuously when wire is connected. Infra red disabled. RCU with rugged case not wired RCU with rugged case wired (mini-jack) Backlight illuminates continuously when wire is connected.
Page 40: Lenses
3. Physical installation Lenses Overview • Available lenses • Lens selection • Lens installation • Lens removal • Lens safety cable • Lens shift, zoom & focus • Scheimpﬂug adjustment R5905158 HDF SERIES 08/12/2016...
Page 41: Available Lenses
3. Physical installation 3.2.1 Available lenses Available lenses for the HDF series projector Image 3-9 Image 3-10 Image 3-11 R9801414: TLD+ zoom lens (0.8 - 1.16 : 1) R9840776: TLD+ (1.16 : 1) ﬁxed lens R9862000: TLD+ lens (0.67 : 1) Image 3-12 Image 3-13 Image 3-14...
Page 42: Lens Selection
How to select the right lens 1. Determine the required screen width (SW). 2. Determine the approximate position of the projector in the room. 3. Start up the Lens Calculator on the Barco website: https://www.barco.com/en/media_entertainment/LensCalculator to determine the possible lenses for your conﬁguration.
Page 43: Lens Installation
3. Physical installation 3.2.3 Lens installation How to install 1. Remove the plastic cap in the opening of the lens holder if not removed yet. 2. Take the lens assembly out of its packing material and remove the lens caps on both sides. 3.
Page 44 3. Physical installation Image 3-21 Lock lens 8. Check if the lens is really secured by trying to pull the lens out of the lens holder. R5905158 HDF SERIES 08/12/2016...
Page 45: Lens Removal
3. Physical installation 3.2.4 Lens removal How to remove 1. Support the lens with one hand while you unlock the lens holder by sliding the lock handle towards the “unlocked” position as illustrated. Image 3-22 Lens removal, unlock 2. Gently pull the lens out of the lens holder. Image 3-23 Lens removal It’s recommended to place the Lens caps of the original Lens packaging, back on both sides of the removed...
Page 46: Lens Safety Cable
3. Physical installation 3.2.5 Lens safety cable When using the safety cable ? The lens safety cable must be used in any circumstances to protect a mounted lens in the lens holder. Conﬁguration differences There are two different conﬁgurations for the safety cable. The conﬁguration used depends on the used carrying handle or hoisting eye.
Page 47 3. Physical installation Image 3-26 Example of conﬁguration A 5. Install a U-bolt on the lens holder, with the open ends oriented outwards (reference 3). Make sure that both a part of the loop end and the outgoing part of the safety cable are placed in the enclosure. Image 3-27 Image 3-28 Example of Conﬁguration A...
Page 48 3. Physical installation Image 3-29 Image 3-30 Example using the bottom carrying handle Example using the hoisting eye R5905158 HDF SERIES 08/12/2016...
Page 49: Lens Shift, Zoom & Focus
3. Physical installation 3.2.6 Lens shift, zoom & focus Via Lens key 1. Press LENS key on the local keypad or the remote control. The zoom/focus menu opens. Image 3-31 Zoom/Focus adjustment 2. Use the ▲ or ▼ key to zoom the lens. Use the ◄...
Page 50: Scheimpﬂug Adjustment
3. Physical installation 3.2.7 Scheimpﬂug adjustment Always use allowed and calibrated lenses for the speciﬁc projector while adjusting the Scheimplug adjust- ments. What has to be done ? The lens holder has to be adjusted so that the “sharp focus plane” of the projected image falls together with the plane of the screen (Fp1→Fp2).
Page 51 3. Physical installation 1, 2 and 3 are adjustment points. 4 is a locking point and NOT used during Scheimpﬂug adjustment. Necessary tools • Allen key 3 mm • Nut driver 13 mm • Nut driver 10 mm How to adjust 1.
Page 52 3. Physical installation Image 3-36 Center focusing 6. Sharpen bottom left corner of the screen by adjusting nut 1. Image 3-37 Left bottom focusing 7. Sharpen bottom right corner of the screen by adjusting nut 2. R5905158 HDF SERIES 08/12/2016...
Page 53 3. Physical installation Image 3-38 Right bottom focusing 8. Sharpen top right corner of the screen by adjusting nut 3 Image 3-39 Corner focusing 9. Repeat from step 6 until the projected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen. How to ﬁx the Scheimpﬂug Start the ﬁxation as follows (steps must be followed strictly) : 1.
Page 54 3. Physical installation 1/3 to 1/2 Image 3-40 4. Fasten lock nut d. 5. Tighten nut 4 until the offset of the image movement created in step 3 is canceled. Tip: The amount of image movement in step 3 will determine how tight the nut in step 5 will need to be turned to return the image to its original position.
Page 55: Power Connection
3. Physical installation Power connection AUTION Use only the power cord provided with the projector. How to connect your projector with the local power net ? 1. Ensure that the power switch (S) stands in the “0” (OFF) position. 2. Connect the power cord (P) with the power input socket of the projector as illustrated below. 3.
Page 56: Suspension Of The Hdf Series Projector With Rigging Clamps
3. Physical installation Suspension of the HDF series projector with rigging clamps Rigging points and rigging clamps The carrying handle, at the bottom side of the projector, is provided with eight slots. Four slots are longitudinally (A) oriented and four slots are transversely (B) oriented. Each slot contains a rigging point of which the position in the slot can be adjusted depending on the size of the truss installation.
Page 57 3. Physical installation Image 3-46 Mounting clamps 4. Place all four rigging clamps in open position as illustrated. Image 3-47 Opening clamps 5. Place the projector (upside down) under the truss installation and lower the truss until the support bars of the truss are nearby the rigging clamps mounted on the projector.
Page 58 3. Physical installation Image 3-49 Mounting Safety chains Warning: Install the safety chain in that way that the projector cannot drop more than 20 cm. 9. Lift up the truss with attached projector to the desired height. Proceed with the alignment procedure, see "Alignment of a ceiling mount HDF series projector", page 79. R5905158 HDF SERIES 08/12/2016...
Page 59: Input & Communication
4. Input & Communication 4. INPUT & COMMUNICATION Overview • Introduction • Input source connections • Communication connections R5905158 HDF SERIES 08/12/2016...
Page 60: Introduction
4. Input & Communication Introduction General The Input & Communication side of the projector consists of a button module, a dual 3G/HDSDI and DVI-I input as standard input module and 2 free input slots. The free input slots can be used for optional modules (e.g. 5-cable input). Image 4-1 Input &...
Page 61: Input Source Connections
HDSDI follows he SMPTE 292M standard. • Dual link follows the SMPTE 372M standard • SDI follows the 259M standard 5-cable input (optional) Optional multi purpose input which can be inserted in the free slots. BARCO R9864010 5-CABLE INPUT SYNC G/Y/VIDEO Image 4-3 Signal connectivity...
Page 62 Diagnostic LED’s on front panel: Green LED: Lights up in case input module is selected Yellow LED: Lights up in case sync detected 3D Input Module (optional) Optional 3D input which can be inserted in the free slots. BARCO 3D INPUT R9864140 SYNC SYNC...
Page 63 4. Input & Communication • HDMI (High-Deﬁnition Multimedia Interface) HDMI 1.4a up to 210MHz pixel clock. Support for ‘Deep Color’ up to 12 bit per color. • DisplayPort DisplayPort 1.1a up to 210 MHz pixel clock. Support for ‘Deep Color’ up to 12 bit per color. In all cases, the minimum input frequency for 3D is 23 Hz per eye.
Page 64: Communication Connections
4. Input & Communication Communication connections Communication interface 10/100 BASE-T REMOTE CTRL RS232/422 IN WIFI ACT PWR LMP 10/100 ERR IR 12V /1A 8 9 10 11 12 13 14 15 Image 4-5 Communication interface, indications 12V 1A output DMX interface (input, output) XLR input RS232 input USB port...
Page 65 4. Input & Communication Wired remote control (XLR) If desired the remote control unit can be wired and plugged in into the male XLR port on the communication interface. XLR – Remote CTRL in Description RC5 in XLR present sense RS232/RS422 input The communication interface of the HDF series projector supports RS232 and RS422 serial communication on two different types of input connectors.
Page 66: Usb Port
4. Input & Communication RS422 An EIA serial digital interface standard that speciﬁes the electrical characteristics of balanced (differential) voltage, digital interface circuits. This standard is usable over longer distances than RS-232. This signal governs the asyn- chronous transmission of computer data at speeds of up to 920,000 bits per second. It is also used as the serial port standard for Macintosh computers.
Page 67: Getting Started
5. Getting started 5. GETTING STARTED Overview • RCU & Local keypad • Terminology overview • Power on projector • Switching to standby • Power off projector • Status LEDs • Using the RCU • Projector Address • Source selection •...
Page 68: Rcu & Local Keypad
5. Getting started RCU & Local keypad How controlling the projector ? The projector can be controlled by the local keypad or by the remote control unit. Location of the local keypad ? The local keypad is located on the input side of the projector. Remote control functions.
Page 69: Terminology Overview
5. Getting started Terminology overview Overview The following table gives an overview of the different functionality of the keys. MENU EXIT ENTER TEXT PAUSE LENS EXIT MENU PHASE SHARPN PATTERN WINDOW LENS TINT ENTER STBY PAUSE TEXT AUTO COLOR BRIGHTN CONTR LENS LENS...
Page 70 5. Getting started Ind. Key name Description Picture controls Use these buttons to obtain the desired picture level. PHASE Used to remove the horizontal instability of the image (usually for RGB source). It adjusts the phase of the pixel sampling clock relative to the incoming signal. FREEZE To freeze the actual projected image.
Page 71: Power On Projector
5. Getting started Power on projector How to power on. 1. Press the power switch at the back of the projector to switch on this projector. Image 5-2 Main switch When ’0’ is pressed, the projector is switched off. When ’1’ is pressed, the projector is switched on. The projector starts up in standby.
Page 72: Software Overview
5. Getting started Image 5-3 Local screen, lamp • number of Strikes • Run time in hours • Remaining run time in hours • slide bar indication with percentage indication of the current run time, compared with the maximum life time of the lamp. Software overview Once the projector is started, press About to get an overview of the software versions such as : Image 5-4...
Page 73 5. Getting started MENU EXIT ENTER PAUSE LENS TEXT EXIT MENU PHASE SHARPN TINT PATTERN WINDOW LENS COLOR ENTER RIGGING STBY PAUSE TEXT AUTO BRIGHTN CONTR LENS LENS ZOOM SHIFT LENS LENS SHIFT FOCUS Image 5-5 Stand by indication Stand by indication on local keypad Stand by indication on remote control The projector status LED lights up.
Page 74: Switching To Standby
5. Getting started Switching to standby How to switch to standby 1. Press and hold Standby for 3 seconds on the local keypad or the remote control. In the mean time the message Keep on pressing... is displayed. This message changes to Saving data ... The projector goes to standby.
Page 75: Power Off Projector
5. Getting started Power off projector How to power off 1. Press ﬁrst Standby. 2. Let cool down the projector until the fan speed decreases. At least 5 minutes. 3. Switch off the projector with the power switch. ’0’ must be pressed. AUTION Never switch off the projector while the message ’Saving data ...
Page 76: Status Leds
5. Getting started Status LEDs Overview Color status Description Standby button Red on Projector is in standby Red toggles on/off Projector startup failed, no lamp power supply Green toggles on/off Projector starts up Green on Projector is on White toggles on/off From/To ECO standby Dimmed white Projector powers up...
Page 77: Using The Rcu
5. Getting started Using the RCU Pointing to the reﬂective screen 1. Point the front of the RCU to the reﬂective screen surface. Image 5-6 IR control via reﬂective screen Hardwired to the XLR input 1. Plug one end of the remote cable in the connector on the bottom of the RCU. 2.
Page 78: Projector Address
5. Getting started Projector Address R5905158 HDF SERIES 08/12/2016...
Page 79: Displaying And Programming Addresses Into The Rcu
5. Getting started 5.8.1 Displaying and Programming addresses into the RCU Displaying the Projector Address on the Screen. 1. Press Address key (recessed key on the RCU) with a pencil. The projector’s address is displayed on the local LCD screen. To continue using the RCU with that speciﬁc address, it is necessary to enter the same address with the digit buttons (address between 0 and 9) within 5 seconds after pushing the address key.
Page 80: Controlling The Projector
5. Getting started 5.8.2 Controlling the projector Projector address Address installed in the projector to be individually controlled. Common address Projector will always execute the command coming from a RCU programmed with that common address. Why a projector address ? As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or computer.
Page 81: Source Selection
5. Getting started Source selection Source selection when no picture in picture is active Use the digit keys on the remote control or local keypad to activate the desired source. Source selection when picture in picture is active Use the Window button on the remote control or the local keypad to select the main window or the picture in picture (PiP) window. MENU EXIT ENTER...
Page 82: Alignment Of A Table Mount Hdf Series Projector
5. Getting started 5.10 Alignment of a table mount HDF series projector How to align a table mount HDF series projector ? 1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen. 2.
Page 83: Alignment Of A Ceiling Mount Hdf Series Projector
5. Getting started 5.11 Alignment of a ceiling mount HDF series projector Necessary tools 17 mm open ended spanner. How to align 1. Install the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen. 2.
Page 84 5. Getting started R5905158 HDF SERIES 08/12/2016...
Page 85: Quick Set Up Adjustment
6. Quick set up adjustment 6. QUICK SET UP ADJUSTMENT Overview • Text boxes ON or OFF • Quick Lens Adjustment via LENS key • Direct Lens Adjustment (RCU) • Quick picture in picture • Quick language selection R5905158 HDF SERIES 08/12/2016...
Page 86: Text Boxes On Or Off
6. Quick set up adjustment Text boxes ON or OFF Text toggle function The on-screen text boxes can be switched OFF so that an adjustment during the operation of the projector is not visible on the screen. The adjustment indication remains visible on the local LCD screen. EXIT MENU PATTERN...
Page 87: Quick Lens Adjustment Via Lens Key
6. Quick set up adjustment Quick Lens Adjustment via LENS key Quick zoom/focus adjustment 1. Press the LENS key on the remote control or local keypad to open the Zoom/Focus Adjustment menu. EXIT MENU PATTERN WINDOW LENS MENU EXIT ENTER STBY PAUSE TEXT...
Page 88 6. Quick set up adjustment Image 6-5 Shift adjustment 3. Use the ▲ or ▼ key to shift the lens in vertical direction. Use the ◄ or ► key to shift the lens in horizontal direction. Press ENTER to switch to zoom/focus adjustment. R5905158 HDF SERIES 08/12/2016...
Page 89: Direct Lens Adjustment (Rcu)
6. Quick set up adjustment Direct Lens Adjustment (RCU) Lens adjustment buttons on the Remote Control On the Remote Control four buttons with double action are provided, allowing direct alignment for lens ZOOM, FOCUS, HORIZON- TAL SHIFT and VERTICAL SHIFT. 1.
Page 90: Quick Picture In Picture
6. Quick set up adjustment Quick picture in picture Quick On - Off Press on the PIP key on the remote control or the local keypad to activate the Load layout window. Use the ▲ ▼ key to scroll to the desired layout and press ENTER to activate. Select Main full screen to switch off PIP.
Page 91: Quick Language Selection
6. Quick set up adjustment Quick language selection Quick language selection via the remote control When no OSD menu is visible on the screen, press the Info button (1) on the remote control. MENU EXIT ENTER Image 6-8 Info button The language selection menu is displayed on the screen.
Page 92 6. Quick set up adjustment Image 6-10 Main menu, projector control Image 6-11 Projector control, change language Image 6-12 Language selection R5905158 HDF SERIES 08/12/2016...
Page 93: Start Up Of The Adjustment Mode
7. Start up of the adjustment mode 7. START UP OF THE ADJUSTMENT MODE Overview • About the adjustment mode • About the use of the remote control and the local keypad • Start up the adjustment mode • Navigation and adjustments •...
Page 94: About The Adjustment Mode
7. Start up of the adjustment mode About the adjustment mode Overview As the adjustment mode is the central place to control and align the projector, the following functions can be done: • Input setup: different Input settings can be adjusted such as speciﬁc input slot settings, locking, native resolution and no signal settings.
Page 95: About The Use Of The Remote Control And The Local Keypad
7. Start up of the adjustment mode About the use of the remote control and the local keypad Overview All navigations and adjustments can be done either with the remote control or with the local keypad. Almost all the keys on the remote control have an equivalent on the local keypad. Exceptions: •...
Page 96: Start Up The Adjustment Mode
7. Start up of the adjustment mode Start up the adjustment mode Start up tools To start up the adjustment mode, use the remote control or the local keypad. How to start up? 1. Press Menu on the remote control (RCU) or on the local keypad to start up the Adjustment mode. The main menu of the adjustment mode opens.
Page 97: Navigation And Adjustments
7. Start up of the adjustment mode Navigation and adjustments How to navigate in the menu structure? Once in the menu structure, use the ▲ or ▼ key on the remote control or on the local keypad to scroll through the items in the displayed menu.
Page 98: Menu Memory
7. Start up of the adjustment mode Menu memory Overview Each menu with sub menus, remembers its last selected sub item even when leaving the menu structure and that as long as the projector is running. When restarting the projector from stand-by, the menu memory is reset. After re-opening the main menu and selecting an item, the previous selected sub item of that selected item is highlighted and can be opened just by pressing ENTER.
Page 99: Shortcut Keys To The Menus
7. Start up of the adjustment mode Shortcut keys to the menus About a shortcut key The digit keys 5 to 9 can be customer programmed to directly open a pre-stored menu. That menu can be any independent menu out of the list of menus. A menu which is built up by the content of a previous menu cannot be stored behind a shortcut. How to use a shortcut key While in the operational mode, no menu selected, just press on the desired digit key to open the menu behind that shortcut key.
Page 100: Test Patterns In Adjustment Mode
7. Start up of the adjustment mode Test patterns in adjustment mode Overview When the adjustment mode is started, a test pattern can be called at any moment just by pressing the Pattern key on the RCU or the local key path. Press as many times on the Pattern key as necessary to display the desired test pattern. The test pattern remains on the screen as long as the adjustment mode is selected, even when selecting other menus.
Page 101: Help Information In Adjustment Mode
7. Start up of the adjustment mode Help information in adjustment mode Overview For many items in the adjustment mode, help information is available. When on an item, just click on the info button of your remote control to display information about the selected item. MENU EXIT ENTER...
Page 102 7. Start up of the adjustment mode R5905158 HDF SERIES 08/12/2016...
Page 103: Input
8. Input 8. INPUT Overview • Input menu overview • Input Selection • Advanced Settings • Input locking • Minimum delay • Native resolution • No Signal • EDID • 3D input In all cases, the minimum input frequency for 3D is 23 Hz per eye. Below this frequency the image will not be displayed correctly.
Page 104: Input Menu Overview
8. Input Input menu overview Overview table Level 1 Level 2 Level 3 Level 4 Input Input Selection DVI/RGB SDI (SD/HD/3G/Dual) Optional input 1 Optional input 2 Advanced Settings DVI/RGB DVI Dual link RGB HS-VS YUV HS-VS AUTO SDI (SD/HD/3G/Dual) Input 1 Priority Input 2 Priority Input 1...
Page 105 8. Input Line Alternating (3G) Second input R5905158 HDF SERIES 08/12/2016...
Page 106: Input Selection
8. Input Input Selection How to select 1. Press Menu to activate the menus and select Input → Input Selection. 2. Press ENTER. The Select Source menu is displayed with the actual available sources ﬁlled out. 3. Use the ▲ or ▼ key to select an input. Image 8-1 Main window Image 8-2...
Page 107: Advanced Settings
8. Input Advanced Settings Overview • About Input Setup • Input conﬁguration • DVI - RGB input • SDI input • 5 cable input • HDMI - DisplayPort input (3D input module) R5905158 HDF SERIES 08/12/2016...
Page 108: About Input Setup
8. Input 8.3.1 About Input Setup Overview Each input module must be conﬁgured before these module can be used. This conﬁguration is necessary so that the projector knows which type of signal is connected to its input. The projector has 4 input slots. Slot 1 and 2 is ﬁlled up by default with a DVI and Dual SDI input. Slot 3 and 4 can be ﬁlled up with optional input modules.
Page 109: Input Conﬁguration
8. Input 8.3.2 Input conﬁguration 3D item in the Input menu is grayed out when no 3D module is inserted in slot 3 or 4. How to change? 1. Press Menu to activate the menus and select Input → Advanced Settings. 2.
Page 110: Dvi - Rgb Input
8. Input 8.3.3 DVI - RGB input How to select Select DVI / RGB and press ENTER to open the selections Image 8-7 DVI selection The following selections are possible: • • DVI - dual link • RGB HS-VS/CS • YUV HS-VS/CS •...
Page 111: Sdi Input
8. Input 8.3.4 SDI input About SDI input The Dual SD/HD/3G-SDI Input can accept standard-deﬁnition (SD), high-deﬁnition (HD) and 3 Gigabit-deﬁnition serial-digital-inter- face (SDI) signals . How to select Select SDI (SD / HD / 3G / Dual) and press ENTER to open the selections Image 8-9 SDI, input type selection The following selections are possible:...
Page 112 8. Input 3G-A and 3G-B: • Direct Mapping (3G-A) • Dual HD (3G-B) When Dual HD is selected, it is possible to use Swap links. If Swap links must be used, use the ▲ or ▼ key to select and press ENTER to accept.
Page 113: Cable Input
8. Input 8.3.5 5 cable input How to select Select 5 cable and press ENTER to open the selections Image 8-11 Advanced settings, 5-cable Image 8-12 5 cable conﬁguration Use the ▲ or ▼ key to select the desired conﬁguration and press ENTER to select. When e.g.
Page 114: Hdmi - Displayport Input (3D Input Module)
8. Input 8.3.6 HDMI - DisplayPort input (3D input module) How to select Select HDMI/DP and press ENTER to open the selections Image 8-13 HDMI-Display port selection Use the ▲ or ▼ key to select the desired input and press ENTER to select. R5905158 HDF SERIES 08/12/2016...
Page 115: Input Locking
8. Input Input locking What is possible? The output signal can be locked on an internal sync signal or on the sync signal of one of the input sources. Or it can follow the input of the Main window or Pip window. When locked to the corresponding input sync, the output will be shown without movement artifacts.
Page 116 8. Input When Input locking is set to a speciﬁc input and there is no sync signal available, the locking will be switched to Free run without changing the user settings. Once the sync is available, it applies again the user settings. Options for Free Run When free run is selected, radio button selected, then the Free Run Options become available.
Page 117: Minimum Delay
8. Input Minimum delay Purpose The minimum delay only affects the de-interlacing. In case of interlaced sources, the de-interlacer will be bypassed and the image will be shown with line interpolation applied. To ensure minimum delay in the other processing steps, make sure warping is OFF, the resolution of the input source is native and the input locking is set to the main input.
Page 118: Native Resolution
8. Input Native resolution What can be done The aim here is to always show the resolution of the source independently of the resolution of the DMD panels. When the resolution of the source is exactly the resolution of the DMD panels, then the full content will be shown on the full DMD (A). When the resolution of the source is higher than the resolution of the DMD panels, then only part of the image will be shown (B) When the resolution of the source is lower than the resolution of the DMD panels, then the full image will be shown but only on part of the DMD is used.
Page 119 8. Input Image 8-22 Main menu Image 8-23 Input, native resolution R5905158 HDF SERIES 08/12/2016...
Page 120: No Signal
8. Input No Signal Overview • Background color • Background Logo • Shutdown settings • Shutdown retarding time • Auto Dimming What can happen when no signal When no signal is available at the selected input, the output can be set to blue or black or a personal deﬁned logo can be displayed or the projector can shutdown after a certain time or auto dimming can be started.
Page 121: Background Color
8. Input 8.7.1 Background color How to set the background color 1. Press Menu to activate the menus and select Input → No Signal. → Color. 2. Press ENTER to toggle between [Blue] or [black]. Image 8-24 Main menu Image 8-25 Input, no signal Image 8-26 No signal, color...
Page 122: Background Logo
8. Input 8.7.2 Background Logo What can be done ? A logo can be switched on or off. When logo is switched on and a logo is available, that logo will be displayed when no signal is available for the main window an no signal available for the PiP window in case PiP is On.
Page 123: Shutdown Settings
8. Input 8.7.3 Shutdown settings How to change the settings 1. Press Menu to activate the menus and select Input → No Signal. → Shutdown. Image 8-30 Main menu Image 8-31 Input, no signal Image 8-32 No signal, shutdown 2. Press ENTER to toggle between [On] and [Off]. [On] : projector goes in shutdown after a certain retarding time.
Page 124: Shutdown Retarding Time
8. Input 8.7.4 Shutdown retarding time About the shutdown retarding time The retarding time is the time between no signal is detected and the moment that the projector shuts down. How to set the retarding time 1. Press Menu to activate the menus and select Input → No Signal. → Shutdown time (min). Image 8-33 Main menu Image 8-34...
Page 125: Auto Dimming
8. Input 8.7.5 Auto Dimming About auto dimming When no signal is detected on the selected input the lamp power will be reduced from the current value to its minimum value. When the input signal is re-detected, the lamp power is restored to its original value. How to set up 1.
Page 126: Edid
8. Input EDID EDID Extended Display Identiﬁcation Data About EDID The EDID ﬁle available for DVI input connectors includes timings supported by the projector; display size and other information about the display (i.e. projector). It is the set of information that is used by digital sources connected to the projector to generate a suitable image signal.
Page 127: Conﬁgure An Input
8. Input 8.8.1 Conﬁgure an input Description Selecting the Standard EDID ﬁle or an own created ﬁle can be selected from the list of Custom EDID ﬁles for the input. How to conﬁgure 1. Press Menu to activate the menus and select Input → EDID → Conﬁgure. 2.
Page 128: Create Custom Edid File
8. Input 8.8.2 Create custom EDID ﬁle Description You can create new custom EDID ﬁles and enter the desired input timings. How to create 1. Press Menu to activate the menus and select Input → EDID → Create. 2. Press ENTER to open the EDID creation menu. Image 8-44 Main menu Image 8-45...
Page 129 8. Input If necessary, scroll down to see extra options. Select or clear the check boxes. Image 8-48 EDID ﬁle creation, options The following options are possible: Stereo: this check box is currently not in use. You can leave it unchecked. Deep color: select this box in case of a 12 bit color signal.
Page 130: Delete A Custom Edid File
8. Input 8.8.3 Delete a custom EDID ﬁle Standard EDID ﬁles cannot be deleted. How to delete 1. Press Menu to activate the menus and select Input → EDID → Delete. 2. Press ENTER to open the EDID list with custom ﬁles. Image 8-49 Main menu Image 8-50...
Page 131: Delete All Custom Edid File
8. Input 8.8.4 Delete all custom EDID ﬁle Standard EDID ﬁles cannot be deleted. How to delete 1. Press Menu to activate the menus and select Input → EDID → Delete All. 2. Press ENTER to open the conﬁrmation window. Image 8-54 Main menu Image 8-55...
Page 132: Input
8. Input 3D input Overview • About 3D modes • Activate 3D • Auto detection • Input type selection • 3D second input • L-R Synchronisation, ﬁeld dominance • L-R Synchronisation, Invert 3D sync out R5905158 HDF SERIES 08/12/2016...
Page 133: About 3D Modes
8. Input 8.9.1 About 3D modes The mentioned menu items in the mode explanation will be explained in detail in the next topics. Settings in the 3D menu are stored per input. Single 3D channel - Full resolution - sequential mode Content is displayed by one 3D source.
Page 134: Supported Formats
8. Input The 3D Input Module is activated for Dual 3D channel: MENU > Input > 3D > Frame Sequential – Dual channel Possible sources: 2 x DVI , 2 x SDI. If two 3D Input Modules are installed: 2 x HDMI or 2 x DisplayPort. SENSIO Hi-Fi 3D ®...
Page 135 8. Input DVI/HDMI/DP 5–cable analog DVI analog Fpix ≤ 210 MHz Fpix ≤ 210 MHz Fpix ≤ 170 MHz Fpix ≤150 MHz Frame Packing HD formats only. HD formats only. HD formats only. HD formats only. (FHD3D) Max. resolution: Max. resolution: Max.
Page 136: Activate 3D
8. Input 8.9.2 Activate 3D What can be done ? The status of the 3D function can be enabled or disabled. This function is input dependent. How to enable/disable 1. Press Menu to activate the menus and select Input → 3D → Status. Image 8-59 Main menu Image 8-60...
Page 137: Auto Detection
8. Input 8.9.3 Auto detection About auto detection • Automatically detects the 3D format (Frame Packing, Side-by-Side, Top-and-Bottom) on HDMI sources, based on the content of the HDMI Vendor Speciﬁc InfoFrame (if present). For a detailed explanation of the HDMI vendor speciﬁc InfoFrame, refer to the HDMI 1.4a speciﬁcation.
Page 138 8. Input Image 8-64 3D, auto detection R5905158 HDF SERIES 08/12/2016...
Page 139: Input Type Selection
8. Input 8.9.4 Input type selection About input types • Frame sequential - Single channel : One input contains 3D information, alternating the left and the right information. • Frame sequential - Dual channel : Two inputs, one contains the left eye information and the other contains the right eye infor- mation •...
Page 140: Second Input
8. Input 8.9.5 3D second input What can be done? 3D content can be entered into the projector via a single channel (one input) or via 2 channels (2 inputs). When entering content via 2 channels, the second source must be indicated in the 3D menu. This selection is only possible when a 2 channel 3D input is chosen.
Page 141: L-R Synchronisation, Field Dominance
8. Input 8.9.6 L-R Synchronisation, ﬁeld dominance About ﬁeld dominance The Field dominance setting has only effect in the 3D mode: Frame sequential - Single channel (in all other modes this setting is grayed out). Furthermore, the input frequency must be equal or lower than 100 Hz (50 Hz per eye). In case the input frequency is higher than 100 Hz (50 Hz per eye, 59.94 &...
Page 142: L-R Synchronisation, Invert 3D Sync Out
8. Input 8.9.7 L-R Synchronisation, Invert 3D sync out What can be done? This menu allows to set the 3D emitter output signal. With Invert 3D sync out we can swap the left and right 3D sync to eliminate a 3D output mismatch with the 3D emitters. Left Left Right...
Page 143 8. Input Image 8-79 L/R Synchronisation 2. Press ENTER. 3. Use the ▲ or ▼ key to select Invert 3D Sync Out. Image 8-80 Invert 3D Sync Out 4. Press ENTER to toggle between [On] and [Off] [On] : 3D SYNC OUT is the inverted version of the 3D sync signal generated by the processing, allowing to swap left and right eye on the active glasses.
Page 144 8. Input R5905158 HDF SERIES 08/12/2016...
Page 145: Image
9. Image 9. IMAGE Overview • Image menu overview • Start up the Image adjustments • Image settings • Aspect Ratio • Timings • Image File Services • Save custom settings • Splash image R5905158 HDF SERIES 08/12/2016...
Page 146: Image Menu Overview
9. Image Image menu overview Overview table Level 1 Level 2 Level 3 Level 4 Image Image settings Contrast Brightness Saturation Tint Phase Sharpness Color Temperature Projector white Computer 9300K Video 6500K Film 5400K Broadcast 3200K Custom Balance Input Balance Black Balance White Balance Defaults...
Page 147 9. Image Options Save custom settings Splash image On or Off Timeout(sec) R5905158 HDF SERIES 08/12/2016...
Page 148: Start Up The Image Adjustments
9. Image Start up the Image adjustments Start up 1. Press Menu to activate the menus and select Image Image 9-2 Image adjustments Image 9-1 Main menu, Image R5905158 HDF SERIES 08/12/2016...
Page 149: Image Settings
9. Image Image settings About image settings Depending on the type of the connected source, some settings are grayed out Image settings are stored per input. R5905158 HDF SERIES 08/12/2016...
Page 150: Contrast
9. Image 9.3.1 Contrast About Contrast The contrast function is used to adjust the contrast between the light and the dark areas of the displayed image. It applies a gain to the red, green and blue signals. Contrast adjustment can be done with the Contrast key on the RCU or via the menu structure. How to adjust 1.
Page 151: Brightness
9. Image 9.3.2 Brightness About brightness The brightness function is used to adjust the black level in the input picture. It adds or subtracts an offset, or bias in to the red, green and blue signals. Brightness adjustment can be done with the Brightness key on the RCU or via the menu structure. How to adjust 1.
Page 152: Saturation
9. Image 9.3.3 Saturation About (color) saturation The saturation function is used to adjust the color saturation levels. Saturation adjustment can be done with the Saturation key on the RCU or via the menu structure. How to adjust 1. Press Menu to activate the menus and select Image → Image Settings → Saturation. Image 9-12 Image adjustments Image 9-11...
Page 153: Phase
9. Image 9.3.4 Phase About Phase adjustment When displaying computer patterns or graphics (RGB or YUV signals) which are very detailed (tilting, vertical stripes, etc. ), jitter in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen. When this jitter occurs, adjust ’Phase’ for optimum image.
Page 154 9. Image Image 9-19 Phase adjustment 3. To change the value directly in the Image Settings window, use the ◄ or ► key or a numeric key 0-9, to adjust as a % of the full range. To adjust via the bar scale menu, press ENTER to display the Phase menu and adjust with the ◄ or ► key. Press ENTER again to enter the value directly with the numeric keys.
Page 155: Color Temperature (Fixed Values)
9. Image 9.3.5 Color temperature (ﬁxed values) Color temperature The coloration (reddish, white, bluish, greenish, etc.) of white in an image, measured using the Kelvin (degrees K) temperature scale. Higher temperatures output more light. Projector white will provide maximum projector light output. The calibrated ’Broadcast’, ’Film’, ’Video’ and ’Computer’...
Page 156 9. Image Image 9-23 Image settings, select color temperature Depending on the color space setting, a request window is displayed to ask if the color space setting should be switched to Off Color temperature selection can only be done when the color space settings is set on Off. Image 9-24 Color temperature question Click Yes to continue.
Page 157: Color Temperature (Custom Values)
9. Image 9.3.6 Color temperature (custom values) How to set up 1. Press Menu to activate the menus and select Image → Image Settings → Color Temperature. Image 9-26 Image adjustments Image 9-25 Main menu, Image Image 9-27 Image settings, color temperature 2.
Page 158: Input Balance
9. Image 9.3.7 Input Balance R5905158 HDF SERIES 08/12/2016...
Page 159: Introduction To Input Balance
9. Image 9.3.7.1 Introduction to Input Balance Introduction: Unbalanced color signals When transporting signals, there is always a risk of deterioration of the information contained in the signals. In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 9-29 , we are quite sure that the amplitude of these color signals is subject to alterations.
Page 160 9. Image Black level setting : brightness White level setting : contrast The same absolute black and white level for the three colors allows the same reference for Brightness and Contrast control of the picture ! These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image ﬁle).
Page 161: Adjusting The Input Balance
9. Image 9.3.7.2 Adjusting the input balance How can it be done ? To balance the three color signals of a particular source there are conditions; in fact we must know the black and the white level of the source i.e. : The source in question must be able to generate a white signal, ideally a 100% white (background) full screen pattern The source in question must be able to generate a black signal, ideally a 100% black (background) full screen pattern Image 9-32...
Page 162 9. Image Image 9-36 Image settings, input balance Image 9-37 Input balance, black 2. Press ENTER to select. 3. Do you want to use an internally generated test pattern ? If yes, use the ▲ or ▼ key to select Adjustment Pattern and press ENTER to toggle between [on] and [off] If no, adjust on the selected source.
Page 163 9. Image Image 9-40 Image settings, input balance Image 9-41 Input balance, white balance 3. Press ENTER to select. 4. Do you want to use an internally generated test pattern ? If yes, use the ▲ or ▼ key to select Adjustment Pattern and press ENTER to toggle between [on] and [off] If no, select a white pattern (or gray scale as alternative).
Page 164: Image Settings, Defaults
9. Image 9.3.8 Image settings, defaults About the defaults With the defaults button, all image settings for a speciﬁc source are returned to the default values. How to return to the defaults 1. Press Menu to activate the menus and select Image → Image Settings → Defaults. Image 9-43 Image adjustments Image 9-42...
Page 165: Aspect Ratio
9. Image Aspect Ratio Aspect ratio Relation between the horizontal & vertical dimension in which the window will be displayed, e.g. 4 by 3 or 16 by 9. Can also be expressed as a decimal number, such as 1.77. The larger the ratio or decimal, the wider the image (or the less the image is squared).
Page 166 9. Image Image 9-49 Aspect ratio 4. Press ENTER to activate. How to set up the custom aspect ratio 1. While Custom is selected, use the ▲ or ▼ key to select Setup Custom and press ENTER. Image 9-51 Custom aspect ratio adjustment Image 9-50 Custom aspect ratio The custom aspect ratio setup menu opens.
Page 167: Timings
9. Image Timings R5905158 HDF SERIES 08/12/2016...
Page 168: Source Timings
9. Image 9.5.1 Source timings Adjustable items • Horizontal start in pixels : number of pixels between the horizontal sync and active video information in the input signal. • Horizontal Active = Active horizontal pixels (width) : number of active pixels in the input signal. This value is normally given in the source speciﬁcations.
Page 169: Advanced Timings, Clamp Delay - Clamp Width
9. Image 9.5.2 Advanced timings, clamp delay - clamp width About the advanced settings Clamp delay The time between the trailing edge of the sync pulse and the leading edge of the clamp pulse, in pixels. Can be any value between 0 and 255. Clamp width The width of the clamp pulse can be any value between 0 and 255.
Page 170 9. Image Image 9-59 Clamp delay 3. Use the ▲ or ▼ key to select Clamp Delay or Clamp Width and use the ◄ or ► key to change the value. press ENTER to open the speciﬁc adjustment menu. R5905158 HDF SERIES 08/12/2016...
Page 171: Image File Services
9. Image Image File Services R5905158 HDF SERIES 08/12/2016...
Page 172: Files And File Manipulations
9. Image 9.6.1 Files and ﬁle manipulations Connecting a new source. Source dependent adjustments like image settings, aspect ratio and timings are stored in a dedicated image ﬁle. Before using a new source, a correct image ﬁle has to be installed. The projector’s memory contains a list of ﬁles corresponding to the most used sources.
Page 173: Manual Load File
9. Image 9.6.2 Manual Load ﬁle How to load 1. Press Menu to activate the menus and select Image → Image File Services → Manual Load. Image 9-61 Image, image ﬁle services Image 9-60 Main menu, Image Image 9-62 Image ﬁle services 2.
Page 174: File Load Filter
9. Image 9.6.3 File Load Filter About the ﬁlter setting Depending on the load ﬁle ﬁlter, the load list can be reduced to the ﬁtted ﬁles or can be expanded to show all ﬁles. [Fit] : reduced list corresponding with the input source. [All] : full list with all available ﬁles in the projector.
Page 175: Delete A File
9. Image 9.6.4 Delete a ﬁle What can be done ? A custom image ﬁle can be deleted. Be aware that an active ﬁle can’t be deleted. How to delete 1. Press Menu to activate the menus and select Image → Image File Services → Delete. Image 9-68 Image, image ﬁle services Image 9-67...
Page 176 9. Image No recovery possible ! R5905158 HDF SERIES 08/12/2016...
Page 177: Delete All Custom Files
9. Image 9.6.5 Delete all custom ﬁles What can be done ? All custom image ﬁles can be deleted by executing a single command. Be aware that an active ﬁle can’t be deleted. Image ﬁles of active sources on input 1 to 4 cannot be deleted. How to delete 1.
Page 178: Rename Custom Files
9. Image 9.6.6 Rename custom ﬁles A rename operation is only applicable for custom image ﬁles. How to rename 1. Press Menu to activate the menus and select Image → Image File Services → Rename. Image 9-76 Image, image ﬁle services Image 9-75 Main menu, Image Image 9-77...
Page 179 9. Image The rename window opens. Image 9-79 Rename ﬁle 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 180: Copy Custom File
9. Image 9.6.7 Copy custom ﬁle How to copy 1. Press Menu to activate the menus and select Image → Image File Services → Copy. Image 9-81 Image, image ﬁle services Image 9-80 Main menu, Image Image 9-82 Image ﬁle services, copy 2.
Page 181 9. Image The copy window opens. Image 9-85 Copy custom ﬁles 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 182: Image File Service Options, Load File
9. Image 9.6.8 Image ﬁle service options, Load ﬁle How to set 1. Press Menu to activate the menus and select Image → Image File Services → Options → Load File. Image 9-87 Image, image ﬁle services Image 9-86 Main menu, Image Image 9-89 File options, Load ﬁle Image 9-88...
Page 183: Image File Service Options, Auto Picture Alignment
9. Image 9.6.9 Image ﬁle service options, Auto Picture Alignment How to set 1. Press Menu to activate the menus and select Image → Image File Services → Options → Auto Picture Alignment. Image 9-91 Image, image ﬁle services Image 9-90 Main menu, Image Image 9-93 File options, Auto Picture Alignment...
Page 184: Save Custom Settings
9. Image Save custom settings What can be done ? The current custom settings can be saved to internal backup device in the same way as it would be done when the projector lamp was switched off. When settings are changed when the lamp is off, a manual Save custom settings must be executed to save the changes. When the message Save changes is displayed, newer switch off the projector.
Page 185: Splash Image
9. Image Splash image About a splash image When splash image is on, a dedicated image is displayed after start up and before the normal image is displayed and that for a certain time. A splash image can be uploaded via Projector Toolset. For more information about uploading a splash image, consult Projector Toolset’s user guide.
Page 186 9. Image Image 9-102 Splash screen, time-out 3. Press ENTER to open the edit mode. Enter the time with 2 digits, e.g. 05 or 15. Note: Maximum timeout = 15 seconds. Image 9-103 Time-out, input R5905158 HDF SERIES 08/12/2016...
Page 187: Layout
10. Layout 10. LAYOUT Overview • Layout menu overview • Introduction • Main window • PiP window • Layout File Services • Lens behavior R5905158 HDF SERIES 08/12/2016...
Page 188: Layout Menu Overview
10. Layout 10.1 Layout menu overview Overview table Level 1 Level 2 Level 3 Level 4 Layout Main Window Source Size Position Pip Window Pip Window [On], [Off] Source Size Position Layout File Services Load Main Full Screen Native Resolution Pip Up Right Split Left Right Split Top Bottom...
Page 189: Introduction
10. Layout 10.2 Introduction Overview Layout ﬁles determine the size and the position of the main and PiP window on the screen. Some pre-deﬁned layouts are available in the projector but custom layouts can be created and saved for future use. A source number and lens settings can be associated with the layout settings.
Page 190: Main Window
10. Layout 10.3 Main window Overview • Main window source selection • Main window size • Main window position When starting the Main window settings, the system will ask to create a custom layout R5905158 HDF SERIES 08/12/2016...
Page 191: Main Window Source Selection
10. Layout 10.3.1 Main window source selection How to select 1. Press Menu to activate the menus and select Layout → Main window → Source. Image 10-2 Layout, main window Image 10-1 Main menu, layout Image 10-4 Main window, source Image 10-3 Layout, main window 2.
Page 192: Main Window Size
10. Layout 10.3.2 Main window size What can be done? The size of the main window can be adjusted until the desired window dimensions are reached. Image 10-6 Size adjustment main window width adjustment height adjustment The size can be changed with respect to the original aspect ratio by checking the check box in front of Lock. How to change the size 1.
Page 193 10. Layout The Size window opens. Image 10-10 Size window 3. To keep the current aspect ratio, press ENTER to check Lock. Once Lock is checked, the width and the height will follow each other when changing one of the dimensions. 4.
Page 194: Main Window Position
10. Layout 10.3.3 Main window position What can be done? The main window can be repositioned on the screen. The upper left corner is the reference. Image 10-12 Positioning the window How to position 1. Press Menu to activate the menus and select Layout → Main window → Position. Image 10-14 Layout, main window Image 10-13...
Page 195 10. Layout A Save Layout window opens. Image 10-17 Save layout 5. Use the ▲ or ▼ key to select Yes and press ENTER to save. Select No if you want to quit without saving the current position. R5905158 HDF SERIES 08/12/2016...
Page 196: Pip Window
10. Layout 10.4 PiP window Overview • Introduction to PIP • Picture in Picture activation • PiP window, source selection • PiP window, Size • PiP window, position When starting the PiP window settings, the system will ask to create a custom layout R5905158 HDF SERIES 08/12/2016...
Page 197: Introduction To Pip
10. Layout 10.4.1 Introduction to PIP PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image. The windows may be of the video or data type. What are the different possibilities within the PiP mode ? The input section of the projector allows a combination of different input signals which may be projected in the 2 windows, main and PiP.
Page 198: Picture In Picture Activation
10. Layout 10.4.2 Picture in Picture activation How to activate 1. Press Menu to activate the menus and select Layout → PiP window → PiP window [On] / [Off]. Image 10-20 Layout, PiP Window Image 10-19 Main menu, layout Image 10-21 PiP window, activation 2.
Page 199: Pip Window, Source Selection
10. Layout 10.4.3 PiP window, source selection How to select 1. Press Menu to activate the menus and select Layout → PiP window → Source. Image 10-23 Layout, PiP Window Image 10-22 Main menu, layout Image 10-24 PiP window, source selection 2.
Page 200: Pip Window, Size
10. Layout 10.4.4 PiP window, Size What can be done? The width and height of the picture in picture window can be changed till the desired dimensions are obtained. Image 10-26 Size PIP window Width PIP window Height PIP window The size of the picture in picture window can be changed with respect to the original aspect ratio of the PIP image.
Page 201 10. Layout Image 10-30 PiP window, size 2. Press ENTER to select. The Size window opens. Image 10-31 PiP window, resize 3. To keep the current aspect ratio, press ENTER to check Lock. Once Lock is checked, the width and the height will follow each other when changing one of the dimensions. 4.
Page 202: Pip Window, Position
10. Layout 10.4.5 PiP window, position What can be done? The picture in picture window can be positioned on any place on the display just by changing its start coordinates. The reference is the upper left corner of the window. How to position 1.
Page 203: Layout File Services
10. Layout 10.5 Layout File Services Overview • Load layout ﬁle • Rename layout ﬁle • Delete layout ﬁle • Delete all layout ﬁles • Copy or Save as layout ﬁle R5905158 HDF SERIES 08/12/2016...
Page 204: Load Layout File
10. Layout 10.5.1 Load layout ﬁle When loading a layout that requires two sources, the PiP window On/Off setting will be switched to On. How to load ﬁle 1. Press Menu to activate the menus and select Layout → Layout File Services → Load. Image 10-39 Layout, layout ﬁle services Image 10-38...
Page 205: Rename Layout File
10. Layout 10.5.2 Rename layout ﬁle Only custom created layouts can be renamed. How to rename 1. Press Menu to activate the menus and select Layout → Layout File Services → Rename. Image 10-43 Layout, layout ﬁle services Image 10-42 Main menu, layout Image 10-44 Layout ﬁle services, rename...
Page 206: Delete Layout File
10. Layout 10.5.3 Delete layout ﬁle Only custom created layouts can be deleted. The current selected custom layout cannot be deleted. How to delete 1. Press Menu to activate the menus and select Layout → Layout File Services → Delete. Image 10-47 Layout, layout ﬁle services Image 10-46...
Page 207: Delete All Layout Files
10. Layout 10.5.4 Delete all layout ﬁles Only custom layout ﬁles can be deleted. The current selected custom layout cannot be deleted. How to delete 1. Press Menu to activate the menus and select Layout → Layout File Services → Delete All. Image 10-52 Layout, layout ﬁle services Image 10-51...
Page 208: Copy Or Save As Layout File
10. Layout 10.5.5 Copy or Save as layout ﬁle What can be done? The current loaded layout, custom layout or custom created layout, can be copied into a new ﬁle. How to copy / save as 1. Press Menu to activate the menus and select Layout → Layout File Services → Copy/Save as. Image 10-56 Layout, layout ﬁle services Image 10-55...
Page 209: Lens Behavior
10. Layout 10.6 Lens behavior What can be done ? Different custom layouts can have different zoom/focus/shift (lens) settings, e.g. when using the projector on 2 different projector distances or two different screen sizes (same image but 2 custom layouts needed due to different zoom/focus/shift settings). Adjust the lens settings for the different situations and save these settings each in a different custom layout.
Page 210 10. Layout During the calibration, a message is displayed. This message disappears when the calibration is ﬁnished. Image 10-63 Lens calibration message R5905158 HDF SERIES 08/12/2016...
Page 211: Lamp
11. Lamp 11. LAMP Overview • Lamp menu overview • Lamp power mode • Lamp power • Auto dimming when on Pause • Auto dimming when No Signal • Auto dimming when Over-temperature • CLO mode (Constant light output mode) •...
Page 212: Lamp Menu Overview
11. Lamp 11.1 Lamp menu overview Overview table Level 1 Level 2 Level 3 Lamp Power Power mode Power Auto dimming when pause Auto dimming when No Signal Auto dimming when Overtemperature CLO mode CLO targets LPS Power Identiﬁcation Z-axis Light output R5905158 HDF SERIES 08/12/2016...
Page 213: Lamp Power Mode
11. Lamp 11.2 Lamp power mode What can be done? The lamp power mode can be switched between Normal, Economic and Long Life. When playing in Economic and Long Life mode, the lamp life time will be higher than in normal mode. The counter of the lamp life time counts equal for normal or economic mode but the customer will see that the ageing of the lamp is lower in economic and long life mode.
Page 214: Lamp Power
11. Lamp 11.3 Lamp power What can be done? Within a certain power mode, the light output of the lamp can be reduced by reducing the lamp power How to reduce the power 1. Press Menu to activate the menus and select Lamp → Power → Power. Image 11-4 Image 11-5 Main menu, lamp...
Page 215: Auto Dimming When On Pause
11. Lamp 11.4 Auto dimming when on Pause About auto dimming when on pause When the projector is switched to pause, the shutter is closed but the lamp is still running on full power. When auto dimming on pause is activated, then the lamp power will be reduced from its current value to its minimum value. When returning out of pause the lamp power is restored to its previous value.
Page 216: Auto Dimming When No Signal
11. Lamp 11.5 Auto dimming when No Signal About auto dimming When no signal is detected on the selected input the lamp power will be reduced from the current value to its minimum value. When the input signal is re-detected, the lamp power is restored to its original value. This function is a duplicate of the Auto dimming in the Input menu.
Page 217: Auto Dimming When Over-Temperature
11. Lamp 11.6 Auto dimming when Over-temperature What can happen? When an over-temperature is detected, the projector starts dimming the lamp so that the projector can cool down. How to set up 1. Press Menu to activate the menus and select Lamp → Power → Auto Dimming Overtemperature. Image 11-13 Image 11-14 Main menu, lamp...
Page 218: Clo Mode (Constant Light Output Mode)
11. Lamp 11.7 CLO mode (Constant light output mode) What can be done? Constant Light Output allows to force a constant light output (set in the CLO Target lumens item) of the projector over a certain period. This will eliminate uncontrolled light output drop caused by natural aging of the lamp. The light output is checked every 5 minutes, if the target is not met, the lamp power is adjusted.
Page 219 11. Lamp Image 11-20 Power, CLO mode 2. Press ENTER to toggle between [On] or [Off]. R5905158 HDF SERIES 08/12/2016...
Page 220: Clo Targets
11. Lamp 11.8 CLO targets What must be done? The light output target can be set. This value will force the projector to produce the target lumens when the CLO mode is set to On. How to set the target 1.
Page 221: Lps Power
11. Lamp 11.9 LPS power What is indicated ? The current LPS power in watt is indicated as information. Image 11-24 LPS power R5905158 HDF SERIES 08/12/2016...
Page 222: Lamp Identiﬁcation
11. Lamp 11.10 Lamp identiﬁcation About The lamp identiﬁcation menu gives an overview of the most important parameters of the used lamp. These parameters are: • Serial number of the lamp • Article number of the lamp • Run time since ﬁrst start up of the lamp •...
Page 223: Z-Axis Adjustment
11. Lamp 11.11 Z-axis adjustment What can be done? The Z-Axis menu item gives the current light output of the projector (in percentage). This light output indication can be used to readjust the lamp position in the lamp casing (also called Z-axis adjustment of the lamp). With higher run times, the light output of the lamp will decrease, which results in a lower light output on the screen.
Page 224 11. Lamp R5905158 HDF SERIES 08/12/2016...
Page 225: Alignment
12. Alignment 12. ALIGNMENT Overview • Alignment menu overview • Orientation • Lens adjustment, zoom - focus • Lens adjustment, shift • Lens adjustment, mid position • Calbrate lens at startup • Calibrate lens • Warping • Blanking adjustment • Contrast-Intensity •...
Page 226: Alignment Menu Overview
12. Alignment 12.1 Alignment menu overview Overview table Level 1 Level 2 Level 3 Alignment Orientation Front / Table Front / Ceiling Rear / Table Rear / Ceiling Auto Front Auto Rear Lens Zoom / Focus Shift Mid Position Calibrate lens at startup Calibrate Warping Status...
Page 227 12. Alignment Pan / Tilt Store setting per layout R5905158 HDF SERIES 08/12/2016...
Page 228: Orientation
12. Alignment 12.2 Orientation What can be done? The way of physical installation of the projector can be deﬁned to the projector. The following installation are possible: • front/table • front/ceiling • rear/table • rear/ceiling • auto front : automatic front, projector detects itself if it is ceiling or table mounted and projects always a readable image. •...
Page 229: Lens Adjustment, Zoom - Focus
12. Alignment 12.3 Lens adjustment, zoom - focus Zoom/Focus adjustment 1. Press Menu to activate the menus and select Alignment → Lens. Image 12-4 Main menu, alignment Image 12-5 Alignment, lens 2. Use the ▲ or ▼ key to select zoom/focus and press ENTER to activate. Image 12-6 Lens, Zoom/Focus 3.
Page 230: Lens Adjustment, Shift
12. Alignment 12.4 Lens adjustment, shift How to shift lens 1. Press Menu to activate the menus and select Alignment → Lens. Image 12-8 Main menu, alignment Image 12-9 Alignment, lens 2. Use the ▲ or ▼ key to select Shift and press ENTER to activate. Image 12-10 Lens, shift 3.
Page 231: Lens Adjustment, Mid Position
12. Alignment 12.5 Lens adjustment, mid position How to return to mid position 1. Press Menu to activate the menus and select Alignment → Lens. Image 12-12 Main menu, alignment Image 12-13 Alignment, lens 2. Use the ▲ or ▼ key to select Mid Position and press ENTER to activate. Image 12-14 Lens, mid position Lens will be shifted horizontally and vertically to its mid position.
Page 232: Calbrate Lens At Startup
12. Alignment 12.6 Calbrate lens at startup About calibrating lens Each time the projector is started, a homing procedure (calibration) can be executed so that the projector exactly knows the lens position. How to calibrate 1. Press Menu to activate the menus and select Alignment → Lens. Image 12-15 Main menu, alignment Image 12-16...
Page 233: Calibrate Lens
12. Alignment 12.7 Calibrate lens Lens calibration is a time consuming operation. How to calibrate 1. Press Menu to activate the menus and select Alignment → Lens. Image 12-18 Main menu, alignment Image 12-19 Alignment, lens 2. Use the ▲ or ▼ key to select Calibrate lens and press ENTER to activate. Image 12-20 Calibrate lens A Lens Calibration window opens.
Page 234: Warping
12. Alignment 12.8 Warping Not all models are equipped with a warping unit. For these models, the warping unit is optional. Overview • About warping • Warp activation - deactivation • Start up manual adjustment • Warp adjustment principle • Setting the warping level •...
Page 235: About Warping
12. Alignment 12.8.1 About warping Overview Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen. Consequently, it can also be used to generate an image with irregular shape. While an image can be transformed in various ways, pure warping doesn’t affect the colors. Some examples of warped images, using the warp geometry settings: Image 12-22 Image 12-23...
Page 236: Warp Activation - Deactivation
12. Alignment 12.8.2 Warp activation - deactivation What can be done ? The Warp functionality can be activated or deactivated. With 3D activated, warping can be enabled for sources up to 30 Hz per eye. Above this frequency, warping is disabled.
Page 237: Start Up Manual Adjustment
12. Alignment 12.8.3 Start up manual adjustment How to start up 1. Press Menu to activate the menus and select Alignment → Warping → .Warp adjust. The Warp adjust menu opens. The content of this warp adjust menu depends on the selection. When no warp was done before, the menu starts as a sort of wizard by opening only the warp area pane.
Page 238 12. Alignment Remove / show points Hardware reset of warp module R5905158 HDF SERIES 08/12/2016...
Page 239: Warp Adjustment Principle
12. Alignment 12.8.4 Warp adjustment principle Description Warping adjustment enables the relocation of pixel groups in an image in order to introduce spacial distortion. To make the procedure comprehensible, there are some rules and features. The use of warping adjustment leads to image quality loss! The more geometry adjustment is applied, the more quality loss.
Page 240 12. Alignment In 2 x 2 mode, we only have one level, including all four (2 x 2) anchor points, being the image corners. This mode is especially used to correct horizontal and vertical keystone. 11 12 15 16 19 20 23 24 27 28 31 32...
Page 241: Setting The Warping Level
12. Alignment 12.8.5 Setting the warping level How to select 1. With the Warping menu displayed, use the ▲ or ▼ key to select more or less pixels to adjust. Switching between the more or less pixels icon can be done with the ◄ or ► key. Image 12-37 Warp level selection Increment pixels...
Page 242: Warp Adaptation Steps
12. Alignment 12.8.6 Warp adaptation steps About the steps An anchor point can be moved with a ﬁxed number of steps: 1, 10 or 100. It is also possible to move an anchor point with custom number of steps or a part of a step. How to select a predeﬁned number of steps 1.
Page 243: Making Selections And Adjustments
12. Alignment 12.8.7 Making selections and adjustments About a Selection of a function The current selection is indicated in yellow. The current position of the cursor is indicated in blue. The arrow keys are use to move the cursor to a new selection. How to make a selection 1.
Page 244 12. Alignment Rotate Rotation point R5905158 HDF SERIES 08/12/2016...
Page 245: Keystone Correction Workﬂow
12. Alignment 12.8.8 Keystone correction workﬂow Adjusting vertical and horizontal keystone 1. Select the 2 x 2 adjustment level. See "Setting the warping level", page 237. The default selected anchor point is the left top corner of the image. 2. Select the desired warp area. Depending on the selected area only the points in that area will be adjusted.
Page 246: Linearity Adjustment, Workﬂow
12. Alignment 12.8.9 Linearity adjustment, workﬂow Adjusting vertical and horizontal linearity 1. Select the 2 x 2 adjustment level. See "Setting the warping level", page 237. The default selected anchor point is the left top corner of the image. 2. Select the desired warp area. Depending on the selected area only the points in that area will be adjusted.
Page 247: Selecting And Changing The Position Of A Speciﬁc Point
12. Alignment 12.8.10 Selecting and changing the position of a speciﬁc point About point selection Depending on the warp level, number of selectable points, a speciﬁc point can be selected and moved in any direction. The coordi- nate system works with 33 x 33 pixels (0 to 32). Depending on the warp level the cursor will jump from active point to active point. E.g.
Page 248: Scaling The Image
12. Alignment 12.8.11 Scaling the image About scaling It is possible to scale the whole image. This is considered as an equal scale of the 4 corner points in 2 x 2 mode. The Warping adaptation window is used to scale the image. How to scale 1.
Page 249: Shifting The Image
12. Alignment 12.8.12 Shifting the image About shifting It is possible to shift the whole image. This is considered as an equal movement of the 4 corner points in 2 x 2 mode. The Warping adaptation window is used for adjusting the shift. After shifting the image parts of the image might not be visible anymore. How to shift 1.
Page 250: Rotating The Image
12. Alignment 12.8.13 Rotating the image About rotating The image can be rotated around a predeﬁned point. This is considered as an equal rotation of the 4 corner points in 2 x 2 mode and with the full area selected. The default rotation point is the center of the image. Image 12-51 Rotation Selecting rotation point...
Page 251 12. Alignment Image 12-54 Rotate image 3. Select Warp adaptation, angle. 4. Use the ◄ or ► key to change the rotation Angle. press ENTER to open the Warping Adaptations window. Use the ◄ or ► key to change the Angle. Image 12-55 Warping adaptation, angle R5905158 HDF SERIES 08/12/2016...
Page 252: Hardware Reset
12. Alignment 12.8.14 Hardware Reset What can be done ? During some combinations of adjustments, it is possible that the warping get stuck. Than it is possible to reset the board and restart from a clean adjustment. How to reset 1.
Page 253: Osd Opacity
12. Alignment 12.8.15 OSD opacity About the opacity of the OSD menus During the warp adjustment process the OSD menu is displayed on top the warp grid. To see the grid and the grid points, reduce the opacity of the OSD menu. Image 12-57 Opacity How to adjust...
Page 254 12. Alignment 2. Use the ◄ or ► key to change the opacity. R5905158 HDF SERIES 08/12/2016...
Page 255: Warp File Service, Load File
12. Alignment 12.8.16 Warp ﬁle service, load ﬁle What can be done? A predeﬁned warp conﬁguration can be loaded in the warp board as active warp conﬁguration ﬁle. To exclude the warp functionality, load the ﬁle NoDistortion.txt. How to load 1.
Page 256: Warp File Service, Save To File
12. Alignment 12.8.17 Warp ﬁle service, save to ﬁle What can be done? The current warp settings are saved in the current active ﬁle How to save 1. Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Save. Image 12-66 Main menu, alignment Image 12-67...
Page 257: Warp File Service, Save As
12. Alignment 12.8.18 Warp ﬁle service, save as What can be done? The current settings can be saved into a new ﬁle. How to save 1. Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Save as. Image 12-70 Main menu, alignment Image 12-71...
Page 258: Warp File Service, Rename File
12. Alignment 12.8.19 Warp ﬁle service, rename ﬁle How to rename? 1. Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Rename. Image 12-74 Main menu, alignment Image 12-75 Alignment, Warping Image 12-77 Rename warp ﬁle Image 12-76 Warping, ﬁle service...
Page 259: Warp File Service, Delete File
12. Alignment 12.8.20 Warp ﬁle service, delete ﬁle How to delete 1. Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Delete. Image 12-80 Main menu, alignment Image 12-81 Alignment, Warping Image 12-83 Delete warp ﬁle Image 12-82 Warping, ﬁle service...
Page 260: Warp File Service, Delete All Files
12. Alignment 12.8.21 Warp ﬁle service, delete all ﬁles What can be done? All custom created warp ﬁles can be deleted. How to delete 1. Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Delete All. Image 12-86 Main menu, alignment Image 12-87...
Page 261: Warp Board Reset
12. Alignment 12.8.22 Warp board reset What can be done? In some circumstances the hardware of the warping get stuck. A hard reset of the board is the only solution. With Warp board reset, the board is reset but the current values remain in the board. How to reset the board 1.
Page 262: Warp Board And Values Reset
12. Alignment 12.8.23 Warp board and values reset What can be done? With some extreme warp values the hardware of the warping can get stuck. With only a hard reset of the board, it starts up with the same extreme values and get stuck immediately. So that is not the solution. Therefore, while executing a hard reset, the warp values are reset at the same time so that the board can start up.
Page 263: Alternative Side Keystone
12. Alignment 12.8.24 Alternative Side Keystone About the alternative side keystone For 3D sources with a frequency higher than 30 Hz/eye, the warp unit cannot be used anymore. Therefor, for these source the alternative side keystone can be used. How to adjust 1.
Page 264: Blanking Adjustment
12. Alignment 12.9 Blanking adjustment What can be done ? Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on to the screen and to hide or black out unwanted information (or noise). A ’0’ on the bar scale indicates no blanking. Which blanking adjustments are available ? •...
Page 265 12. Alignment Image 12-101 Main menu, alignment Image 12-102 Alignment, blanking 2. Press ENTER to select. The blanking adjustment menu opens. Image 12-103 Blanking adjustment 3. Use the ▲ or ▼ key to select the desired blanking adjustment and adjust with the ◄ or ► key. Select Reset to reset all blanking adjustments.
Page 266: Contrast-Intensity
12. Alignment 12.10 Contrast-Intensity Purpose Contrast : change the contrast of the complete output signal (main and PiP window together) of the projected image. Intensity : change the brightness of the complete output signal (main and PiP window together) of the projected image. How to set up 1.
Page 267: Gamma
12. Alignment 12.11 Gamma About Gamma Gamma is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced). How to adjust 1.
Page 268: Internal Patterns
12. Alignment 12.12 Internal patterns What can be done with these patterns? The projector is equipped with different internal patterns which can be used for measurement and alignment purposes. How to select a pattern 1. Press Menu to activate the menus and select Alignment → Internal Patterns. Image 12-110 Image 12-111 Main menu, alignment...
Page 269: Color Space
12. Alignment 12.13 Color space Color space A color space or color standard is a mathematical representation for a color. For example the RGB color space is based on a Cartesian coordinate system. What can be adjusted ? The color space (gamut), the collection of colors which can be reproduced by the projector, can be adjusted to 4 predeﬁned stored values (one projector speciﬁc, 2 international standards and one custom preset).
Page 270 12. Alignment Image 12-116 Color space — conﬁrmation 4. When [On] is selected and the color temperature is correct, use the ▲ or ▼ key to select the desired color space and press ENTER to select. Projector Maximum color space European Broadcasting Union.
Page 271: Scenergix
12. Alignment 12.14 Scenergix R5905158 HDF SERIES 08/12/2016...
Page 272: Introduction
12. Alignment 12.14.1 Introduction Why ScenergiX ? When working in a multichannel setup the HDF series projector and its Soft Edge possibilities enable an image blending that gives the appearance of a single view, thus achieving realistic immersion for the majority of wide screen applications. ScenergiX is limited to half the resolution of the projector.
Page 273: Preparations
12. Alignment 12.14.2 Preparations ScenergiX Preparations To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all projectors: • Convergence • Geometry • Color Matching (Color Temperature, Color Standard, Input Balance, Gamma) R5905158 HDF SERIES 08/12/2016...
Page 274: Scenergix Activation
12. Alignment 12.14.3 Scenergix activation How to activate 1. Press Menu to activate the menus and select Alignment → Scenergix. Image 12-121 Main menu, alignment Image 12-122 Alignment, Scenergix 2. Press ENTER to select. The Scenergix menu opens. Image 12-123 Scenergix, status 3.
Page 275: Scenergix Pattern
12. Alignment 12.14.4 Scenergix pattern What can be done? To make the Scenergix adjustment more easy, an internal pattern can be displayed. How to select 1. Press Menu to activate the menus and select Alignment → Scenergix → Scenergix Pattern. Image 12-124 Main menu, alignment Image 12-125...
Page 276: Scenergix Adjustment Lines
12. Alignment 12.14.5 Scenergix adjustment lines What can be done? Border lines for the blending areas can be displayed while adjusting the white and black level. Adjustment lines can be activated when Scenergix pattern is [On]. How to display 1. Press Menu to activate the menus and select Alignment → Scenergix → Adjust lines. Image 12-128 Main menu, alignment Image 12-129...
Page 277: Data Doubling
12. Alignment 12.14.6 Data doubling About data doubling When a source (A) must be displayed via 2 projectors as one image (B), the vertical and horizontal start position and the size must be determined so that each projector displays a part of the image. The overlap area can be adjusted with the Scenergix tools. Hor.
Page 278 12. Alignment Image 12-132 Main menu, alignment Image 12-133 Alignment, Scenergix Image 12-134 Image 12-135 Scenergix, data doubling Data doubling, status 2. Select Status and press ENTER to toggle between [On] and [Off]. [On] : data doubling is activated. [Off] : data doubling is deactivated. 3.
Page 279: White Level Adjustment (Blending Area)
12. Alignment 12.14.7 White level adjustment (blending area) How to set 1. Press Menu to activate the menus and select Alignment → Scenergix → White level. Image 12-136 Main menu, alignment Image 12-137 Alignment, Scenergix Image 12-138 Scenergix, white level 2.
Page 280 12. Alignment Image 12-140 Width selections 4. Set ﬁrst the width for the ﬁrst projector and repeat for the second one. Image 12-141 Width set up for projector 1 R5905158 HDF SERIES 08/12/2016...
Page 281 12. Alignment Image 12-142 Width set up for projector 2 To eliminate all blending settings, select Reset and press ENTER. R5905158 HDF SERIES 08/12/2016...
Page 282: Black Level Adjustment
12. Alignment 12.14.8 Black level adjustment Why black level adjustment For dark images, the overlap zone will be brighter then the rest of the images. Typically for DLP projectors, next to the overlap zone, a brighter area is recognized. This area is known as a DLP leakage area. This area must also be exclude for the black level adjustment.
Page 283 12. Alignment Image 12-146 Scenergix, Black level 2. Press ENTER to select the Black Level adjustments. Image 12-147 Black level, area 3. Use the ▲ or ▼ key to select one of the four size adjustments. Use the ◄ or ► key to move the green border line to the desired position. R5905158 HDF SERIES 08/12/2016...
Page 284 12. Alignment Image 12-148 DLP leakage area Overlap area DLP Leakage area Use the Reset item to reset all area values. How to adjust 1. Press Menu to activate the menus and select Alignment → Scenergix → Black level. Image 12-149 Main menu, alignment Image 12-150 Alignment, Scenergix...
Page 285 12. Alignment Image 12-151 Scenergix, Black level 2. Press ENTER to select and use the ▲ or ▼ key to select a color to adjust or select All colors to adjust all colors at the same time. Image 12-152 Black level, adjust 3.
Page 286: Scenergix Reset
12. Alignment 12.14.9 Scenergix Reset What can be done? All Scenergix values can be set back to the default values. How to reset 1. Press Menu to activate the menus and select Alignment → Scenergix → Reset. Image 12-154 Main menu, alignment Image 12-155 Alignment, Scenergix Image 12-156...
Page 287: Glasses
12. Alignment 12.15 3D Glasses Overview • Dark time adjustment • Left-right output reference delay • 3D Sync Loop Through • Upper limit for triple or double ﬂash R5905158 HDF SERIES 08/12/2016...
Page 288: Dark Time Adjustment
12. Alignment 12.15.1 Dark time adjustment What can be done? The principle of a pair of Stereo Glasses is : When the left image is projected, the left shutter is open, allowing the left eye to see the left image. The shutter for the right eye is closed.
Page 289 12. Alignment Opening Too Early and/or Closing Too Late = Cross Talk DLP Mirrors Active Blanking Time Left Shutter Open Closed Right Shutter Open Closed Image 12-158 Shutters closing too late and/or opening too early cause Cross-Talk Closing these shutters too quickly and/or opening too slowly will cause Color Artifacts. Opening Too Late and/or Closing Too Early = Color Artifacts DLP Mirrors...
Page 290 12. Alignment Image 12-160 Main window Image 12-161 Alignment, 3D glasses 2. Press ENTER. 3. Use the ▲ or ▼ key to select Dark Time Adjustment Image 12-162 Dark time adjustment 4. Use the ◄ or ► key to change the dark time until the correct value is reached. The actual used dark time is indicated next to Actual Dark Time.
Page 291: Left-Right Output Reference Delay
12. Alignment 12.15.2 Left-right output reference delay What can be done? With L/R output reference delay it is possible to apply an adjustable time delay on the stereo emitter signal. Image Frame Left Frame Right Frame Left Without output reference delay Left 3D Sync Right...
Page 292 12. Alignment Image 12-166 Output reference dellay 4. Use the ◄ or ► key to change the L/R Output Reference Delay value until the correct value is reached. R5905158 HDF SERIES 08/12/2016...
Page 293: Sync Loop Through
12. Alignment 12.15.3 3D Sync Loop Through What can be done? The incoming 3D sync signal can routed to the 3D sync output connector. How to activate 1. Press Menu to activate the menus and select Alignment → 3D Glasses. Image 12-167 Main window Image 12-168...
Page 294: Upper Limit For Triple Or Double Flash
12. Alignment 12.15.4 Upper limit for triple or double ﬂash What can be done? The Upper limit for triple ﬂash can be set. When the input frame rates are below this limit, the result will be displayed at triple frame rate.
Page 295: High End Systems Mirror
12. Alignment 12.16 High End Systems Mirror About the mirror The digital mirror is DMX controlled. This control can be done via the projector or via Projector Toolset. External DMX control is still possible. Almost any image can be displayed on almost any place in the room using the pan and tilt adjustments. Settings storing per layout is possible.
Page 296 12. Alignment Image 12-176 Projector Controlled 2. Use the ◄ or ► key to change the value between -128 and 128. 3. Use the ▲ or ▼ key to select Fine Pan or Fine Tilt. 4. Use the ◄ or ► key to change the value between -128 and 128. Store settings 1.
Page 297: Projector Control
13. Projector Control 13. PROJECTOR CONTROL Overview • Projector Control menu overview • Individual Projector Address • Projector Common Address • Serial Communication • Network • IR Control switching • • Buttons • Menu position • Local LCD • Language selection •...
Page 298: Projector Control Menu Overview
13. Projector Control 13.1 Projector Control menu overview Overview table Level 1 Level 2 Level 3 Projector Control Projector Address Projector address Common address Baud rate Serial Communication Interface standard Network Wired DHCP [On] [Off] IP address Subnet mask Default gateway Wireless Status DHCP...
Page 299: Individual Projector Address
13. Projector Control 13.2 Individual Projector Address About individual projector address Before a projector, and only this projector, can be controlled via a remote control, an individual address must be entered in the projector. This individual projector address can then be used to control the projector via remote control or via a serial connection. Next to an individual projector address, each projector has also a common address for group control.
Page 300: Projector Common Address
13. Projector Control 13.3 Projector Common Address About common address A common address can be ’0’ or ’1’. Any command coming from a remote control programmed with that common address will be executed. How to set 1. Press Menu to activate the menus and select Projector Control → Projector Address → Common Address. Image 13-5 Main menu, projector control Image 13-6...
Page 301: Serial Communication
13. Projector Control 13.4 Serial Communication Overview • Baud rate setup • Interface Standard R5905158 HDF SERIES 08/12/2016...
Page 302: Baud Rate Setup
13. Projector Control 13.4.1 Baud rate setup What can be done ? The baud rate for to establish a serial communication with a computer can be set. How to set 1. Press Menu to activate the menus and select Projector Control → Serial Communication → Baudrate. Image 13-9 Main menu, projector control Image 13-10...
Page 303: Interface Standard
13. Projector Control 13.4.2 Interface Standard What can be done? The communication protocol for the communication between the projector and a computer can be set to RS232 or RS422. How to set up 1. Press Menu to activate the menus and select Projector Control → Serial Communication. Image 13-12 Main menu, projector control Image 13-13...
Page 304: Network
13. Projector Control 13.5 Network About a network connection A network connection can be made via a wired connection or via the optional wireless unit. Overview • Introduction to a Network connection • Wired DHCP set up • Wired IP address set up •...
Page 305: Introduction To A Network Connection
13. Projector Control 13.5.1 Introduction to a Network connection DHCP Dynamic host conﬁguration protocol. DHCP is a communications protocol that lets network administrators manage centrally and automate the assignment of IP addresses in an organization’s network. Using the Internet Protocol, each machine that can connect to the Internet needs a unique IP address.
Page 306: Wired Dhcp Set Up
13. Projector Control 13.5.2 Wired DHCP set up How to set up 1. Press Menu to activate the menus and select Projector Control → Network. Image 13-15 Main menu, projector control Image 13-16 Projector control, network Image 13-17 Wired DHCP 2.
Page 307: Wired Ip Address Set Up
13. Projector Control 13.5.3 Wired IP address set up How to set up 1. Press Menu to activate the menus and select Projector Control → Network. Image 13-18 Main menu, projector control Image 13-19 Projector control, network Image 13-20 IP address 2.
Page 308 13. Projector Control 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 309: Wired Subnet Mask Set Up
13. Projector Control 13.5.4 Wired subnet mask set up Subnet for Wired and Wiﬁ must be different ! How to set up 1. Press Menu to activate the menus and select Projector Control → Network. Image 13-22 Main menu, projector control Image 13-23 Projector control, network Image 13-24...
Page 310 13. Projector Control Image 13-25 Fill subnet mask Image 13-26 Fill subnet mask 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 311: Wired Default Gateway Set Up
13. Projector Control 13.5.5 Wired default gateway set up How to set up 1. Press Menu to activate the menus and select Projector Control → Network. Image 13-27 Main menu, projector control Image 13-28 Projector control, network Image 13-29 Network, default gateway 2.
Page 312 13. Projector Control 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 313: Wireless Network Activation
13. Projector Control 13.5.6 Wireless network activation Can only be used with a wireless network module installed. What can be done ? Before a wireless network can be used, the status must be set to On. How to activate 1. Press Menu to activate the menus and select Projector Control → Network → Wireless setup. Image 13-31 Main menu, projector control Image 13-32...
Page 314 13. Projector Control Image 13-34 Wireless, status 3. Press ENTER to toggle the status between [Off] and [On]. R5905158 HDF SERIES 08/12/2016...
Page 315: Wireless Access Points Selection And Setup
13. Projector Control 13.5.7 Wireless access points selection and setup These menu items are only accessible when wireless network status is set to [on]. Scan for access points 1. Select Scan access points and press ENTER to start the scan. Image 13-36 Scan access points, results Image 13-35...
Page 316 13. Projector Control Image 13-39 Open network connection 2. Press ENTER to activate the input ﬁeld. 3. Enter the passphrase. The input is case sensitive. Press ENTER to ﬁnish the input of the passphrase. 4. Use the ▲ or ▼ key to select Apply and press ENTER to open the network connection. An IP address can now be obtained via DHCP or a ﬁxed IP address can be setup.
Page 317: Wireless Dhcp Set Up
13. Projector Control 13.5.8 Wireless DHCP set up Can only be used with a wireless network module installed. How to set up 1. Press Menu to activate the menus and select Projector Control → Network → Wireless Setup . Image 13-40 Main menu, projector control Image 13-41 Projector control, network...
Page 318: Wireless Fixed Ip Address Set Up
13. Projector Control 13.5.9 Wireless ﬁxed IP address set up Can only be used with a wireless network module installed. How to set up 1. Press Menu to activate the menus and select Projector Control → Network → Wireless Setup. Image 13-44 Main menu, projector control Image 13-45...
Page 319 13. Projector Control Image 13-48 Wireless IP address input 3. Press ENTER to open the Wireless menu. 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 320: Wireless Subnet Mask Set Up
13. Projector Control 13.5.10 Wireless subnet mask set up Can only be used with a wireless network module installed. Subnet for Wired and Wiﬁ must be different ! How to set up 1. Press Menu to activate the menus and select Projector Control → Network → Wireless Setup. Image 13-49 Main menu, projector control Image 13-50...
Page 321 13. Projector Control Image 13-53 Wireless Subnet Mask, input 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 322: Wireless Default Gateway Set Up
13. Projector Control 13.5.11 Wireless default gateway set up Can only be used with a wireless network module installed. How to set up 1. Press Menu to activate the menus and select Projector Control → Network → Wireless Setup. Image 13-54 Main menu, projector control Image 13-55 Projector control, network...
Page 323 13. Projector Control Image 13-58 Wireless default gateway, input 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 324: Ir Control Switching
13. Projector Control 13.6 IR Control switching What can be done ? Each IR receiver inside the projector can be activated or deactivated. When an IR receiver is deactivated, no IR signal sent to this IR receiver will be processed. How to activate or deactivate 1.
Page 325: Dmx
13. Projector Control 13.7 DMX Overview • DMX address • DMX universe • DMX mode • Art-Net DMX • Front XLR output voltage control • Monitor • DMX Shutdown • DMX Shutdown retarding time About the ways to control the projector via DMX With a standard DMX cable equipped with XLR connector DMX signals can be connected to the DMX In port on the communicator interface.
Page 326: Dmx Address
13. Projector Control 13.7.1 DMX address What should be done ? Before a projector can execute DMX commands, a unique address, called DMX address, should be given to the projector. This address can vary from 1 to 512. How to set the DMX address 1.
Page 327 13. Projector Control 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 328: Dmx Universe
13. Projector Control 13.7.2 DMX universe What can be done ? Depending on the DMX mode, one DMX universe can contain a different number of projectors. E.g. DMX mode = basic, the DMX universe can contain up to 256 projectors Universes are only meaningful for Art-Net applications as only there multiple universes can be addressed.
Page 329 13. Projector Control Image 13-70 DMX universe 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 330: Dmx Mode
13. Projector Control 13.7.3 DMX mode What can be done ? 3 modes for DMX are available: • Basic which has currently 2 channels implemented. • Extended which has currently 10 channels implemented • Full which has currently 9 channels implemented and a 10th free channel. Depending on the DMX application the correct mode has to be selected.
Page 331: Art-Net Dmx
13. Projector Control 13.7.4 Art-Net DMX What can be done ? DMX can be sent via Ethernet to the projector. This function can be enabled or disabled. Art-Net DMX [On] : DMX via Ethernet is enabled. Art-Net DMX [Off] : DMX via Ethernet is disabled. How to toggle 1.
Page 332: Front Xlr Output Voltage Control
13. Projector Control 13.7.5 Front XLR output voltage control What can be done ? The output voltage on the front XLR connector can be enabled or disabled. The output voltage level can be set to 0V, 9V, 12V or 24V. DMX Art-Net can also enable the output voltage on the front XLR connector.
Page 333 13. Projector Control Image 13-80 Main menu, projector control Image 13-81 Projector control, DMX Image 13-82 Front XLR output voltage level 2. Press ENTER to toggle between [0 Volt], [9 Volt], [12 Volt] and [24 Volt]. R5905158 HDF SERIES 08/12/2016...
Page 334: Monitor
13. Projector Control 13.7.6 Monitor What can be done ? If a DMX device is connected, the settings per channel can be displayed in an on screen menu. How to start up the monitoring 1. Press Menu to activate the menus and select Projector Control → DMX → Monitor. Image 13-83 Main menu, projector control Image 13-84...
Page 335: Dmx Shutdown
13. Projector Control 13.7.7 DMX Shutdown What can be done? Projector can be forced to go in shutdown after a certain retarding time when no DMX signals are available. How to activate/deactivate 1. Press Menu to activate the menus and select Projector Control → DMX → Shutdown. Image 13-87 Main menu, projector control Image 13-88...
Page 336: Dmx Shutdown Retarding Time
13. Projector Control 13.7.8 DMX Shutdown retarding time About the shutdown retarding time The retarding time is the time between no DMX is detected and the moment that the projector shuts down. How to set the retarding time 1. Press Menu to activate the menus and select Projector Control → DMX → Shutdown Time. Image 13-90 Main menu, projector control Image 13-91...
Page 337: Buttons
13. Projector Control 13.8 Buttons Overview • Standby button • Shortcut keys R5905158 HDF SERIES 08/12/2016...
Page 338: Standby Button
13. Projector Control 13.8.1 Standby button What can be done ? When going to standby by pressing the standby button, the following can happen: • Only lamp will be switched off • Lamp will be switched off and projector electronics will be powered down after an after cool period (ECO standby) In ECO standby only the microcontroller, communication interface and local (or remote) control are operational.
Page 339: Shortcut Keys
13. Projector Control 13.8.2 Shortcut keys What can be done? An overview of the shortcut allocations with the corresponding menu is given. Those printed in bold are allocated. The allocated shortcut keys can be cleared within this menu. How to clear a shortcut key 1.
Page 340: Menu Position
13. Projector Control 13.9 Menu position What is possible? The on screen menu and the bar scale can be positioned on different places on the screen. The following positions are possible for both • Right-top • Right-mid • Right-bottom • Mid-top •...
Page 341: Local Lcd
13. Projector Control 13.10 Local LCD What is possible ? The back light of the local LCD can be adapted to the needs of the environment. A time out for the local LCD can be set. If there is nothing done on the local LCD, it can go out after a time out. How to set up 1.
Page 342: Language Selection
13. Projector Control 13.11 Language selection What can be done? The user can change the language of the on screen menus and the local display menus to one of the available languages. The following languages are available: • English • French •...
Page 343: Scheduler
13. Projector Control 13.12 Scheduler About the scheduler The scheduler allows to start up different tasks at a given time which can control the screen layout and the status of the lamp. These tasks can be scheduled in time with a certain recurrence and occurrence. Multiple tasks can be added to the list of tasks and all these tasks will be controlled by the scheduler.
Page 344: Add A Task To The List
13. Projector Control 13.12.1 Add a task to the list How to add 1. Press Menu to activate the menus and select Projector Control → Scheduler → Add task. Image 13-110 Main menu, projector control Image 13-111 Projector control, scheduler Image 13-112 Scheduler, add task 2.
Page 345 13. Projector Control Image 13-114 Time setup 3. Select Recurrence and press ENTER; Use the ◄ or ► key to change the recurrence. Image 13-115 Recurrence setup Recurrence : the time between two starts of the same task. The value can be changed between 1 and 99. Starts every day Starts every 2 days Starts every 3 days...
Page 346: Lamp Status
13. Projector Control Image 13-116 Occurrence setup Occurrence : the number of loops that will take place as set in the recurrence. E.g; an occurrence of 2 with a recurrence of 3 means that the schedule will be executed at the start date, start date + 3 and due to the occurrence (=2) also at start date + 6.
Page 347: Edit A Task
13. Projector Control 13.12.2 Edit a task What can be done? An existing task in the list of tasks can be edited and saved with the same name. How to edit 1. Press Menu to activate the menus and select Projector Control → Scheduler → Edit task. Image 13-118 Main menu, projector control Image 13-119...
Page 348 13. Projector Control Image 13-122 Edit task The following items can be changed in the same way as creating a new task. For more info, see "Add a task to the list", page 340: Date and time Recurrence Routine Lamp status Changing the name and applying the task will replace the selected task with the edited task with the new name.
Page 349: Delete Task
13. Projector Control 13.12.3 Delete task What can be done? A task stored in the list of tasks can be deleted from that list. How to delete 1. Press Menu to activate the menus and select Projector Control → Scheduler → Delete task. Image 13-123 Main menu, projector control Image 13-124...
Page 350: Scheduler, On Or Off
13. Projector Control 13.12.4 Scheduler, on or off What can be done? The scheduler can be switched on or off. When switched on, the tasks in the list will be executed on the given time. How to toggle the scheduler 1.
Page 351: Gsm Conﬁguration, Activation
13. Projector Control 13.13 GSM Conﬁguration, activation Only possible when a GSM module with SIM card is installed in the projector. What can be done ? To conﬁgure the projector software with the installed SIM card, a correct PIN code (4digits) must be entered. As the PIN code cannot be checked with the one on the SIM card, ensure to enter the correct PIN code.
Page 352 13. Projector Control Press ENTER when the 4 digits are entered. Image 13-136 PIN code entered 4. Select OK and press ENTER to conﬁgure the software. Replacing a SIM card with a new one 1. Before removing the current mounted SIM card, select Projector Control → GSM conﬁguration → GSM pincode Image 13-137 Main menu, projector control Image 13-138...
Page 353: Gsm Conﬁguration, Subscription
13. Projector Control 13.14 GSM Conﬁguration, subscription About SMS subscription When subscripted for notiﬁcations, the projector will send out SMS messages when notiﬁcations occur with severity “Critical”, “Error” or “Warning”. How to subscribe via the OSD menu 1. Press Menu to activate the menus and select Projector Control → GSM conﬁguration → Sms subscriptions. Image 13-141 Main menu, projector control Image 13-142...
Page 354 13. Projector Control The software checks if the + is entered and that at least 7 digits are entered. When it is not a valid number, the number ﬁeld next to the selected subscriber remain blank. This procedure can be repeated for subscriber 2 and 3. 5.
Page 355: Flex, Light Output Conﬁguration
13. Projector Control 13.15 FLEX, light output conﬁguration R5905158 HDF SERIES 08/12/2016...
Page 356: About Flex, Light Output Control
13. Projector Control 13.15.1 About FLEX, Light output control Overview With the FLEX technology the projector owners can lock the light output to different levels. The locking can be done via 3 different ways: • Via Projector Toolset when connected via an Ethernet connection with the projector. See Projector Toolset’s user guide (R5905073, index 04), chapter “FLEX, light output control”.
Page 357: Light Output Conﬁguration Via Osd Menu
13. Projector Control 13.15.2 Light output conﬁguration via OSD menu What can be done ? The activation code can be entered by the projector user. This code is validated and when valid the maximum light output is set accordingly. How to set 1.
Page 358: Conﬁgure Projector's Light Output Via Sms
13. Projector Control 13.15.3 Conﬁgure projector’s light output via SMS Projector must be equipped with the optional GSM module. What can be done ? An SMS message with certain structure must be sent to the SIM card of the projector. This message will be picked up and decoded. The projector will be conﬁgured according the content of the message.
Page 359: Sms Services
13. Projector Control 13.16 SMS services Projector must be equipped with the optional GSM module. Overview • Request for notiﬁcations • Request for information • Lamp ignition admission R5905158 HDF SERIES 08/12/2016...
Page 360: Request For Notiﬁcations
13. Projector Control 13.16.1 Request for notiﬁcations What can be done ? Via an SMS message sent from any cell phone to the GSM number associated with the projector, notiﬁcation information can be requested. The receiving projector analyses the message. The projector answers with an SMS of maximum 140 characters con- taining all the active notiﬁcations sorted from the highest to the lowest severity that ﬁt in this one message.
Page 361: Request For Information
13. Projector Control 13.16.2 Request for information Request for information Via an SMS message sent from any cell phone to the GSM number associated with the projector, projector information can be re- quested. The receiving projector analyses the message. The projector answers with an SMS of maximum 140 characters containing the projector type, name and serial number, projector and lamp run time, lamp and projector status.
Page 362: Lamp Ignition Admission
13. Projector Control 13.16.3 Lamp ignition admission What can be done? Via an SMS message sent from any cell phone to the GSM number associated with the projector, lamp ignition admission can be enabled or disabled. When enabled, the user can start up the projector in a normal way. When disabled, the lamp of the projector cannot start up.
Page 363: Service
14. Service 14. SERVICE Overview • Service menu overview • Identiﬁcation • Diagnosis • Internal Service Patterns • Convergence • Factory defaults • USB memory • Reset Formatter • Reﬁll mode • Save Custom Settings • Special HD Camera mode •...
Page 364: Service Menu Overview
14. Service 14.1 Service menu overview Overview table Level 1 Level 2 Level 3 Service Identiﬁcation Diagnostics Version Measurements Logging Board Id Notiﬁcations Tilt sensor Internal Service Patterns PMP IN PMP OUT Convergence Blue Green on Blue Red on Blue Factory Defaults USB Memory Save custom settings...
Page 365: Identiﬁcation
14. Service 14.2 Identiﬁcation What can be seen? The identiﬁcation screen shows the general information about the projector. The following items will be displayed: • Projector type • Projector address • Software version • Conﬁguration • Baudrate • IP address •...
Page 366: Diagnosis
14. Service 14.3 Diagnosis What can be seen? The diagnosis menu gives the possibility to get an overview of the working of the projector. Overview • Versions • Measurements • Logging • Board Id • Notiﬁcation • Tilt sensor R5905158 HDF SERIES 08/12/2016...
Page 367: Versions
14. Service 14.3.1 Versions About versions The table gives an overview between the reference software and the current installed software. The reference software is the latest correctly installed package. The current is the updated software (upgrade of downgrade). Once the complete current is updated with new software, then this current becomes the new reference. = means that the current software is equal to the latest reference.
Page 368 14. Service Image 14-7 Diagnosis, versions list R5905158 HDF SERIES 08/12/2016...
Page 369: Measurements
14. Service 14.3.2 Measurements About measurements Measurements contains the following parts: • Voltages • Temperatures • Fan speeds All tables are built up in an identical way. The current measured value is surrounded with the low and high error and warning limits. Once one of these values are crossed the threshold an error or warning message is logged or displayed on the local LCD screen.
Page 370 14. Service Image 14-13 Overview temperatures Image 14-14 Overview fan speeds Image 14-15 Overview miscellaneous items R5905158 HDF SERIES 08/12/2016...
Page 371: Logging
14. Service 14.3.3 Logging What can be done? Projector hosts two log ﬁles: one managed bythe Main controller and one speciﬁc for the Lamp power supply. How to display the logging 1. Press Menu to activate the menus and select Service → Diagnosis → Logging. Image 14-16 Main menu, service Image 14-17...
Page 372 14. Service Image 14-21 Lamp power supply logging R5905158 HDF SERIES 08/12/2016...
Page 373: Board Id
14. Service 14.3.4 Board Id About Board Id The board id window gives an overview of the modules with their article number, serial number, etc. How to get an overview 1. Press Menu to activate the menus and select Service → Diagnosis → Board Id. Image 14-22 Main menu, service Image 14-23...
Page 374: Notiﬁcation
14. Service 14.3.5 Notiﬁcation About notiﬁcations Notiﬁcations are warnings and errors displayed on the local LCD or on the OSD since power on of the projector. Once powered off, the notiﬁcation logging is cleared. How to display 1. Press Menu to activate the menus and select Service → Diagnosis → Notiﬁcations. Image 14-26 Main menu, service Image 14-27...
Page 375: Tilt Sensor
14. Service 14.3.6 Tilt sensor What is possible? The built-in tilt sensor can be read out to see if the projector is used in an allowed position. The status ﬁeld indicates whether the rotation of the projector is normal or abnormal. Using a projector with an abnormal rotation can severely damage the lamp.
Page 376: Internal Service Patterns
14. Service 14.4 Internal Service Patterns How to select 1. Press Menu to activate the menus and select Service → Internal Service Patterns. Image 14-34 Main menu, service Image 14-35 Service, Internal service patterns Image 14-36 Internal service patterns, Pmp In 2.
Page 377 14. Service Image 14-38 Image 14-39 Input test patterns Input test patterns Pmp In patterns Image 14-40 Pmp In test patterns To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the different patterns.
Page 378 14. Service Image 14-43 OSD Test patterns Pmp out patterns Image 14-44 Internal service patterns, Pmp Out Press ENTER to display the list of possible patterns. Image 14-45 Pmp out test patterns To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the different patterns.
Page 379 14. Service Fib patterns Image 14-47 Internal service patterns, Fib Press ENTER to display the list of possible patterns. Image 14-48 Fib test patterns R5905158 HDF SERIES 08/12/2016...
Page 380: Convergence
14. Service 14.5 Convergence What can be done? The convergence patterns can be used to check the convergence alignment of red, green and blue. If there is a misalignment of at least one 1 pixel, an electronic realignment is possible. Mechanical realignment of the convergence can only be done by a qualiﬁed service technician.
Page 381 14. Service Image 14-53 4. Use the ▲ or ▼ key to adjust vertical and the ◄ or ► key to adjust vertical convergence. Adjust until the crossing of the center Green (Red) convergence pattern coincide with the diagonal line of the center Blue con- vergence pattern.
Page 382: Factory Defaults
14. Service 14.6 Factory defaults What can be done? All settings of the projector will be set to the original factory settings. All user settings are erased with this operation. How to return to the factory defaults 1. Press Menu to activate the menus and select Service → Factory defaults. Image 14-54 Main menu, service Image 14-55...
Page 383: Usb Memory
14. Service 14.7 USB memory Purpose 2 functions are available • Custom settings can be saved on a USB stick. • A selection of saved settings can be (down)loaded via an USB stick on the projector. How to save custom settings 1.
Page 384 14. Service Image 14-60 Main menu, service Image 14-61 Service, USB memory Image 14-62 USB memory selection 2. Select Load Custom Settings and press ENTER. An overview of the available sets of custom settings is given. Image 14-63 Custom settings ﬁles 3.
Page 385: Reset Formatter
14. Service 14.8 Reset Formatter Why and when A reset formatter is necessary when e.g. a color is missing, artifacts are visible in the image or image is frozen and the formatter test patterns cannot be displayed. How to reset 1.
Page 386: Reﬁll Mode
14. Service 14.9 Reﬁll mode Before selecting Reﬁll mode, take ﬁrst all preparations necessary to reﬁll the cooling circuit. What can be done? When all necessary preparations are taken, the reﬁll mode activates automatically the reﬁll process. For more information about the reﬁll process, consult the Service manual. How to start the reﬁll mode 1.
Page 387: Save Custom Settings
14. Service 14.10 Save Custom Settings What can be done ? The current custom settings can be saved to internal backup device in the same way as it would be done when the projector lamp was switched off. When settings are changed when the lamp is off, a manual Save custom settings must be executed to save the changes. When the message Saving data is displayed, never switch off the projector.
Page 388: Special Hd Camera Mode
14. Service 14.11 Special HD Camera mode What can be done ? "Special HD Camera mode" enables special sequences for the DMD’s to support speciﬁc sources such as the Thompson Grass Valley Worldcam. It shouldn’t be used in any other circumstances as it would cause image ﬂicker and dimmed images with normal sources.
Page 389: Auto Dimming When Over-Temperature
14. Service 14.12 Auto Dimming when over-temperature What can happen? When an over-temperature is detected, the projector starts dimming the lamp so that the projector can cool down. How to activate - deactivate 1. Press Menu to activate the menus and select Service → Auto Dimming when Overtemperature. Image 14-75 Main menu, service Image 14-76...
Page 390: Time And Date
14. Service 14.13 Time and Date How to set 1. Press Menu to activate the menus and select Service → Time and Date. Image 14-77 Main menu, service Image 14-78 Service, time and date Image 14-79 Image 14-80 Date and time set up Date and time set up 2.
Page 391: Maintenance
15. Maintenance 15. MAINTENANCE About this chapter This chapter contains detailed maintenance procedures like dust ﬁlter replacement, lens cleaning etc. These procedures can easily be performed by the operator of the projector. R5905158 HDF SERIES 08/12/2016...
Page 392: Cleaning The Lens
15. Maintenance 15.1 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces follow the cleaning procedure as described here precisely. Necessary tools • Compressed air. • Clean Toraysee® cloth or any micro ﬁber lens cleaning cloth. •...
Page 393: Cleaning The Exterior Of The Projector
15. Maintenance 15.2 Cleaning the exterior of the projector How to clean the exterior of the projector ? 1. Switch off the projector and unplug the projector from the mains power net. 2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution.
Page 394 15. Maintenance R5905158 HDF SERIES 08/12/2016...
Page 395: Removal And Installation Of The Projector Covers
16. Removal and installation of the projector covers 16. REMOVAL AND INSTALLATION OF THE PROJECTOR COVERS About this chapter Most maintenance and servicing procedures demand removing one or more of the projector covers to gain access to the parts to maintain or to service.
Page 396: Removal Of The
16. Removal and installation of the projector covers 16.1 Removal of the front cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to remove the front cover 1. Remove the lens. See “Lens removal”. 2.
Page 397: Removal Of The Side Cover
16. Removal and installation of the projector covers 16.2 Removal of the side cover AUTION Remove the side cover of the projector only in a clean and dust free area. Never remove the side cover in an area which is subject to airborne contaminants such as that produced by smoke machines or similar.
Page 398: Removal Of The Light Unit Cover
16. Removal and installation of the projector covers 16.3 Removal of the light unit cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to remove the light unit cover 1.
Page 399: Removal Of The Input Cover
16. Removal and installation of the projector covers 16.4 Removal of the input cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to remove the input cover 1. Release the two captive screws at the top and bottom left side of the input cover, using a ﬂat screw driver. Image 16-7 Captive screws input cover 2.
Page 400: Installation Of The
16. Removal and installation of the projector covers 16.5 Installation of the front cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to install the front cover 1. Check if the front ﬁlter is present. 2.
Page 401: Installation Of The Side Cover
16. Removal and installation of the projector covers 16.6 Installation of the side cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to install the side cover 1. Check if all needed ﬁlters are present. 2.
Page 402: Installation Of The Light Unit Cover
16. Removal and installation of the projector covers 16.7 Installation of the light unit cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to install the light unit cover 1.
Page 403: Installation Of The Input Cover
16. Removal and installation of the projector covers 16.8 Installation of the input cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to install the input cover 1. Install the input cover of the projector as follows: a) Bring the input cover towards its ﬁnal position (A), b) then gently push the locking stud at the right top corner (B) into its receiver, c) then gently push the locking stud at the right bottom corner (C) into its receiver.
Page 404 16. Removal and installation of the projector covers R5905158 HDF SERIES 08/12/2016...
Page 405: Servicing
Realignment of the lamp in its reﬂector Extra service information Extra service information for qualiﬁed service technicians can be found on Barco’s Partnerzone (URL:http:\\my.barco.com). Regis- tration is necessary. If you are not yet registered, click on Partnerzone registration and follow the instructions. With the created login and password, it is possible to enter the partnerzone where you can ﬁnd extra service information about the projector.
Page 406: Inserting An Input Module
17. Servicing 17.1 Inserting an input module ARNING Switch off the projector and unplug the power cord before starting the procedure. How to insert 1. Loosen both screws of the dummy cover plate (1). Image 17-1 Insert input module 2. Take off the dummy cover plate. 3.
Page 407: Replacement Of The Dust Filter On The Front Side
17. Servicing 17.2 Replacement of the dust ﬁlter on the front side Necessary parts New HEPA dust ﬁlter for the front side (R9854470). How to replace the HEPA dust ﬁlter on the front side 1. Remove the front cover of the projector, see "Removal of the front cover", page 392. 2.
Page 408: Replacement Of The Dust Filter On The Bottom Side
17. Servicing 17.3 Replacement of the dust ﬁlter on the bottom side Necessary parts • New HEPA dust ﬁlter for the bottom side (R9854480). • 2.5 mm Allen key. How to replace the HEPA dust ﬁlter on the bottom side 1.
Page 409 17. Servicing Image 17-7 Bottom ﬁlter, ﬁxation 7. Reinstall the side cover of the projector, see "Installation of the side cover", page 397. AUTION Never install a used HEPA ﬁlter. Always install a new HEPA ﬁlter. R5905158 HDF SERIES 08/12/2016...
Page 410: Replacement Of The Dust Filter On The Top Side
17. Servicing 17.4 Replacement of the dust ﬁlter on the top side Necessary parts New HEPA dust ﬁlter for the top side (R9854480). How to replace the HEPA dust ﬁlter on the top side 1. Remove the side cover of the projector, see "Removal of the side cover", page 393. 2.
Page 411: Pressure Veriﬁcation Of The Liquid Cooling Circuit
17. Servicing 17.5 Pressure veriﬁcation of the liquid cooling circuit AUTION The pressure of the Liquid Cooling Circuit should be checked regularly. This pressure, indicated on the internal manometer, should be between 0,5 and 1 bar. If not, corrective action should be taken by qualiﬁed technical service personnel.
Page 412: Removal Of The Lamp House
This procedure may only be performed by qualiﬁed technical service personnel. AUTION Never attempt to disassemble the lamp from its housing or to dispose of it. Return it to Barco. Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.
Page 413 17. Servicing While starting up the projector, the electronics detect if a lamp is installed. If no lamp is installed, it is not possible to start up the projector. R5905158 HDF SERIES 08/12/2016...
Page 414: Installation Of The Lamp House
This procedure may only be performed by qualiﬁed technical service personnel. AUTION Never attempt to disassemble the lamp from its housing or to dispose of it. Return it to Barco. Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.
Page 415 17. Servicing Image 17-13 6. Reinstall the lamp cover of the projector, see "Installation of the light unit cover", page 398. While starting up the projector, the electronics detect if a lamp is installed. If no lamp is installed, it is not possible to start up the projector.
Page 416: Realignment Of The Lamp In Its Reﬂector
17. Servicing 17.8 Realignment of the lamp in its reﬂector Why realigning the lamp ? With longer run times, the light output of the lamp will decrease, which results in a lower light output on the screen. This light output decrease can be compensated by readjusting the Z-position of the lamp.
Page 417: Speciﬁcations
A. Specifications A. SPECIFICATIONS R5905158 HDF SERIES 08/12/2016...
Page 418 A. Specifications R5905158 HDF SERIES 08/12/2016...
Page 419: Speciﬁcations Of The Hdf W22
A. Specifications A.1 Speciﬁcations of the HDF W22 Overview Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 22,000 center lumens / 20,000 ANSI lumens* Contrast ratio 1,900:1 (standard) / 2,200:1 (high contrast mode)
Page 420 A. Specifications Dissipation BTU Max. 13660 BTU/h Dimensions (WxLxH) 707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inches Weight 99kg (218.25lbs) Shipping Dimensions (LxWxH) 1,200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inches Shipping Weight from Factory 151kg (333lbs) Standard accessories...
Page 421: Speciﬁcations Of The Hdf W26
A. Specifications A.2 Speciﬁcations of the HDF W26 Overview Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 26,000 center lumens / 24,000 ANSI lumens* Contrast ratio 1,900:1 (standard) / 2,200:1 (high contrast mode) Brightness uniformity Aspect ratio 16:10...
Page 422 A. Specifications Dissipation BTU Max. 15,593 BTU/h Dimensions (WxLxH) 707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inches Weight 99kg (218.25lbs) Shipping Dimensions (LxWxH)1,200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inches Shipping Weight from Factory 151kg (333lbs) Standard accessories Power cord;...
Page 423: Speciﬁcations Of The Hdf W30 Flex
A. Specifications A.3 Speciﬁcations of the HDF W30 Flex Overview Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 sealed DLP core Resolution 1,920 x 1,200 - 16:10 aspect ratio Brightness 30,000 center lumens / 28,000 ANSI lumens* Contrast ratio 1,900:1 (standard) / 2,200:1 (high contrast mode) Brightness uniformity...
Page 424 A. Specifications Certiﬁcations UL60950-1 and EN60950-1,FCC rules & regulations,part 15 Class A and CE EN55022 Class A,RoHS Warranty 3 years standard, extendable up to 5 years +/- 10% R5905158 HDF SERIES 08/12/2016...
Page 425: Technical Regulations
A. Specifications A.4 Technical Regulations Certiﬁcates RoHS Image A-2 Image A-3 Image A-4 Image A-1 Rohs Rohs OK CE mark EAC mark R5905158 HDF SERIES 08/12/2016...
Page 426 A. Specifications R5905158 HDF SERIES 08/12/2016...
Page 427: Dimensions
B. Dimensions B. DIMENSIONS Overview • Dimensions of the HDF series projector • Dimensions of the HDF series ﬂight case R5905158 HDF SERIES 08/12/2016...
Page 428: Dimensions Of The Hdf Series Projector
B. Dimensions B.1 Dimensions of the HDF series projector Dimensions 14.8 676.1 771.1 Image B-1 Dimensions given in millimeters. R5905158 HDF SERIES 08/12/2016...
Page 429 B. Dimensions Point of gravity Image B-2 Dimensions given in millimeters. R5905158 HDF SERIES 08/12/2016...
Page 430: Dimensions Of The Hdf Series Flight Case
B. Dimensions B.2 Dimensions of the HDF series ﬂight case Dimensions 1194 1175 Image B-3 Dimensions given in millimeters. R5905158 HDF SERIES 08/12/2016...
Page 431: Standard Source Files
C. Standard source files C. STANDARD SOURCE FILES R5905158 HDF SERIES 08/12/2016...
Page 432 C. Standard source files R5905158 HDF SERIES 08/12/2016...
Page 433: C.1 Table Overview
C. Standard source files C.1 Table overview Table overview The following standard image ﬁles are pre-programmed in the projector. Ltot Lact Name Fvert FHor Fpix Ptot Pact 85,079 37,860 31,500 640x350@85 640x400@85 85,079 37,860 31,500 640x480@60 59,940 31,668 25,175 640x480@72 72,888 30,288 19,687...
Page 434 C. Standard source files Name Fvert FHor Fpix Ptot Pact Ltot Lact 1400x1050@60 59,979 65,317 121,751 1864 1400 1089 1050 1400x1050@75 74,866 82,277 155,998 1896 1400 1099 1050 1400x1050@85 84,958 93,879 179,497 1912 1400 1105 1050 1400x1050RB@60 59,946 64,742 100,997 1560 1400 1080...
Page 435 C. Standard source files Name Fvert FHor Fpix Ptot Pact Ltot Lact hd-1920x1080@50p 50,000 56,250 148,500 2640 1920 1125 1080 hd-1920x1080@60p 60,000 67,500 148,500 2200 1920 1125 1080 VIDEO525 59,940 15,734 13,500 VIDEO525p 59,940 31,469 27,000 VIDEO625 50,000 15,625 13,500 VIDEO625p 50,000 31,250...
Page 436 C. Standard source files R5905158 HDF SERIES 08/12/2016...
Page 437: Dmx Chart
D. DMX chart D. DMX CHART Overview • DMX chart, Basic • DMX chart, Full • DMX chart, Extended R5905158 HDF SERIES 08/12/2016...
Page 438: Dmx Chart, Basic
D. DMX chart D.1 DMX chart, Basic Overview Chan- Function Value Default Action Intensity 0 - 5 Mechanical shutter closed 6 - 255 Electronic contrast on output Function select 0 - 7 No function 8 - 15 Activate layout 1 (Main full screen) (If held for 2 seconds) 16 - 23 Activate layout 2 (PiP top right) (If held for 2 seconds) 24 - 31...
Page 439: Dmx Chart, Full
D. DMX chart D.2 DMX chart, Full Overview Chan- Function Value Default Action Intensity 0 - 5 Mechanical shutter closed 6 - 255 Electronic contrast on output Brightness 0 - 255 Adjusts the brightness between 0 and 100% on input Contrast 0 - 255 Adjust the contrast between 0 and 100% on input...
Page 440: Dmx Chart, Extended
D. DMX chart D.3 DMX chart, Extended Overview Chan- Function Value Default Actions Intensity 0 - 5 Mechanical shutter closed 6 - 255 Electronic contrast on output Brightness 0 - 255 Adjusts the brightness between 0 and 100% on input Contrast 0 - 255 Adjusts the contrast between 0 and 100% on input...
Page 441: Stacking Hdf Series Projectors
E. Stacking HDF series projectors E. STACKING HDF SERIES PROJECTORS General Three interlocking adapters at the top and at the bottom of the HDF series projector allows an easy and fast stacking without using extra tools or accessories. ARNING Maximum stack three (3) HDF series projectors in a table mount conﬁguration. Maximum stack two (2) HDF series projectors in a ceiling mount conﬁguration.
Page 442: Stacking Hdf Series Projectors
E. Stacking HDF series projectors Stacking HDF series projectors How to stack HDF series projectors ? 1. Turn in the four feet of the projector you want to stack. 2. Place the projectors on top of each other. Ensure that all three interlocking pins (A) match with their corresponding interlocking sockets (B).
Page 443 E. Stacking HDF series projectors a) Release the safety hook (H) at both sides of the lowest projector and guide the safety cable around its carrying handle (C) as illustrated. Image E-3 Safety cable b) Guide the safety cable around the carrying handle of the projector above and clasp the safety hook around the safety cable as illustrated.
Page 444 E. Stacking HDF series projectors Image E-5 Opening interlocking adapter ARNING Never open an interlocking adapter of a stacked projector which is still suspended. First place the stacked projectors on the ﬂoor. R5905158 HDF SERIES 08/12/2016...
Page 445: Aligning Stacked Hdf Series Projectors
E. Stacking HDF series projectors Aligning stacked HDF series projectors Necessary tools 8 mm Allen key. How to align two stacked HDF series projectors ? 1. Make sure that the internal hatch pattern projected by the reference projector is sharp and has a perfect rectangle outline. If this is not the case, readjust the reference projector before aligning the other stacked projector(s) with the reference hatch pattern.
Page 446 E. Stacking HDF series projectors 6. Shift the hatch pattern horizontally and vertically until the outline of the hatch pattern is most symmetrically placed with respect to the reference hatch pattern. Note: Note that the “Shift” function is motorized, which means that you have to access the projector software, via the local keypad or remote control unit, to operate the “Shift”...
Page 447: Environmental Information
F. Environmental information F. ENVIRONMENTAL INFORMATION Overview • Disposal information • RoHS compliance • Production address • Importers contact information R5905158 HDF SERIES 08/12/2016...
Page 448: Disposal Information
For more information about recycling of this product, please contact your local city ofﬁce or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee...
Page 449: Rohs Compliance
Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...
Page 450 F. Environmental information [Republic of Turkey: In conformity with the WEEE Regulation] R5905158 HDF SERIES 08/12/2016...
Page 451: Production Address
F. Environmental information Production address Factories Barco NV Noordlaan 5, B-8520 Kuurne (BELGIUM) Barco Visual (Beijing) Electronics Co. Ltd. 巴可伟视（北京）电子有限公司 No.16 Changsheng Road, Changping District, 102200, Beijing, P.R.C 北京市昌平区中关村科技园区昌平园昌盛路16号邮政编码：102200 Made in information The made in country is indicated on the product ID label on the product itself.
Page 452: Importers Contact Information
F. Environmental information Importers contact information Contact To ﬁnd your local importer, contact Barco directly or one of Barco’s regional ofﬁces via the contact information given on Barco’s web site, www.barco.com. R5905158 HDF SERIES 08/12/2016...
Page 453 Revision Sheet Barco NV/Documentation President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11, Fax: +32 56.36.88.24 Support: www.barco.com/en/support, Web: www.barco.com From: Date: Please correct the following points in this documentation (R5905158/09): page wrong correct R5905158 HDF 08/12/2016 SERIES...
