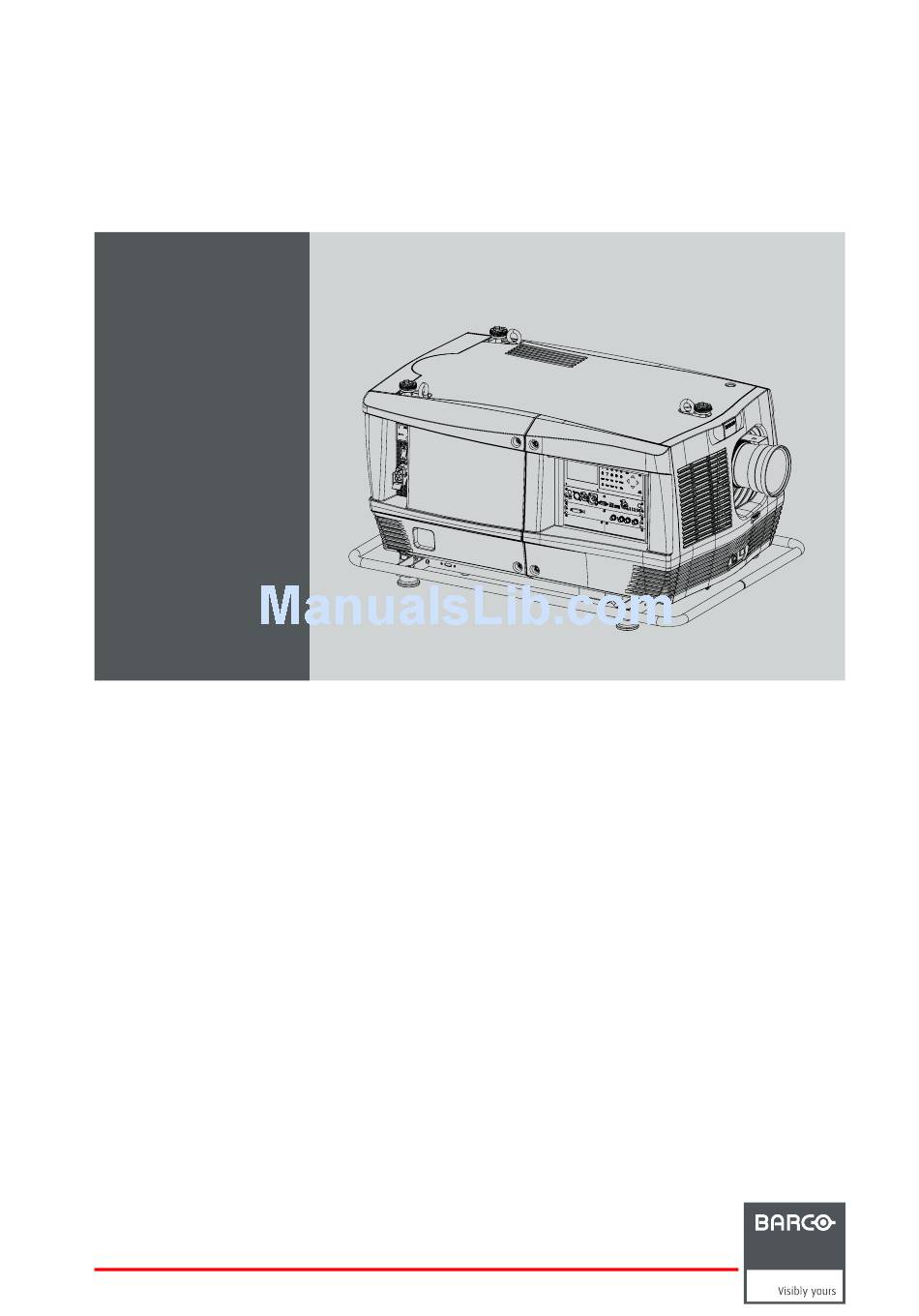

Page 1 HDF series User and Installation manual For HDF, HDF W22, HDF W26 and HDF W30 Flex R5905158/08 16/06/2015...
Page 2 Barco NV Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in Belgium...
Page 3 Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and ﬁtness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
Page 5: Table Of Contents
Input menu overview ....................... . 71 R5905158 HDF SERIES 16/06/2015...
Page 6 10.5 Layout File Services ....................... .138 R5905158 HDF SERIES 16/06/2015...
Page 7 13.2 Individual Projector Address ..................... . .208 R5905158 HDF SERIES 16/06/2015...
Page 8 16.6 Installation of the side cover ..................... . .279 R5905158 HDF SERIES 16/06/2015...
Page 9 E. Stacking HDF series projectors ...............
Page 10 Table of contents R5905158 HDF SERIES 16/06/2015...
Page 11: Safety
About this chapter Read this chapter attentively. It contains important information to prevent personal injury while installing and using a HDF series projector. Furthermore, it includes several cautions to prevent damage to the HDF series projector. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing your HDF series projector.
Page 12: Important Safety Instructions
ﬁxed wiring. • Never stack more than two (2) HDF series projectors in a hanging conﬁguration (truss) and never stack more than three (3) HDF series projectors in a base stand conﬁguration (table mount).
Page 13 ﬁre extinguishers. Never use water on an electrical ﬁre. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
Page 14: Light Beam Hazard Distance (Hd)
If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, ﬁre, electric shock or other hazards.
Page 15: Hd In Function Of The Lens Throw Ratio (Tr)
(RZ) in the theater must be established. This can be done by using physical barrier, like a red rope as illustrated in image 1-2. Image 1-2 HD in function of the lens Throw Ratio (TR) TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. R5905158 HDF SERIES 16/06/2015...
Page 16: Important Warnings Concerning Hdf Series Flight Cases
Important warnings concerning stacking/transporting HDF series rental ﬂight cases • Stack maximum two (2) HDF series rental ﬂight cases high. Never higher. • Surface on which ﬂight case is standing must be level to ensure that the total load is evenly spread out among the four wheels.
Page 17: Conﬁgurations, Requirements And Restrictions
Free download of Projector Toolset • Installation process overview Installation requirements Environment conditions Table below summarizes the physical environment in which the HDF series projector may be safely operated or stored. Environment Operating Non-Operating Ambient Temperature 10 °C (50 °F) to 40 °C (104 °F) -15°C (5°F) to 60°C (140°F)
Page 18: Unpacking The Projector
Projector weight Do not underestimate the weight of the HDF series projector. The projector weights about ±100 kg (±225 lb.) without lens. Be sure that the pedestal on which the projector has to be installed is capable of handling ﬁve (5) times the complete load of the system.
Page 19: Hdf Series Flight Case
HDF series ﬂight case (R9854510). The dimensions of the HDF series ﬂight case are optimal for maximum utilization of the ﬂoor area of a truck. The cover of the HDF series ﬂight case has four stacking dishes, which allows to stack the ﬂight cases.
Page 20: Projector Conﬁgurations
2. Configurations, requirements and restrictions 2400 mm Image 2-5 ARNING Maximum stack two (2) HDF series ﬂight cases high. Never higher. AUTION Prior to inserting projector in ﬂight case turn in the adjustable feet and interlocking adapters fully. Projector conﬁgurations The different conﬁgurations...
Page 21: Positioning The Projector
Off-Axis projection is obtained by shifting the lens up, down, left or right. Several parameters can be calculated determining the position in any installation. Formula to calculate the distance CD for On-Axis projection: CD = SH/2 + B - A R5905158 HDF SERIES 16/06/2015...
Page 22 More tilting within area C is allowed but lamp ﬂicker can happen. 360° 15° 15° 15° 15° Image 2-10 Tilting allowed without problems No tilting allowed in this area Tilting allowed but lamp ﬂicker possible R5905158 HDF SERIES 16/06/2015...
Page 23: Projector Air Inlets And Outlets
Airﬂow The HDF series has 5 air inlet channels and one air outlet. The air outlet is located at the rear of the projector. The air inlets are located at the front, bottom, top and right side of the projector.
Page 24: Installation Process Overview
Installation process overview Quick setup The following steps describe brieﬂy how to setup your HDF series projector in a table mount front projection. Note that each step refers to a corresponding procedure, which is more detailed and illustrated. 1. Install the batteries of the remote control. See "RCU battery installation", page 21 2.
Page 25: Physical Installation
Introduction The remote control unit (A) of the HDF series projector is equipped with a rugged case (B) and an XLR adaptor (C). The remote control unit can be used wired via mini-jack or via rugged XLR. Note that the backlight, of the remote control unit, illuminate contin- uously when wire connected.
Page 26: Rcu Rugged Case Installation
How to install the rugged case of the remote control ? Slide the bottom of the RCU into the rugged case and then pull the top of the rugged case over the top of the RCU as illustrated. R5905158 HDF SERIES 16/06/2015...
Page 27: Rcu Xlr Adaptor Installation
Connect a cable with XLR plug into the XLR adaptor. Connect the other end of the cable with your HDF series projector. Push the XLR adaptor completely against the rugged case of the remote control unit, as illustrated in the left image below, for wired communication.
Page 28: Rcu Usage Possibilities
RCU with rugged case and XLR adaptor The RCU will send the commands via the cable connected with the XLR pushed in “WIRED” and wired adaptor to the projector. Backlight illuminates continuously when wire is connected. Infra red disabled. Image 3-8 R5905158 HDF SERIES 16/06/2015...
Page 29: Lenses
• Lens shift, zoom & focus • Scheimpﬂug adjustment 3.2.1 Available lenses Available lenses for the HDF series projector Image 3-9 Image 3-10 Image 3-11 R9840775: TLD+ (1.16 : 1) ﬁxed lens R9862000: TLD+ lens (0.67 : 1) R9862005: TLD+ zoom lens (1.16 - 1.49 : 1)
Page 30: Lens Selection
How to select the right lens Determine the required screen width (SW). Determine the approximate position of the projector in the room. Start up the Lens Calculator on the Barco website: http://www.barco.com/en/tools/lenscalculator to determine the possible lenses for your conﬁguration.
Page 31 Secure the lens in the lens holder by sliding the lens lock handle into the “locked” position, which is away from the lens power supply socket. Ensure the lens touches the front plate of the lens holder. Image 3-20 Lock lens Check if the lens is really secured by trying to pull the lens out of the lens holder. R5905158 HDF SERIES 16/06/2015...
Page 32: Lens Removal
The lens safety cable must be used in any circumstances to protect a mounted lens in the lens holder. How to mount the cable Put the safety cable around the lens. Make sure the cable is mounted between the motor part and the mounting ﬂange R5905158 HDF SERIES 16/06/2015...
Page 33 Strap the cable and make sure that the clamp is positioned on 45° from the bottom to avoid interference of the cable with the lens locking mechanism. Secure the cable by ﬁxating the nut of the clamp. Image 3-24 Clamp position Turn the cable with hook lock around the carry handle and hook the hook lock around the cable. R5905158 HDF SERIES 16/06/2015...
Page 34: Lens Shift, Zoom & Focus
Press LENS FOCUS button [-] or [+] (C) for an overall focus of the image. Press ▲ LENS SHIFT ▼ button for correct vertical position of the image on the screen. Press ◄ LENS SHIFT ► button for correct horizontal position of the image on the screen. R5905158 HDF SERIES 16/06/2015...
Page 35: Scheimpﬂug Adjustment
Scheimpﬂug adjustment points Image 3-29 Scheimpﬂug adjustments Indication on drawing Function Locking nut 1, 2 and 3 Scheimpﬂug adjustment nuts A, B, C and D Set screws a, b, c and d lock nuts R5905158 HDF SERIES 16/06/2015...
Page 36: How To Adjust
Place the zoom lens in WIDE position (largest projected image) and adjust the focus by turning equally on nut 1, 2 and 3. Repeat steps “a” and “b” until the projected image is as sharp as possible. R5905158 HDF SERIES 16/06/2015...
Page 37 3. Physical installation Image 3-31 Center focusing Sharpen bottom left corner of the screen by adjusting nut 1. Image 3-32 Left bottom focusing Sharpen bottom right corner of the screen by adjusting nut 2. R5905158 HDF SERIES 16/06/2015...
Page 38 Any movement of the image will affect the Scheimpﬂug adjustment Fasten lock nuts a, b and c. Turn in set screw D lightly (by hand) allowing the image to move slightly (1/3 to 1/2 of a square). R5905158 HDF SERIES 16/06/2015...
Page 39: Power Connection
The voltmeter (M) will immediately indicate the value of the mains voltage as soon as the projector is connected with the power net. Image 3-36 Power connection Fuses The projector is protected with an automatic circuit breaker of 35 A which is built in into the power switch. R5905158 HDF SERIES 16/06/2015...
Page 40: Suspension Of The Hdf Series Projector With Rigging Clamps
Image 3-37 Pin conﬁguration power plug HAN Q4/2 + PE. Suspension of the HDF series projector with rigging clamps Rigging points and rigging clamps The carrying handle, at the bottom side of the projector, is provided with eight slots. Four slots are longitudinally (A) oriented and four slots are transversely (B) oriented.
Page 41 (B) on the rigging clamp against the rigging point using a 17 mm open ended spanner. Warning: Always use four (4) rigging points, equally spread, to suspend the projector. Image 3-41 Mounting clamps Place all four rigging clamps in open position as illustrated. R5905158 HDF SERIES 16/06/2015...
Page 42 Install a safety chain (S) around both sides of the carrying handle and around the truss. Image 3-44 Mounting Safety chains Warning: Install the safety chain in that way that the projector cannot drop more than 20 cm. Lift up the truss with attached projector to the desired height. R5905158 HDF SERIES 16/06/2015...
Page 43 3. Physical installation Proceed with the alignment procedure, see "Alignment of a ceiling mount HDF series projector", page 58. R5905158 HDF SERIES 16/06/2015...
Page 44 3. Physical installation R5905158 HDF SERIES 16/06/2015...
Page 45: Input & Communication
XLR input port for remote control RS232/RS422 input port Dual Link DVI-I HDCP input Free input slot Button module Optional antenna for GSM RS232/RS422 input port Ethernet port Status and indication LEDs USB port 3G/Dual/HDSDI input - output Free input slot R5905158 HDF SERIES 16/06/2015...
Page 46: Input Source Connections
4. Input & Communication Input source connections DVI and 3G/HDSDI input This input module is standard delivered with the HDF series projector. R9864000 3G/DUAL HDSDI DUAL LINK DVI-I HDCP SYNC SYNC SYNC OUT1 OUT2 INPUT Image 4-2 Dual Link DVI and 3G/Dual HDSDI input The yellow LED lights up when valid input sync is detected.
Page 47 BNC socket. Generates 3D synchronization signal to drive an infra red transmitter for active 3D glasses. In case an 3D syn- chronization signal is applied on the “3D SYNC IN” for a single channel 3D stream then the generated 3D output sync is derived from this applied sync. Input speciﬁcations R5905158 HDF SERIES 16/06/2015...
Page 48: Communication Connections
You can use the DMX input port to connect a DMX device (DMX console) to the projector. This way you can control the projector from that DMX device (console). The DMX output port can be connected with the next device in the loop. Description Earth R5905158 HDF SERIES 16/06/2015...
Page 49 The left one a Sub-D connector, the right one an USBB connector acting as RS input when connected to an USB input of a PC. You can use the RS232/RS422 input to connect a local PC to your HDF series projector. By this way you can conﬁgure and control your HDF series projector from your local PC.
Page 50: Usb Port
When a 100 MB network is detected IR received but not acknowledged green IR received and acknowledged orange WIFI sel When WiFi is selected green When WiFi is connected with an Ethernet See chapter “Getting started”, topic “Status LEDs” R5905158 HDF SERIES 16/06/2015...
Page 51 4. Input & Communication Function Color Description orange See chapter “Getting started”, topic “Status LEDs” orange See chapter “Getting started”, topic “Status LEDs” R5905158 HDF SERIES 16/06/2015...
Page 52 4. Input & Communication R5905158 HDF SERIES 16/06/2015...
Page 53: Getting Started
• Projector Address • Source selection • Alignment of a table mount HDF series projector • Alignment of a ceiling mount HDF series projector RCU & Local keypad How controlling the projector ? The projector can be controlled by the local keypad or by the remote control unit.
Page 54 Use these buttons to obtain the desired picture level. PHASE Used to remove the horizontal instability of the image (usually for RGB source). It adjusts the phase of the pixel sampling clock relative to the incoming signal. FREEZE To freeze the actual projected image. R5905158 HDF SERIES 16/06/2015...
Page 55: Power On Projector
Lights up when a button on the remote control is pressed. (This is a visual indicator to check the operation of the remote control) Table 5-1 Power on projector How to power on. Press the power switch at the back of the projector to switch on this projector. Image 5-2 Main switch R5905158 HDF SERIES 16/06/2015...
Page 56: Software Overview
The current mains input voltage is indicated on the voltmeter just above the power switch. The background image of the startup screen and info screens can be changed with Projector Toolset with an installed HDF series plug-in. Lamp overview Once the projector is started, press Lamp to get an overview of the lamp parameters such as :...
Page 57 Stand by indication on remote control The projector status LED lights up. The projector starts up on the last saved source. Some lamp and runtime warnings can be displayed when an image is displayed after a start up. R5905158 HDF SERIES 16/06/2015...
Page 58: Switching To Standby
Shutter is closed, projector in standby Full white Shutter is undeﬁned (shutter not open and not closed) Full white toggles Shutter is closed during reset formatter on/off PWR (power Projector powers up LED) Standby Orange ECO standby Green Projector is on R5905158 HDF SERIES 16/06/2015...
Page 59: Using The Rcu
When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector IR sensor. R5905158 HDF SERIES 16/06/2015...
Page 60: Projector Address
The LED on the remote control must lit up while pressing a digit key. Otherwise the address is not entered in the remote control. 5.8.2 Controlling the projector Projector address Address installed in the projector to be individually controlled. R5905158 HDF SERIES 16/06/2015...
Page 61: Source Selection
Use the Window button on the remote control or the local keypad to select the main window or the picture in picture (PiP) window. MENU EXIT ENTER TEXT PAUSE LENS EXIT MENU PHASE SHARPN TINT PATTERN WINDOW LENS COLOR ENTER STBY PAUSE TEXT AUTO BRIGHTN CONTR LENS LENS SHIFT ZOOM LENS LENS FOCUS SHIFT Image 5-8 Window selection button R5905158 HDF SERIES 16/06/2015...
Page 62: Alignment Of A Table Mount Hdf Series Projector
5.10 Alignment of a table mount HDF series projector How to align a table mount HDF series projector ? Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen.
Page 63 5. Getting started When this is achieved, the projector is set horizontal and vertical at right angles to the screen. Image 5-12 Level adjustment Fasten the lock nut (B) of the rigging clamps. R5905158 HDF SERIES 16/06/2015...
Page 64 5. Getting started R5905158 HDF SERIES 16/06/2015...
Page 65: Quick Set Up Adjustment
To toggle Text ON or OFF, press the TEXT key on the remote control or local keypad. Quick Lens Adjustment via LENS key Quick zoom/focus adjustment Press the LENS key on the remote control or local keypad to open the Zoom/Focus Adjustment menu. R5905158 HDF SERIES 16/06/2015...
Page 66 Press the LENS key to call the list with available test patterns. Quick shift adjustment Press the LENS key on the remote control or local keypad to open the Zoom/Focus Adjustment menu. Image 6-4 Zoom/Focus adjustment Press ENTER to go to the Shift menu. R5905158 HDF SERIES 16/06/2015...
Page 67: Direct Lens Adjustment (Rcu)
Press on the PIP key on the remote control or the local keypad to activate the Load layout window. Use the ▲ ▼ key to scroll to the desired layout and press ENTER to activate. Select Main full screen to switch off PIP. R5905158 HDF SERIES 16/06/2015...
Page 68: Quick Language Selection
Select the desired language with the ▲ ▼ key and press ENTER to activate. The current active language is indicated with a selected radio button Image 6-9 Language selection Language selection via OSD Press Menu to activate the menus and select Projector Control → Change Language. R5905158 HDF SERIES 16/06/2015...
Page 69 Select the desired language with the ▲ ▼ key and press ENTER to activate. The current active language is indicated with a selected radio button Image 6-10 Main menu, projector control Image 6-11 Projector control, change language Image 6-12 Language selection R5905158 HDF SERIES 16/06/2015...
Page 70 6. Quick set up adjustment R5905158 HDF SERIES 16/06/2015...
Page 71: Start Up Of The Adjustment Mode
To start up the adjustment mode, use the remote control or the local keypad. How to start up? Press Menu on the remote control (RCU) or on the local keypad to start up the Adjustment mode. The main menu of the adjustment mode opens. R5905158 HDF SERIES 16/06/2015...
Page 72: Navigation And Adjustments
Image settings, contrast Use the ◄ or ► key to directly adjust the current value. Via bar scale adjustment : Once an item is selected, press ENTER to open the bar scale menu. Image 7-3 Contrast adjustment R5905158 HDF SERIES 16/06/2015...
Page 73: Menu Memory
Press as many times on the Pattern key as necessary to display the desired test pattern. The test pattern remains on the screen as long as the adjustment mode is selected, even when selecting other menus. When leaving the adjustment mode, the selected test pattern is cleared and the normal image is displayed again. R5905158 HDF SERIES 16/06/2015...
Page 74: Help Information In Adjustment Mode
MENU EXIT ENTER Image 7-6 Info button When no information is available for the selected item, the message No help available for this item is displayed. To return to the adjustment mode, press EXIT. R5905158 HDF SERIES 16/06/2015...
Page 75: Input
Input Locking Input on Main Window Input on Pip Window Input 1 Input 2 Input 3 Input 4 Free Run Free Run Options Minimum delay Native Resolution [On/Off] No Signal Color [black/blue] Logo [On/Off] Shutdown [Off/On] R5905158 HDF SERIES 16/06/2015...
Page 76: Input Selection
Press ENTER. The Select Source menu is displayed with the actual available sources ﬁlled out. Use the ▲ or ▼ key to select an input. Image 8-1 Main window Image 8-2 Input selection Image 8-3 Select source R5905158 HDF SERIES 16/06/2015...
Page 77: Advanced Settings
Use the ▲ or ▼ key to select an input Press ENTER to open the selection menu which will be different from input type to input type. Image 8-4 Main window Image 8-5 Advanced input settings Image 8-6 Advanced settings, input selection R5905158 HDF SERIES 16/06/2015...
Page 78: Dvi - Rgb Input
The Dual SD/HD/3G-SDI Input can accept standard-deﬁnition (SD), high-deﬁnition (HD) and 3 Gigabit-deﬁnition serial-digital-inter- face (SDI) signals . How to select Select SDI (SD / HD / 3G / Dual) and press ENTER to open the selections R5905158 HDF SERIES 16/06/2015...
Page 79 When Dual HD is selected, it is possible to use Swap links. If Swap links must be used, use the ▲ or ▼ key to select and press ENTER to accept. The check box will be checked. R5905158 HDF SERIES 16/06/2015...
Page 80: Cable Input
With locking to a speciﬁc input, a set of projectors can be kept in sync, no matter what input image is shown. Input locking is grayed out when 3D is active. Input locking is set automatically to the 3D source. R5905158 HDF SERIES 16/06/2015...
Page 81 Free run without changing the user settings. Once the sync is available, it applies again the user settings. Options for Free Run When free run is selected, radio button selected, then the Free Run Options become available. R5905158 HDF SERIES 16/06/2015...
Page 82: Minimum Delay
Press Menu to activate the menus and select Input → Minimum delay [On]. Image 8-19 Main menu Image 8-20 Input, minimum delay Press ENTER to toggle between [On] and [Off]. [On] : images displayed with minimum delay [Off] : images displayed without minimum delay R5905158 HDF SERIES 16/06/2015...
Page 83: Native Resolution
Press Menu to activate the menus and select Input → Native Resolution [On]. Press ENTER to toggle between [On] and [Off]. [On] : images displayed in native resolution [Off] : images scaled to ﬁll the complete screen R5905158 HDF SERIES 16/06/2015...
Page 84: No Signal
How to set the background color Press Menu to activate the menus and select Input → No Signal. → Color. Press ENTER to toggle between [Blue] or [black]. Image 8-24 Main menu Image 8-25 Input, no signal R5905158 HDF SERIES 16/06/2015...
Page 85: Background Logo
Image 8-28 Input, no signal Image 8-29 No signal, logo A dedicated logo can be loaded via Projector Toolset with a HDF series plug-in installed. 8.7.3 Shutdown settings How to change the settings Press Menu to activate the menus and select Input → No Signal. → Shutdown.
Page 86: Shutdown Retarding Time
The retarding time is the time between no signal is detected and the moment that the projector shuts down. How to set the retarding time Press Menu to activate the menus and select Input → No Signal. → Shutdown time (min). Image 8-33 Main menu Image 8-34 Input, no signal R5905158 HDF SERIES 16/06/2015...
Page 87: Auto Dimming
Input, no signal Image 8-38 No signal, auto dimming Press ENTER to toggle between [On] or [Off]. [On] : when no signal, auto dimming is started. [Off] : when no signal, no auto dimming is started. R5905158 HDF SERIES 16/06/2015...
Page 88: Edid
EDID ﬁle. The selection of the EDID ﬁle to be used is made in the Conﬁgure menu. Making your own custom EDID ﬁle(s) is done through Create. Custom EDID ﬁles can be deleted at any time. The Standard EDID includes two timings: 1920x1200@60Hz / 1920x1080@60Hz (for HDX, HDF and APOLLO projectors) and 2048x1080@60Hz / 1920x1080@60Hz (for HDQ projectors).
Page 89: Create Custom Edid File
You can create new custom EDID ﬁles and enter the desired input timings. How to create Press Menu to activate the menus and select Input → EDID → Create. Press ENTER to open the EDID creation menu. Image 8-44 Main menu Image 8-45 Input, EDID R5905158 HDF SERIES 16/06/2015...
Page 90 CVT MB: Coordinated Video Timings Minimum Blanking (not a standard) GTF: Generalized Timing Formula Select the Options. If necessary, scroll down to see extra options. Select or clear the check boxes. Image 8-48 EDID ﬁle creation, options R5905158 HDF SERIES 16/06/2015...
Page 91: Delete A Custom Edid File
Use the ▲ or ▼ key to select the ﬁle which must be deleted. Press ENTER to delete. Image 8-52 EDID, delete list Image 8-53 Conﬁrmation A conﬁrmation window opens. Select Yes to delete the ﬁle and press ENTER. R5905158 HDF SERIES 16/06/2015...
Page 92: Delete All Custom Edid File
Content is displayed by one 3D source. The frames for the left eye and right eye are displayed alternately (sequential mode). Optional an external 3D sync can be used. The external 3D sync has to be applied to the “3D SYNC IN” port (BNC socket at the left) of the 3D Input Module. R5905158 HDF SERIES 16/06/2015...
Page 93 The 3D Input Module is activated for Dual 3D channel: MENU > Input > 3D > Frame Sequential – Dual channel Possible sources: 2 x DVI , 2 x SDI. If two 3D Input Modules are installed: 2 x HDMI or 2 x DisplayPort. R5905158 HDF SERIES 16/06/2015...
Page 94: Supported Formats
HD formats only. HD formats only. HD formats only. (FHD3D) Max. resolution: Max. resolution: Max. resolution: Max. resolution: 1920x1080@30Hz or 1920x1080@30Hz or 1920x1080@30Hz or 1920x1080@30Hz or 1280x720@60Hz. 1280x720@60Hz. 1280x720@60Hz. 1280x720@60Hz. Progressive only Progressive only Progressive only Progressive only R5905158 HDF SERIES 16/06/2015...
Page 95: Activate 3D
3. For SDI (3G- Level B), IN1 or IN2 of the SDI input can be used. The input settings under MENU -> Input -> Advanced Settings -> SDI/HDSDI/3G must be set to ‘Input 1’ or ‘Input 2’, with or without Priority R5905158 HDF SERIES 16/06/2015...
Page 96: Auto Detection
Side-by-Side Side-by-Side or SENSIO ® Hi-Fi 3D SENSIO ® 3D Decoder – FFC Other Side-by-Side (Half) Top-and-Bottom Top-and-Bottom SENSIO 3D Decoder – FFC ® 4. NA:feedback from SENSIO Autodetect is not applicable in thes cases ® R5905158 HDF SERIES 16/06/2015...
Page 97: Input Type Selection
Top-and-Bottom (Half): One input contains 3D information with half of the resolution. • SENSIO 3D Decoder - FFC: HDMI/DisplayPort (only on 3D input module). ® • Line Alternating (3G-B): SDI only How to select Press Menu to activate the menus and select Input → 3D R5905158 HDF SERIES 16/06/2015...
Page 98: Second Input
2 channels, the second source must be indicated in the 3D menu. This selection is only possible when a 2 channel 3D input is chosen. How to make selection Press Menu to activate the menus and select Input → 3D → Second input. R5905158 HDF SERIES 16/06/2015...
Page 99: L-R Synchronisation, Field Dominance
ﬂashing is introduced and the coupling between the video input signal and the 3D SYNC IN signal must be determined. This setting is stored per input. How to activate Press Menu to activate the menus and select Alignment → 3D Glasses → L/R Synchronisation. R5905158 HDF SERIES 16/06/2015...
Page 100: L-R Synchronisation, Invert 3D Sync Out
What can be done? This menu allows to set the 3D emitter output signal. With Invert 3D sync out we can swap the left and right 3D sync to eliminate a 3D output mismatch with the 3D emitters. R5905158 HDF SERIES 16/06/2015...
Page 101 3D Sync Right Image 8-76 3D sync out How to toggle 3D SYNC OUT Press Menu to activate the menus and select Alignment → 3D Glasses → L/R Synchronisation. Image 8-77 Main menu Image 8-78 Input, 3D R5905158 HDF SERIES 16/06/2015...
Page 102 [On] : 3D SYNC OUT is the inverted version of the 3D sync signal generated by the processing, allowing to swap left and right eye on the active glasses. [Off] : 3D SYNC OUT is a copy from the 3D sync signal generated by the processing. R5905158 HDF SERIES 16/06/2015...
Page 103: Image
Film 5400K Broadcast 3200K Custom Balance Input Balance Black Balance White Balance Defaults Aspect ratio 16:9 2.35 1.88 1.85 1.78 1.67 16:10 Custom Timings Horizontal Total Pixels Active pixels Horizontal start Period Total vertical lines Active lines R5905158 HDF SERIES 16/06/2015...
Page 104: Start Up The Image Adjustments
Contrast adjustment can be done with the Contrast key on the RCU or via the menu structure. How to adjust Press Menu to activate the menus and select Image → Image Settings → Contrast. R5905158 HDF SERIES 16/06/2015...
Page 105: Brightness
Brightness adjustment can be done with the Brightness key on the RCU or via the menu structure. How to adjust Press Menu to activate the menus and select Image → Image Settings → Brightness. R5905158 HDF SERIES 16/06/2015...
Page 106: Saturation
The saturation function is used to adjust the color saturation levels. Saturation adjustment can be done with the Saturation key on the RCU or via the menu structure. How to adjust Press Menu to activate the menus and select Image → Image Settings → Saturation. R5905158 HDF SERIES 16/06/2015...
Page 107: Phase
When displaying computer patterns or graphics (RGB or YUV signals) which are very detailed (tilting, vertical stripes, etc. ), jitter in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen. When this jitter occurs, adjust ’Phase’ for optimum image. R5905158 HDF SERIES 16/06/2015...
Page 108 Press ENTER to select. Image 9-19 Phase adjustment To change the value directly in the Image Settings window, use the ◄ or ► key or a numeric key 0-9, to adjust as a % of the full range. R5905158 HDF SERIES 16/06/2015...
Page 109: Color Temperature (Fixed Values)
How to select Press Menu to activate the menus and select Image → Image Settings → Color Temperature. Image 9-21 Image adjustments Image 9-20 Main menu, Image Image 9-22 Image settings, color temperature Press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 110: Color Temperature (Custom Values)
Next to these 5 ﬁxed temperatures, a custom setup is also possible. 9.3.6 Color temperature (custom values) How to set up Press Menu to activate the menus and select Image → Image Settings → Color Temperature. Image 9-26 Image adjustments Image 9-25 Main menu, Image R5905158 HDF SERIES 16/06/2015...
Page 111: Input Balance
Another value that is subject to alteration is the amplitude of the signal, resulting in an altered “Gain” of the signal (“white level” or contrast). The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced, image 9-30 0.7V Black level Image 9-29 R5905158 HDF SERIES 16/06/2015...
Page 112: Adjusting The Input Balance
The source in question must be able to generate a white signal, ideally a 100% white (background) full screen pattern The source in question must be able to generate a black signal, ideally a 100% black (background) full screen pattern R5905158 HDF SERIES 16/06/2015...
Page 113 Image 9-33 How to adjust Press Menu to activate the menus and select Image → Image Settings → Input Balance. Image 9-35 Image adjustments Image 9-34 Main menu, Image R5905158 HDF SERIES 16/06/2015...
Page 114 If one uses a gray scale pattern, the bright spots should appear in the black bar. Performing White input balance Connect the source you want to project. Press Menu to activate the menus and select Image → Image Settings → Input Balance. Image 9-39 Image adjustments Image 9-38 Main menu, Image R5905158 HDF SERIES 16/06/2015...
Page 115: Image Settings, Defaults
With the defaults button, all image settings for a speciﬁc source are returned to the default values. How to return to the defaults Press Menu to activate the menus and select Image → Image Settings → Defaults. R5905158 HDF SERIES 16/06/2015...
Page 116: Aspect Ratio
What can be done? The aspect ratio setting forces the projector to project an image using a deﬁned aspect ratio. Aspect ratio Description Standard television format 16:9 Wide screen television format / anamorphic format R5905158 HDF SERIES 16/06/2015...
Page 117 Press Menu to activate the menus and select Image → Aspect Ratio. Image 9-48 Image, aspect ratio Image 9-47 Main menu, Image Press ENTER to select. Use the ▲ or ▼ key to select the desired aspect ratio. R5905158 HDF SERIES 16/06/2015...
Page 118: Timings
If not, adjust until full image height is displayed (no missing lines). • Total pixels: Total horizontal pixels in the source. If the value is wrong, sampling mistakes (small vertical bars in the projected image) will be seen in the image. R5905158 HDF SERIES 16/06/2015...
Page 119: Advanced Timings, Clamp Delay - Clamp Width
The time between the trailing edge of the sync pulse and the leading edge of the clamp pulse, in pixels. Can be any value between 0 and 255. The width of the clamp pulse can be any value between 0 and 255. Clamp width R5905158 HDF SERIES 16/06/2015...
Page 120 Press Menu to activate the menus and select Image → Timings → Advanced settings. Image 9-57 Image, timings Image 9-56 Main menu, Image Image 9-58 Timings, advanced settings Press ENTER to select. Image 9-59 Clamp delay R5905158 HDF SERIES 16/06/2015...
Page 121: Image File Services
Press Menu to activate the menus and select Image → Image File Services → Manual Load. Image 9-61 Image, image ﬁle services Image 9-60 Main menu, Image Image 9-62 Image ﬁle services Press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 122: File Load Filter
File load ﬁlter Press ENTER to toggle between [All] and [Fit]. 9.6.4 Delete a ﬁle What can be done ? A custom image ﬁle can be deleted. Be aware that an active ﬁle can’t be deleted. R5905158 HDF SERIES 16/06/2015...
Page 123 If no custom ﬁles are available, a message that no custom ﬁles are available is displayed. Use the ▲ or ▼ key to select the ﬁle to delete. Image 9-70 Delete custom ﬁle Press ENTER to delete the selected ﬁle. No recovery possible ! R5905158 HDF SERIES 16/06/2015...
Page 124: Delete All Custom Files
Delete all If Yes is selected, press ENTER to delete all custom ﬁles. If No is selected, press ENTER to return to the Image File Services menu without deleting any custom ﬁle. No recovery possible ! R5905158 HDF SERIES 16/06/2015...
Page 125: Rename Custom Files
If no custom ﬁles are available, a message that no custom ﬁles are available is displayed. Image 9-78 Rename, list of ﬁles Use the ▲ or ▼ key to select the ﬁle to rename and press ENTER. R5905158 HDF SERIES 16/06/2015...
Page 126: Copy Custom File
Press Menu to activate the menus and select Image → Image File Services → Copy. Image 9-81 Image, image ﬁle services Image 9-80 Main menu, Image Image 9-82 Image ﬁle services, copy Press ENTER to select. The available custom ﬁles are displayed. R5905158 HDF SERIES 16/06/2015...
Page 127: Image File Service Options, Load File
Image ﬁle service options, Load ﬁle How to set Press Menu to activate the menus and select Image → Image File Services → Options → Load File. Image 9-87 Image, image ﬁle services Image 9-86 Main menu, Image R5905158 HDF SERIES 16/06/2015...
Page 128: Image File Service Options, Auto Picture Alignment
Image ﬁle services, Options Press ENTER to toggle between [Off], [Always] or [Load File]. Off : auto picture alignment deactivated. Always : auto picture alignment is always activated. Load ﬁle: when new ﬁle is loaded for the selected source. R5905158 HDF SERIES 16/06/2015...
Page 129: Save Custom Settings
A splash image can be uploaded via Projector Toolset. For more information about uploading a splash image, consult Projector Toolset’s user guide. Enable or disable the splash image Press Menu to activate the menus and select Image → Splash image R5905158 HDF SERIES 16/06/2015...
Page 130 Image, splash image Image 9-100 Main menu, Image Select Timeout(sec) Image 9-102 Splash screen, time-out Press ENTER to open the edit mode. Enter the time with 2 digits, e.g. 05 or 15. Note: Maximum timeout = 15 seconds. R5905158 HDF SERIES 16/06/2015...
Page 131 9. Image Image 9-103 Time-out, input R5905158 HDF SERIES 16/06/2015...
Page 132 9. Image R5905158 HDF SERIES 16/06/2015...
Page 133: Layout
A source number and lens settings can be associated with the layout settings. 10.3 Main window • Main window source selection • Main window size • Main window position R5905158 HDF SERIES 16/06/2015...
Page 134: Main Window Source Selection
The radio button of the selected source is checked and the source is linked with the main window. 10.3.2 Main window size What can be done? The size of the main window can be adjusted until the desired window dimensions are reached. R5905158 HDF SERIES 16/06/2015...
Page 135 How to change the size Press Menu to activate the menus and select Layout → Main window → Size. Image 10-8 Layout, main window Image 10-7 Main menu, layout Image 10-9 Main window, size Press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 136: Main Window Position
The main window can be repositioned on the screen. The upper left corner is the reference. Image 10-12 Positioning the window How to position Press Menu to activate the menus and select Layout → Main window → Position. R5905158 HDF SERIES 16/06/2015...
Page 137: Pip Window
Select No if you want to quit without saving the current position. 10.4 PiP window • Introduction to PIP • Picture in Picture activation • PiP window, source selection • PiP window, Size • PiP window, position R5905158 HDF SERIES 16/06/2015...
Page 138: Introduction To Pip
10.4.2 Picture in Picture activation How to activate Press Menu to activate the menus and select Layout → PiP window → PiP window [On] / [Off]. Image 10-20 Layout, PiP Window Image 10-19 Main menu, layout R5905158 HDF SERIES 16/06/2015...
Page 139: Pip Window, Source Selection
Use the ▲ or ▼ key to select the desired source and press ENTER. The radio button of the selected source is checked and the source is linked with the PiP window. PiP source and main source can be the same input. R5905158 HDF SERIES 16/06/2015...
Page 140: Pip Window, Size
Remark: During adjustment of the window size, scaling artifacts can be visible. Image 10-27 Size PIP window remark How to resize Press Menu to activate the menus and select Layout → PiP window → Size. Image 10-29 Layout, PiP Window Image 10-28 Main menu, layout R5905158 HDF SERIES 16/06/2015...
Page 141: Pip Window, Position
The picture in picture window can be positioned on any place on the display just by changing its start coordinates. The reference is the upper left corner of the window. How to position Press Menu to activate the menus and select Layout → PiP window → Position. R5905158 HDF SERIES 16/06/2015...
Page 142: Layout File Services
Select No if you want to quit without saving the current position. 10.5 Layout File Services • Load layout ﬁle • Rename layout ﬁle • Delete layout ﬁle • Delete all layout ﬁles • Copy or Save as layout ﬁle R5905158 HDF SERIES 16/06/2015...
Page 143: Load Layout File
Use the ▲ or ▼ key to select the desired ﬁle and press ENTER to activate. The radio button in front of the selected ﬁle is checked. 10.5.2 Rename layout ﬁle Only custom created layouts can be renamed. R5905158 HDF SERIES 16/06/2015...
Page 144: Delete Layout File
10.5.3 Delete layout ﬁle Only custom created layouts can be deleted. The current selected custom layout cannot be deleted. How to delete Press Menu to activate the menus and select Layout → Layout File Services → Delete. R5905158 HDF SERIES 16/06/2015...
Page 145: Delete All Layout Files
10.5.4 Delete all layout ﬁles Only custom layout ﬁles can be deleted. The current selected custom layout cannot be deleted. How to delete Press Menu to activate the menus and select Layout → Layout File Services → Delete All. R5905158 HDF SERIES 16/06/2015...
Page 146: Copy Or Save As Layout File
The current loaded layout, custom layout or custom created layout, can be copied into a new ﬁle. How to copy / save as Press Menu to activate the menus and select Layout → Layout File Services → Copy/Save as. R5905158 HDF SERIES 16/06/2015...
Page 147: Lens Behavior
Switching from a custom ﬁle (layout) to a standard ﬁle (layout) will not change the current lens settings. How to set the lens behavior Press Menu to activate the menus and select Layout → Lens behavior. R5905158 HDF SERIES 16/06/2015...
Page 148 If you have to calibrate the lens, select Yes and press ENTER to start the calibration. During the calibration, a message is displayed. This message disappears when the calibration is ﬁnished. Image 10-63 Lens calibration message R5905158 HDF SERIES 16/06/2015...
Page 149: Lamp
CLO mode. Once the CLO mode setting is switched to Off, the installed lamp power mode setting will be used. How to switch Press Menu to activate the menus and select Lamp → Power → Mode. Image 11-1 Image 11-2 Main menu, lamp Lamp, power R5905158 HDF SERIES 16/06/2015...
Page 150: Lamp Power
When returning out of pause the lamp power is restored to its previous value. How to set up Press Menu to activate the menus and select Lamp → Power → Auto Dimming when Pause. R5905158 HDF SERIES 16/06/2015...
Page 151: Auto Dimming When No Signal
Main menu, lamp Lamp, power Image 11-12 Auto dimming no signal Press ENTER to toggle between [On] or [Off]. [On] : when no signal, auto dimming is started. [Off] : when no signal, no auto dimming is started. R5905158 HDF SERIES 16/06/2015...
Page 152: Auto Dimming When Over-Temperature
In the illustration below, a normal light output curve is shown over the ﬁrst 1000 hours, image 11-16. By using CLO and setting the target to 60% of the maximum light output, one will be able to operate during approximately 500 hours with a constant light output, image 11-17. R5905158 HDF SERIES 16/06/2015...
Page 153 CLO mode setting On overrules the lamp power mode setting. Projector will always play in CLO mode using the CLO target. How to switch CLO mode Press Menu to activate the menus and select Lamp → Power → CLO mode. Image 11-18 Image 11-19 Main menu, lamp Lamp, power R5905158 HDF SERIES 16/06/2015...
Page 154: Clo Targets
Depending on the projector model, the value range can be different. The screenshot is only given as information. For the exact values, see the speciﬁcations of the speciﬁc projector. 11.9 LPS power What is indicated ? The current LPS power in watt is indicated as information. R5905158 HDF SERIES 16/06/2015...
Page 155: Lamp Identiﬁcation
This realignment has to be done by a qualiﬁed service technician. How to display the light output Press Menu to activate the menus and select Lamp → Z-axis. Image 11-28 Image 11-29 Main menu, lamp Lamp, Z-axis Press ENTER to display the current light output. R5905158 HDF SERIES 16/06/2015...
Page 156 11. Lamp Image 11-30 Current light output R5905158 HDF SERIES 16/06/2015...
Page 157: Alignment
Press Menu to activate the menus and select Alignment → Orientation. Image 12-1 Main menu, alignment Image 12-2 Alignment, orientation Use the ▲ or ▼ key to select the desired orientation and press ENTER to activate. R5905158 HDF SERIES 16/06/2015...
Page 158: Lens Adjustment, Zoom - Focus
Use the ▲ or ▼ key to select zoom/focus and press ENTER to activate. Image 12-6 Lens, Zoom/Focus Use the ▲ or ▼ key to zoom the lens. Use the ◄ or ► key to focus the lens. Press ENTER to switch to Lens shift adjustment. R5905158 HDF SERIES 16/06/2015...
Page 159: Lens Adjustment, Shift
Use the ▲ or ▼ key to shift the lens in vertical direction. Use the ◄ or ► key to shift the lens in horizontal direction. Press ENTER to switch to Zoom/Focus adjustment. Image 12-11 Shift adjustment R5905158 HDF SERIES 16/06/2015...
Page 160: Lens Adjustment, Mid Position
Each time the projector is started, a homing procedure (calibration) can be executed so that the projector exactly knows the lens position. How to calibrate Press Menu to activate the menus and select Alignment → Lens. R5905158 HDF SERIES 16/06/2015...
Page 161: Calibrate Lens
Use the ▲ or ▼ key to select Calibrate lens at startup and press ENTER to toggle between [on] and [off]. Image 12-17 Calibrate lens at startup 12.6 Calibrate lens Lens calibration is a time consuming operation. How to calibrate Press Menu to activate the menus and select Alignment → Lens. R5905158 HDF SERIES 16/06/2015...
Page 162: Warping
A Lens Calibration window opens. Select ﬁrst the desired calibration options by checking the check box before the option and then select Yes to start the calibration procedure. Image 12-21 Calibrate lens conﬁrmation 12.7 Warping Not all models are equipped with a warping unit. For these models, the warping unit is optional. R5905158 HDF SERIES 16/06/2015...
Page 163: About Warping
12.7.2 Warp activation - deactivation What can be done ? The Warp functionality can be activated or deactivated. With 3D activated, warping can be enabled for sources up to 30 Hz per eye. Above this frequency, warping is disabled. R5905158 HDF SERIES 16/06/2015...
Page 164: Start Up Manual Adjustment
It opens more and more panes depending on the selection. When manual warping was done before the menu opens with the same layout as it was last used. A warp grid and adjustment points is displayed on the screen. The maximum grid is 32 points by 32 points. R5905158 HDF SERIES 16/06/2015...
Page 165: Warp Adjustment Principle
Hardware reset of warp module 12.7.4 Warp adjustment principle Description Warping adjustment enables the relocation of pixel groups in an image in order to introduce spacial distortion. To make the procedure comprehensible, there are some rules and features. R5905158 HDF SERIES 16/06/2015...
Page 166 7 and lower. In 2 x 2 mode, we only have one level, including all four (2 x 2) anchor points, being the image corners. This mode is especially used to correct horizontal and vertical keystone. R5905158 HDF SERIES 16/06/2015...
Page 167 1 1 1 Image 12-36 Geometry adjustment: 5 x 5 mode This logic can be extrapolated for the lower modes and levels, being level seven to level 21, however in practice these modes and levels are rarely used. R5905158 HDF SERIES 16/06/2015...
Page 168: Setting The Warping Level
How to select a predeﬁned number of steps Use the ▲ or ▼ key to go to the Warp adaptation steps area. The current selection is indicated in yellow. Use the ◄ or ► key to select the desired steps. R5905158 HDF SERIES 16/06/2015...
Page 169: Making Selections And Adjustments
Warp mode. keystone, horizontal linearity, points, scale, shift, rotation, rotation point. Warp adaptation: this pane changes according to the warp mode selection. Within a pane, use the ◄ or ► key to select the desired function. Press ENTER to activate this function. R5905158 HDF SERIES 16/06/2015...
Page 170: Keystone Correction Workﬂow
The default selected anchor point is the left top corner of the image. Select the desired warp area. Depending on the selected area only the points in that area will be adjusted. Select keystone. Select within Warp Adaptations, Horizontal or Vertical to adjust the corresponding keystone. R5905158 HDF SERIES 16/06/2015...
Page 171: Linearity Adjustment, Workﬂow
ENTER when an item is selected and use the 4 arrow keys to adjust. Image 12-45 Warping, Linearity Adjust the horizontal and vertical linearity. To ﬁne tune this adjustment, select a speciﬁc area and add extra anchor points by changing the warp level. R5905158 HDF SERIES 16/06/2015...
Page 172: Selecting And Changing The Position Of A Speciﬁc Point
How to scale Select the 2 x 2 adjustment level. See "Setting the warping level", page 164. The default selected anchor point is the left top corner of the image. Select the desired warp area. R5905158 HDF SERIES 16/06/2015...
Page 173: Shifting The Image
The image can be rotated around a predeﬁned point. This is considered as an equal rotation of the 4 corner points in 2 x 2 mode and with the full area selected. The default rotation point is the center of the image. R5905158 HDF SERIES 16/06/2015...
Page 174 ENTER when an item is selected and use the 4 arrow keys to adjust. Image 12-53 Warping, scaling Continue with the rotation. Rotate around the rotation point Select the 2 x 2 adjustment level. See "Setting the warping level", page 164. Select full image as warp area. R5905158 HDF SERIES 16/06/2015...
Page 175: Hardware Reset
About the opacity of the OSD menus During the warp adjustment process the OSD menu is displayed on top the warp grid. To see the grid and the grid points, reduce the opacity of the OSD menu. R5905158 HDF SERIES 16/06/2015...
Page 176: Warp File Service, Load File
Use the ◄ or ► key to change the opacity. 12.7.16 Warp ﬁle service, load ﬁle What can be done? A predeﬁned warp conﬁguration can be loaded in the warp board as active warp conﬁguration ﬁle. R5905158 HDF SERIES 16/06/2015...
Page 177: Warp File Service, Save To File
Image 12-65 Warp ﬁles Use the ▲ or ▼ key to select the desired ﬁle. 12.7.17 Warp ﬁle service, save to ﬁle What can be done? The current warp settings are saved in the current active ﬁle R5905158 HDF SERIES 16/06/2015...
Page 178: Warp File Service, Save As
12.7.18 Warp ﬁle service, save as What can be done? The current settings can be saved into a new ﬁle. How to save Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Save as. R5905158 HDF SERIES 16/06/2015...
Page 179: Warp File Service, Rename File
Arrow key left (◄) has the backspace functionality. Press ENTER to ﬁnalize the save as action. 12.7.19 Warp ﬁle service, rename ﬁle How to rename? Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Rename. R5905158 HDF SERIES 16/06/2015...
Page 180: Warp File Service, Delete File
Arrow key left (◄) has the backspace functionality. Press ENTER to ﬁnalize the rename action. 12.7.20 Warp ﬁle service, delete ﬁle How to delete Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Delete. R5905158 HDF SERIES 16/06/2015...
Page 181: Warp File Service, Delete All Files
12.7.21 Warp ﬁle service, delete all ﬁles What can be done? All custom created warp ﬁles can be deleted. How to delete Press Menu to activate the menus and select Alignment → Warping → .Warp File Service → .Delete All. R5905158 HDF SERIES 16/06/2015...
Page 182: Warp Board Reset
In some circumstances the hardware of the warping get stuck. A hard reset of the board is the only solution. With Warp board reset, the board is reset but the current values remain in the board. How to reset the board Press Menu to activate the menus and select Alignment → Warping → .Warp board reset. R5905158 HDF SERIES 16/06/2015...
Page 183: Warp Board And Values Reset
How to reset board and values Press Menu to activate the menus and select Alignment → Warping → .Warp board and values reset. R5905158 HDF SERIES 16/06/2015...
Page 184: Alternative Side Keystone
For 3D sources with a frequency higher than 30 Hz/eye, the warp unit cannot be used anymore. Therefor, for these source the alternative side keystone can be used. How to adjust Press Menu to activate the menus and select Alignment → Warping → .Alternative Side Keystone. R5905158 HDF SERIES 16/06/2015...
Page 185: Blanking Adjustment
(or noise). A ’0’ on the bar scale indicates no blanking. Which blanking adjustments are available ? • top blanking • bottom blanking • left blanking • right blanking R5905158 HDF SERIES 16/06/2015...
Page 186 The reset function brings all blanking settings back to zero. How to adjust Press Menu to activate the menus and select Alignment → Blanking. Image 12-101 Main menu, alignment Image 12-102 Alignment, blanking Press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 187: Gamma
What can be done with these patterns? The projector is equipped with different internal patterns which can be used for measurement and alignment purposes. How to select a pattern Press Menu to activate the menus and select Alignment → Internal Patterns. R5905158 HDF SERIES 16/06/2015...
Page 188: Color Space
Full Screen White Cross Hatch Outline Scenergix 12.11 Color space Color space A color space or color standard is a mathematical representation for a color. For example the RGB color space is based on a Cartesian coordinate system. R5905158 HDF SERIES 16/06/2015...
Page 189: What Can Be Adjusted
Click Yes to continue. Image 12-112 Color space — conﬁrmation When [On] is selected and the color temperature is correct, use the ▲ or ▼ key to select the desired color space and press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 190: Scenergix
Why ScenergiX ? When working in a multichannel setup the HDF series projector and its Soft Edge possibilities enable an image blending that gives the appearance of a single view, thus achieving realistic immersion for the majority of wide screen applications.
Page 191: Preparations
Color Matching (Color Temperature, Color Standard, Input Balance, Gamma) 12.12.3 Scenergix activation How to activate Press Menu to activate the menus and select Alignment → Scenergix. Image 12-117 Main menu, alignment Image 12-118 Alignment, Scenergix Press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 192: Scenergix Pattern
To make the Scenergix adjustment more easy, an internal pattern can be displayed. How to select Press Menu to activate the menus and select Alignment → Scenergix → Scenergix Pattern. Image 12-120 Main menu, alignment Image 12-121 Alignment, Scenergix Image 12-122 Scenergix, pattern activation R5905158 HDF SERIES 16/06/2015...
Page 193: Scenergix Adjustment Lines
Adjustment lines can be activated when Scenergix pattern is [On]. How to display Press Menu to activate the menus and select Alignment → Scenergix → Adjust lines. Image 12-124 Main menu, alignment Image 12-125 Alignment, Scenergix R5905158 HDF SERIES 16/06/2015...
Page 194: Data Doubling
The overlap area can be adjusted with the Scenergix tools. Hor. Hor. Start 1 Start 2 Size 2 Size 1 Vert. Start 1&2 Projector 2 Projector 1 Image 12-127 Data doubling Source R5905158 HDF SERIES 16/06/2015...
Page 195: White Level Adjustment (Blending Area)
Do the same for Horizontal Size, Vertical Start and Vertical Size. Repeat this action for he second projector. 12.12.7 White level adjustment (blending area) How to set Press Menu to activate the menus and select Alignment → Scenergix → White level. R5905158 HDF SERIES 16/06/2015...
Page 196 Use the ▲ or ▼ key to select one of the four size adjustments and press ENTER to select Use the ◄ or ► key to change the border of the blending area to the desired position (value between 0 and 255) R5905158 HDF SERIES 16/06/2015...
Page 197 12. Alignment Image 12-136 Width selections Set ﬁrst the width for the ﬁrst projector and repeat for the second one. Image 12-137 Width set up for projector 1 R5905158 HDF SERIES 16/06/2015...
Page 198: Black Level Adjustment
After the area is set, use TEXT key to remove the area border lines when adjusting the black level. How to set the leakage area width Press Menu to activate the menus and select Alignment → Scenergix → Black level. R5905158 HDF SERIES 16/06/2015...
Page 199 Press ENTER to select the Black Level adjustments. Image 12-143 Black level, area Use the ▲ or ▼ key to select one of the four size adjustments. Use the ◄ or ► key to move the green border line to the desired position. R5905158 HDF SERIES 16/06/2015...
Page 200 DLP Leakage area Use the Reset item to reset all area values. How to adjust Press Menu to activate the menus and select Alignment → Scenergix → Black level. Image 12-145 Main menu, alignment Image 12-146 Alignment, Scenergix R5905158 HDF SERIES 16/06/2015...
Page 201: Scenergix Reset
Image 1 Image 12-149 Black level adjustment Use the Reset item to set all values back to zero. 12.12.9 Scenergix Reset What can be done? All Scenergix values can be set back to the default values. R5905158 HDF SERIES 16/06/2015...
Page 202: Glasses
The right image is projected, the right shutter is open, allowing the right eye to see the right image. The ideal situation is when the opening/closing times of these shutters are in sync with the blanking time of DLP mirrors. R5905158 HDF SERIES 16/06/2015...
Page 203 Active Blanking Time Left Shutter Open Closed Right Shutter Open Closed Image 12-154 Shutters closing too late and/or opening too early cause Cross-Talk Closing these shutters too quickly and/or opening too slowly will cause Color Artifacts. R5905158 HDF SERIES 16/06/2015...
Page 204 How to adjust the dark time Press Menu to activate the menus and select Alignment → 3D Glasses . Image 12-156 Main window Image 12-157 Alignment, 3D glasses Press ENTER. Use the ▲ or ▼ key to select Dark Time Adjustment R5905158 HDF SERIES 16/06/2015...
Page 205: Left-Right Output Reference Delay
3D Sync Right Delay Time With output reference delay Left 3D Sync Right Image 12-159 3D Output reference delay How to set the delay Press Menu to activate the menus and select Alignment → 3D Glasses . R5905158 HDF SERIES 16/06/2015...
Page 206: Sync Loop Through
12.13.3 3D Sync Loop Through What can be done? The incoming 3D sync signal can routed to the 3D sync output connector. How to activate Press Menu to activate the menus and select Alignment → 3D Glasses. R5905158 HDF SERIES 16/06/2015...
Page 207: Upper Limit For Triple Or Double Flash
The Upper limit for double ﬂash can be set. When the input frame rates are below this limit, the result will be displayed at double frame rate. How to set the limit Press Menu to activate the menus and select Alignment → 3D Glasses. R5905158 HDF SERIES 16/06/2015...
Page 208: High End Systems Mirror
Almost any image can be displayed on almost any place in the room using the pan and tilt adjustments. Settings storing per layout is possible. Projector control activation Press Menu to activate the menus and select Alignment → High End Systems Mirror. R5905158 HDF SERIES 16/06/2015...
Page 209 Use the ▲ or ▼ key to select Coarse Pan or Coarse Tilt. Image 12-172 Projector Controlled Use the ◄ or ► key to change the value between -128 and 128. Use the ▲ or ▼ key to select Fine Pan or Fine Tilt. R5905158 HDF SERIES 16/06/2015...
Page 210 To change the store settings, use the ▲ or ▼ key to select Store settings per layout and press ENTER to toggle between [No] and [Yes]. Image 12-173 Store settings [No] : settings are stored globally. [Yes] : settings are stored per layout. R5905158 HDF SERIES 16/06/2015...
Page 211: Projector Control
Default gateway Wireless Status DHCP IP address Subnet mask IR Control IR front IR back IR side Address Universe Mode Art DMX [On/Off] Output voltage enable Output voltage level Monitor Shutdown Shutdown time Buttons Shortcut keys R5905158 HDF SERIES 16/06/2015...
Page 212: Individual Projector Address
Press Menu to activate the menus and select Projector Control → Projector Address → Projector Address. Image 13-1 Main menu, projector control Image 13-2 Projector control, projector address Image 13-3 Projector address Press ENTER to activate the address input. R5905158 HDF SERIES 16/06/2015...
Page 213: Projector Common Address
Press Menu to activate the menus and select Projector Control → Projector Address → Common Address. Image 13-5 Main menu, projector control Image 13-6 Projector control, projector address Image 13-7 Projector address, common address Press ENTER to activate the address input. Image 13-8 Projector common address R5905158 HDF SERIES 16/06/2015...
Page 214: Serial Communication
The communication protocol for the communication between the projector and a computer can be set to RS232 or RS422. How to set up Press Menu to activate the menus and select Projector Control → Serial Communication. R5905158 HDF SERIES 16/06/2015...
Page 215: Network
IP address must be entered. DHCP lets a network administrator supervise and distribute IP addresses from a central point and automatically sends a new IP address when a computer is plugged into a different place in the network. R5905158 HDF SERIES 16/06/2015...
Page 216: Wired Dhcp Set Up
ﬁeld to any IP-Address on the subnet. 13.5.2 Wired DHCP set up How to set up Press Menu to activate the menus and select Projector Control → Network. Image 13-15 Main menu, projector control Image 13-16 Projector control, network R5905158 HDF SERIES 16/06/2015...
Page 217: Wired Ip Address Set Up
[Off] : DHCP is deactivated. A ﬁxed address must be used. 13.5.3 Wired IP address set up How to set up Press Menu to activate the menus and select Projector Control → Network. Image 13-18 Main menu, projector control Image 13-19 Projector control, network R5905158 HDF SERIES 16/06/2015...
Page 218: Wired Subnet Mask Set Up
13.5.4 Wired subnet mask set up Subnet for Wired and Wiﬁ must be different ! How to set up Press Menu to activate the menus and select Projector Control → Network. R5905158 HDF SERIES 16/06/2015...
Page 219 Use the ▲ or ▼ key to select Subnet Mask under Wired and press ENTER to activate the input box. Image 13-25 Fill subnet mask Image 13-26 Fill subnet mask Use the ▲ or ▼ key to change the selected character. R5905158 HDF SERIES 16/06/2015...
Page 220: Wired Default Gateway Set Up
Image 13-27 Main menu, projector control Image 13-28 Projector control, network Image 13-29 Network, default gateway Use the ▲ or ▼ key to select Default Gateway under Wired and press ENTER to activate the input box. R5905158 HDF SERIES 16/06/2015...
Page 221: Wireless Network Activation
Before a wireless network can be used, the status must be set to On. How to activate Press Menu to activate the menus and select Projector Control → Network → Wireless setup. Image 13-31 Main menu, projector control Image 13-32 Projector control, network R5905158 HDF SERIES 16/06/2015...
Page 222: Wireless Access Points Selection And Setup
13.5.7 Wireless access points selection and setup These menu items are only accessible when wireless network status is set to [on]. Scan for access points Select Scan access points and press ENTER to start the scan. R5905158 HDF SERIES 16/06/2015...
Page 223 Access to a wireless secured access point Use the ▲ or ▼ key to select Passphrase. For a secured network, a passphrase should be entered before getting access to the wireless network. Image 13-37 Image 13-38 Passprhrase, selection Passphrase, entry R5905158 HDF SERIES 16/06/2015...
Page 224: Wireless Dhcp Set Up
Can only be used with a wireless network module installed. How to set up Press Menu to activate the menus and select Projector Control → Network → Wireless Setup . Image 13-40 Main menu, projector control Image 13-41 Projector control, network R5905158 HDF SERIES 16/06/2015...
Page 225: Wireless Fixed Ip Address Set Up
Can only be used with a wireless network module installed. How to set up Press Menu to activate the menus and select Projector Control → Network → Wireless Setup. Image 13-44 Main menu, projector control Image 13-45 Projector control, network R5905158 HDF SERIES 16/06/2015...
Page 226: Wireless Subnet Mask Set Up
Can only be used with a wireless network module installed. Subnet for Wired and Wiﬁ must be different ! How to set up Press Menu to activate the menus and select Projector Control → Network → Wireless Setup. R5905158 HDF SERIES 16/06/2015...
Page 227 Press ENTER to open the Wireless menu. Use the ▲ or ▼ key to select Subnet Mask and press ENTER to activate the input box. Image 13-53 Wireless Subnet Mask, input Use the ▲ or ▼ key to change the selected character. R5905158 HDF SERIES 16/06/2015...
Page 228: Wireless Default Gateway Set Up
Projector control, network Image 13-57 Image 13-56 Wireless default gateway Network, wireless Press ENTER to open the Wireless menu. Use the ▲ or ▼ key to select Subnet Mask and press ENTER to activate the input box. R5905158 HDF SERIES 16/06/2015...
Page 229: Ir Control Switching
Each IR receiver inside the projector can be activated or deactivated. When an IR receiver is deactivated, no IR signal sent to this IR receiver will be processed. How to activate or deactivate Press Menu to activate the menus and select Projector Control → IR control. Image 13-59 Main menu, projector control Image 13-60 Projector control, IR control R5905158 HDF SERIES 16/06/2015...
Page 230: Dmx
Before a projector can execute DMX commands, a unique address, called DMX address, should be given to the projector. This address can vary from 1 to 512. How to set the DMX address Press Menu to activate the menus and select Projector Control → DMX → Address. R5905158 HDF SERIES 16/06/2015...
Page 231 Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically. R5905158 HDF SERIES 16/06/2015...
Page 232: Dmx Universe
How to set a DMX universe Press Menu to activate the menus and select Projector Control → DMX → Universe. Image 13-67 Main menu, projector control Image 13-68 Projector control, DMX Image 13-69 DMX, universe Press ENTER to select. R5905158 HDF SERIES 16/06/2015...
Page 233: Dmx Mode
Depending on the DMX application the correct mode has to be selected. How to set the mode Press Menu to activate the menus and select Projector Control → DMX → Universe. Image 13-71 Main menu, projector control Image 13-72 Projector control, DMX R5905158 HDF SERIES 16/06/2015...
Page 234: Art-Net Dmx
Art-Net DMX [Off] : DMX via Ethernet is disabled. How to toggle Press Menu to activate the menus and select Projector Control → DMX → Art-Net DMX. Image 13-74 Main menu, projector control Image 13-75 Projector control, DMX R5905158 HDF SERIES 16/06/2015...
Page 235: Front Xlr Output Voltage Control
DMX Art-Net, set level to 0 V How to enable or disable Press Menu to activate the menus and select Projector Control → DMX → Output voltage enable. Image 13-77 Main menu, projector control Image 13-78 Projector control, DMX R5905158 HDF SERIES 16/06/2015...
Page 236 Press Menu to activate the menus and select Projector Control → DMX → Output voltage level. Image 13-80 Main menu, projector control Image 13-81 Projector control, DMX Image 13-82 Front XLR output voltage level Press ENTER to toggle between [0 Volt], [9 Volt], [12 Volt] and [24 Volt]. R5905158 HDF SERIES 16/06/2015...
Page 237: Monitor
Press Menu to activate the menus and select Projector Control → DMX → Monitor. Image 13-83 Main menu, projector control Image 13-84 Projector control, DMX Image 13-85 DMX monitor Press ENTER to open the overview list. Image 13-86 DMX overview list R5905158 HDF SERIES 16/06/2015...
Page 238: Dmx Shutdown
The retarding time is the time between no DMX is detected and the moment that the projector shuts down. How to set the retarding time Press Menu to activate the menus and select Projector Control → DMX → Shutdown Time. R5905158 HDF SERIES 16/06/2015...
Page 239: Buttons
In ECO standby only the microcontroller, communication interface and local (or remote) control are operational. All other electronics are powered down. How to set Press Menu to activate the menus and select Projector Control → Buttons → Standby. R5905158 HDF SERIES 16/06/2015...
Page 240: Shortcut Keys
The allocated shortcut keys can be cleared within this menu. How to clear a shortcut key Press Menu to activate the menus and select Projector Control → Buttons → Shortcut keys. Image 13-96 Main menu, projector control Image 13-97 Projector control, buttons R5905158 HDF SERIES 16/06/2015...
Page 241: Menu Position
• Left-top • Left-mid • Left-bottom How to change the position Press Menu to activate the menus and select Projector Control → Menu Position. Image 13-100 Main menu, projector control Image 13-101 Projector control, menu position R5905158 HDF SERIES 16/06/2015...
Page 242: Local Lcd
Use the ◄ or ► key to change the back lighting of the local LCD panel. Use the ▲ or ▼ key to select Time out. Image 13-106 Local LCD, time out Press ENTER to toggle between [Off], [10], [30], [60] or [120]. R5905158 HDF SERIES 16/06/2015...
Page 243: Language Selection
All available languages are indicated in the language of the country. The current active language is indicated by checked radio button. How to change the language Press Menu to activate the menus and select Projector Control → Change Language. Image 13-107 Main menu, projector control Image 13-108 Projector control, change language R5905158 HDF SERIES 16/06/2015...
Page 244: Scheduler
Edit a task • Delete task • Scheduler, on or off 13.12.1 Add a task to the list How to add Press Menu to activate the menus and select Projector Control → Scheduler → Add task. R5905158 HDF SERIES 16/06/2015...
Page 245 When selected, press ENTER to select the day. Use the ▲ or ▼ key to change the current setting. Use the ◄ or ► key to jump to the next part of the date and time setting. R5905158 HDF SERIES 16/06/2015...
Page 246 To repeat the task with a given sequence again and again, check the check box in front of Inﬁnite. Routine setup, occurrences For a limited number of loops, set up the occurrences: Select Occurrence and press ENTER. Use the ◄ or ► key to change the occurrence. R5905158 HDF SERIES 16/06/2015...
Page 247: Edit A Task
Select Apply and press ENTER to create the task. The task is added to the list of tasks. 13.12.2 Edit a task What can be done? An existing task in the list of tasks can be edited and saved with the same name. R5905158 HDF SERIES 16/06/2015...
Page 248 Image 13-120 Scheduler, edit task Press ENTER to open the task selection list. Image 13-121 Task selection list Use the ▲ or ▼ key to select the desired task and press ENTER The edit task window opens. R5905158 HDF SERIES 16/06/2015...
Page 249: Delete Task
A task stored in the list of tasks can be deleted from that list. How to delete Press Menu to activate the menus and select Projector Control → Scheduler → Delete task. Image 13-123 Main menu, projector control Image 13-124 Projector control, scheduler R5905158 HDF SERIES 16/06/2015...
Page 250: Scheduler, On Or Off
When switched on, the tasks in the list will be executed on the given time. How to toggle the scheduler Press Menu to activate the menus and select Projector Control → Scheduler → Scheduler [On]/[Off]. Image 13-128 Main menu, projector control Image 13-129 Projector control, scheduler R5905158 HDF SERIES 16/06/2015...
Page 251: Gsm Conﬁguration, Activation
PUK code to unblock the SIM card. How to conﬁgure Press Menu to activate the menus and select Projector Control → GSM conﬁguration → GSM pincode. R5905158 HDF SERIES 16/06/2015...
Page 252 PIN code entered Select OK and press ENTER to conﬁgure the software. Replacing a SIM card with a new one Before removing the current mounted SIM card, select Projector Control → GSM conﬁguration → GSM pincode R5905158 HDF SERIES 16/06/2015...
Page 253: Gsm Conﬁguration, Subscription
When subscripted for notiﬁcations, the projector will send out SMS messages when notiﬁcations occur with severity “Critical”, “Error” or “Warning”. How to subscribe via the OSD menu Press Menu to activate the menus and select Projector Control → GSM conﬁguration → Sms subscriptions. R5905158 HDF SERIES 16/06/2015...
Page 254 This procedure can be repeated for subscriber 2 and 3. Select OK and press ENTER to conﬁgure the subscription. How to unsubscribe via the OSD menu Press Menu to activate the menus and select Projector Control → GSM conﬁguration → Sms subscriptions. R5905158 HDF SERIES 16/06/2015...
Page 255: Flex, Light Output Conﬁguration
Via Projector Toolset when connected via an Ethernet connection with the projector. See Projector Toolset’s user guide (R5905073, index 04), chapter “FLEX, light output control”. • Via the OSD menu of the projector itself • Via an SMS message send to a projector equipped with an optional GSM board. R5905158 HDF SERIES 16/06/2015...
Page 256: Light Output Conﬁguration Via Osd Menu
Image 13-152 Successful conﬁgured If the code is incorrect, the message: “Invalid attempt!”, is displayed: Image 13-153 Invalid attempt After 3 invalid attempts, the message: “Invalid attempt! Try again after 300 seconds” is displayed. Image 13-154 R5905158 HDF SERIES 16/06/2015...
Page 257: Conﬁgure Projector's Light Output Via Sms
Via an SMS message sent from any cell phone to the GSM number associated with the projector, projector information can be re- quested. The receiving projector analyses the message. The projector answers with an SMS of maximum 140 characters containing the projector type, name and serial number, projector and lamp run time, lamp and projector status. R5905158 HDF SERIES 16/06/2015...
Page 258: Lamp Ignition Admission
The receiving projector analyses the message and execute the command. It creates a return SMS with the following message: “Lamp ignition enable” or “Lamp ignition disabled” or “Lamp ignition admission failed”. This message is sent back to the requested cell phone. R5905158 HDF SERIES 16/06/2015...
Page 259: Service
• Lamp on runtime • Remaining Lamp runtime • Customer Id How to display the overview Press Menu to activate the menus and select Service → Identiﬁcation. Image 14-1 Main menu, service Image 14-2 Service, identiﬁcation R5905158 HDF SERIES 16/06/2015...
Page 260: Diagnosis
> the current has a higher version than the reference software. < the current has a lower version than the reference software. How to display an overview Press Menu to activate the menus and select Service → Diagnosis → Versions. R5905158 HDF SERIES 16/06/2015...
Page 261: Measurements
Once one of these values are crossed the threshold an error or warning message is logged or displayed on the local LCD screen. How to display an overview Press Menu to activate the menus and select Service → Diagnosis → Measurements. R5905158 HDF SERIES 16/06/2015...
Page 262 Fan Speeds to get an overview of current speeds of the different fans or to get an overview of miscellaneous items such as pressure altitude etc. Image 14-12 Overview voltages Image 14-13 Overview temperatures R5905158 HDF SERIES 16/06/2015...
Page 263: Logging
How to display the logging Press Menu to activate the menus and select Service → Diagnosis → Logging. Image 14-16 Main menu, service Image 14-17 Service, diagnosis Image 14-19 Logging, main controller Image 14-18 Diagnosis, logging R5905158 HDF SERIES 16/06/2015...
Page 264: Board Id
The board id window gives an overview of the modules with their article number, serial number, etc. How to get an overview Press Menu to activate the menus and select Service → Diagnosis → Board Id. Image 14-22 Main menu, service Image 14-23 Service, diagnosis R5905158 HDF SERIES 16/06/2015...
Page 265: Notiﬁcation
Notiﬁcations are warnings and errors displayed on the local LCD or on the OSD since power on of the projector. Once powered off, the notiﬁcation logging is cleared. How to display Press Menu to activate the menus and select Service → Diagnosis → Notiﬁcations. Image 14-26 Main menu, service Image 14-27 Service, diagnosis R5905158 HDF SERIES 16/06/2015...
Page 266: Tilt Sensor
Using a projector with an abnormal rotation can severely damage the lamp. How to check the tilt sensor Press Menu to activate the menus and select Service → Diagnosis → Tilt sensor. Image 14-30 Main menu, service Image 14-31 Service, diagnosis R5905158 HDF SERIES 16/06/2015...
Page 267: Internal Service Patterns
The status pane indicates if the projector is used with an allowed rotation. 14.3 Internal Service Patterns How to select Press Menu to activate the menus and select Service → Internal Service Patterns. Image 14-34 Main menu, service Image 14-35 Service, Internal service patterns R5905158 HDF SERIES 16/06/2015...
Page 268 Input items in the Internal Service Patterns menu are only shown when the corresponding slot contains an input board. Image 14-37 Internal service patterns, input Press ENTER to display the list of possible patterns. Image 14-38 Image 14-39 Input test patterns Input test patterns R5905158 HDF SERIES 16/06/2015...
Page 269 Use the ▲ or ▼ key to select an option and press ENTER to select. The checkbox in front of that item will be checked. Osd patterns Image 14-42 Internal service patterns, OSD Press ENTER to display the list of possible patterns. R5905158 HDF SERIES 16/06/2015...
Page 270 Pmp out test patterns To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the different patterns. Image 14-46 Pmp out internal service test patterns options R5905158 HDF SERIES 16/06/2015...
Page 271: Usb Memory
Custom settings can be saved on a USB stick. • A selection of saved settings can be (down)loaded via an USB stick on the projector. How to save custom settings Press Menu to activate the menus and select Service → USB Memory. R5905158 HDF SERIES 16/06/2015...
Page 272 The name of the custom settings ﬁles contains the serial number of the projector from which ti is downloaded. Load custom settings Press Menu to activate the menus and select Service → USB Memory. Image 14-52 Main menu, service Image 14-53 Service, USB memory R5905158 HDF SERIES 16/06/2015...
Page 273: Reset Formatter
Press ENTER to select. Use the ▲ or ▼ key to select Yes. or No and press ENTER. Image 14-58 Reset formatter If you want to reset the formatter, select Yes. If you do not want to reset the formatter, select No. R5905158 HDF SERIES 16/06/2015...
Page 274: Reﬁll Mode
When settings are changed when the lamp is off, a manual Save custom settings must be executed to save the changes. When the message Saving data is displayed, never switch off the projector. How to save Press Menu to activate the menus and select Service → Save Custom Settings. R5905158 HDF SERIES 16/06/2015...
Page 275: Auto Dimming When Over-Temperature
How to activate - deactivate Press Menu to activate the menus and select Service → Auto Dimming when Overtemperature. Image 14-65 Main menu, service Image 14-66 Service, auto dimming when over-temperature Press ENTER to toggle between [On] and [Off]. R5905158 HDF SERIES 16/06/2015...
Page 276: Time And Date
Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically. Press ENTER to accept the changes. Repeat for other values in the same way. R5905158 HDF SERIES 16/06/2015...
Page 277: Maintenance
Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. 5. Pressurized air cans are not efficient if there is too much dust on the surface, the pressure is too low R5905158 HDF SERIES 16/06/2015...
Page 278 15. Maintenance R5905158 HDF SERIES 16/06/2015...
Page 279: Removal And Installation Of The Projector Covers
(left side is hinged) then slide the front cover to the right to release it from the hinging points. R5905158 HDF SERIES 16/06/2015...
Page 280: Removal Of The Side Cover
(A) of the side cover, then gently pull out the top corners (B) of the side cover, then move the side cover away from the projector (C). Image 16-4 Cover removal R5905158 HDF SERIES 16/06/2015...
Page 281: Removal Of The Lamp Cover
(C). Image 16-6 Lamp cover removal 16.4 Removal of the input cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. R5905158 HDF SERIES 16/06/2015...
Page 282: Installation Of The
Necessary tools 7 mm ﬂat screw driver. How to install the front cover Check if the front ﬁlter is present. Ensure that no lens is mounted. Install the front cover of the projector doing the following: R5905158 HDF SERIES 16/06/2015...
Page 283: Installation Of The Side Cover
Check the pressure indicated on the internal manometer of the liquid cooling circuit. This pressure should be between 0,5 and 1 bar. If the pressure is out of range, inform the responsible and qualiﬁed technician, so he may take necessary corrective action. R5905158 HDF SERIES 16/06/2015...
Page 284: Installation Of The Lamp Cover
Bring the lamp cover towards its ﬁnal position (A), then gently push the locking stud at the left top corner (B) into its receiver, then gently push the locking stud at the left bottom corner (C) into its receiver. R5905158 HDF SERIES 16/06/2015...
Page 285: Installation Of The Input Cover
Bring the input cover towards its ﬁnal position (A), then gently push the locking stud at the right top corner (B) into its receiver, then gently push the locking stud at the right bottom corner (C) into its receiver. R5905158 HDF SERIES 16/06/2015...
Page 286 16. Removal and installation of the projector covers Image 16-16 Input cover, installation Secure the input cover by locking the two captive screws at the left side of the input cover. Image 16-17 Captive screws, locking R5905158 HDF SERIES 16/06/2015...
Page 287: Servicing
Realignment of the lamp in its reﬂector Extra service information Extra service information for qualiﬁed service technicians can be found on Barco’s Partnerzone (URL:http:\\my.barco.com). Regis- tration is necessary. If you are not yet registered, click on Partnerzone registration and follow the instructions. With the created login and password, it is possible to enter the partnerzone where you can ﬁnd extra service information about the projector.
Page 288: Replacement Of The Dust Filter On The Front Side
Make sure that the airﬂow indicated on the dust ﬁlter match with the airﬂow of the fans. Reinstall the front cover of the projector, see "Installation of the front cover", page 278. AUTION Never install a used HEPA ﬁlter. Always install a new HEPA ﬁlter. 6. High Efficiency Particulate Arrestant R5905158 HDF SERIES 16/06/2015...
Page 289: Replacement Of The Dust Filter On The Bottom Side
Make sure that the airﬂow indicated on the dust ﬁlter match with the airﬂow of the fans. Reinstall the ﬁlter holder containing the new HEPA ﬁlter. Fasten the two wedge lock screws (A) using a 2.5 mm Allen key as illustrated. Image 17-6 R5905158 HDF SERIES 16/06/2015...
Page 290: Replacement Of The Dust Filter On The Top Side
Reinstall the ﬁlter holder containing the new HEPA ﬁlter. Reinstall the side cover of the projector, see "Installation of the side cover", page 279. AUTION Never install a used HEPA ﬁlter. Always install a new HEPA ﬁlter. R5905158 HDF SERIES 16/06/2015...
Page 291: Pressure Veriﬁcation Of The Liquid Cooling Circuit
This procedure may only be performed by qualiﬁed technical service personnel. AUTION Never attempt to disassemble the lamp from its housing or to dispose of it. Return it to Barco. Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.
Page 292: Installation Of The Lamp House
This procedure may only be performed by qualiﬁed technical service personnel. AUTION Never attempt to disassemble the lamp from its housing or to dispose of it. Return it to Barco. Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.
Page 293 Reinstall the lamp cover of the projector, see "Installation of the lamp cover", page 280. While starting up the projector, the electronics detect if a lamp is installed. If no lamp is installed, it is not possible to start up the projector. R5905158 HDF SERIES 16/06/2015...
Page 294: Realignment Of The Lamp In Its Reﬂector
Secure the Z-axis position by fastening the Z-axis lock screw. Switch off the projector, wait ﬁve minutes and unplug the power cord at the projector side. Reinstall the cover of the lamp, see "Installation of the lamp cover", page 280. R5905158 HDF SERIES 16/06/2015...
Page 295: Speciﬁcations
A. Specifications A. SPECIFICATIONS A.1 Speciﬁcations of the HDF W22 Overview Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 22,000 center lumens / 20,000 ANSI lumens* Contrast ratio 1,900:1 (standard) / 2,200:1 (high contrast mode)
Page 296: Speciﬁcations Of The Hdf W26
Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS Warranty 2 years standard, extendable up to 5 years +/- 10% A.2 Speciﬁcations of the HDF W26 Overview Projector type WUXGA 3-chip DLP digital projector Technology 0.96"...
Page 297: Speciﬁcations Of The Hdf W30 Flex
Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS Warranty 2 years standard, extendable up to 5 years +/- 10% A.3 Speciﬁcations of the HDF W30 Flex Overview Projector type WUXGA 3-chip DLP digital projector Technology 0.96"...
Page 298: Technical Regulations
UL60950-1 and EN60950-1,FCC rules & regulations,part 15 Class A and CE EN55022 Class A,RoHS Warranty 2 years standard, extendable up to 5 years +/- 10% A.4 Technical Regulations Certiﬁcates RoHS Image A-2 Image A-3 Image A-4 Image A-1 Rohs Rohs OK CE mark EAC mark R5905158 HDF SERIES 16/06/2015...
Page 299: Dimensions
B. Dimensions B. DIMENSIONS • Dimensions of the HDF series projector • Dimensions of the HDF series ﬂight case B.1 Dimensions of the HDF series projector Dimensions 14.8 676.1 771.1 Image B-1 Dimensions given in millimeters. R5905158 HDF SERIES 16/06/2015...
Page 300: Dimensions Of The Hdf Series Flight Case
B. Dimensions Point of gravity Image B-2 Dimensions given in millimeters. B.2 Dimensions of the HDF series ﬂight case Dimensions 1194 1175 Image B-3 Dimensions given in millimeters. R5905158 HDF SERIES 16/06/2015...
Page 301: Standard Source Files
10. Fpix MHz: pixel frequency 11. Ptot : total pixels on one horizontal line. 12. Pact: active pixels on one horizontal line. 13. Ltot: total lines in one field 14. Lact: active lines in one field. R5905158 HDF SERIES 16/06/2015...
Page 302 2200 1920 hd-1920x1035@30i 60,000 33,750 74,250 2200 1920 hd-1920x1080@24p 24,000 27,000 74,250 2750 1920 1125 1080 hd-1920x1080@24sf 48,00038, 27,000 74,250 2750 1920 hd-1920x1080@25i 50,000 28,125 74,250 2640 1920 hd-1920x1080@25p 25,000 28,125 74,250 2640 1920 1125 1080 R5905158 HDF SERIES 16/06/2015...
Page 303 2376 1920 hd-1920x1080@50p 50,000 56,250 148,500 2640 1920 1125 1080 hd-1920x1080@60p 60,000 67,500 148,500 2200 1920 1125 1080 VIDEO525 59,940 15,734 13,500 VIDEO525p 59,940 31,469 27,000 VIDEO625 50,000 15,625 13,500 VIDEO625p 50,000 31,250 27,000 Table C-1 R5905158 HDF SERIES 16/06/2015...
Page 304 C. Standard source files R5905158 HDF SERIES 16/06/2015...
Page 305: Dmx Chart
Mechanical shutter closed 6 - 255 Electronic contrast on output Brightness 0 - 255 Adjusts the brightness between 0 and 100% on input Contrast 0 - 255 Adjust the contrast between 0 and 100% on input R5905158 HDF SERIES 16/06/2015...
Page 306: Dmx Chart, Extended
0 - 5 6 - 255 Electronic contrast on output Brightness 0 - 255 Adjusts the brightness between 0 and 100% on input Contrast 0 - 255 Adjusts the contrast between 0 and 100% on input R5905158 HDF SERIES 16/06/2015...
Page 307 Stand by / Lamp Off (if held for 5 seconds) 224 - 231 XLR output voltage On (if held for 5 seconds) 232 - 239 XLR output voltage Off (if held for 5 seconds) 240 - 255 No function 15. Only when lens is calibrated R5905158 HDF SERIES 16/06/2015...
Page 308 D. DMX chart R5905158 HDF SERIES 16/06/2015...
Page 309: Stacking Hdf Series Projectors
E. Stacking HDF series projectors E. STACKING HDF SERIES PROJECTORS General Three interlocking adapters at the top and at the bottom of the HDF series projector allows an easy and fast stacking without using extra tools or accessories. ARNING Maximum stack three (3) HDF series projectors in a table mount conﬁguration.
Page 310 E. Stacking HDF series projectors Release the safety hook (H) at both sides of the lowest projector and guide the safety cable around its carrying handle (C) as illustrated. Image E-3 Safety cable Guide the safety cable around the carrying handle of the projector above and clasp the safety hook around the safety cable as illustrated.
Page 311: Aligning Stacked Hdf Series Projectors
Necessary tools 8 mm Allen key. How to align two stacked HDF series projectors ? Make sure that the internal hatch pattern projected by the reference projector is sharp and has a perfect rectangle outline. If this is not the case, readjust the reference projector before aligning the other stacked projector(s) with the reference hatch pattern.
Page 312 E. Stacking HDF series projectors Inclination Image E-7 Inclination adjustment If necessary, adjust the skew of the stacked projector with respect to the reference projector by turning the screw Q in or out using a 8 mm Allen key. The screw Q is located behind the cover of the lamp, just above the volt meter. Adjust until the outline of the hatch pattern is most symmetric with the reference hatch pattern.
Page 313 E. Stacking HDF series projectors In case of a triple stacked table mount projector conﬁguration adjust and align ﬁrst the bottommost projector (reference), than the projector in the middle and ﬁnally the uppermost projector. R5905158 HDF SERIES 16/06/2015...
Page 314 E. Stacking HDF series projectors R5905158 HDF SERIES 16/06/2015...
Page 315: Environmental Information
For more information about recycling of this product, please contact your local city ofﬁce or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee...
Page 316 SJ/T11363. X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363 标准规定的限量要求. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 R5905158 HDF SERIES 16/06/2015...
Page 317: Production Address
The month and year of production is indicated on the product ID label on the product itself. Importers contact information Contact To ﬁnd your local importer, contact Barco directly or one of Barco’s regional ofﬁces via the contact information given on Barco’s web site, www.barco.com. R5905158 HDF SERIES 16/06/2015...
Page 318 F. Environmental information R5905158 HDF SERIES 16/06/2015...
Page 319 Revision Sheet Barco NV/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11, Fax: +32 56.36.88.24 Support: www.barco.com/en/support, Web: www.barco.com From: Date: Please correct the following points in this documentation (R5905158/08): page wrong correct R5905158 HDF 16/06/2015 SERIES...
