Page 1 HDF WLP series User and Installation manual R5906730/05 01/08/2017...
Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in Belgium...
Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justiﬁed notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
Page 5: Table Of Contents
Table of contents TABLE OF CONTENTS 1. Safety ....................... .. 7 General considerations.
Page 6 Table of contents 9.11 Alignment of a ceiling mount HDF WLP series projector................84 10.
Page 7 Table of contents 14.6.1 Files and ﬁle manipulations....................147 14.6.2 Manual Load ﬁle .
Page 8 Table of contents 17.7.21 Warp ﬁle service, delete all ﬁles ................... . .196 17.7.22 Warp board reset.
Page 9 Table of contents 19.2 Identiﬁcation ........................255 19.3 Diagnosis .
Page 10 Table of contents R5906730 HDF WLP SERIES 01/08/2017...
Page 11: Safety
“warnings” and “cautions” as well. Clariﬁcation of the term “HDF WLP series” used in this document When referring in this document to the term “HDF WLP series” means that the content is applicable for following Barco products: • HDF W LP (commercial name HDF W30LP) Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guar- antee.
Page 12: Restricted Access Location
The part number and serial number are printed on a label which is stuck on the respective part. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Barco dealer regarding this product. Product article number...
Page 13: Important Safety Instructions
ﬁre extinguishers. Never use water on an electrical ﬁre. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
Page 14 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, ﬁre, electric shock or other hazards.
Page 15: Product Safety Labels
For functionality and reliability, the projector requires accurate temperature control and cooling. Therefore a liquid cooling sys- tem is provided consisting of liquid circuits inside the projector which are connected via hoses to external coolers. Only cooler models and hoses exclusively developed for this application and approved by Barco are allowed to be used. •...
Page 16: High Brightness Precautions: Hazard Distance (Hd)
1. Safety Label image Label description Label location WARNING! DO NOT LOOK INTO THE LIGHT BEAM NO DIRECT EYE EXPOSURE TO THE BEAM IS PERMITTED RG3 IEC EN 62471–5:2015 CLASS 1 IEC EN 60825–1:2014 HAZARD DISTANCE: CONSULT SAFETY MANUAL COMPLIES WITH 21 CFR 1040 EXCEPT WITH RESPECT TO THOSE CHARACTERISTICS AUTHORIZED BY VARIANCE NUMBER 2014-V-0285 DATED APRIL 14, 2016 RISK GROUP 3 LIP IEC...
Page 17 • This product can only be installed by Barco or sold or leased only to valid laser light show variance holders. In other words our installers are required to have an approved laser light show variance. Such installers may currently hold a valid variance for production of Class IIIb and IV laser light shows and/or for incorporation of the RG3 LIPs into their shows.
Page 18: Hd For Fully Enclosed Projection Systems
1. Safety RESTRICTED AREA Image 1-2 HD for fully enclosed projection systems Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the cornea or on the skin. The light beam is considered (to be) unsafe for exposure if the distance from a person to the light source is less than the HD.
Page 19: Hd In Function Of The Lens Throw Ratio (Tr)
HD in function of the lens Throw Ratio (TR) TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. HDF series projector Hazard Distance HDF-W30LP Throw Ra o Image 1-4 HD (in meter) in function of the Throw Ratio (TR)
Page 20: Important Warnings Concerning Hdf Wlp Series Flight Cases
1. Safety Important warnings concerning HDF WLP series ﬂight cases Important warnings concerning stacking/transporting HDF WLP series rental ﬂight cases • Stack maximum two (2) HDF WLP series rental ﬂight cases high. Never higher. • Surface on which ﬂight case is standing must be level to ensure that the total load is evenly spread out among the four wheels. The surface must also be able to support the load safely.
Page 21: General
External cooling circuit. The temperature control of the laser source is assumed by the external cooling unit. A liquid cooling system is provided consisting of liquid circuits inside the projector which are connected via hoses to external coolers. Only coolers and hoses exclusively developed for this application and approved by Barco are allowed to be used. •...

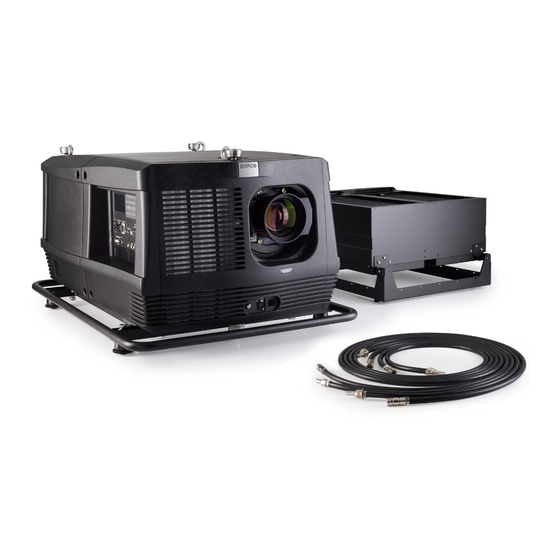

Page 22: About The Delivered Packages
2. General Projector Power requirements HDF W30LP 200-240 VAC, 50-60Hz, 15A at 200 VAC The power cord required to connect the projector with the power net is delivered with the projector. Projector weight Do not underestimate the weight of the HDF series projector. The projector weighs about ±100 kg (±225 lb.) without lens. Be sure that the pedestal on which the projector has to be installed is capable of handling ﬁve (5) times the complete load of the system.
Page 23 2. General Image 2-4 Image 2-5 Hoses Cooling ﬁlter Image 2-6 Cooler protection grid R5906730 HDF WLP SERIES 01/08/2017...
Page 24: Unpacking The Projector
2. General Option The following optional accessory is available: • A metal grid can be use to protect the radiators from damage due to direct blows or falling objects and such. Image 2-7 Cooler Metal grid This optional grid is delivered only in the Stand alone pack accessories. For further details, please see section dedicated to the physical installation of the stand alone cooler.
Page 25: Hdf Wlp Series Flight Case
2. General Image 2-9 3. Remove the carton box, the inner carton sleeve and the foam around the projector. See image 2-9. Note: The projector is still attached to a wooden plate, which is detached from the below pallet. 4. Gently turn the projector upside down to gain access to the four bolts, which secure the projector. Note that this wooden plate is detached from the pallet.
Page 26: Flight Case For Cooler Unit
It is recommended to use a ﬂight case to ensure a safe and secure transportation of the external cooling unit of HDF series projector. There is no ﬂightcase explicitly dedicated for the cooler unit transportation, but the RLM W-series ﬂight case, also provided by Barco, can be use to fulﬁll this task.
Page 27: Rear Projection
2. General Front / Table (F/T) Front / Ceiling (F/C) Rear / Table (R/T) Rear / Ceiling (R/C) Front projection The projector is installed, either in a table mount or ceiling mount conﬁguration, at the same side of the screen as the audience. AUDIENCE FLOOR Image 2-13...
Page 28: Positioning The Projector
2. General Positioning the projector SCREEN FLOOR Image 2-15 Projector positioning The projector should be installed at right angles (horizontally and vertically) to the screen at a distance PD. Note the distance (A) between lens centre and table surface is slightly variable. This distance (A) is nominal 35 cm in case all feet are turned in completely and the vertical lens shift is set to zero (0).
Page 29 2. General SIDE VIEW +120% +120% -20% -50% +50% -50% TOP VIEW -20% +50% Image 2-16 Vertical and horizontal shift range DMD. Field of view. It is mechanical possible to shift outside the recommended ﬁeld of view, but it will result in a decline of image quality depending on the used lens and the zoom position of the used lens.
Page 30: Projector Air Inlets And Outlets
2. General Projector air inlets and outlets Air inlets and outlets Image 2-18 Airﬂow The HDF WLP series has 4 air inlet channels and one air outlet. The air outlet is located at the rear of the projector. The air inlets are located at the front, bottom and right side of the projector.
Page 31: Installation Process
5. Connect the projector with the local power net. See "Power connection", page 29. 6. Connect your source to the appropriate input module. See "Input source connections", page 68 7. Update the software with the last version available on the Barco website. See "Software upgrade", page 87. Installation process stand alone cooler Installation process from A to Z 1.
Page 32: Starting Up And Adjusting The System
3. Installation process Starting up and adjusting the system Adjustment steps 1. Switch ON the projector. See "Power on projector", page 77 2. Select the input slot to which the source is connected. Do this by pressing the numeric key on the remote control unit or on the local keypad, See "Source selection", page 83.
Page 33: Physical Installation
4. Physical installation 4. PHYSICAL INSTALLATION Overview • Power connection • Suspension of the HDF WLP series projector with rigging clamps Power connection AUTION Use only the power cord provided with the projector. How to connect your projector with the local power net ? 1.
Page 34: Suspension Of The Hdf Wlp Series Projector With Rigging Clamps
4. Physical installation HAN Q4/2 + Image 4-2 Pin conﬁguration power plug HAN Q4/2 + PE. Suspension of the HDF WLP series projector with rigging clamps Rigging points and rigging clamps The carrying handle, at the bottom side of the projector, is provided with eight slots. Four slots are longitudinally (A) oriented and four slots are transversely (B) oriented.
Page 35 4. Physical installation X mm Image 4-5 Rigging points, distance 3. Turn in the rigging clamps (A) into the rigging points using a 17 mm open ended spanner and secure the rigging clamps by turning the safety nut (B) on the rigging clamp against the rigging point using a 17 mm open ended spanner. Warning: Always use four (4) rigging points, equally spread, to suspend the projector.
Page 36 4. Physical installation Image 4-8 Lowering and mounting truss bar 6. Lift up the projector and hook the four rigging clamps over the support bars of the truss. 7. Lock all four rigging clamps. 8. Install a safety chain (S) around both sides of the carrying handle and around the truss. Image 4-9 Mounting Safety chains Warning:...
Page 37: Remote Control Unit (Rcu)
5. Remote control unit (RCU) 5. REMOTE CONTROL UNIT (RCU) Introduction The remote control unit (A) of the HDF WLP series projector is equipped with a rugged case (B) and an XLR adaptor (C). The remote control unit can be used wired via mini-jack or via rugged XLR. Note that the backlight, of the remote control unit, illuminate continuously when wire connected.
Page 38: Rcu Rugged Case Installation
5. Remote control unit (RCU) Image 5-3 3. Insert (1) the lower tab of the battery cover in the gap at the bottom of the remote control, and press (2) the cover until it clicks in place. Image 5-4 AUTION Replace with the correct battery type.
Page 39: Rcu Xlr Adaptor Installation
5. Remote control unit (RCU) RCU XLR adaptor installation Install the rugged case before installing the XLR adaptor. Vice-versa, remove the XLR adaptor before removing the rugged case from the RCU. Necessary tools 5 mm ﬂat screw driver. How to install the XLR adaptor of the remote control unit ? 1.
Page 40: Rcu Usage Possibilities
5. Remote control unit (RCU) RCU usage possibilities Summarized possibilities Ref. Possibility description Comment RCU not wired RCU wired (mini-jack) Backlight illuminates continuously when wire is connected. Infra red disabled. RCU with rugged case not wired RCU with rugged case wired (mini-jack) Backlight illuminates continuously when wire is connected.
Page 41: Physical Installation Stand Alone Cooler
6. Physical installation stand alone cooler 6. PHYSICAL INSTALLATION STAND ALONE COOLER Overview • Supported mounting position • Assembling the housing • Mounting the housing on the frame • Preparing the stand alone frame • Installing the brackets on the cooler housing •...
Page 42 6. Physical installation stand alone cooler Details and limitations Depending the mounting option chosen, some limitations must be considered: • Floor mounting: When this option is chosen, the cooler is installed on a ﬂat and stable surface, in horizontal position. Four feet correctly distributed (2 on each side) allow stabilize the device.
Page 43: Assembling The Housing
6. Physical installation stand alone cooler • Wall mounting: When this option is chosen, the cooler must be ﬁxed on the wall in portrait mode or in landscape mode. In portrait mode, the cooler must be mounted with the cooling tubes up. The other position (cooling tubes down) is not authorized because coolers are heavy (more or less 15kg) and if the safety clic fails and the cooler screw is not ﬁxed, the cooler will simply fall to the ground! In this orientation it is also less practical to remove a cooler for service.
Page 44 6. Physical installation stand alone cooler Image 6-7 Image 6-8 This ﬂat pack contains the following parts: Top plate Side covers M4 Hex Screws M3 Hex Screws Support for middle bracket Side ﬁxation Position plate Middle bracket Front plate R5906730 HDF WLP SERIES 01/08/2017...
Page 45 6. Physical installation stand alone cooler overview: Image 6-9 Necessary tools • Allen wrench 2.5 mm • Allen wrench 3 mm First, turn all the screws in the inserts before starting to assemble. Into the drawings used in this procedure, orientation of the unit is indicative. Don’t hesitate to change the unit orientation to facilitate the mounting of parts.
Page 46 6. Physical installation stand alone cooler Image 6-10 2. Slide the front plate with both ﬁxation brackets fully on both side covers. Turn in the 4 set screws (M3) and tighten them fully until the brackets are pushed strongly against the ribs in the cover. Note: There may be paint job markings left on the internal side of the side covers (e.g.
Page 47 6. Physical installation stand alone cooler Image 6-11 3. Install the position plate onto the middle bracket as illustrated. Tighten the plate with an M4 hex screw. Image 6-12 4. Slide the middle bracket into the grooves of the front plate. Pay careful to orient the middle bracket like indicated in the drawing below (the three holes at the below of the bracket must be placed at the opposite to the front plate).
Page 48 6. Physical installation stand alone cooler Image 6-13 5. Slide both top plates as indicated into the grooves. Slide until you reach the position plate and the hole matches the hole in the brackets. Use one screw (M3) on each side of the top plates and tighten them fully until the brackets are pushed strongly against the ribs in the cover and middle bracket.
Page 49: Mounting The Housing On The Frame
6. Physical installation stand alone cooler Image 6-15 The housing is ready to be mounted on the frame. Mounting the housing on the frame Necessary tools Allen key 3 mm How to mount 1. Place the housing on the cooler frame so that both positioning pins (1) on the housing match the notches in the frame. Image 6-16 R5906730 HDF WLP SERIES 01/08/2017...
Page 50 6. Physical installation stand alone cooler 2. Also make sure that the frame ﬁts behind the clamp (2). If necessary, slide the clamp a little bit in the housing. Fixate the clamp fully so that it ﬁts behind the rib on the housing. Drive in a screw (M3) to connect the clamp to the frame.
Page 51: Preparing The Stand Alone Frame
6. Physical installation stand alone cooler Preparing the stand alone frame Necessary tools • Allen key 3 mm • Nut driver Necessary parts • Stand alone frame • 4 feet (ﬂoor mounting option) Floor mounting To install the standalone cooler in ﬂoor mounting mode follow this procedure: 1.
Page 52: Installing The Brackets On The Cooler Housing
6. Physical installation stand alone cooler Image 6-20 Wall side U brackets location Portrait mode Landscape mode When mounting the cooler assembly, the U brackets which will be mounted on the housing must be ﬁxed to the indicated position (U) on the frame. For portrait mode the U brackets must be mounted on top (cooling tubes will be facing upwards) .
Page 53: Mounting The Cooler Housing On The Frame
6. Physical installation stand alone cooler Image 6-22 Mounting the cooler housing on the frame Necessary parts • Cooler housing already assembled • Frame • 5 Hex Screws M5x8 At this step of the procedure, the frame is considered as being in its ﬁnal position, and already ﬁxed, if the wall mounting option has been chosen.
Page 54 6. Physical installation stand alone cooler Image 6-24 3. Fixate the second U-bracket to the frame with only one screws (M5x8) as shown in the following drawing. There is a space of more or less 2 centimeters between the frame side and the bracket. Note: The two U-Brackets are not ﬁxed in same manner.
Page 55: Insert The Cooler Units
6. Physical installation stand alone cooler Insert the cooler units Necessary tools Flat screwdriver Before you start Check if the two indicated screws (reference 1) are present. If it is the case, remove this screws. The use of these screws may become necessary to ﬁxate the cooler in the cooler assembly when the captive screws (reference 2) does not work.
Page 56: Mount The Filters
6. Physical installation stand alone cooler Mount the ﬁlters Necessary tools Flat screw driver (if screws are too difﬁcult to loosen by hand) Necessary parts 2 x ﬁlters How to insert 1. Turn out both screws and remove the cover plate. Image 6-29 2.
Page 57: Cabling And Tubing
6. Physical installation stand alone cooler Cabling and tubing Always connect the right cooler with right group of connector at the backside of the projector. Connect the left cooler with the left group of connectors at the backside of the projector. Tubing From projector connector plate To cooler...
Page 58 6. Physical installation stand alone cooler Addition of the metal grid will have a very slight impact to the cooling performance and hence the lifetime of the laser light source. . Necessary tools Flat screwdriver How to mount 1. Slide the grid (reference 1 image 6-32) in the ﬁxation tabs (reference 2 image 6-32). 2.
Page 59: Lenses
7. Lenses 7. LENSES Overview • Available lenses • Lens selection • Lens installation • Lens removal • Lens safety cable • Lens shift, zoom & focus • Scheimpﬂug adjustment Available lenses Available lenses for the HDF WLP series projector Image 7-1 Image 7-2 Image 7-3...
Page 60: Lens Selection
How to select the right lens 1. Determine the required screen width (SW). 2. Determine the approximate position of the projector in the room. 3. Start up the Lens Calculator on the Barco website: https://www.barco.com/en/media_entertainment/LensCalculator to determine the possible lenses for your conﬁguration.
Page 61: Lens Installation
7. Lenses Lens installation How to install 1. Remove the plastic cap in the opening of the lens holder if not removed yet. 2. Take the lens assembly out of its packing material and remove the lens caps on both sides. 3.
Page 62: Lens Removal
7. Lenses Image 7-13 Lock lens 8. Check if the lens is really secured by trying to pull the lens out of the lens holder. Lens removal How to remove 1. Support the lens with one hand while you unlock the lens holder by sliding the lock handle towards the “unlocked” position as illustrated.
Page 63: Lens Safety Cable
7. Lenses It’s recommended to place the plastic cap of the original projector packaging, back into the Lens opening to prevent intrusion of dust. Lens safety cable When using the safety cable ? The lens safety cable must be used in any circumstances to protect a mounted lens in the lens holder. Conﬁguration differences There are two different conﬁgurations for the safety cable.
Page 64 7. Lenses Image 7-18 Example of conﬁguration A 5. Install a U-bolt on the lens holder, with the open ends oriented outwards (reference 3). Make sure that both a part of the loop end and the outgoing part of the safety cable are placed in the enclosure. Image 7-19 Image 7-20 Example of Conﬁguration A...
Page 65: Lens Shift, Zoom & Focus
7. Lenses Image 7-21 Image 7-22 Example using the bottom carrying handle Example using the hoisting eye Lens shift, zoom & focus Via Lens key 1. Press LENS key on the local keypad or the remote control. The zoom/focus menu opens. Image 7-23 Zoom/Focus adjustment 2.
Page 66: Scheimpﬂug Adjustment
7. Lenses Scheimpﬂug adjustment Always use allowed and calibrated lenses for the speciﬁc projector while adjusting the Scheimplug adjust- ments. What has to be done ? The lens holder has to be adjusted so that the “sharp focus plane” of the projected image falls together with the plane of the screen (Fp1→Fp2).
Page 67 7. Lenses 1, 2 and 3 are adjustment points. 4 is a locking point and NOT used during Scheimpﬂug adjustment. Necessary tools • Allen key 3 mm • Nut driver 13 mm • Nut driver 10 mm How to adjust 1.
Page 68 7. Lenses Image 7-28 Center focusing 6. Sharpen bottom left corner of the screen by adjusting nut 1. Image 7-29 Left bottom focusing 7. Sharpen bottom right corner of the screen by adjusting nut 2. R5906730 HDF WLP SERIES 01/08/2017...
Page 69 7. Lenses Image 7-30 Right bottom focusing 8. Sharpen top right corner of the screen by adjusting nut 3 Image 7-31 Corner focusing 9. Repeat from step 6 until the projected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen. How to ﬁx the Scheimpﬂug Start the ﬁxation as follows (steps must be followed strictly) : 1.
Page 70 7. Lenses 1/3 to 1/2 Image 7-32 4. Fasten lock nut d. 5. Tighten nut 4 until the offset of the image movement created in step 3 is canceled. Tip: The amount of image movement in step 3 will determine how tight the nut in step 5 will need to be turned to return the image to its original position.
Page 71: Input & Communication
8. Input & Communication 8. INPUT & COMMUNICATION Overview • Introduction • Input source connections • Communication connections Introduction General The Input & Communication side of the projector consists of a button module, a dual 3G/HDSDI and DVI-I input as standard input module and 2 free input slots.
Page 72: Input Source Connections
HDSDI follows he SMPTE 292M standard. • Dual link follows the SMPTE 372M standard • SDI follows the 259M standard 5-cable input (optional) Optional multi purpose input which can be inserted in the free slots. BARCO R9864010 5-CABLE INPUT SYNC G/Y/VIDEO Image 8-3 Signal connectivity...
Page 73 Diagnostic LED’s on front panel: Green LED: Lights up in case input module is selected Yellow LED: Lights up in case sync detected 3D Input Module (optional) Optional 3D input which can be inserted in the free slots. BARCO 3D INPUT R9864140 SYNC SYNC...
Page 74: Communication Connections
8. Input & Communication • HDMI (High-Deﬁnition Multimedia Interface) HDMI 1.4a up to 210MHz pixel clock. Support for ‘Deep Color’ up to 12 bit per color. • DisplayPort DisplayPort 1.1a up to 210 MHz pixel clock. Support for ‘Deep Color’ up to 12 bit per color. In all cases, the minimum input frequency for 3D is 23 Hz per eye.
Page 75 8. Input & Communication Description Cold Return - (or not used) Return + (or not used) DMX-512 Lighting protocol over RS-485 interface. Carries information of 512 channels from a lighting controller to lighting devices. Standardized by USITT. Wired remote control (XLR) If desired the remote control unit can be wired and plugged in into the male XLR port on the communication interface.
Page 76: Usb Port
8. Input & Communication RS232 An Electronic Industries Association (EIA) serial digital interface standard specifying the characteristics of the commu- nication path between two devices using either D-SUB 9 pins or D-SUB 25 pins connectors. This standard is used for relatively short-range communications and does not specify balanced control lines.
Page 77 8. Input & Communication Function Color Description orange See chapter “Getting started”, topic “Status LEDs” orange See chapter “Getting started”, topic “Status LEDs” R5906730 HDF WLP SERIES 01/08/2017...
Page 78 8. Input & Communication R5906730 HDF WLP SERIES 01/08/2017...
Page 79: Getting Started
9. Getting started 9. GETTING STARTED RCU & Local keypad How controlling the projector ? The projector can be controlled by the local keypad or by the remote control unit. Location of the local keypad ? The local keypad is located on the input side of the projector. Remote control functions.
Page 80 9. Getting started MENU EXIT ENTER PAUSE LENS TEXT EXIT MENU PHASE SHARPN PATTERN WINDOW LENS TINT ENTER STBY PAUSE TEXT AUTO COLOR BRIGHTN CONTR LENS LENS ZOOM SHIFT LENS LENS SHIFT FOCUS Image 9-1 Local keypad and RCU Ind. Key name Description Pattern key...
Page 81: Power On Projector
9. Getting started Ind. Key name Description TEXT Toggle key to activate or deactivate on screen text boxes while adjusting a setting. When adjusting one of the image controls, e.g. during a meeting, the normally displayed bar scale can be deactivated by pressing ’TEXT’ key ﬁrst. To re-display the bar scale on the screen, press ’TEXT’...
Page 82: Software Overview
9. Getting started When ’0’ is pressed, the projector is switched off. When ’1’ is pressed, the projector is switched on. The projector starts up in standby mode. Some checking procedures are executed on the laser unit. During this step the LCD panel is disabled.
Page 83 9. Getting started Image 9-4 • Package version • Mgr software • GUI software Starting image projection via the standby key. 1. Press Stand by key once on the local keypad or on the remote control. MENU EXIT ENTER PAUSE LENS TEXT EXIT...
Page 84: Switching To Standby
9. Getting started Switching to standby How to switch to standby 1. Press and hold Standby for 3 seconds on the local keypad or the remote control. In the mean time the message Keep on pressing... is displayed. This message changes to Saving data ... The projector goes to standby.
Page 85: Using The Rcu
9. Getting started Color status Description Laser Laser is off No Laser inserted Orange Laser is on in ECO mode Green Laser is on in normal mode Green-Orange Laser is on in CLO mode ERR (error No error LED) Error Red toggles on/off Orange toggles on/off Warning IR signal received...
Page 86: Projector Address
9. Getting started 45° 45° 45° 45° 45° 45° Image 9-7 RCU to one of the IR sensors Projector Address 9.8.1 Displaying and Programming addresses into the RCU Displaying the Projector Address on the Screen. 1. Press Address key (recessed key on the RCU) with a pencil. The projector’s address is displayed on the local LCD screen.
Page 87: Source Selection
9. Getting started Common address Projector will always execute the command coming from a RCU programmed with that common address. Why a projector address ? As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or computer. Therefore each projector has its own address.
Page 88: Alignment Of A Table Mount Hdf Wlp Series Projector
9. Getting started The outline of the selected window gets a colored rectangle to indicate the selection. For the main window, the color is blue. For the picture in picture window, the color is orange. Once the desired window is activated (main window or picture in picture window) all keys on the remote control or local keypad can now control that selected window.
Page 89 9. Getting started When this is achieved, the projector is set horizontal and vertical at right angles to the screen. Image 9-12 Level adjustment 5. Fasten the lock nut (B) of the rigging clamps. R5906730 HDF WLP SERIES 01/08/2017...
Page 90 9. Getting started R5906730 HDF WLP SERIES 01/08/2017...
Page 91: Software Upgrade
10.1 How to upgrade the software General To upgrade the software of a HDF series projector, you need use Projector Toolset, the Barco dedicated software to set up, conﬁgure, manage and control Barco projectors. For further details see "Free download of Projector Toolset", page 87.
Page 92 10. Software upgrade How to upgrade 1. Switch on the projector. 2. Add the projector as HDF to projector toolset. Image 10-1 Image 10-2 The following errors and warnings are expected and can be ignored. The lamp power supply and lamp info module have been removed. Image 10-3 R5906730 HDF WLP SERIES 01/08/2017...
Page 93 10. Software upgrade 3. Update the projector using the latest HDF LP package. Note: If the Fan Ctrl settings 1 to 5 are not selected, select the Fan ctrl settings 1 to 5. Image 10-4 R5906730 HDF WLP SERIES 01/08/2017...
Page 94 10. Software upgrade Image 10-5 R5906730 HDF WLP SERIES 01/08/2017...
Page 95 10. Software upgrade Image 10-6 R5906730 HDF WLP SERIES 01/08/2017...
Page 96 10. Software upgrade Image 10-7 4. Reconnect and upgrade the projector type to HDF 30 LP. Image 10-8 5. Remove (delete) the projector from projector toolset. R5906730 HDF WLP SERIES 01/08/2017...
Page 97 10. Software upgrade 6. Switch off the power, wait long enough until all the LEDs on the projector and the coolers are off, switch the power back on. 7. Add the projector as HDF LP to projector toolset. Image 10-9 8.
Page 98 10. Software upgrade Image 10-11 R5906730 HDF WLP SERIES 01/08/2017...
Page 99 10. Software upgrade Image 10-12 R5906730 HDF WLP SERIES 01/08/2017...
Page 100 10. Software upgrade Image 10-13 10.Clear the history log. R5906730 HDF WLP SERIES 01/08/2017...
Page 101 10. Software upgrade Image 10-14 11. Set laser power to 50 % before ﬁrst laser startup. 12.Switch the lasers on and check laser self test result. Errors or warnings are not allowed. Image 10-15 13.Align optics and set laser power to 100 %. 14.Run P7 calibration.
Page 102 10. Software upgrade Image 10-16 15.Switch off lasers and apply factory defaults. Image 10-17 R5906730 HDF WLP SERIES 01/08/2017...
Page 103: Quick Set Up Adjustment
11. Quick set up adjustment 11. QUICK SET UP ADJUSTMENT Overview • Text boxes ON or OFF • Quick Lens Adjustment via LENS key • Direct Lens Adjustment (RCU) • Quick picture in picture • Quick language selection 11.1 Text boxes ON or OFF Text toggle function The on-screen text boxes can be switched OFF so that an adjustment during the operation of the projector is not visible on the screen.
Page 104 11. Quick set up adjustment EXIT MENU PATTERN WINDOW LENS MENU EXIT ENTER AUTO STBY PAUSE TEXT ENTER TEXT PAUSE LENS PHASE Image 11-2 Lens button Image 11-3 Zoom/Focus adjustment 2. Use the ▲ or ▼ key to zoom and ◄ or ► key to focus the image. 3.
Page 105: Direct Lens Adjustment (Rcu)
11. Quick set up adjustment Image 11-5 Shift adjustment 3. Use the ▲ or ▼ key to shift the lens in vertical direction. Use the ◄ or ► key to shift the lens in horizontal direction. Press ENTER to switch to zoom/focus adjustment. 11.3 Direct Lens Adjustment (RCU) Lens adjustment buttons on the Remote Control On the Remote Control four buttons with double action are provided, allowing direct alignment for lens ZOOM, FOCUS, HORIZON-...
Page 106: Quick Language Selection
11. Quick set up adjustment Image 11-7 Load layout ﬁle list 11.5 Quick language selection Quick language selection via the remote control When no OSD menu is visible on the screen, press the Info button (1) on the remote control. MENU EXIT ENTER...
Page 107 11. Quick set up adjustment The main menu of the adjustment mode opens. 2. Select Projector Control with the ▲ ▼ key and press ENTER to activate. The Projector Control menu is displayed. 3. Select Change Language with the ▲ ▼ key and press ENTER to activate. The Change Language submenu is displayed.
Page 108 11. Quick set up adjustment R5906730 HDF WLP SERIES 01/08/2017...
Page 109: Start Up Of The Adjustment Mode
12. Start up of the adjustment mode 12. START UP OF THE ADJUSTMENT MODE Overview • About the adjustment mode • About the use of the remote control and the local keypad • Start up the adjustment mode • Navigation and adjustments •...
Page 110: Navigation And Adjustments
12. Start up of the adjustment mode The main menu of the adjustment mode opens. Image 12-1 Main window 12.4 Navigation and adjustments How to navigate in the menu structure? Once in the menu structure, use the ▲ or ▼ key on the remote control or on the local keypad to scroll through the items in the displayed menu.
Page 111: Menu Memory
12. Start up of the adjustment mode Use the ◄ or ► key to adjust the current value. The bar scale will move accordingly. Press EXIT to ﬁnalize the adjustment. When the bar scale is displayed, via direct input. Press ENTER to activate the input ﬁeld. Enter the desired value with the digit keys.
Page 112: Help Information In Adjustment Mode
12. Start up of the adjustment mode EXIT MENU PATTERN WINDOW LENS MENU EXIT ENTER STBY PAUSE TEXT AUTO ENTER Image 12-5 Pattern button 12.8 Help information in adjustment mode Overview For many items in the adjustment mode, help information is available. When on an item, just click on the info button of your remote control to display information about the selected item.
Page 113: Input
13. Input 13. INPUT Overview • Input menu overview • Start up the input menu • Input Selection • Advanced Settings • Input locking • Minimum delay • Native resolution • No Signal • EDID • 3D input In all cases, the minimum input frequency for 3D is 23 Hz per eye. Below this frequency the image will not be displayed correctly.
Page 114: Start Up The Input Menu
13. Input Logo [On/Off] Shutdown [Off/On] Shutdown time Auto dimming [On/Off] EDID Conﬁgure Create Delete Delete All Status Auto Detection Input type Frame sequential - Single channel Frame sequential - Dual channel Frame packing (FHD3D) Side-by-side Top-and-bottom SENSIO ® HI-FI 3D Line Alternating (3G) Second input 13.2 Start up the input menu...
Page 115: Advanced Settings
13. Input Image 13-2 Select source 13.4 Advanced Settings Overview • About Input Setup • Input conﬁguration • DVI - RGB input • SDI input • 5 cable input • HDMI - DisplayPort input (3D input module) 13.4.1 About Input Setup Overview Each input module must be conﬁgured before these module can be used.
Page 116: Sdi Input
13. Input Image 13-4 DVI selection The following selections are possible: • • DVI - dual link • RGB HS-VS/CS • YUV HS-VS/CS • AUTO DVI will not natively support 10-bit or 12-bit deep color. It is possible to enable 30-bit color over DVI using a speciﬁc pixel packing.
Page 117 13. Input Image 13-6 SDI, input type selection The following selections are possible: • Input 1 Priority (when 2 sources are present, the source on input 1 will have the priority) • Input 2 Priority (when 2 sources are present, the source on input 2 will have the priority) •...
Page 118: Cable Input
13. Input Dual HD : • Swap links 13.4.5 5 cable input How to select Select 5 cable and press ENTER to open the selections Image 13-8 Advanced settings, 5-cable Image 13-9 5 cable conﬁguration Use the ▲ or ▼ key to select the desired conﬁguration and press ENTER to select. When e.g.
Page 119 13. Input How to set up 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Input → Input locking. 2. Press ENTER. The Input locking window is displayed with the current selection. 3.
Page 120: Minimum Delay
13. Input Image 13-13 Free run, manual setting Use the ▲ or ▼ key to change the value. 13.6 Minimum delay Purpose The minimum delay only affects the de-interlacing. In case of interlaced sources, the de-interlacer will be bypassed and the image will be shown with line interpolation applied.
Page 121 13. Input Image 13-15 When the show native resolution function is in the ON position, the projector handles the source as follows: Source Projected image Name Ratio Resolution Ratio Resolution 1024x768 1024x768 image projected with black borders SXGA 1280x1024 1280x1024 image projected with black borders SXGA+...
Page 122: No Signal
13. Input 13.8 No Signal Overview • Background color • Background Logo • Shutdown settings • Shutdown retarding time • Auto Dimming What can happen when no signal When no signal is available at the selected input, the output can be set to blue or black or a personal deﬁned logo can be displayed or the projector can shutdown after a certain time or auto dimming can be started.
Page 123: Shutdown Settings
13. Input 13.8.3 Shutdown settings How to change the settings 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Input → No Signal. → Shut- down. Image 13-19 No signal, shutdown 2.
Page 124: Edid
13. Input Image 13-21 No signal, auto dimming 2. Press ENTER to toggle between [On] or [Off]. [On] : when no signal, auto dimming is started. [Off] : when no signal, no auto dimming is started. 13.9 EDID EDID Extended Display Identiﬁcation Data About EDID The EDID ﬁle available for DVI input connectors includes timings supported by the projector;...
Page 125: Create Custom Edid File
13. Input Image 13-22 Image 13-23 EDID, conﬁgure EDID conﬁguration Image 13-24 EDID selection list 3. Use the ▲ or ▼ key to select the input to conﬁgure. Press ENTER to open the selection list. The current active ﬁle is checked. 4.
Page 126: Delete A Custom Edid File
13. Input 3. Use the ▲ or ▼ key to select Create. Press ENTER to open the creation menu. 4. Fill out the Timings section. Use the ▲ or ▼ key to select a setting. Use the ◄ or ► key to change the value or press ENTER to open the speciﬁc adjustment menu.
Page 127: Delete All Custom Edid File
13. Input Image 13-28 EDID, delete 3. Use the ▲ or ▼ key to select the ﬁle which must be deleted. Press ENTER to delete. Image 13-29 EDID, delete list Image 13-30 Conﬁrmation A conﬁrmation window opens. 4. Select Yes to delete the ﬁle and press ENTER. 13.9.4 Delete all custom EDID ﬁle Standard EDID ﬁles cannot be deleted.
Page 128: About 3D Modes
13. Input 13.10.1 About 3D modes The mentioned menu items in the mode explanation will be explained in detail in the next topics. Settings in the 3D menu are stored per input. Single 3D channel - Full resolution - sequential mode Content is displayed by one 3D source.
Page 129: Supported Formats
13. Input The 3D Input Module is activated for Dual 3D channel: MENU > Input > 3D > Frame Sequential – Dual channel Possible sources: 2 x DVI , 2 x SDI. If two 3D Input Modules are installed: 2 x HDMI or 2 x DisplayPort. SENSIO Hi-Fi 3D ®...
Page 130: Activate 3D
13. Input DVI/HDMI/DP 5–cable analog DVI analog Fpix ≤ 210 MHz Fpix ≤ 210 MHz Fpix ≤ 170 MHz Fpix ≤150 MHz Frame Packing HD formats only. HD formats only. HD formats only. HD formats only. (FHD3D) Max. resolution: Max. resolution: Max.
Page 131: Auto Detection
13. Input Image 13-34 3D status 2. Press ENTER to toggle between [On] and [Off]. [On] : 3D activated [Off] : 3D deactivated 13.10.3 Auto detection About auto detection • Automatically detects the 3D format (Frame Packing, Side-by-Side, Top-and-Bottom) on HDMI sources, based on the content of the HDMI Vendor Speciﬁc InfoFrame (if present).
Page 132: Input Type Selection
13. Input Image 13-35 3D, auto detection 13.10.4 Input type selection About input types • Frame sequential - Single channel : One input contains 3D information, alternating the left and the right information. • Frame sequential - Dual channel : Two inputs, one contains the left eye information and the other contains the right eye infor- mation •...
Page 133: Second Input
13. Input 13.10.5 3D second input What can be done? 3D content can be entered into the projector via a single channel (one input) or via 2 channels (2 inputs). When entering content via 2 channels, the second source must be indicated in the 3D menu. This selection is only possible when a 2 channel 3D input is chosen.
Page 134: L-R Synchronisation, Invert 3D Sync Out
13. Input Image 13-39 L/R Synchronisation 2. Press ENTER. 3. Use the ▲ or ▼ key to select Field Dominance. Image 13-40 Field dominance 4. Press ENTER to toggle between [L/R] and [R/L] [L/R] : The 3D SYNC IN signal is used to indicate the left and right ﬁeld sequence. [R/L] : The inverted 3D SYNC IN signal is used to indicate the left and right ﬁeld sequence.
Page 135 13. Input Left Left Right Normal Left 3D Sync Right Inverted Left 3D Sync Right Image 13-41 3D sync out How to toggle 3D SYNC OUT 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Alignment → 3D Glasses → L/R Synchronisation.
Page 136 13. Input [On] : 3D SYNC OUT is the inverted version of the 3D sync signal generated by the processing, allowing to swap left and right eye on the active glasses. [Off] : 3D SYNC OUT is a copy from the 3D sync signal generated by the processing. R5906730 HDF WLP SERIES 01/08/2017...
Page 137: Image
14. Image 14. IMAGE Overview • Image menu overview • Start up the Image adjustments • Image settings • Aspect Ratio • Timings • Image File Services • Save custom settings • Splash image 14.1 Image menu overview Overview table Level 1 Level 2 Level 3...
Page 138: Start Up The Image Adjustments
14. Image Total vertical lines Active lines Vertical start Advanced settings Clamp delay Clamp width Press Auto Image for new measurement Image ﬁle service Manual load File load ﬁlter Delete Delete all Rename Copy Options Save custom settings Splash image On or Off Timeout(sec) 14.2 Start up the Image adjustments...
Page 139: Brightness
14. Image How to adjust 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Image Settings → Contrast. Image 14-2 Image settings, contrast 2. Press ENTER to select. 3.
Page 140: Saturation
14. Image 3. To change the value directly in the Image Settings window, use the ◄ or ► key or a numeric key 0-9, to adjust as a % of the full range. To adjust via the bar scale menu, press ENTER to display the Brightness menu and adjust with the ◄ or ► key. Press ENTER again to enter the value directly with the numeric keys.
Page 141: Color Temperature (Fixed Values)
14. Image Image 14-8 Jittering on image Phase adjustment can be done with the Phase key on the RCU or via the menu structure. How to adjust 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Image Settings → Phase.
Page 142: How To Select
14. Image How to select 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Image Settings → Color Temperature. Image 14-11 Image settings, color temperature 2. Press ENTER to select. The color temperature selection menu is displayed.
Page 143: Color Temperature (Custom Values)
14. Image 14.3.6 Color temperature (custom values) How to set up 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Image Settings → Color Temperature. Image 14-14 Image settings, color temperature 2.
Page 144 14. Image 0.7V Black level Image 14-16 Δ G ΔΒ Δ R Black level Image 14-17 One can conclude here that a good color tracking can only be met by using three previously (input) balanced color signals Analog Digital Conversion The analog color signals must pass through an Analog/Digital conversion circuit prior to any digital processing in the PMP.
Page 145: Adjusting The Input Balance
14. Image 14.3.7.2 Adjusting the input balance How can it be done ? To balance the three color signals of a particular source there are conditions; in fact we must know the black and the white level of the source i.e. : The source in question must be able to generate a white signal, ideally a 100% white (background) full screen pattern The source in question must be able to generate a black signal, ideally a 100% black (background) full screen pattern Image 14-19...
Page 146 14. Image Image 14-21 Image settings, input balance Image 14-22 Input balance, black 2. Press ENTER to select. 3. Do you want to use an internally generated test pattern ? If yes, use the ▲ or ▼ key to select Adjustment Pattern and press ENTER to toggle between [on] and [off] If no, adjust on the selected source.
Page 147: Image Settings, Defaults
14. Image 3. Press ENTER to select. 4. Do you want to use an internally generated test pattern ? If yes, use the ▲ or ▼ key to select Adjustment Pattern and press ENTER to toggle between [on] and [off] If no, select a white pattern (or gray scale as alternative).
Page 148: Aspect Ratio
14. Image 3. Use the ▲ or ▼ key to select Yes and press Enter to conﬁrm. The default settings will be applied for the selected source. 14.4 Aspect Ratio Aspect ratio Relation between the horizontal & vertical dimension in which the window will be displayed, e.g. 4 by 3 or 16 by 9. Can also be expressed as a decimal number, such as 1.77.
Page 149: Timings
14. Image Image 14-29 Aspect ratio 4. Press ENTER to activate. How to set up the custom aspect ratio 1. While Custom is selected, use the ▲ or ▼ key to select Setup Custom and press ENTER. Image 14-31 Custom aspect ratio adjustment Image 14-30 Custom aspect ratio The custom aspect ratio setup menu opens.
Page 150: Advanced Timings, Clamp Delay - Clamp Width
14. Image • Total lines: Total lines in the source. How to set up 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Timings. Image 14-32 Timings window 2.
Page 151: Image File Services
14. Image How to change the clamp delay - clamp width 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Timings → Advanced settings. Image 14-34 Timings, advanced settings 2.
Page 152: File Load Filter
14. Image Image 14-36 Image ﬁle services 2. Press ENTER to select. Depending on the File Load Filter setting a full list or a list ﬁtting the selected source is displayed. When staying for at least 3 seconds on the same ﬁle selection after scrolling through the list of image ﬁles a pre-load is started. Image 14-37 Load ﬁle 3.
Page 153: Delete All Custom Files
14. Image How to delete 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Image File Services → Delete. Image 14-39 Delete custom ﬁle 2. Press ENTER to select. The available custom ﬁles are displayed.
Page 154: Rename Custom Files
14. Image Image 14-41 Delete all custom ﬁles If no custom ﬁles are available, a message that no custom ﬁles are available is displayed. 2. Use the ▲ or ▼ key to select Yes or No. Image 14-42 Delete all 3.
Page 155: Copy Custom File
14. Image The available custom ﬁles are displayed. If no custom ﬁles are available, a message that no custom ﬁles are available is displayed. Image 14-44 Rename, list of ﬁles 3. Use the ▲ or ▼ key to select the ﬁle to rename and press ENTER. The rename window opens.
Page 156: Image File Service Options, Load File
14. Image The available custom ﬁles are displayed. Image 14-47 Copy ﬁles, list If no custom ﬁles are available, a message that no custom ﬁles are available is displayed. Image 14-48 No custom ﬁles 3. Use the ▲ or ▼ key to select the ﬁle to copy and press ENTER. The copy window opens.
Page 157: Image File Service Options, Auto Picture Alignment
14. Image Automatic : correct ﬁle will be loaded automatically. Manual : correct ﬁle should be loaded manually. Custom only : correct ﬁle will be loaded automatically out of the available custom ﬁles. 14.6.9 Image ﬁle service options, Auto Picture Alignment How to set 1.
Page 158 14. Image A splash image can be uploaded via Projector Toolset. For more information about uploading a splash image, consult Projector Toolset’s user guide. Enable or disable the splash image 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Image → Splash image The Splash image menu is displayed.
Page 159: Layout
15. Layout 15. LAYOUT Overview • Layout menu overview • Start up the layout adjustments • Introduction • Main window • PiP window • Layout File Services • Lens behavior 15.1 Layout menu overview Overview table Level 1 Level 2 Level 3 Level 4 Layout...
Page 160: Introduction
15. Layout The Layout adjustment menu is displayed. Image 15-1 Layout, main window 15.3 Introduction Overview Layout ﬁles determine the size and the position of the main and PiP window on the screen. Some pre-deﬁned layouts are available in the projector but custom layouts can be created and saved for future use. A source number and lens settings can be associated with the layout settings.
Page 161: Main Window Size
15. Layout 3. Use the ▲ or ▼ key to select the desired source and press ENTER. The radio button of the selected source is checked and the source is linked with the main window. 15.4.2 Main window size What can be done? The size of the main window can be adjusted until the desired window dimensions are reached.
Page 162: Main Window Position
15. Layout 3. To keep the current aspect ratio, press ENTER to check Lock. Once Lock is checked, the width and the height will follow each other when changing one of the dimensions. 4. Use the ▲ or ▼ key to change the height and the ◄ or ► key to change the width. 5.
Page 163: Pip Window
15. Layout The Position window opens. Image 15-10 Position window 3. Use the ▲ or ▼ key to change the Top position and the ◄ or ► key to change the Left position. 4. When desired position is reached, press EXIT. A Save Layout window opens.
Page 164: Picture In Picture Activation
15. Layout Image 15-12 Position of PiP Top position Left position 15.5.2 Picture in Picture activation How to activate 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Layout → PiP window → PiP window [On] / [Off].
Page 165: Pip Window, Size
15. Layout The Select Source window opens. Image 15-15 Select source 3. Use the ▲ or ▼ key to select the desired source and press ENTER. The radio button of the selected source is checked and the source is linked with the PiP window. PiP source and main source can be the same input.
Page 166: Pip Window, Position
15. Layout How to resize 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Layout → PiP window → Size. Image 15-18 PiP window, size 2. Press ENTER to select. The Size window opens.
Page 167: Layout File Services
15. Layout Image 15-21 PiP window, position 2. Press ENTER to select. The Position window opens. Image 15-22 Position window 3. Use the ▲ or ▼ key to change the Top position and the ◄ or ► key to change the Left position. 4.
Page 168: Rename Layout File
15. Layout Image 15-24 Layout ﬁle services, load 2. Press ENTER to select. The Load layout overview window opens. Image 15-25 Load layout ﬁle list 3. Use the ▲ or ▼ key to select the desired ﬁle and press ENTER to activate. The radio button in front of the selected ﬁle is checked.
Page 169: Delete Layout File
15. Layout The Rename window opens. 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 170: Copy Or Save As Layout File
15. Layout Image 15-31 Layout ﬁle services, delete all 2. Press ENTER to select. The Delete all conﬁrm window opens. If no custom ﬁles are available, a message that no custom ﬁles are available is displayed. Image 15-32 Layout ﬁles, delete all conﬁrmation 3.
Page 171: Lens Behavior
15. Layout 15.7 Lens behavior What can be done ? Different custom layouts can have different zoom/focus/shift (lens) settings, e.g. when using the projector on 2 different projector distances or two different screen sizes (same image but 2 custom layouts needed due to different zoom/focus/shift settings). Adjust the lens settings for the different situations and save these settings each in a different custom layout.
Page 172 15. Layout R5906730 HDF WLP SERIES 01/08/2017...
Page 173: Laser
16. Laser 16. LASER Overview • Laser menu overview • Start up the laser adjustments • laser power mode • laser power • Auto dimming when on Pause • Auto dimming when No Signal • Auto dimming when Over-temperature • CLO mode (Constant light output mode) •...
Page 174: Laser Power Mode
16. Laser 16.3 laser power mode What can be done? The laser power mode can be switched between Normal, Economic and Long Life. When playing in Economic and Long Life mode, the laser life time will be higher than in normal mode. The counter of the laser life time counts equal for normal or economic mode but the customer will see that the ageing of the laser is lower in economic and long life mode.
Page 175: Auto Dimming When On Pause
16. Laser 16.5 Auto dimming when on Pause About auto dimming when on pause When the projector is switched to pause, the shutter is closed but the laser is still running on full power. When auto dimming on pause is activated, then the laser power will be reduced from its current value to its minimum value. When returning out of pause the laser power is restored to its previous value.
Page 176: Auto Dimming When Over-Temperature
16. Laser 16.7 Auto dimming when Over-temperature What can happen? When an over-temperature is detected, the projector starts dimming the laser so that the projector can cool down. How to set up 1. Press Menuon the remote control (RCU) or on the local keypad to activate the menus and select laser → Power → Auto Dimming Overtemperature.
Page 177 16. Laser 5000 10000 15000 20000 25000 30000 35000 40000 Runtime (hrs) Image 16-7 90% CLO 85% CLO 80% CLO Normal ACC 100% Power Mode 5000 10000 15000 20000 25000 30000 35000 40000 Runtime (hrs) Image 16-8 R5906730 HDF WLP SERIES 01/08/2017...
Page 178: Clo Targets
16. Laser CLO mode setting On overrules the laser power mode setting. Projector will always play in CLO mode using the CLO target. How to switch CLO mode 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Laser → Power → CLO mode. Image 16-9 Power, CLO mode 2.
Page 179: Laser Identiﬁcation
16. Laser Image 16-11 Laser power 16.11 Laser identiﬁcation About The Laser identiﬁcation menu gives an overview of the most important parameters of the used Laser. These parameters are: • Serial number of the laser • Article number of the laser •...
Page 180 16. Laser The Current light output panel is displayed. Image 16-13 R5906730 HDF WLP SERIES 01/08/2017...
Page 181: Alignment
17. Alignment 17. ALIGNMENT Overview • Orientation • Lens adjustment, zoom - focus • Lens adjustment, shift • Lens adjustment, mid position • Calbrate lens at startup • Calibrate lens • Warping • Blanking adjustment • Gamma • Internal patterns •...
Page 182: Lens Adjustment, Shift
17. Alignment 2. Use the ▲ or ▼ key to select zoom/focus and press ENTER to activate. Image 17-2 Lens, Zoom/Focus 3. Use the ▲ or ▼ key to zoom the lens. Use the ◄ or ► key to focus the lens. Press ENTER to switch to Lens shift adjustment.
Page 183: Lens Adjustment, Mid Position
17. Alignment 17.4 Lens adjustment, mid position How to return to mid position 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Alignment → Lens. The Lens menu is displayed . 2.
Page 184: Warping
17. Alignment Image 17-8 Calibrate lens A Lens Calibration window opens. Select ﬁrst the desired calibration options by checking the check box before the option and then select Yes to start the calibration procedure. Image 17-9 Calibrate lens conﬁrmation 17.7 Warping Not all models are equipped with a warping unit.
Page 185: About Warping
17. Alignment • Warp board and values reset • Alternative Side Keystone • Alternative Side Keystone 17.7.1 About warping Overview Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen. Consequently, it can also be used to generate an image with irregular shape.
Page 186: Start Up Manual Adjustment
17. Alignment 17.7.3 Start up manual adjustment How to start up 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Alignment → Warping → .Warp adjust. The Warp adjust menu opens. The content of this warp adjust menu depends on the selection.
Page 187 17. Alignment 11 12 15 16 19 20 23 24 27 28 31 32 Image 17-16 33 x 33 regions in an image Warp adjustment is divided in six modes: • 2 x 2 (highest mode); • 3 x 3; •...
Page 188 17. Alignment 11 12 15 16 19 20 23 24 27 28 31 32 1 1 1 1 1 1 1 1 1 Image 17-18 Warp adjustment: 2 x 2 mode In 3 x 3 mode, the image side centers represent the level two anchor points, whereas the image center represents the level three anchor point.
Page 189: Setting The Warping Level
17. Alignment 17.7.5 Setting the warping level How to select 1. With the Warping menu displayed, use the ▲ or ▼ key to select more or less pixels to adjust. Switching between the more or less pixels icon can be done with the ◄ or ► key. Image 17-21 Warp level selection Increment pixels...
Page 190: Making Selections And Adjustments
17. Alignment Image 17-22 Warp adaptation steps The following selection is possible: 100 pixels 10 pixels 1 pixel Custom 3. Press ENTER to accept the selection. When Custom is selected, the step value can be changed. How to change the custom step value 1.
Page 191: Keystone Correction Workﬂow
17. Alignment 4. To adjust a value once selected, use the ◄ or ► key to change press ENTER to open a separate adjustment window. Use the arrow keys to make the adjustment. Image 17-24 Warping, keystone About Warp area Image 17-25 Warp area Full screen...
Page 192: Linearity Adjustment, Workﬂow
17. Alignment press ENTER when an item is selected and use the 4 arrow keys to adjust. Image 17-27 Warping, keystone 5. Move the corner points to the desired position. Image 17-28 Keystone adjustment 17.7.9 Linearity adjustment, workﬂow Adjusting vertical and horizontal linearity 1.
Page 193: Selecting And Changing The Position Of A Speciﬁc Point
17. Alignment 17.7.10 Selecting and changing the position of a speciﬁc point About point selection Depending on the warp level, number of selectable points, a speciﬁc point can be selected and moved in any direction. The coordi- nate system works with 33 x 33 pixels (0 to 32). Depending on the warp level the cursor will jump from active point to active point. E.g.
Page 194: Shifting The Image
17. Alignment Depending on the selected area only the points in that area will be adjusted and the scale direction changes according the selection. 3. Select Scale. 4. Select within Warp Adaptations, an available adjustment to scale the image. press ENTER when an item is selected and use the 4 arrow keys to adjust. Image 17-33 Warping, scaling 17.7.12 Shifting the image...
Page 195 17. Alignment Image 17-35 Rotation Selecting rotation point 1. Select full image as warp area (1). Image 17-36 Rotation point, selection 2. Use the arrow keys to select Rotation point (2). 3. Select Warp Adaptations and use the arrow keys to move rotation point to the desired position (3). press ENTER when an item is selected and use the 4 arrow keys to adjust.
Page 196: Hardware Reset
17. Alignment Image 17-38 Rotate image 3. Select Warp adaptation, angle. 4. Use the ◄ or ► key to change the rotation Angle. press ENTER to open the Warping Adaptations window. Use the ◄ or ► key to change the Angle. Image 17-39 Warping adaptation, angle 17.7.14 Hardware Reset...
Page 197: Warp File Service, Load File
17. Alignment Image 17-41 Opacity How to adjust 1. Press Menuon the remote control (RCU) or on the local keypad to activate the menus and select Alignment → Warping → .Opacity. Image 17-42 Warping, opacity 2. Use the ◄ or ► key to change the opacity. 17.7.16 Warp ﬁle service, load ﬁle What can be done? A predeﬁned warp conﬁguration can be loaded in the warp board as active warp conﬁguration ﬁle.
Page 198: Warp File Service, Save To File
17. Alignment Image 17-43 File service, load 2. Press ENTER to display the overview list with warp ﬁles. Image 17-44 Warp ﬁles 3. Use the ▲ or ▼ key to select the desired ﬁle. 17.7.17 Warp ﬁle service, save to ﬁle What can be done? The current warp settings are saved in the current active ﬁle How to save...
Page 199: Warp File Service, Rename File
17. Alignment Image 17-46 Save as 2. Press ENTER to open the Enter the name window. The current active ﬁle name is displayed. 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad.
Page 200: Warp File Service, Delete All Files
17. Alignment Image 17-50 Delete warp ﬁle 2. Press ENTER to display the Warp ﬁle list. Image 17-51 Image 17-52 Warp ﬁles Conﬁrm delete 3. Use the ▲ or ▼ key to select the ﬁle to delete and press ENTER. 4.
Page 201: Warp Board Reset
17. Alignment Yes: ﬁles will be deleted. No: no ﬁles deleted 17.7.22 Warp board reset What can be done? In some circumstances the hardware of the warping get stuck. A hard reset of the board is the only solution. With Warp board reset, the board is reset but the current values remain in the board.
Page 202: Alternative Side Keystone
17. Alignment 17.7.24 Alternative Side Keystone About the alternative side keystone For 3D sources with a frequency higher than 30 Hz/eye, the warp unit cannot be used anymore. Therefor, for these source the alternative side keystone can be used. How to adjust 1.
Page 203 17. Alignment Which blanking adjustments are available ? • top blanking • bottom blanking • left blanking • right blanking Image 17-59 Blanking Top blanking Bottom blanking Left blanking Right blanking The reset function brings all blanking settings back to zero. How to adjust 1.
Page 204: Gamma
17. Alignment The blanking adjustment menu opens. Image 17-61 Blanking adjustment 3. Use the ▲ or ▼ key to select the desired blanking adjustment and adjust with the ◄ or ► key. Select Reset to reset all blanking adjustments. 17.9 Gamma About Gamma Gamma is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced).
Page 205: Color Space
17. Alignment 2. Press ENTER to select the pattern list. Image 17-63 OSD test patterns 3. Use the ▲ or ▼ key to select a pattern and press ENTER to display that pattern. The following patterns are available: Checker board Color Bars Convergence Convergence_2...
Page 206 17. Alignment Image 17-64 Color space 2. Select Status and press ENTER to toggle between [On] or [Off]. [On] : projector will use the selected color space. [Off] : projector will always use the Projector color space. 3. When [On] is selected, depending on he color temperature setting a color space request window opens. The color temperature setting must be set to Projector White.
Page 207: Scenergix
17. Alignment 2. Use the ▲ or ▼ key to select a color coordinate. Use the ◄ or ► key to change the value of the selected coordinate. Adjust all other coordinates in the same way. Select Reset to return to previous saved values. 17.12 Scenergix 17.12.1 Introduction Why ScenergiX ?
Page 208: Preparations
17. Alignment 17.12.2 Preparations ScenergiX Preparations To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all projectors: • Convergence • Geometry • Color Matching (Color Temperature, Color Standard, Input Balance, Gamma) 17.12.3 Scenergix activation How to activate 1.
Page 209: Scenergix Adjustment Lines
17. Alignment [On] : Internal scenergix pattern is displayed. [Off] : no scenergix pattern is displayed. 10 50 90 130 170 210 250 290 330 370 40 80 120 160 200 240 280 320 360 400 10 50 90 130 170 210 250 290 330 370 Image 17-72 Scenergix pattern 17.12.5 Scenergix adjustment lines...
Page 210 17. Alignment Hor. Hor. Start 1 Start 2 Size 2 Size 1 Vert. Start 1&2 Projector 2 Projector 1 Image 17-74 Data doubling Source Projected image Activate data doubling on both projectors and setup the vertical and horizontal start for projector 1 and projector 2. How to setup 1.
Page 211: White Level Adjustment (Blending Area)
17. Alignment [On] : data doubling is activated. [Off] : data doubling is deactivated. 3. Select Horizontal Start and use the ◄ or ► key to set the correct start position. 4. Do the same for Horizontal Size, Vertical Start and Vertical Size. 5.
Page 212 17. Alignment Image 17-79 Width selections 4. Set ﬁrst the width for the ﬁrst projector and repeat for the second one. Image 17-80 Width set up for projector 1 R5906730 HDF WLP SERIES 01/08/2017...
Page 213: Black Level Adjustment
17. Alignment Image 17-81 Width set up for projector 2 To eliminate all blending settings, select Reset and press ENTER. 17.12.8 Black level adjustment Why black level adjustment For dark images, the overlap zone will be brighter then the rest of the images. Typically for DLP projectors, next to the overlap zone, a brighter area is recognized.
Page 214 17. Alignment How to set the leakage area width 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Alignment → Scenergix → Black level. Image 17-83 Scenergix, Black level 2. Press ENTER to select the Black Level adjustments. Image 17-84 Black level, area 3.
Page 215 17. Alignment Image 17-85 DLP leakage area Overlap area DLP Leakage area Use the Reset item to reset all area values. How to adjust 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Alignment → Scenergix → Black level.
Page 216: Scenergix Reset
17. Alignment Image 17-87 Black level, adjust 3. Adjust the black level of area A until the black level of area A, B and C are equal. Use the Adjust function Red, Green and Blue in the Black level menu. Image 2 Image 1 Image 17-88...
Page 217: Glasses
17. Alignment Image 17-89 Scenergix, reset 2. Press ENTER to reset the Scenergix value. All value are set back to the default values. 17.13 3D Glasses Overview • Dark time adjustment • Left-right output reference delay • 3D Sync Loop Through •...
Page 218 17. Alignment Opening + Closing = Blanking Time DLP Mirrors Active Blanking Time Left Shutter Open Closed Right Shutter Open Closed Image 17-90 Opening/closing times of the shutters in sync with the blanking time Closing these shutters too late and/or opening too early will cause Cross-Talk. Opening Too Early and/or Closing Too Late = Cross Talk DLP Mirrors...
Page 219: Left-Right Output Reference Delay
17. Alignment Opening Too Late and/or Closing Too Early = Color Artifacts DLP Mirrors Active Blanking Time Left Shutter Open Closed Right Shutter Open Closed Image 17-92 Shutters closing too early and/or opening too late cause Color Artifacts Adjusting the Dark Time will allow an easy synchronization of the Blanking Period of the DLP mirrors with the opening/closing time of the shutters in the Stereo Glasses.
Page 220: Sync Loop Through
17. Alignment Image Frame Left Frame Right Frame Left Without output reference delay Left 3D Sync Right Delay Time With output reference delay Left 3D Sync Right Image 17-94 3D Output reference delay How to set the delay 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Alignment → 3D Glasses . The 3D Glasses menu is displayed .
Page 221: Upper Limit For Triple Or Double Flash
17. Alignment Image 17-96 3D sync loop through 4. Press ENTER to toggle between [On] and [Off]. [On] : 3D SYNC OUT is directly routed from 3D SYNC IN [Off] : the internal 3D sync signal is available on 3D SYNC OUT, native or inverted as indicated in the ‘Invert 3D Sync Out’ setting. 17.13.4 Upper limit for triple or double ﬂash What can be done? The Upper limit for triple ﬂash can be set.
Page 222 17. Alignment Image 17-98 Projector Controlled 2. Use the ▲ or ▼ key to select Projector Controlled and press ENTER to toggle between [On] and [Off]. [On] : High End Systems Mirror is controlled via the projector. [Off] : High End Systems Mirror is not controlled via the projector. Pan - Tilt adjustment 1.
Page 223 17. Alignment Image 17-100 Store settings [No] : settings are stored globally. [Yes] : settings are stored per layout. R5906730 HDF WLP SERIES 01/08/2017...
Page 224 17. Alignment R5906730 HDF WLP SERIES 01/08/2017...
Page 225: Projector Control
18. Projector Control 18. PROJECTOR CONTROL Overview • Projector Control menu overview • Start up the projector control adjustments • Individual Projector Address • Projector Common Address • Serial Communication • Network • IR Control switching • • Buttons • Menu position •...
Page 226: Start Up The Projector Control Adjustments
18. Projector Control Shutdown time Buttons Shortcut keys Standby button Menu position Menu position Bar scale position Local LCD Back light Time out Change Language Scheduler Add task Edit task Delete task Scheduler on/off GSM conﬁguration PIN code SMS subscription 18.2 Start up the projector control adjustments Start up 1.
Page 227: Projector Common Address
18. Projector Control Image 18-2 Projector address 2. Press ENTER to activate the address input. Image 18-3 Projector address, input 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad.
Page 228: Interface Standard
18. Projector Control How to set 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Projector Control → Serial Communication → Baudrate. Image 18-6 Serial communication, baud rate 2. Press ENTER to toggle between the available baud rates. The following baud rates can be selected: 9600 19200...
Page 229: Introduction To A Network Connection
18. Projector Control 18.6.1 Introduction to a Network connection DHCP Dynamic host conﬁguration protocol. DHCP is a communications protocol that lets network administrators manage centrally and automate the assignment of IP addresses in an organization’s network. Using the Internet Protocol, each machine that can connect to the Internet needs a unique IP address.
Page 230: Wired Ip Address Set Up
18. Projector Control Image 18-8 Wired DHCP 2. Use the ▲ or ▼ key to select DHCP under Wired and press ENTER to toggle between [On] or [Off]. [On] : DHCP is activated. An automatic IP address is assigned. [Off] : DHCP is deactivated. A ﬁxed address must be used. 18.6.3 Wired IP address set up How to set up 1.
Page 231: Wired Subnet Mask Set Up
18. Projector Control Image 18-10 Fill IP address 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 232: Wired Default Gateway Set Up
18. Projector Control Image 18-12 Fill subnet mask Image 18-13 Fill subnet mask 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 233: Wireless Network Activation
18. Projector Control Image 18-15 Default Gateway, input 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 234: Wireless Access Points Selection And Setup
18. Projector Control Image 18-17 Wireless, status 3. Press ENTER to toggle the status between [Off] and [On]. 18.6.7 Wireless access points selection and setup These menu items are only accessible when wireless network status is set to [on]. Scan for access points 1.
Page 235: Wireless Dhcp Set Up
18. Projector Control For a secured network, a passphrase should be entered before getting access to the wireless network. Image 18-20 Image 18-21 Passprhrase, selection Passphrase, entry Image 18-22 Open network connection 2. Press ENTER to activate the input ﬁeld. 3.
Page 236: Wireless Fixed Ip Address Set Up
18. Projector Control Image 18-23 Network, wireless Image 18-24 Wireless, DHCP 2. Press ENTER to open the Wireless menu. 3. Use the ▲ or ▼ key to select DHCP and press ENTER to toggle between [On] or [Off]. [On] : Wireless DHCP is activated. An automatic IP address is assigned. [Off] : Wireless DHCP is deactivated.
Page 237: Wireless Subnet Mask Set Up
18. Projector Control Image 18-27 Wireless IP address input 3. Press ENTER to open the Wireless menu. 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 238: Wireless Default Gateway Set Up
18. Projector Control Image 18-30 Wireless Subnet Mask, input 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 239: Ir Control Switching
18. Projector Control Image 18-33 Wireless default gateway, input 4. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 240: Dmx Address
18. Projector Control 18.8.1 DMX address What should be done ? Before a projector can execute DMX commands, a unique address, called DMX address, should be given to the projector. This address can vary from 1 to 512. How to set the DMX address 1.
Page 241: Dmx Mode
18. Projector Control Image 18-36 DMX, universe 2. Press ENTER to select. Image 18-37 DMX universe 3. Use the ▲ or ▼ key to change the selected character. Use the ◄ or ► key to select another character. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 242: Art-Net Dmx
18. Projector Control Image 18-38 DMX mode 2. Press ENTER to toggle between [Basic], [Extended] or [Full]. 18.8.4 Art-Net DMX What can be done ? DMX can be sent via Ethernet to the projector. This function can be enabled or disabled. Art-Net DMX [On] : DMX via Ethernet is enabled.
Page 243: Monitor
18. Projector Control Image 18-40 Front XLR Output voltage enable 2. Press ENTER to toggle between [On] and [Off]. [On] : Front XLR Output voltage enabled. [Off] : Front XLR Output voltage disabled. Output voltage level setup 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Projector Control → DMX → Output voltage level.
Page 244: Dmx Shutdown
18. Projector Control Image 18-42 DMX monitor 2. Press ENTER to open the overview list. Image 18-43 DMX overview list 18.8.7 DMX Shutdown What can be done? Projector can be forced to go in shutdown after a certain retarding time when no DMX signals are available. How to activate/deactivate 1.
Page 245: Dmx Shutdown Retarding Time
18. Projector Control 18.8.8 DMX Shutdown retarding time About the shutdown retarding time The retarding time is the time between no DMX is detected and the moment that the projector shuts down. How to set the retarding time 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Projector Control → DMX → Shutdown Time.
Page 246: Shortcut Keys
18. Projector Control 18.9.2 Shortcut keys What can be done? An overview of the shortcut allocations with the corresponding menu is given. Those printed in bold are allocated. The allocated shortcut keys can be cleared within this menu. How to clear a shortcut key 1.
Page 247: Local Lcd
18. Projector Control 18.11 Local LCD What is possible ? The back light of the local LCD can be adapted to the needs of the environment. A time out for the local LCD can be set. If there is nothing done on the local LCD, it can go out after a time out. How to set up 1.
Page 248: Scheduler
18. Projector Control Image 18-52 Language selection 2. Use the ▲ or ▼ key to select the desired language and press ENTER to activate. The radio button before the active language is checked. The menu content is changed to the new language. 18.13 Scheduler About the scheduler The scheduler allows to start up different tasks at a given time which can control the screen layout and the status of the light source.
Page 249 18. Projector Control Image 18-54 Add task, setup Start date and time 1. When selected, press ENTER to select the day. 2. Use the ▲ or ▼ key to change the current setting. Use the ◄ or ► key to jump to the next part of the date and time setting. Image 18-55 Time setup 3.
Page 250 18. Projector Control Routine setup, inﬁnite loop To repeat the task with a given sequence again and again, check the check box in front of Inﬁnite. Routine setup, occurrences For a limited number of loops, set up the occurrences: 1. Select Occurrence and press ENTER. 2.
Page 251: Edit A Task
18. Projector Control The task is added to the list of tasks. 18.13.2 Edit a task What can be done? An existing task in the list of tasks can be edited and saved with the same name. How to edit 1.
Page 252: Delete Task
18. Projector Control 18.13.3 Delete task What can be done? A task stored in the list of tasks can be deleted from that list. How to delete 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Projector Control → Scheduler →...
Page 253: Gsm Conﬁguration, Activation
18. Projector Control Scheduler will execute the tasks in the list. A schedule symbol is added at the left bottom corner of the local LCD panel ( No tasks are executed 18.14 GSM Conﬁguration, activation Only possible when a GSM module with SIM card is installed in the projector. What can be done ? To conﬁgure the projector software with the installed SIM card, a correct PIN code (4digits) must be entered.
Page 254: Gsm Conﬁguration, Subscription
18. Projector Control Replacing a SIM card with a new one 1. Before removing the current mounted SIM card, select Projector Control → GSM conﬁguration → GSM pincode Image 18-70 GSM conﬁguration, Pin code 2. Select Pin code with the current ﬁlled out code and press ENTER to clear the current code. Image 18-71 Pin code ﬁlled 3.
Page 255: Sms Services
18. Projector Control The GSM number must be entered with the following mask +##XXXYYYYYY + is mandatory before starting with the country code. ## = country code, 1, 2 or 3 digits XXX = operator number length depends on the country (do not enter the 0) YYYYYY = phone number The + must be followed by at least 7 digits (country+operator number+phone number >...
Page 256: Request For Notiﬁcations
18. Projector Control 18.16.1 Request for notiﬁcations What can be done ? Via an SMS message sent from any cell phone to the GSM number associated with the projector, notiﬁcation information can be requested. The receiving projector analyses the message. The projector answers with an SMS of maximum 140 characters con- taining all the active notiﬁcations sorted from the highest to the lowest severity that ﬁt in this one message.
Page 257 18. Projector Control The receiving projector analyses the message and execute the command. It creates a return SMS with the following message: “Lamp ignition enable” or “Lamp ignition disabled” or “Lamp ignition admission failed”. This message is sent back to the requested cell phone. R5906730 HDF WLP SERIES 01/08/2017...
Page 258 18. Projector Control R5906730 HDF WLP SERIES 01/08/2017...
Page 259: Service
19. Service 19. SERVICE Overview • Start up the Service menu • Identiﬁcation • Diagnosis • Internal Service Patterns • USB memory • Reset Formatter • Reﬁll mode • Save Custom Settings • Auto Dimming when over-temperature • Time and Date 19.1 Start up the Service menu Start up 1.
Page 260: Diagnosis
19. Service Image 19-1 Identiﬁcation 2. Use the ▲ or ▼ key to scroll through the menu. 19.3 Diagnosis What can be seen? The diagnosis menu gives the possibility to get an overview of the working of the projector. Overview •...
Page 261: Measurements
19. Service Image 19-2 Diagnosis, versions 2. Press ENTER to display an overview of the versions. Image 19-3 Diagnosis, versions list 19.3.2 Measurements About measurements Measurements contains the following parts: • Voltages • Temperatures • Fan speeds All tables are built up in an identical way. The current measured value is surrounded with the low and high error and warning limits. Once one of these values are crossed the threshold an error or warning message is logged or displayed on the local LCD screen.
Page 262: Logging
19. Service Image 19-5 Overview voltages Image 19-6 Overview temperatures Image 19-7 Overview fan speeds Image 19-8 Overview miscellaneous items 19.3.3 Logging What can be done? Projector hosts two log ﬁles: one managed by the Main controller and one speciﬁc for the Laser power supply. How to display the logging 1.
Page 263: Board Id
19. Service Image 19-10 Logging, main controller Image 19-9 Diagnosis, logging 2. Use the ▲ or ▼ key to select Main Controller to get a logging of the main controller or to select Laser Power Supply to get a logging of the laser power supply. Image 19-11 Main controller logging Image 19-12...
Page 264: Notiﬁcation
19. Service 2. Press ENTER to display an overview of the board IDs. Image 19-14 Overview board IDs 19.3.5 Notiﬁcation About notiﬁcations Notiﬁcations are warnings and errors displayed on the local LCD or on the OSD since power on of the projector. Once powered off, the notiﬁcation logging is cleared.
Page 265: Internal Service Patterns
19. Service How to check the tilt sensor 1. Press Menu on the remote control (RCU) or on the local keypad to activate the menus and select Service → Diagnosis → Tilt sensor. Image 19-17 Diagnosis, tilt sensor 2. Press ENTER to read out the tilt sensor. Image 19-18 Tilt sensor output The rotation of the projector is visually displayed.
Page 266 19. Service Image 19-20 Internal service patterns, input Press ENTER to display the list of possible patterns. Image 19-21 Image 19-22 Input test patterns Input test patterns Pmp In patterns Image 19-23 Pmp In test patterns To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the different patterns.
Page 267 19. Service Osd patterns Image 19-25 Internal service patterns, OSD Press ENTER to display the list of possible patterns. Image 19-26 OSD Test patterns Pmp out patterns Image 19-27 Internal service patterns, Pmp Out Press ENTER to display the list of possible patterns. R5906730 HDF WLP SERIES 01/08/2017...
Page 268 19. Service Image 19-28 Pmp out test patterns To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the different patterns. Image 19-29 Pmp out internal service test patterns options Fib patterns Image 19-30 Internal service patterns, Fib...
Page 269: Usb Memory
19. Service 19.5 USB memory Purpose 2 functions are available • Custom settings can be saved on a USB stick. • A selection of saved settings can be (down)loaded via an USB stick on the projector. How to save custom settings 1.
Page 270: Reﬁll Mode
19. Service Image 19-35 Reset formatter If you want to reset the formatter, select Yes. If you do not want to reset the formatter, select No. 19.7 Reﬁll mode Before selecting Reﬁll mode, take ﬁrst all preparations necessary to reﬁll the cooling circuit. What can be done? When all necessary preparations are taken, the reﬁll mode activates automatically the reﬁll process.
Page 271: Auto Dimming When Over-Temperature
19. Service Image 19-37 Save custom settings, question 19.9 Auto Dimming when over-temperature What can happen? When an over-temperature is detected, the projector starts dimming the light source so that the projector can cool down. How to activate - deactivate 1.
Page 272 19. Service R5906730 HDF WLP SERIES 01/08/2017...
Page 273: Preventative Maintenance Actions
20. Preventative maintenance actions 20. PREVENTATIVE MAINTENANCE ACTIONS Maintenance program The maintenance program is subdivided in time frames. The maintenance actions described in this chapter can be done by a trained projectionist. Note that there are also annually and 10 yearly maintenance actions (not included in this manual) which must be done by certiﬁed service personnel who are familiar with potential hazards of the product and all product safety checks.
Page 274: Month Maintenance Actions
20. Preventative maintenance actions Maintenance action Remarks Check the surface of the lens output side for dust. (it is not needed to remove Clean the lens output side in case dust the lens from the projector). Only clean if necessary. is clearly visible upon the surface.
Page 275: Maintenance Procedures
Inserting an input module Extra service information Extra service information for qualiﬁed service technicians can be found on Barco’s Partnerzone (URL:http:\\my.barco.com). Regis- tration is necessary. If you are not yet registered, click on Partnerzone registration and follow the instructions. With the created login and password, it is possible to enter the partnerzone where you can ﬁnd extra service information about the projector.
Page 276: Replacement Of The Dust Filter On The Bottom Side
21. Maintenance procedures Image 21-1 Front ﬁlter 3. Insert a new HEPA ﬁlter by pulling the two spring clamps away and move the ﬁlter into position. Caution: Make sure that the airﬂow indicated on the dust ﬁlter match with the airﬂow of the fans. 4.
Page 277: Check Of The Dust Filter Of The Standalone Cooling Unit
21. Maintenance procedures Image 21-3 Bottom ﬁlter, remove 4. Place a new HEPA dust ﬁlter in the ﬁlter holder. Caution: Make sure that the airﬂow indicated on the dust ﬁlter match with the airﬂow of the fans. 5. Reinstall the ﬁlter holder containing the new HEPA ﬁlter. 6.
Page 278: Vacuum Cleaning Of The Dust Filters
21. Maintenance procedures Necessary parts 2 x clean/new ﬁlters How to check 1. Turn out both screws and remove the side cover plate of the cooling unit. Image 21-6 2. Pull out the dust ﬁlter. 3. Check the “air in” side of the dust ﬁlter for dust and/or grease. In case the ﬁlter is contaminated with grease wash and dry the dust ﬁlter.
Page 279: Washing And Drying The Dust Filters
About ﬁlter washing and drying For environments where popcorn grease and such can contaminate the ﬁlters, Barco advises the client to purchase one extra set of ﬁlters to cover drying time, as well as taking following extra precautions and instructions pertaining to ﬁlter cleaning and drying.
Page 280: Cleaning The Lens
AUTION Do not install/use damaged dust ﬁlters. Replace damaged dust ﬁlters immediately with new dust ﬁlters of the same type. See https://my.barco.com for replacement part 21.6 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces follow the cleaning procedure as described here precisely.
Page 281: Inserting An Input Module
21. Maintenance procedures 21.8 Inserting an input module ARNING Switch off the projector and unplug the power cord before starting the procedure. How to insert 1. Loosen both screws of the dummy cover plate (1). Image 21-8 Insert input module 2.
Page 282 21. Maintenance procedures R5906730 HDF WLP SERIES 01/08/2017...
Page 283: Removal And Installation Of The Projector Covers
22. Removal and installation of the projector covers 22. REMOVAL AND INSTALLATION OF THE PROJECTOR COVERS About this chapter Most maintenance and servicing procedures demand removing one or more of the projector covers to gain access to the parts to maintain or to service.
Page 284: Removal Of The Side Cover
22. Removal and installation of the projector covers Image 22-2 22.2 Removal of the side cover AUTION Remove the side cover of the projector only in a clean and dust free area. Never remove the side cover in an area which is subject to airborne contaminants such as that produced by smoke machines or similar.
Page 285: Removal Of The Light Unit Cover
22. Removal and installation of the projector covers 22.3 Removal of the light unit cover ARNING This procedure may only be performed by qualiﬁed technical service personnel. Necessary tools 7 mm ﬂat screw driver. How to remove the light unit cover 1.
Page 286: Installation Of The
22. Removal and installation of the projector covers How to remove the input cover 1. Release the two captive screws at the top and bottom left side of the input cover, using a ﬂat screw driver. Image 22-7 Captive screws input cover 2.
Page 287: Installation Of The Side Cover
22. Removal and installation of the projector covers a) ﬁrst hook in the side of the front cover at the front ﬁlter, b) then gently push the other side of the front cover into position, c) ensure that the locking studs in the corners click into their receivers. Image 22-9 Front cover installation 4.
Page 288: Installation Of The Light Unit Cover
22. Removal and installation of the projector covers Image 22-11 3. Install the side cover of the projector doing the following: a) Bring the side cover towards its ﬁnal position (A), b) then gently push the locking studs of the top corners (B) into their receivers, c) then gently push the locking studs of the bottom corners (C) into their receivers.
Page 289: Installation Of The Input Cover
22. Removal and installation of the projector covers Image 22-14 Light unit cover installation 2. Secure the light unit cover by locking the two captive screws at the right side of the light unit cover. Image 22-15 Captive screw locking 22.8 Installation of the input cover ARNING This procedure may only be performed by qualiﬁed technical service personnel.
Page 290 22. Removal and installation of the projector covers Image 22-16 Input cover, installation 2. Secure the input cover by locking the two captive screws at the left side of the input cover. Image 22-17 Captive screws, locking R5906730 HDF WLP SERIES 01/08/2017...
Page 291: Environmental Information
For more information about recycling of this product, please contact your local city ofﬁce or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee...
Page 292: Contact Information
Registered ofﬁce address: President Kennedypark 35, 8500 Kortrijk, Belgium Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To ﬁnd your local importer, contact Barco directly or one of Barco’s regional ofﬁces via the contact information given on Barco’s web site, www.barco.com. Made in information The made in country is indicated on the product ID label on the product itself.
Page 293: Speciﬁcations
DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink Optional Inputs 5-BNC RGBHV ( RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + Barco link/SDI/HDSDI/dual HDSDI/3G; 3D active input (HDMI/ displayport) feat SENSIO 3D Input resolutions From NTSC up to QXGA (2,048 x 1,536) Max.
Page 294: Technical Regulations
A. Specifications Standard accessories Power cord,wireless/XLR wired rugged remote control,bottom rigging kit/clamps Certiﬁcations UL60950-1 and EN60950-1,FCC rules & regulations,part 15 Class A and CE EN55022 Class A,RoHS Warranty 3 years +/- 10% A.2 Technical Regulations Certiﬁcates RoHS Image A-2 Image A-3 Image A-4 Image A-1 Rohs...
Page 295: Dimensions
B. Dimensions B. DIMENSIONS Overview • Dimensions of the HDF series projector • Dimensions of the HDF WLP series ﬂight case B.1 Dimensions of the HDF series projector Dimensions 14.8 676.1 771.1 Image B-1 Dimensions given in millimeters. R5906730 HDF WLP SERIES 01/08/2017...
Page 296: Dimensions Of The Hdf Wlp Series Flight Case
B. Dimensions Point of gravity Image B-2 Dimensions given in millimeters. B.2 Dimensions of the HDF WLP series ﬂight case Dimensions 1194 1175 Image B-3 Dimensions given in millimeters. R5906730 HDF WLP SERIES 01/08/2017...
Page 297: Standard Source Files
C. Standard source files C. STANDARD SOURCE FILES C.1 Table overview Table overview The following standard image ﬁles are pre-programmed in the projector. Name Fvert FHor Fpix Ptot Pact Ltot Lact 640x350@85 85,079 37,860 31,500 640x400@85 85,079 37,860 31,500 640x480@60 59,940 31,668 25,175...
Page 298 C. Standard source files Name Fvert FHor Fpix Ptot Pact Ltot Lact 1280x1024@85 85,027 91,149 157,506 1728 1280 1072 1024 1360x768@60 60,15 47,752 85,500 1792 1366 1366x768@60 59,790 47,712 85,500 1792 1366 1400x1050@50 50,000 54,500 94,618 1736 1400 1090 1050 1400x1050@60 59,979 65,317...
Page 299 C. Standard source files Name Fvert FHor Fpix Ptot Pact Ltot Lact hd-1920x1080@30i 60,000 33,750 74,250 2200 1920 hd-1920x1080@30p 30,000 33,750 74,250 2200 1920 1125 1080 hd-1920x1080@29,97i 5 9,94 33,716 74,176 2200 1920 hd-1920x1080_2@25i 50,000 31.25 74,250 2376 1920 hd-1920x1080@50p 50,000 56,250 148,500 2640...
Page 300 C. Standard source files R5906730 HDF WLP SERIES 01/08/2017...
Page 301: Dmx Chart
D. DMX chart D. DMX CHART Overview • DMX chart, Basic • DMX chart, Full • DMX chart, Extended D.1 DMX chart, Basic Overview Chan- Function Value Default Action Intensity 0 - 5 Mechanical shutter closed 6 - 255 Electronic contrast on output Function select 0 - 7 No function...
Page 302: Dmx Chart, Extended
D. DMX chart Chan- Function Value Default Action Input selection 0 - 87 No function 88 - 95 Input 1 (if held for 2 seconds) 96 - 103 Input 2 (if held for 2 seconds) 104 - 111 Input 3 (if held for 2 seconds) 112 - 119 Input 4 (if held for 2 seconds) 120 - 255...
Page 303 D. DMX chart Chan- Function Value Default Actions Input selection 0 - 87 No function 88 - 95 Input 1 (if held for 2 seconds) 96 - 103 Input 2 (if held for 2 seconds) 104 - 111 Input 3 (if held for 2 seconds) 112 - 119 Input 4 (if held for 2 seconds) 120 - 255...
Page 304 D. DMX chart R5906730 HDF WLP SERIES 01/08/2017...
Page 305: Stacking Hdf Wlp Series Projectors
E. Stacking HDF WLP series projectors E. STACKING HDF WLP SERIES PROJECTORS General Three interlocking adapters at the top and at the bottom of the HDF WLP series projector allows an easy and fast stacking without using extra tools or accessories. ARNING Maximum stack three (3) HDF WLP series projectors in a table mount conﬁguration.
Page 306 E. Stacking HDF WLP series projectors Image E-2 Closing interlocking adapter 4. Are these projectors stacked for a ceiling mount conﬁguration? If yes, secure the projectors with safety chains as follows: a) Release the safety hook (H) at both sides of the lowest projector and guide the safety cable around its carrying handle (C) as illustrated.
Page 307: Aligning Stacked Hdf Wlp Series Projectors
E. Stacking HDF WLP series projectors How to open an interlocking adapter ? 1. Open an interlocking adaptor as illustrated. Image E-5 Opening interlocking adapter ARNING Never open an interlocking adapter of a stacked projector which is still suspended. First place the stacked projectors on the ﬂoor.
Page 308 E. Stacking HDF WLP series projectors Inclination Image E-7 Inclination adjustment 5. If necessary, adjust the skew of the stacked projector with respect to the reference projector by turning the screw Q in or out using a 8 mm Allen key. The screw Q is located behind the cover of the light unit, just above the volt meter. Adjust until the outline of the hatch pattern is most symmetric with the reference hatch pattern.
Page 309 E. Stacking HDF WLP series projectors In case of a triple stacked table mount projector conﬁguration adjust and align ﬁrst the bottommost projector (reference), than the projector in the middle and ﬁnally the uppermost projector. R5906730 HDF WLP SERIES 01/08/2017...
Page 310 E. Stacking HDF WLP series projectors R5906730 HDF WLP SERIES 01/08/2017...
Page 311 Revision Sheet Barco NV/Documentation President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11, Fax: +32 56.36.88.24 Support: www.barco.com/en/support, Web: www.barco.com From: Date: Please correct the following points in this documentation (R5906730/05): page wrong correct R5906730 HDF WLP 01/08/2017 SERIES...
