2 Product Overview

Machine Components

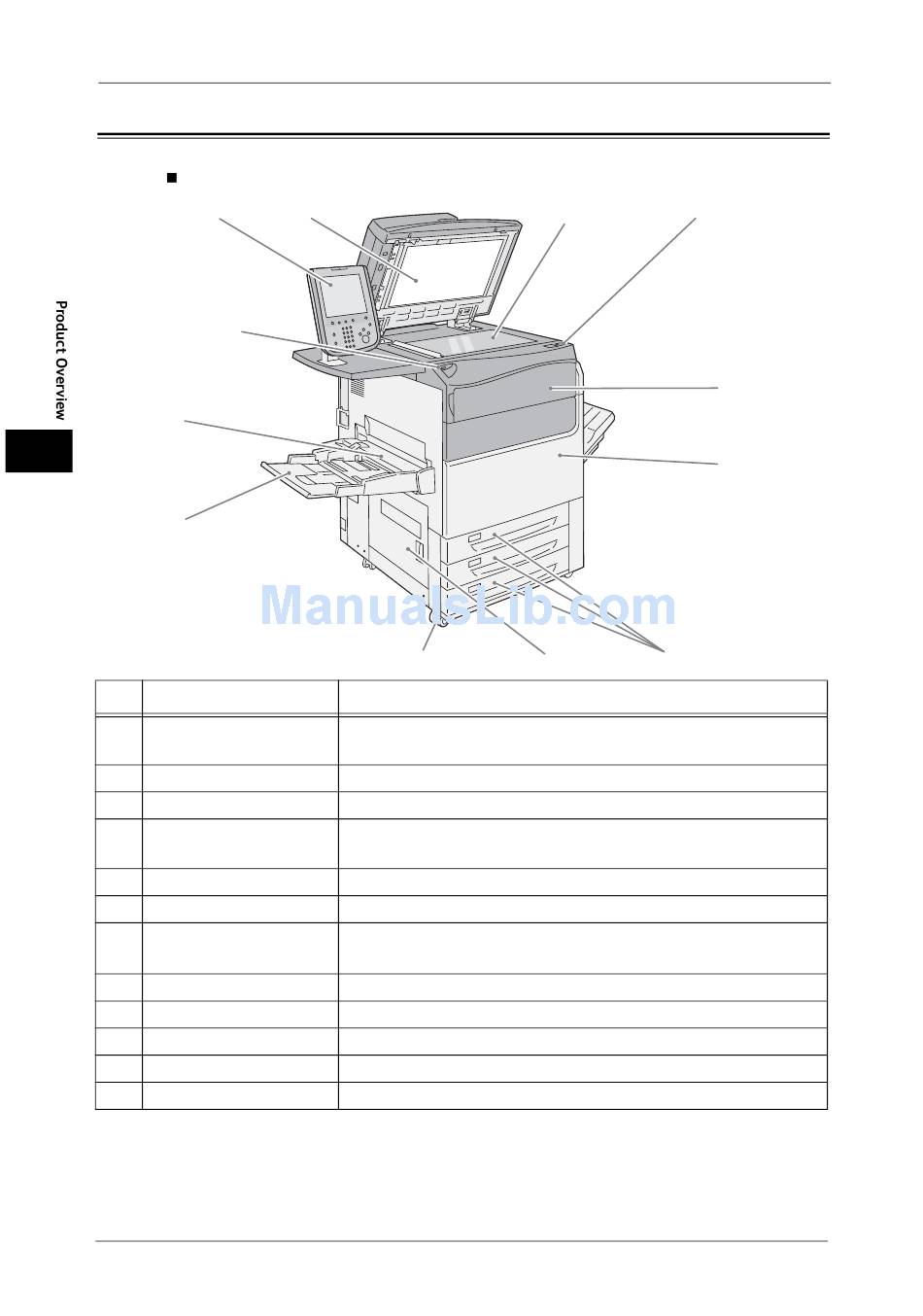

Main unit
1
12
11
2
10
No. Component
1 Control panel
2 Document cover
3 Document glass
4 Power switch
5 Machine front toner cover
6 Machine front door
7 Tray 1, 2, 3
8 Bottom left door
9 Casters
10 Tray 5 (Bypass)
11 Tray 5 (Bypass) top cover
12 USB memory slot
54
2
9
Consists of operation buttons, LED indicators, and a touch screen.
For more information, refer to "Control Panel" (P.74).
Holds a document in place.
Load a document here.
Switches the power of the machine on and off.
For more information, refer to "Power Source" (P.64).
Open this cover to replace toner cartridges.
Open this door to clear paper jams or replace consumables.
Load paper here.
Note • The machine is not equipped with Tray 4.
Open this door to clear paper jams.
Used to move the machine. Lock them after installation.
Used for loading non-standard paper that cannot be loaded in Trays 1 to 3.
Open the top cover to clear paper jams.
Insert a USB 2.0 memory device into this slot directly.
3 4
8
7
Function
5
6
