4.5.16 ASF Unit

Parts/Components need to be removed in advance
Scanner Unit/ADF Unit/Upper Housing /Hinge/Middle Cover/Printer Mechanism/
Card Slot Cover/Main Board Unit/Left Frame/Front Frame/Right Frame/CR
Motor/CR Scale/Hopper/Main Frame Assy
Removal procedure
1. Release the PE Sensor cable from the notches (x6) of the Base Frame and pull
out the cable from the hole (x1).
PE Sensor Connector Cable
3
2
1

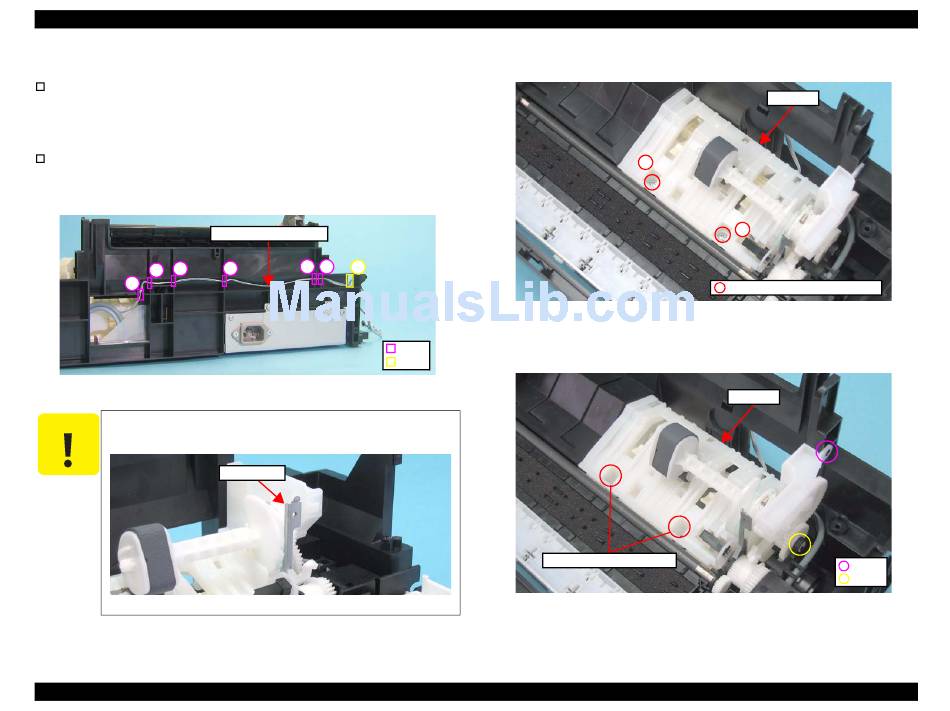

Figure 4-91. Releasing the PE Sensor Connector Cable
When performing the following steps, be cautious not to get injured
C A U T I O N
with the sharp edges of the Frame Support.
Figure 4-92. Sharp Edges of the Frame Support
DISASSEMBLY/ASSEMBLY
5 6
7
4
Notch
Hole
Frame Support
Disassembling the Printer Mechanism
2. Remove the screws (x2) that secure the ASF Unit.
2
Figure 4-93. Removing the ASF Unit (1)
3. Release the dowel (x1) and dowels (x2) of the Base Frame and the shaft (x1)
of the ASF Unit, then remove the ASF Unit.
Dowels and positioning holes
Figure 4-94. Removing the ASF Unit (2)
Revision A
ASF Unit
1
C.B.P. 3x8, F/Zn-3C (6±1kgfcm)
ASF Unit
Dowel
Shaft
