Digital Projection M-Vision 930 Series

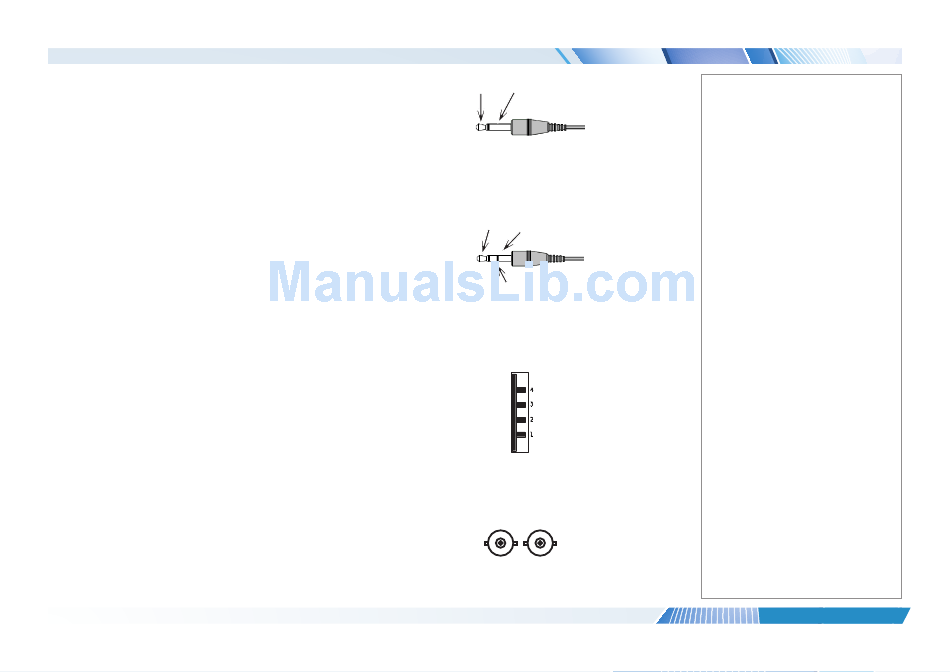

Trigger 1 & Trigger 2

3.5 mm mini jack

Tip Signal
Sleeve Ground

IR input

3.5 mm mini jack

Tip Signal
Ring Not connected
Sleeve Ground

USB

USB type A socket
Pin 1 VCC (+5 V)
Pin 2 Data−
Pin 3 Data+
Pin 4 Ground

3D Sync IN and 3D Sync OUT

75 ohm BNC
Reference Guide
APPENDIX E: WIRING DETAILS
Tip Sleeve
Tip
Sleeve
Ring
USB port:
pin view of female connector
pin view of female connector
Notes
Rev C February 2015
page 116
