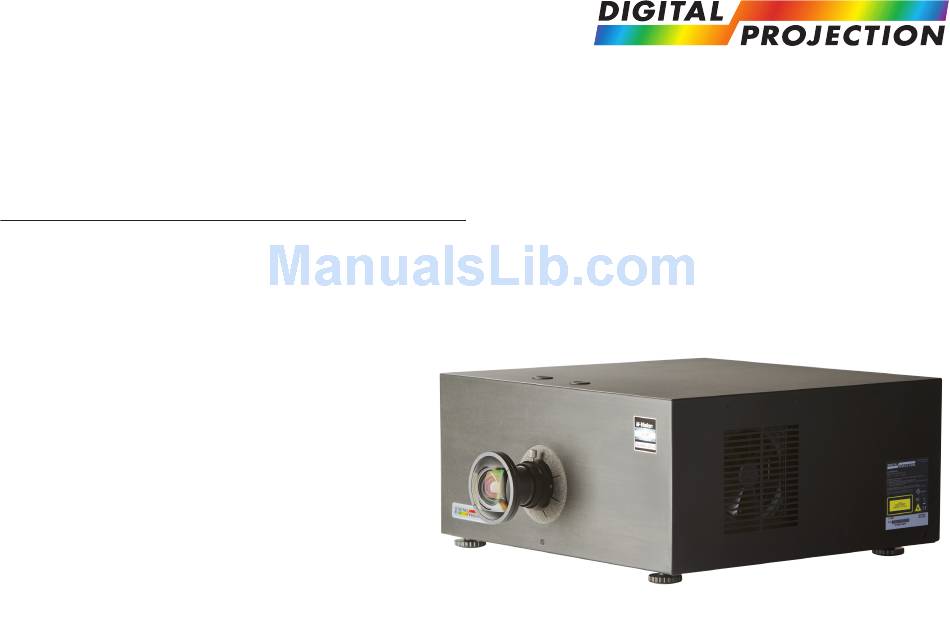

- Page 1 USER GUIDES INSTALLATION AND QUICK-START GUIDE CONNECTION GUIDE OPERATING GUIDE REMOTE COMMUNICATIONS GUIDE M-Vision LED+IR series High Brightness Digital Video Projector 16:10 widescreen display Rev D July 2014 112-564D...
- Page 2 INSTALLATION AND QUICK-START GUIDE M-Vision LED+IR series High Brightness Digital Video Projector 16:10 widescreen display Rev D July 2014 112-158D...
-
Page 3: Table Of Contents
Digital Projection CONTENTS Installation and Quick-Start Guide M-Vision LED+IR series CONTENTS About this Guide Operating the Projector ...................Inst_1 ..............Inst_6 Symbols used in this guide ..............Inst_1 Switching the Projector On ..............Inst_6 Warnings ..................Inst_1 Selecting an Input Signal or Test Pattern ...........Inst_6 Notes .....................Inst_1... -
Page 4: About This Guide
Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described. -
Page 5: What's In The Box
Digital Projection WHAT'S IN THE BOX? Installation and Quick-Start Guide M-Vision LED+IR series What’s in the Box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. You should save the original box and packing materials, in case you ever need to ship your Projector. -
Page 6: Getting To Know The Projector
Digital Projection GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide M-Vision LED+IR series Getting to Know the Projector Notes Front and rear views Remote control The projector uses the standard Lens shift MVision series infra-red remote controls 40° control. -
Page 7: Control Panel And Indicators
Digital Projection GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide M-Vision LED+IR series Control panel and indicators Notes Some of the controls from the remote control are duplicated on the projector control panel, as shown here. For full details of how to use the controls and the menu system, see the Operating Guide. -
Page 8: Positioning The Screen And Projector
Digital Projection POSITIONING THE SCREEN AND PROJECTOR Installation and Quick-Start Guide M-Vision LED+IR series Positioning the Screen and Projector Notes • Install the screen, ensuring that it is in the best position for viewing by your audience. • Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that Always allow the lamp to cool for the projector is level, and perpendicular to the sceen. -
Page 9: Operating The Projector
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision LED+IR series Operating the Projector Notes Switching the Projector On • Connect the power cable between the mains supply and the projector. Switch on at the switch next to the power connector. -
Page 10: Adjusting The Lens
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision LED+IR series Adjusting the Lens Notes Zoom • Turn the smooth ring on the lens, closest to the case, to adjust the zoom so that the image fills the screen. -
Page 11: Adjusting The Image
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision LED+IR series Adjusting the Image Notes Orientation • Use the Rear Projection Ceiling Mode settings, in the Setup Menu Aspect Ratio For full details of how to use the controls and the menu system, see •... -
Page 12: Connection Guide
CONNECTION GUIDE M-Vision LED+IR series High Brightness Digital Video Projector 16:10 widescreen display Rev D July 2014 112-159D... - Page 13 Digital Projection CONTENTS Connection Guide M-Vision LED+IR series CONTENTS About this Guide Wiring Details ................Conn_1 ..................Conn_6 Symbols used in this guide ............... Conn_1 Signal inputs ..................Conn_6 Warnings ..................Conn_1 HDMI ..................Conn_6 Notes ..................Conn_1 RGB ................... Conn_7 S-Video ..................
-
Page 14: About This Guide
Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described. -
Page 15: Signal Inputs And Outputs
Digital Projection SIGNAL INPUTS AND OUTPUTS Connection Guide M-Vision LED+IR series Signal Inputs and Outputs Notes HDMI 1 and 2 For a complete listing of pin • Connect to either of the 4-pin HDMI connectors. configurations for all signal and control connectors, see Wiring Details later in this Guide. -
Page 16: Supported Signal Input Modes
Digital Projection SUPPORTED SIGNAL INPUT MODES Connection Guide M-Vision LED+IR series Supported Signal Input Modes Signal Resolution Frame Rate ( Hz ) 640 x 480 59.94 ü ü 640 x 480 74.99 ü ü 640 x 480 ü ü 800 x 600 60.32... - Page 17 Digital Projection SUPPORTED SIGNAL INPUT MODES Connection Guide M-Vision LED+IR series ...continued from previous page Signal Resolution Refresh Rate ( Hz ) NTSC NTSC (M, 4.43) 59.94 ü ü PAL (B,G,H,I) ü ü PAL (N) ü ü PAL (M) 59.94 ü...
-
Page 18: Control Connections
Digital Projection CONTROL CONNECTIONS Connection Guide M-Vision LED+IR series Control Connections Notes Wired Remote Control For a complete listing of pin • configurations for all signal and If infrared signals from the remote control cannot reach the projector due to excessive control connectors, see Wiring distance or obstructions such as walls or cabinet doors, you can connect an external Details later in this Guide. -
Page 19: Wiring Details
Digital Projection WIRING DETAILS Connection Guide M-Vision LED+IR series Wiring Details Notes Signal inputs HDMI For full details of all input settings, see the Advanced menu in the 19 way type A connector Operating Guide. TMDS Data 2+ TMDS Data 2 Shield... -
Page 20: Rgb
Digital Projection WIRING DETAILS Connection Guide M-Vision LED+IR series Notes 15 way D-type connector pin view of female connector For full details of all input settings, see the Advanced menu in the unused Operating Guide. Digital Ground (H Sync) R Ground... -
Page 21: Component 1
Digital Projection WIRING DETAILS Connection Guide M-Vision LED+IR series Component 1 Notes 3 x RCA Phono connector Component 2 3 x 75 ohm BNC For full details of all input settings, see the Advanced menu in the Operating Guide. RGsB... -
Page 22: Control Connections
Digital Projection WIRING DETAILS Connection Guide M-Vision LED+IR series Control connections Notes Sleeve Wired Remote control connection 3.5mm mini jack Note that plugging in the remote control cable will disable the infra- Signal red. Ring Not connected Ring Sleeve Ground Only one remote connection should be used at any one time. -
Page 23: Lan Connection
Digital Projection WIRING DETAILS Connection Guide M-Vision LED+IR series LAN connection Notes TCP Port number 5450 Only one remote connection should 10BaseT Unshielded Twisted Pair cable be used at any one time. The standard wire colours as as follows: White / Orange stripe... -
Page 24: Setting The Lan Ip Configuration
Digital Projection WIRING DETAILS Connection Guide M-Vision LED+IR series Setting the LAN IP configuration Notes • Point your browser at the projector by typing its LAN IP Address into the address bar, then press the Enter key. The default LAN IP address is •... -
Page 25: Operating Guide
OPERATING GUIDE M-Vision LED+IR series High Brightness Digital Video Projector 16:10 widescreen display Rev D July 2014 112-160D... - Page 26 Digital Projection CONTENTS Operating Guide M-Vision LED+IR series Hue/Saturation/Gain..............Op_12 CONTENTS Resync ..................Op_12 Horizontal and Vertical Shift ............Op_12 About this Guide ..................Op_1 Advanced Menu ..................Op_13 Symbols used in this guide ..............Op_1 Color Space ................. Op_13 Warnings ..................
-
Page 27: About This Guide
Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described. -
Page 28: Using The Menus
Digital Projection USING THE MENUS Operating Guide M-Vision LED+IR series Using the Menus Notes Use the buttons on the projector control panel or on the remote control, to access the Some menu options and controls menu system. may not be available due to settings in other menus. -
Page 29: Submenus
Digital Projection USING THE MENUS Operating Guide M-Vision LED+IR series Submenus Notes • Select a submenu using Some menu options and controls • may not be available due to settings then press ENTER SELECT in other menus. These will be •... -
Page 30: Selecting Parameters
Digital Projection USING THE MENUS Operating Guide M-Vision LED+IR series Selecting parameters Notes Most parameters are changed by selecting from a list: Some menu options and controls • Select from the list using may not be available due to settings in other menus. -
Page 31: Commands
Digital Projection USING THE MENUS Operating Guide M-Vision LED+IR series Commands Notes • To use a command, press ENTER/ SELECT Some menu options and controls may not be available due to settings in other menus. These will be shaded green on the actual menu. -
Page 32: A Tour Of The Menus
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series A Tour of the Menus Notes See also Using the Menus, earlier General Menu in this guide and Menu Map, later in this guide. Source Select The input source that is currently •... -
Page 33: Blank Screen
System menu Logo Display • Set this to determine whether the Digital Projection logo appears when the projector is switching from Stanby to On. Auto-Source • When this is set to , the projector will search for an alternative input source when the current input source is disconnected •... -
Page 34: Image Menu
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series Image Menu Notes See also Using the Menus, earlier in this guide and Menu Map, later in this guide. Aspect Ratio • Select from 16:10 16:9 Letterbox 4:3 Narrow... - Page 35 Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series continued Image Menu, Aspect Ratio examples Notes The Native image examples shown here have far fewer pixels than the 1920 x 1200 of the DMD. Your image may be different.
-
Page 36: Brightness, Contrast, Color Saturation, Color Tint
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series continued Image Menu Notes Brightness, Contrast, Color Saturation, Color Tint See also Using the Menus, earlier • in this guide and Menu Map, later in Adjust the sliders for these settings. -
Page 37: Noise Reduction
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series continued Image Menu Notes Noise Reduction See also Using the Menus, earlier • in this guide and Menu Map, later in Press to open the Noise Reduction sub-menu. -
Page 38: Hue/Saturation/Gain
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series continued Image Menu Notes Hue/Saturation/Gain See also Using the Menus, earlier • in this guide and Menu Map, later in Press to open the Hue/Saturation/Gain sub-menu. ENTER/SELECT this guide. -
Page 39: Advanced Menu
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series Advanced Menu Notes See also Using the Menus, earlier in this guide and Menu Map, later in this guide. Color Space • Set this to , except when the projector has problems selecting between... -
Page 40: Rgb Adjust
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series continued Advanced Menu Notes RGB Adjust See also Using the Menus, earlier • in this guide and Menu Map, later in Adjust the RGB offset and gain settings to improve the colour balance of the projected image. -
Page 41: Setup Menu
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series Setup Menu Notes See also Using the Menus, earlier in this guide and Menu Map, later in this guide. Lighting Mode • will not change Lighting Mode Set this to to set the projected output to RGB only. -
Page 42: Rear Projection
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series continued Advanced Menu Notes Rear Projection See also Using the Menus, earlier • in this guide and Menu Map, later in Set this to to reverse the image from left to right, for use in Rear Projection Mode. -
Page 43: Info Menu
Digital Projection A TOUR OF THE MENUS Operating Guide M-Vision LED+IR series Info Menu Notes See also Using the Menus, earlier in this guide and Menu Map, later in this guide. To set the System ID: - connect one projector at a time and set each to a different number using command. -
Page 44: Menu Map
Digital Projection MENU MAP Operating Guide M-Vision LED+IR series Menu Map Notes Menu Sub Menus and Controls Some of the information in this menu GENERAL map is summarised. See the actual menu on the projector for full detail. Source Select... -
Page 45: Advanced
Digital Projection MENU MAP Operating Guide M-Vision LED+IR series Menu Sub Menus and Controls Notes ADVANCED Color Space Some of the information in this menu Auto, REC709, REC601, RGB PC, RGB Video map is summarised. See the actual Video Standard Auto, NTSC, PAL, SECAM menu on the projector for full detail. -
Page 46: Remote Communications Guide
REMOTE COMMUNICATIONS GUIDE M-Vision LED+IR series High Brightness Digital Video Projector 16:10 widescreen display Rev D July 2014 112-161D... - Page 47 Digital Projection CONTENTS Remote Communications Guide M-Vision LED+IR series CONTENTS About this Guide ................. Rem_1 Symbols used in this guide ..............Rem_1 Warnings ..................Rem_1 Notes ................... Rem_1 Product revision .................. Rem_1 Introduction ................... Rem_2 Command format ................. Rem_2 Prefix code .................. Rem_2 Examples ..................
-
Page 48: About This Guide
Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described. -
Page 49: Introduction
Digital Projection INTRODUCTION Remote Communications Guide M-Vision LED+IR series Introduction Notes The projector can be controlled by using an external control system or a computer via a LAN or an RS232 serial interface, using a terminal- emulation program, such as HyperTerminal. -
Page 50: The Key Commands
Digital Projection THE KEY COMMANDS Remote Communications Guide M-Vision LED+IR series The Key Commands Notes • Key commands are used to simulate remote control key presses, and consist of ascii text strings starting with a prefix code, then the letters ‘ky’, and ending with a carriage return character:... - Page 51 Digital Projection THE KEY COMMANDS Remote Communications Guide M-Vision LED+IR series Notes ...continued from previous page IR Hex Code <keyname> Description Bring up or cancel noise reduction slider. gam.sw Switch to the next gamma. src.1 Switch the active source to source 1.
-
Page 52: The Operation Commands
Digital Projection THE OPERATION COMMANDS Remote Communications Guide M-Vision LED+IR series The Operation Commands Notes • Operation commands are used to simulate menu operations and determine the settings of the projector, and consist of ascii text strings starting with a prefix code, then the letters ‘op’, and ending with a carriage return character:... -
Page 53: General Menu
Digital Projection THE OPERATION COMMANDS Remote Communications Guide M-Vision LED+IR series Notes <operation> <command> <values> Notes General menu source.sel 0 = HDMI 1 1 = HDMI 2 2 = RGB 3 = Component 1 4 = Component 2 5 = S-Video... -
Page 54: Advanced Menu
Digital Projection THE OPERATION COMMANDS Remote Communications Guide M-Vision LED+IR series Notes ...continued from previous page <operation> <command> <values> Notes overscan 0 = Off 1 = Crop 2 = Zoom resync (execute) Re-synchronise with the current input signal Advanced menu color.space... -
Page 55: Setup Menu
Digital Projection THE OPERATION COMMANDS Remote Communications Guide M-Vision LED+IR series Notes ...continued from previous page <operation> <command> <values> Notes Setup menu lighting.mode 0 = Daylight (RGB on, IR off) 1 = Night (RGB off, IR on) 2 = Custom ir.dimming... -
Page 56: Miscellaneous Commands
Digital Projection THE OPERATION COMMANDS Remote Communications Guide M-Vision LED+IR series Notes ...continued from previous page <operation> <command> <values> Notes Miscellaneous commands status.check 0 = standby 1 = warm up 2 = imaging 3 = cooling 4 = error 0 = Disable...
