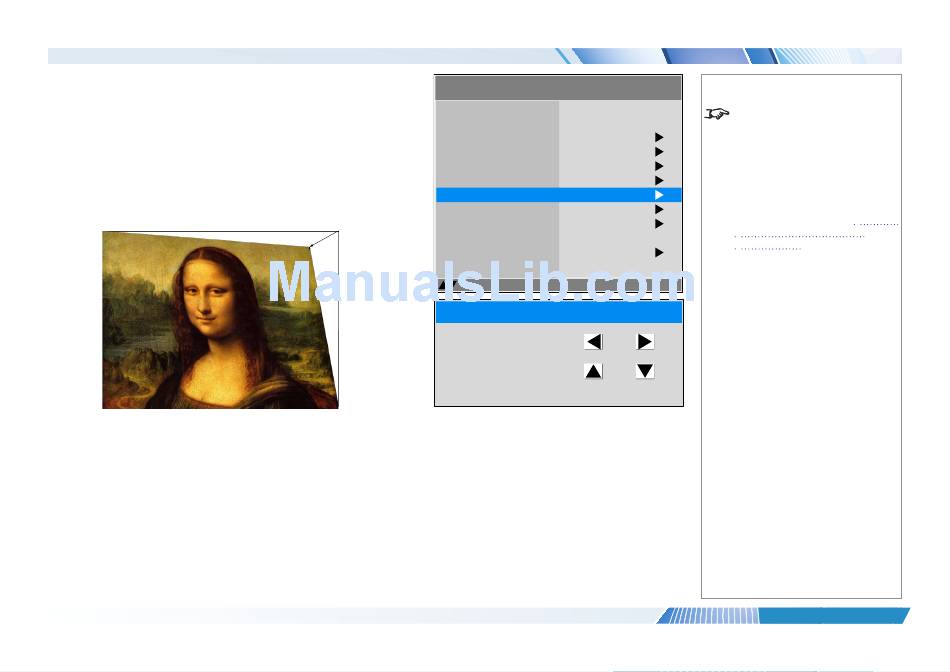

Corners

For each corner, apply horizontal and / or vertical correction as necessary to
restore the rectangular shape of the image.
Top Right Corner example
In this illustration, the top right corner requires both horizontal and vertical
correction.
Top Right Corner
Operating Guide
correction
USING THE PROJECTOR
Geometry >>
Aspect Ratio
Overscan
Keystone
Rotation
Pincushion / Barrel
Top Left Corner
Top Right Corner
Bottom Left Corner
Bottom Right Corner
Reset
Blanking
Select Item
[Enter] Execute
Top Right Corner Adjust
Horizontal
Vertical
Notes
16:10
Corner corrections are unavailable
Off
when using any of the following:
•
Keystone
•
Rotation
•
Pincushion / Barrel
•
Black Level Uplift
For more information, see
Geometry and Edge Blend
< Execute >
combinations
[Menu] Return
0
0
Rev C February 2015
Possible
further in this guide.
page 52
