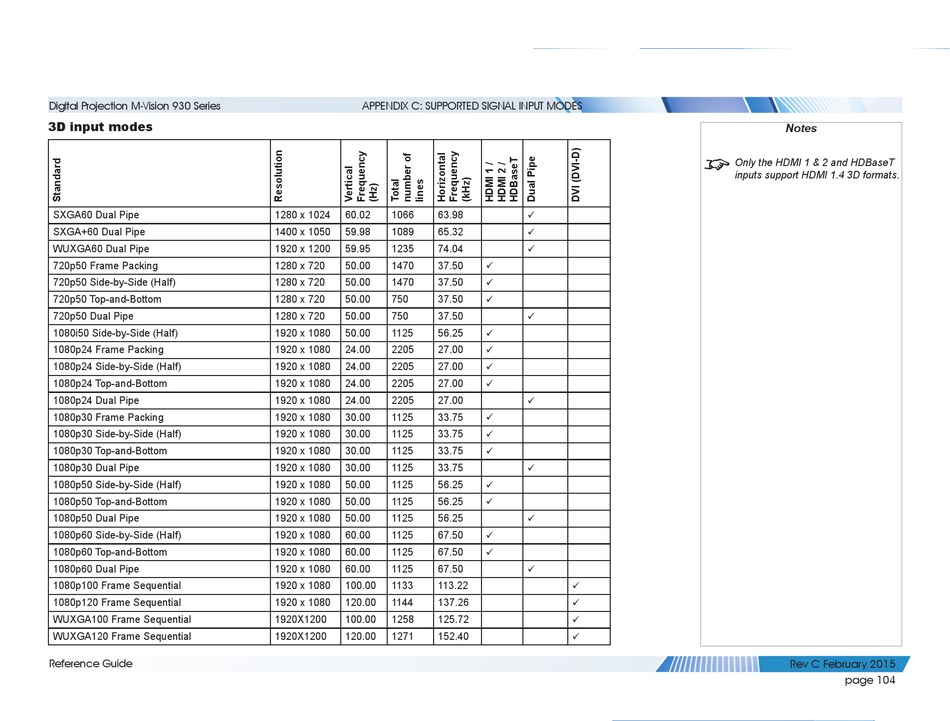

3D input modes

SXGA60 Dual Pipe
SXGA+60 Dual Pipe
WUXGA60 Dual Pipe
720p50 Frame Packing
720p50 Side-by-Side (Half)
720p50 Top-and-Bottom
720p50 Dual Pipe
1080i50 Side-by-Side (Half)
1080p24 Frame Packing
1080p24 Side-by-Side (Half)
1080p24 Top-and-Bottom
1080p24 Dual Pipe
1080p30 Frame Packing
1080p30 Side-by-Side (Half)
1080p30 Top-and-Bottom
1080p30 Dual Pipe
1080p50 Side-by-Side (Half)
1080p50 Top-and-Bottom
1080p50 Dual Pipe
1080p60 Side-by-Side (Half)
1080p60 Top-and-Bottom
1080p60 Dual Pipe
1080p100 Frame Sequential
1080p120 Frame Sequential
WUXGA100 Frame Sequential
WUXGA120 Frame Sequential
Reference Guide
APPENDIX C: SUPPORTED SIGNAL INPUT MODES
1280 x 1024 60.02 1066 63.98
1400 x 1050 59.98 1089 65.32
1920 x 1200 59.95 1235 74.04
1280 x 720 50.00 1470 37.50
1280 x 720 50.00 1470 37.50
1280 x 720 50.00 750 37.50
1280 x 720 50.00 750 37.50
1920 x 1080 50.00 1125 56.25
1920 x 1080 24.00 2205 27.00
1920 x 1080 24.00 2205 27.00
1920 x 1080 24.00 2205 27.00
1920 x 1080 24.00 2205 27.00
1920 x 1080 30.00 1125 33.75
1920 x 1080 30.00 1125 33.75
1920 x 1080 30.00 1125 33.75
1920 x 1080 30.00 1125 33.75
1920 x 1080 50.00 1125 56.25
1920 x 1080 50.00 1125 56.25
1920 x 1080 50.00 1125 56.25
1920 x 1080 60.00 1125 67.50
1920 x 1080 60.00 1125 67.50
1920 x 1080 60.00 1125 67.50
1920 x 1080 100.00 1133 113.22
1920 x 1080 120.00 1144 137.26
1920X1200 100.00 1258 125.72
1920X1200 120.00 1271 152.40
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
Notes
Only the HDMI 1 & 2 and HDBaseT
inputs support HDMI 1.4 3D formats.
Rev C February 2015
page 104
