Digital Projection M-Vision 930 Series

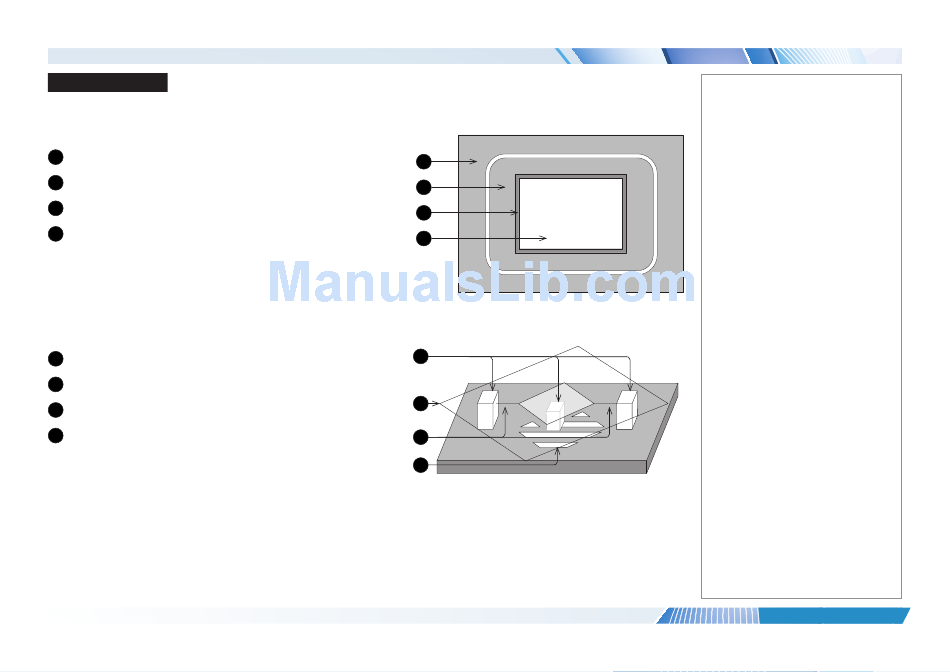

The DMD™
A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of up to 2.3 million moving aluminium mirrors,
with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors)
and are not used in constructing the image.
Casing
1
2
Light shield
Pond of mirrors
3
Array
4
Each mirror element is suspended over address electrodes by a torsion hinge between two posts.
Support posts
1
Mirror element
2
Torsion hinges
3
Offset address electrode
4
Reference Guide
THE DMD™
1
2
3
4
DMD
1
2
3
4
Mirror element with tilt mechanism
Notes
Rev C February 2015
page 72
