Digital Projection M-Vision 930 Series

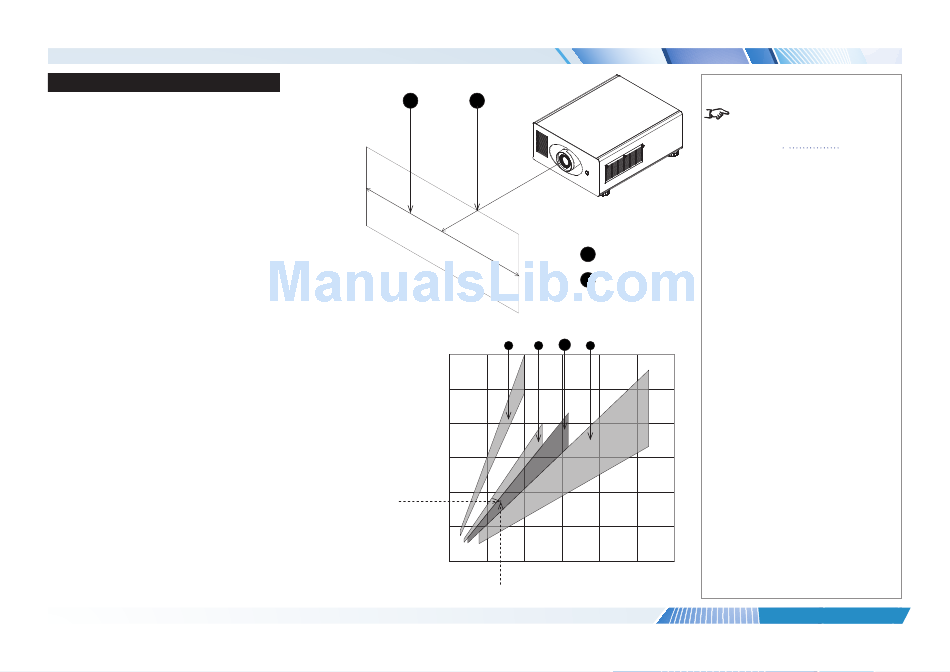

Appendix B: Lens Charts
How to use the lens charts
The lens charts on the following pages provide a quick guide to the
type of lens needed for a particular projector.
To use the lens charts, you need the following information:
•
The distance between the projector and the screen (throw
distance)
•
The maximum width of your screen
In the chart, find the point where the throw distance corresponds to
the screen width, as shown in the example below.
Example
For a projector with
•
throw distance 7 m, and
•
screen width 3.5 m,
the correct lens would be number 3 in the chart.
Reference Guide
APPENDIX B: LENS CHARTS
1
2
1
12 m (39.4 ft)
10 m (32.8 ft)
8 m (26.2 ft)
6 m (19.7 ft)
4 m (13.1 ft)
Screen width
2 m (6.6 ft)
5 m
10 m
(16.4 ft)
(32.8 ft)
Throw distance
Screen width
1
Throw distance
2
3
2
4
15 m
20 m
25 m
30 m
(49.2 ft)
(65.6 ft)
(82.0 ft)
(98.4 ft)
Notes
For information about individual lens
part numbers and lens extension
sizes, see
Appendix A
earlier in this
document.
Rev C February 2015
page 97
