Geometry menu continued from previous page
Keystone
Use this setting to compensate for any distortion caused by the projector being in
a different horizontal or vertical plane to the screen.

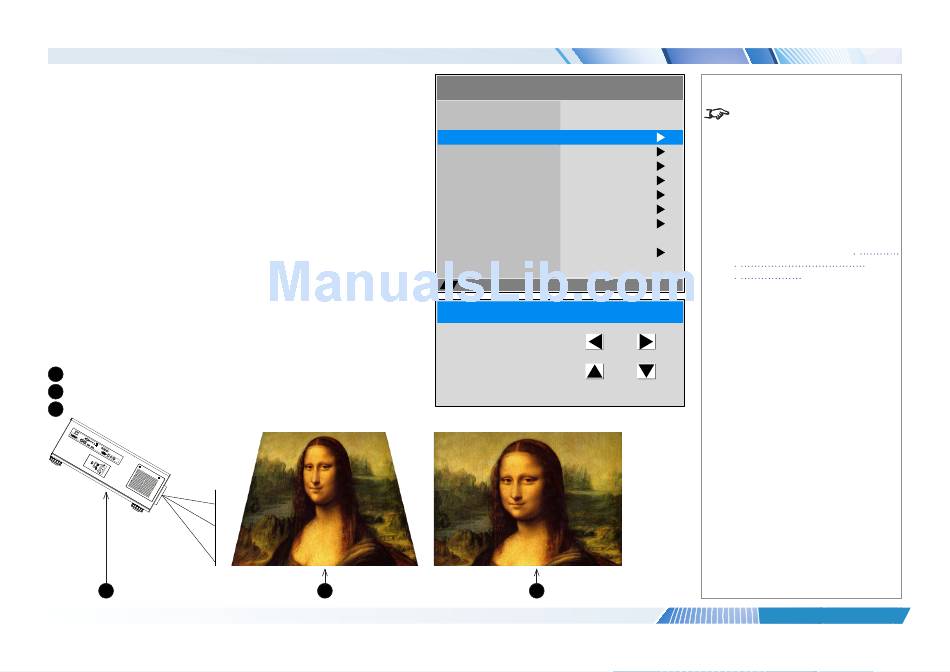

Keystone example
The projector is positioned at an angle
1
The resulting image is distorted
2
The image is corrected when Keystone is applied
3
1
Operating Guide
USING THE PROJECTOR
Geometry >>
Aspect Ratio
Overscan
Keystone
Rotation
Pincushion / Barrel
Top Left Corner
Top Right Corner
Bottom Left Corner
Bottom Right Corner
Reset
Blanking
Select Item
Horizontal Keystone
Vertical Keystone
2
16:10
Off
< Execute >
[Menu] Return
[Enter] Execute
Keystone Adjust
0
0
3
Notes
Keystone
corrections are
unavailable when using any of the
following:
•
Rotation
•
Pincushion / Barrel
•
Corners
•
Blanking
•
Edge Blend
For more information, see
Possible
Geometry and Edge Blend
combinations
further in this guide.
