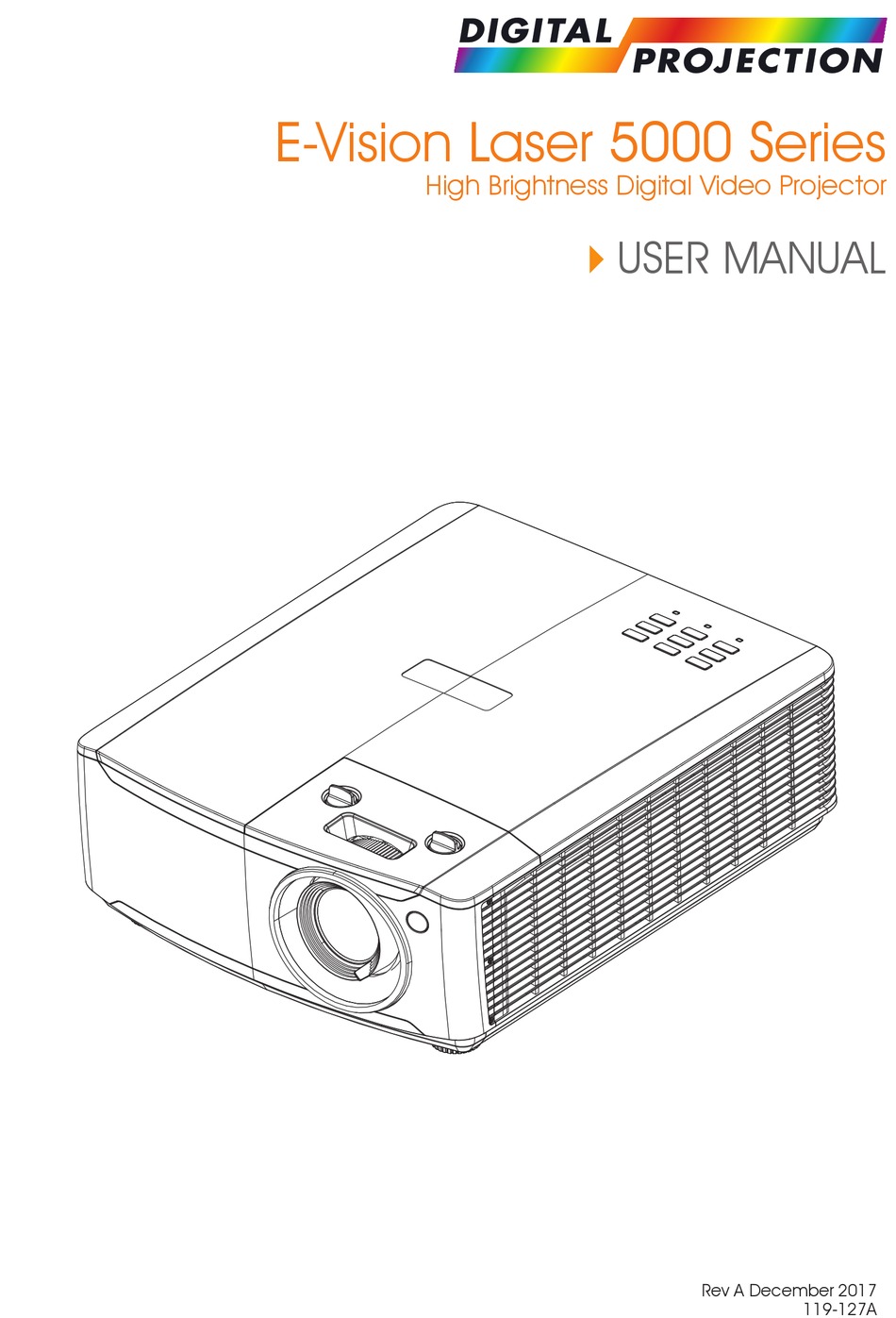

Page 1: User Manual
E-Vision Laser 5000 Series High Brightness Digital Video Projector 4USER MANUAL Rev A December 2017 119-127A... - Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2018 Disclaimer The information in this document is subject to change without notice.
-
Page 3: Important Safety Information
Digital Projection Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. - Page 4 Digital Projection Preface LASER WARNING This symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation.
-
Page 5: Digital Projection
Digital Projection Product labels Product Label locations Projector Hazard Warning Symbol and Laser Aperture Label Complies with FDA performance standards for laser products except for deviations pursuant to Laser Projector Explanatory Labels Notice No. 50, dated June 24, 2007 LASER RADIATION... - Page 6 Digital Projection Preface Laser Pointer Remote Control Explanatory Label 5000 S 2018 ISION ASER ERIES ANUAL ANUARY...
- Page 7 Digital Projection Location of laser aperture The drawing below shows the laser aperture location. Be careful not to look directly into the light emitted from the laser aperture. Safety Interlock switch The projector has a top cover safety interlock switch to protect the user from laser light Leakage.
- Page 8 Digital Projection Preface Projector Installation Notice There is no limitation angle for projector installation. Allow at least 50 cm clearance around the exhaust vent. Minimum 500mm Minimum 500mm Minimum 500mm (19.69 inch) (19.69 inch) (19.69 inch) Minimum 500mm (19.69 inch)
- Page 9 Digital Projection Verify the Installation Location To supply power, a 3-blade (with Earth) socket should be used to ensure proper grounding and an equalized ground potential for all of the equipment in the Projector System. The 3-blade power cord provided with the Projector should be used.
- Page 10 Digital Projection Preface Power Safety Only use a 3-blade power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period.
-
Page 11: Main Features
Digital Projection Main Features DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images Solid state laser phosphor light source for reliable performance Environmentally friendly lamp-less design that is mercury-free and energy efficient ... -
Page 12: Table Of Contents
Digital Projection Preface Table of Contents GETTING STARTED .............................. 1 ............................. 1 ACKING HECKLIST ..........................2 IEWS OF ROJECTOR ARTS Front-right View ............................... 2 Top view—On-screen Display (OSD) buttons and LEDs ................3 Rear view ................................. 4 Bottom view ..............................6 .............................. - Page 13 Digital Projection ..........................62 EMOTE ONTROL ROBLEMS ............................... 62 UDIO ROBLEMS ........................63 AVING THE ROJECTOR ERVICED SPECIFICATIONS ..............................64 ..............................64 PECIFICATIONS ...................... 66 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Tables ......................66 ............................67 IMING ABLE Supported Frequencies ..........................
-
Page 14: Getting Started
Digital Projection ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: Projector Remote Control VGA Cable Power Cord (Batteries Included) CD-ROM Quick Start Guide (This User Manual) Contact your supplying dealer immediately if any items are missing, appear damaged, or if the unit does not work. -
Page 15: Views Of Projector Parts
Digital Projection Views of Projector Parts Front-right View ABEL ESCRIPTION EE PAGE Zoom Ring Enlarges the projected image. Focus Ring Focuses the projected image. Lens Projection Lens. IR Receiver Receives the IR signal from the remote control. Tilt Adjuster Foot Rotate the adjuster to adjust angle of projection. -
Page 16: Top View-On-Screen Display (Osd) Buttons And Leds
Digital Projection Top view—On-screen Display (OSD) buttons and LEDs ABEL ESCRIPTION EE PAGE AUTO Optimizes image size, position, and resolution. ENTER Enters or confirms a highlighted OSD menu item. Navigates and changes settings in the OSD. Quick Menu – For Vertical Keystone. -
Page 17: Rear View
Digital Projection Rear view ABEL ESCRIPTION EE PAGE HDMI 1 Connect a HDMI cable from a HDMI device. RJ45 Connect a LAN cable from Ethernet. HDMI 2 Connect a HDMI cable from a HDMI device. Connect a Cat5e/Cat6 cable from a HDBaseT TX Box (VIDEO HDBaseT EXTENDER) for reception of a HDBaseT signal. - Page 18 Digital Projection ABEL ESCRIPTION EE PAGE Secures the projector to a permanent object with a Kensington Security Slot Kensington Lock system. Receives the IR signal from the remote control. AUDIO IN L/R Connect audio cables from an audio device for VIDEO audio input.
-
Page 19: Bottom View
Digital Projection Bottom view 135.0mm 135.0mm [ 5.31" ] [ 5.31" ] 160.0 [ 6.30" ] 130.0 [ 5.12" ] ABEL ESCRIPTION EE PAGE Contact your dealer for information on mounting the projector on a Ceiling Mount Holes ceiling. Tilt Adjuster Foot Rotate the adjuster to adjust angle of projection. - Page 20 Digital Projection Reference drawings for stand Please hire an installation service provider (for a fee) for the design and manufacture of a customized stand to be used for portrait projection. Please ensure that the design complies with the following conditions: ...
-
Page 21: Remote Control
Digital Projection Remote Control Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt the remote control operation. 2. Ensure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, it is possible to bounce the signal off certain reflective surfaces such as projector screens. - Page 22 Digital Projection ABEL ESCRIPTION EE PAGE IR Transmitter Transmits Infrared control signals to the projector. Power On Turns the projector on. Displays the PC source selection. HDMI Displays the HDMI1/HDMI 2/DVI source selection (toggle). Navigates and changes settings in the OSD.
- Page 23 Digital Projection ABEL ESCRIPTION EE PAGE Enters and confirms settings in the OSD. MHL – Enter/Select/OK Navigates and changes settings in the OSD. Quick Menu – For Horizontal Keystone. MHL - Right Enables the MHL (Mobile High-Definition Link) technology feature for smart devices.
-
Page 24: Projector And Remote Control Buttons
Digital Projection Remote Control Operating Range The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of approximately 7 meters (23 feet) and 15 degrees above or below the projector level. -
Page 25: Setup And Operation
Digital Projection ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the batteries ensuring they are inserted the correct way around. Replace the cover. Caution: 1. -
Page 26: Starting And Shutting Down The Projector
Digital Projection Starting and Shutting down the Projector Securely connect the power cord and signal cables. When AC power is connected, the POWER LED will illuminate green. Turn on the light source by pressing “ ” button on the projector or “... - Page 27 Digital Projection If more than one input device is connected, press the SOURCE button and use ▲▼ to scroll among devices. HDMI 1: High-Definition Multimedia Interface compatible HDMI 2: High-Definition Multimedia Interface compatible HDMI 3 / MHL: High-Definition Multimedia Interface and Mobile High-Definition Link compatible ...
-
Page 28: Setting An Access Password (Security Lock)
Digital Projection Setting an Access Password (Security Lock) You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See... - Page 29 Digital Projection You can use the cursor buttons ▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five. Press the cursor buttons in any order to set the password.
-
Page 30: Adjusting The Projector Level
Digital Projection Adjusting the Projector Level Take note of the following when setting up the projector: The projector table or stand should be level and sturdy. Position the projector so that it is perpendicular to the screen. ... -
Page 31: Adjusting The Projected Image Position Using Lens Shift
Digital Projection Adjusting the Projected Image Position Using Lens Shift The Lens Shift feature provides a shift function that can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below. Shift is a unique system that provides lens shift while maintaining a much higher ANSI contrast ratio than traditional lens shift systems. -
Page 32: Lens Offset
Digital Projection Lens Offset This projector uses a fixed offset lens. The fixed offset is +57.5% of screen height. Therefore the centre line of the projector lens would normally be located either below the bottom on the screen or mounted inverted above the top of the screen. -
Page 33: Adjusting The Zoom, Focus And Keystone
Digital Projection Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector) to resize the projected image. Use the Image-focus control (on the front of the lens) to sharpen the projected image. Press the buttons (on the... -
Page 34: Adjusting The Volume
Digital Projection Adjusting the Volume Press the Volume button on the remote control. The volume control appears on the display. Press the ◄ / ► buttons on the keypad or the remote control to adjust Volume +/-. Press the MUTE button to turn off the volume (This feature is available only on the remote). -
Page 35: On-Screen Display (Osd) Menu Settings
Digital Projection (OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the projector to navigate and make changes to the OSD. -
Page 36: Setting The Osd Language
Digital Projection Setting the OSD Language To set the OSD language to your preference. Press the MENU button. Press the cursor ◄► button to navigate to Settings 1. Press the cursor ▲▼ button to move to the Advanced 1 menu. -
Page 37: Osd Menu Overview
Digital Projection OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Main Menu Sub Menu Settings Image Display Mode Presentation, Bright, Game, Movie, Vivid, TV, sRGB, DICOM SIM, User, User2... - Page 38 Digital Projection Main Menu Sub Menu Settings Settings 1 Source Source reference Input Source Select (IR/Keypad) Projection Normal, Real, Ceiling, Real+Ceiling Audio Volume 0~10 Mute Off, On Off, On MIC Volume 0~10 Alignment Aspect Ratio Fill, 4:3, 16:9, Letter Box, Native, 2.35:1...
- Page 39 Digital Projection Main Menu Sub Menu Settings Settings 2 Auto Source Off, On No Signal 0~180 Power Off Auto Power Off, On Light Mode Normal, Eco, Eco Plus, Dimming, Extreme Dimming, Custom Light Reset All Status Active Source Video Information...
-
Page 40: Image Menu
Digital Projection Image Menu Attention ! Any Display Mode parameters when changed will be saved to user mode. Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to enter and change values for settings. -
Page 41: Computer Menu
Digital Projection Computer Menu Press the MENU button to open the OSD menu. Press ◄► to move to the Image menu. Press ▲▼ to move to the Computer menu and then press Enter or ►. Press ▲▼ to move up and down in the Computer menu. -
Page 42: Advanced Feature
Digital Projection Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the Advanced menu. -
Page 43: White Balance
Digital Projection White Balance Press the ENTER button to enter the White Balance sub menu. ESCRIPTION R Gain Press the ◄► buttons to adjust the Red Gain. G Gain Press the ◄► buttons to adjust the Green Gain. B Gain Press the ◄►... -
Page 44: Color Manager
Digital Projection Color Manager Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Color Manager menu and then press Enter or ►. Press ▼▲ to move up and down in the Color Manager menu. -
Page 45: Settings 1 Menu
Digital Projection Settings 1 Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 1 menu. Press the cursor ▲▼ button to move up and down in the Settings 1 menu. Press ◄► to enter and change values for settings. -
Page 46: Audio
Digital Projection Audio Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Audio menu and then press Enter or ►. Press ▼▲ to move up and down in the Audio menu. -
Page 47: Alignment
Digital Projection Alignment Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Alignment menu and then press Enter or ►. Press ▼▲ to move up and down in the Alignment menu. - Page 48 Digital Projection Keystone Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Alignment menu and then press Enter or ►. Press ▼▲ to move to the Keystone menu and then press Enter or ►.
- Page 49 Digital Projection Press the cursor ▲ / ▼ buttons to adjust the vertical axis or press the cursor ◄ / ► buttons to adjust the horizontal axis. Press MENU to save and Exit the settings. 5000 S 2018 ISION ASER...
-
Page 50: Advanced 1 Feature
Digital Projection Advanced 1 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 1 menu. - Page 51 Digital Projection 3D Setting ESCRIPTION Press the cursor ◄► button to enter and select different 3D modes. 3D Sync Invert Press the cursor ◄► button to enter and enable or disable 3D Sync Invert. 3D Format Press the cursor ◄► button to enter and select different 3D Format.
-
Page 52: Advanced 2 Feature
Digital Projection Advanced 2 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 2 menu. -
Page 53: Settings 2 Menu
Digital Projection Settings 2 Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 2 menu. Press the cursor ▲▼ button to move up and down in the Settings 2 menu. -
Page 54: Status
Digital Projection Status Press the cursor ▲▼ button to move up and down in the Settings 2 menu. Select the Status menu and press Enter or ► to enter. ESCRIPTION Active Source Shows the current activated source. Shows the current resolution/video information for RGB source and color standard for Video Information Video source. -
Page 55: Advanced 1 Feature
Digital Projection Advanced 1 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 1 menu. - Page 56 Digital Projection Note: 1. Enable the HDBaseT control function when you desire to use a HDBaseT TX box. (Remove any RS232 and RJ45/LAN control function from Projector to HDBaseT TX box.) See HDBaseT control function table. 2. When HDBaseT is enabled, selecting Low Power Mode will auto set to On by HDBaseT.
- Page 57 Digital Projection Network ESCRIPTION Network State Displays the network connection status. Press ◄► to turn DHCP On or Off. DHCP Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields. IP Address Enter a valid IP address if DHCP is turned off.
-
Page 58: Supported External Devices
For more detail and information about the diverse types of external devices which can be connected to the LAN/RJ45 port and used for remote control of the projector, as well as the related control commands supported for each external device, Please contact your supplying dealer, or your local Digital Projection Service support centre. - Page 59 Digital Projection LAN_RJ45 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop). 2. On the PC (Laptop), select Start → Control Panel →Network and Internet. 5000 S 2018 ISION ASER ERIES ANUAL ANUARY...
- Page 60 Digital Projection 3. Right-click on Local Area Connection, and select Properties. 4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP). 5. Click Properties. 6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
- Page 61 Digital Projection 7. Press the Menu button on the projector. 8. Select Settings2→ Advanced1 → Network 9. In Network, input the following example: DHCP: Off IP Address: 10.10.10.10 Subnet Mask: 255.255.255.0 Gateway: 0.0.0.0 DNS Server: 0.0.0.0 10.
- Page 62 Digital Projection Projector Info: Crestron (projector control): Pressing the “Menu” button will display the projectors OSD menu on screen; you can navigate the OSD menu by using the Crestron control screens Menu, Enter and ▲▼◄►buttons Note: The Contrast, Brightness and Color controls can only be used in the Crestron control screen when “User”...
- Page 63 Digital Projection Crestron (setup options): Crestron setup information ATEGORY NPUT ENGTH IP Address Crestron Control IP ID Port Projector Name Projector Location Assigned To DHCP (Enabled) (N/A) IP Address Network Configuration Subnet Mask Default Gateway DNS Server Enabled (N/A) User Password...
- Page 64 Digital Projection Preparing Email Alerts 1. Ensure that there is access to the Projector Info homepage function by a web browser. 2. From the Homepage, click Alert Mail Settings. 3. In the Alert Mail Settings page, by default the input boxes are blank.
- Page 65 Digital Projection 4. To enable Alert mails to be sent, input the following: The SMTP field is the mail server for sending out email (SMTP protocol). This is a required field. The To field is the recipient’s email address (for example, the projector administrator). This is a required field.
- Page 66 Digital Projection RS232 by Telnet Function The projector can be controlled by dedicated protocol commands via the RS232 interface with “Hyper- Terminal” communication. There is also available an alternative RS232 control, so called “RS232 by TELNET” for the LAN/RJ45 interface.
- Page 67 Digital Projection At the command prompt, Input the command line format as below: (where ttt.xxx.yyy.zzz: is the actual IP address of the projector). telnet ttt.xxx.yyy.zzz 23 (and then press “Enter/Return”) The Telnet-Connection is now ready for use on the projector; the user will be able to input RS232...
- Page 68 Digital Projection Select “Turn Windows features on or off” which will open the following window: Tick the “Telnet Client” option, then press the “OK” button. “RS232 by TELNET” information: 1. Telnet: TCP 2. Telnet port: 23 3. Telnet utility: Windows “TELNET.exe” (console mode) 4.
-
Page 69: Advanced 2 Feature
Digital Projection Advanced 2 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 2 menu. - Page 70 Digital Projection Source Filter Press the ENTER button to enter the Source Filter sub menu. ESCRIPTION HDMI1 Press the cursor ◄► button to enter and enable or disable the HDMI1 source. HDMI2 Press the cursor ◄► button to enter and enable or disable the HDMI2 source.
-
Page 71: Maintenance And Security
Digital Projection AINTENANCE AND ECURITY Cleaning the Projector Periodically cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning, allowing time for the projector to cool down. -
Page 72: Using The Physical Lock
Digital Projection Using the Physical Lock Using the Kensington Security Slot If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your supplying dealer for details on purchasing a suitable Kensington security cable. -
Page 73: Troubleshooting
Digital Projection ROUBLESHOOTING Common Problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your supplying dealer for assistance. Often, after some time spent troubleshooting, the problem is traced to something as simple as a loose connection or faulty signal cable. -
Page 74: Led Error Messages
Digital Projection LED Error Messages RROR ESSAGES OWER IGHT Light Source Ready Start Flashing Cooling Flashing Over Temperature T1 1 blinks Over Temperature T2 2 blinks Over Temperature T3 3 blinks Over Temperature T4 4 blinks Over Temperature T5 5 blinks... -
Page 75: Light Source Problems
Digital Projection Problem: The image is reversed Check the Projection setting in the Settings 1 menu of the OSD. Problem: The image is streaked 1. Set the Frequency and Tracking settings on the Image->Computer menu of the OSD to the default settings. -
Page 76: Having The Projector Serviced
Digital Projection Having the Projector Serviced If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Please include a description of the problem and a checklist of the steps you took when trying to fix the problem: This information may be useful to service personnel. -
Page 77: Specifications
Digital Projection PECIFICATIONS Specifications Model Name E-Vision Laser 5000 XGA E-Vision Laser 5000 WUXGA Display Type 0.55” XGA, S450 0.67” WUXGA, S600 Resolution XGA, 1024x768 WUXGA, 1920x1200 Throw Ratio 1.51~2.5 1.15~1.9 Zoom Ratio 1.65x Manual Zoom, Manual Focus 60cm ~ 330.2cm / 23.6" ~ 130"... - Page 78 Digital Projection RS-232 x 1 Control Terminals RJ45 x 1 USB mini B for service x 1 Kensington Security Slot Security Security Bar Note: For questions regarding product specifications, please contact your supplying dealer. 5000 S 2018 ISION ASER ERIES...
-
Page 79: Projection Distance Vs. Projection Size
Digital Projection Projection Distance vs. Projection Size Projection Distance Projection Distance and Size Tables E-Vision Laser 5000 XGA: TR: 1.51~2.5, Minimum Offset=60.5% Distance (m) Diagonal (") 48.9 81.5 97.8 163.0 29.5 49.2 59.1 98.4 Image Width (mm) 993.4 1655.6 1986.8 3311.3... -
Page 80: Timing Mode Table
Digital Projection Timing Mode Table Supported Frequencies The unit automatically determines PC signals to select the appropriate resolution. Some signals may require manual adjustment. DVI/HDMI/ RGB/BNC IGNAL ESOLUTION OMPOSITE OMPONENT ( KH NALOG IGITAL NTSC 15.734 60.0 ○ － －... - Page 81 Digital Projection DVI/HDMI/ RGB/BNC IGNAL ESOLUTION OMPOSITE OMPONENT ( KH NALOG IGITAL 1280 x 1024 80.0 75.0 ○ ○ － － 1280 x 1024 91.1 85.0 ○ ○ － － 1280 x 960 60.0 60.0 ○ ○ － － 1280 x 960 85.9...
-
Page 82: Supported Frequencies For 3D Mode
Digital Projection Supported Frequencies For 3D mode The unit automatically determines PC signals to select the appropriate resolution. Some signals may require manual adjustment. Input Signal for D-SUB/HDMI/DVI-D IGNAL ESOLUTION EFRESH SVGA 800 X 600 60/120 1024 X 768 60/120... -
Page 83: Projector Dimensions
Digital Projection Projector Dimensions 5000 S 2018 ISION ASER ERIES ANUAL ANUARY... -
Page 84: Regulatory Compliance
Digital Projection EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 85: Rs-232C Protocol
Digital Projection PPENDIX RS-232C Protocol RS232 Communications Settings Baud rate: 9600 Parity check: None Data bit: Stop bit: Flow Control None UART16550 FIFO Disable Minimum delay for next command: 1ms Control Command Structure Header code Command code Data code End code... - Page 86 Digital Projection Command Group 00 ASCII Function Description Return Result VXXS0001 56h Xh Xh 53h 30h 30h 30h 31h 0Dh Power On Power Off VXXS0002 56h Xh Xh 53h 30h 30h 30h 32h 0Dh Resync VXXS0003 56h Xh Xh 53h 30h 30h 30h 33h 0Dh...
- Page 87 Digital Projection Command Group 01 ASCII Function Description Return Value VXXG0101 56h Xh Xh 47h 30h 31h 30h 31h 0Dh Get Brightness n=0~100 Pn/F VXXS0101n 56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh Set Brightness n=0~100 VXXG0102 56h Xh Xh 47h 30h 31h 30h 32h 0Dh...
- Page 88 Digital Projection Command Group 02 ASCII Function Description Return Value VXXS0201 56h Xh Xh 53h 30h 32h 30h 31h 0Dh Select RGB VXXS0203 56h Xh Xh 53h 30h 32h 30h 33h 0Dh Select DVI VXXS0204 56h Xh Xh 53h 30h 32h 30h 34h 0Dh...
- Page 89 Digital Projection Command Group 03 ASCII Function Description Return Value VXXS0309n 56h Xh Xh 53h 30h 33h 30h 39h nh 0Dh Set vertical keystone n=-30~+30 value Get horizontal VXXG0310 56h Xh Xh 47h 30h 33h 31h 30h 0Dh n=-30~+30 Pn/F...
- Page 90 Digital Projection Command Group 03 ASCII Function Description Return Value 0:Both IR turn on Set IR On/Off VXXS0358n 56h Xh Xh 53h 30h 33h 35h 38h n 0Dh 1:Front IR turn on Control 2:Back IR turn on 5000 S 2018...
-
Page 91: Contact Information
Contact Information: Digital Projection Limited Digital Projection Inc. Digital Projection China Digital Projection Asia Greenside Way, Middleton 55 Chastain Road, Suite 115 16 New Industrial Road 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK Kennesaw, GA 30144, USA #02-10 Hudson Technocentre 世奥国际中心A座2011室(100029)
