Connector Subsystems Rows A, B, C, D

The conga-TC87 is connected to the carrier board via two 220-pin connectors (COM Express Type 6 pinout) for a total of 440 pins connectivity.
These connectors are broken down into four rows. The primary connector consists of rows A and B while the secondary connector consists of
rows C and D.

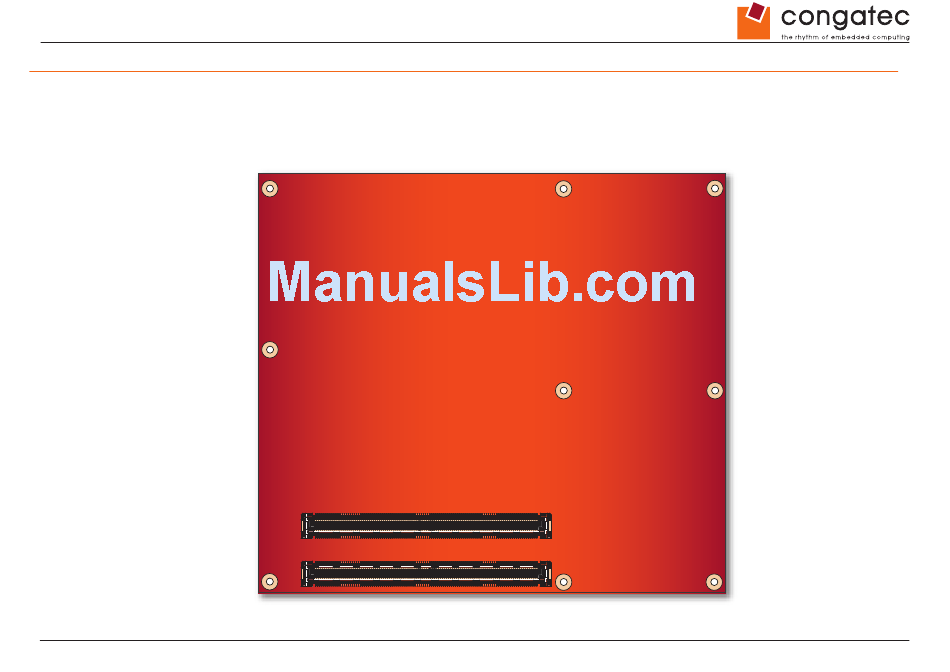

In this view the connectors are seen "through" the module.
Copyright © 2013 congatec AG
A-B
4 PCI Express Lanes
4x Serial ATA
8x USB 2.0
High Definition Audio I/F
Gigabit Ethernet
(connected via a x1 PCI Express Lane)
LPC Bus
2x Serial Interface (UART)
I²C Bus Fast Mode
LVDS/eDP
SM Bus
SPI
GPIOs
Power Control
Power Management
Fan Control
C-D
A-B
TU87m12
C-D
2x USB 3.0
2x HDMI
(Routed to DDI interface at
connector)
2x DVI
(Routed to DDI interface at
connector)
2x DisplayPort (DP)
(Routed to DDI interface at
connector)
1x VGA (optional)
(supported only on rev. C.x and
later)
