Bottom-Side (Optional DRAM Sensor):

The conga-TC87 offers an optional sensor on the bottom side of the module. This sensor measures the temperature of the DRAM module and

is defined in CGOS API as CGOS_TEMP_BOTDIMM_ENV.

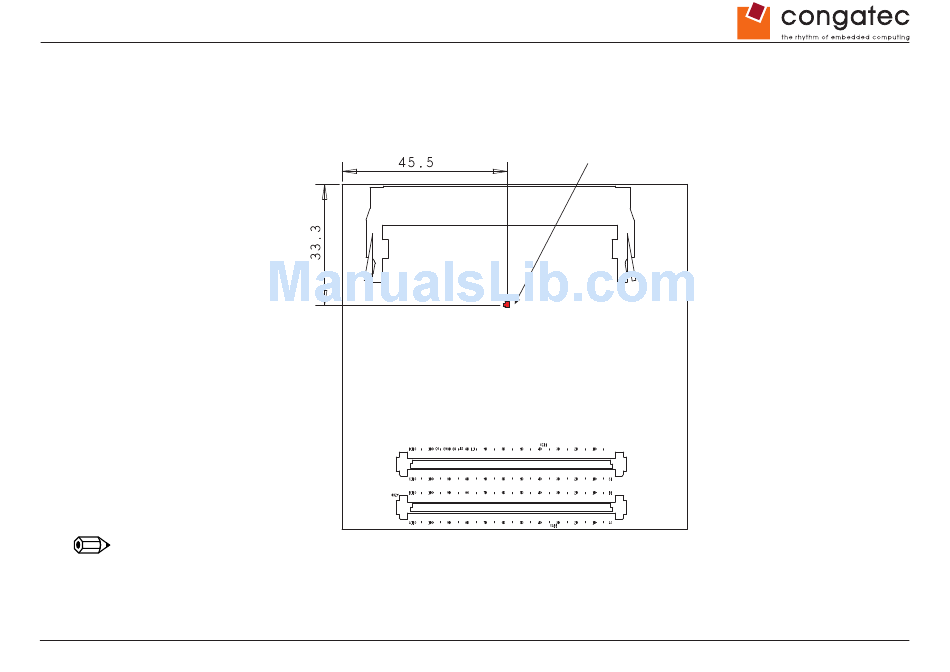

The DRAM sensor location is shown below:

Optional DRAM sensor location

(Build-Time Option)

Note

The DRAM sensor is not populated on conga-TC87 standard variants. The sensor is only available as a build time option.
