Onboard Temperature Sensors
The conga-TC87 features two sensors on the top side of the module and an optional sensor (build-time) on the bottom side of the module.
Top-Side (CPU Temperature & Board Temperature Sensor) :
The CPU temperature sensor (T00) is located in the CPU (U1). This sensor measures the CPU temperature and is defined in CGOS API as
CGOS_TEMP_CPU.
The board temperature sensor (T01) is located in the congatec Board Controller (cBC) . This sensor measures the board temperature and is
defined in CGOS API as CGOS_TEMP_BOARD.

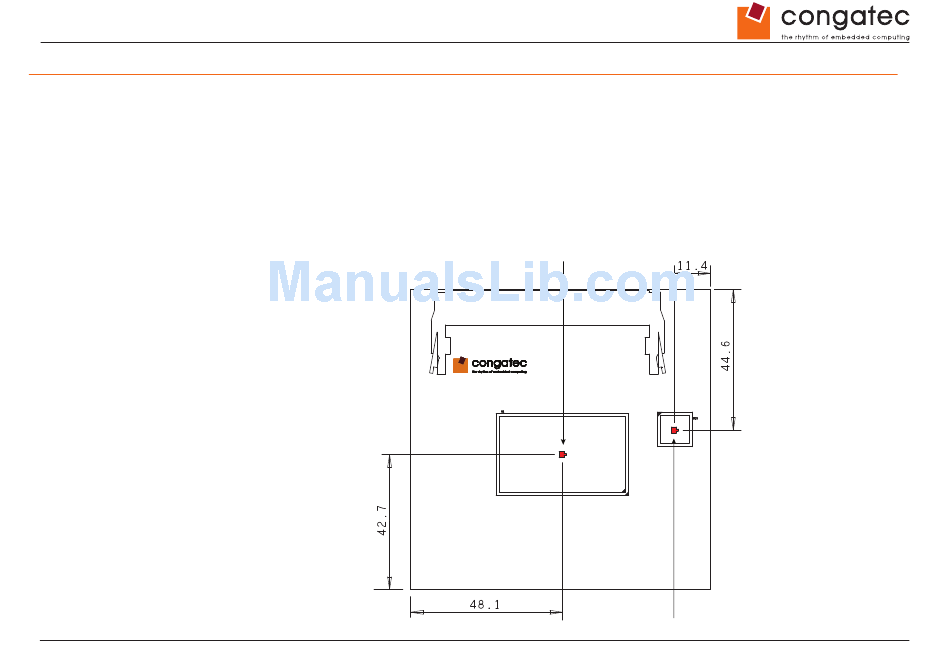

The sensor locations are shown below:
Copyright © 2013 congatec AG
CPU Sensor Location
TU87m12
Board Sensor Location
24/114
