J

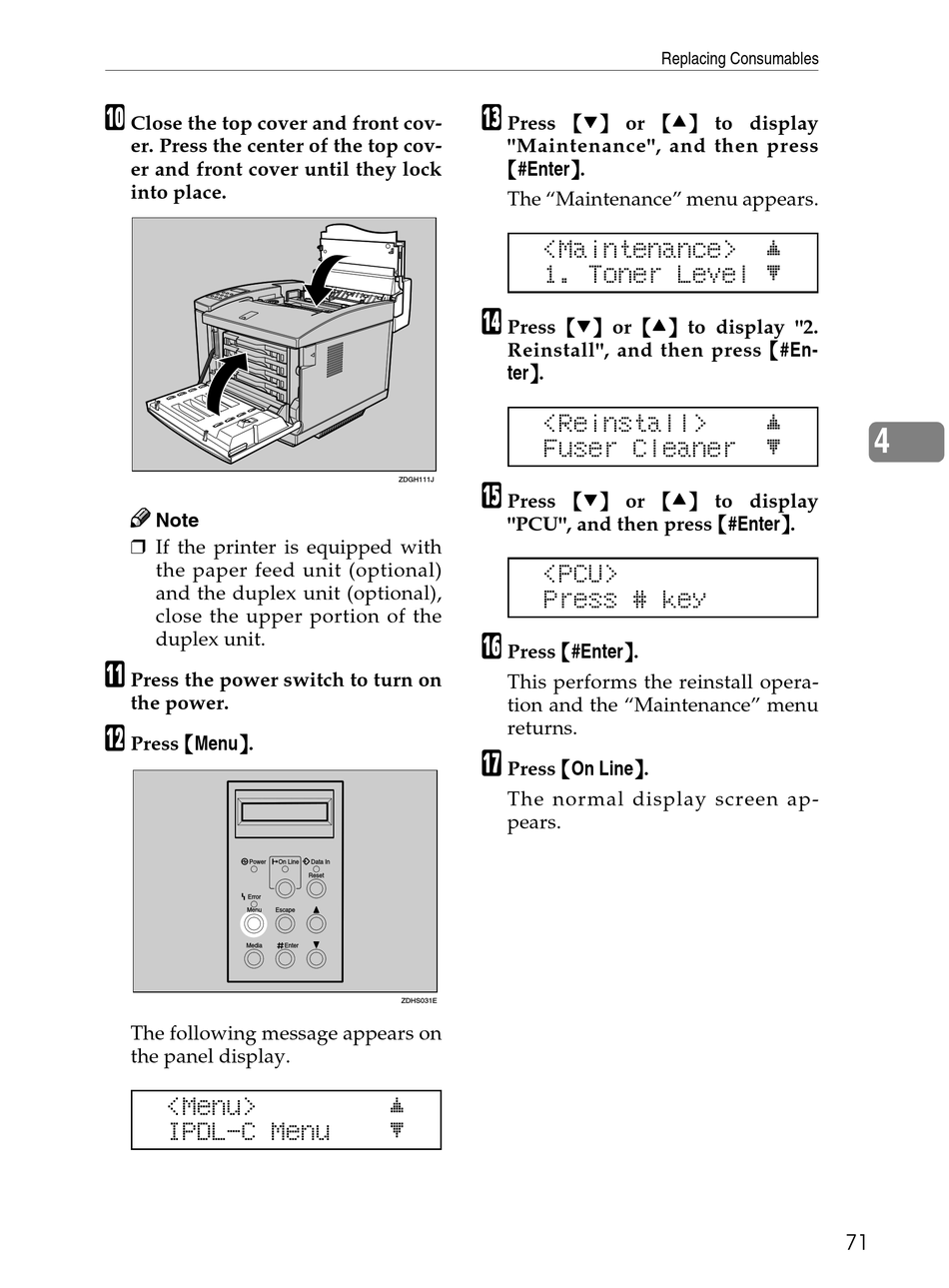

Close the top cover and front cov-
er. Press the center of the top cov-
er and front cover until they lock
into place.
Note
❒ If the printer is equipped with
the paper feed unit (optional)
and the duplex unit (optional),
close the upper portion of the

duplex unit.

K
Press the power switch to turn on
the power.
L
Press { { { { Menu} } } } .
Power
Error
Menu Escape
Media
The following message appears on
the panel display.
<Menu>
IPDL-C Menu
ZDGH111J
On Line Data In
Reset
Enter
ZDHS031E
j
l
M
Press { { { { T T T T } } } } or { { { { U U U U } } } } to display
"Maintenance", and then press
{ { { { #Enter} } } } .
The "Maintenance" menu appears.
<Maintenance>
1. Toner Level l
N
Press { { { { T T T T } } } } or { { { { U U U U } } } } to display "2.
Reinstall", and then press { { { { #En-
ter} } } } .
<Reinstall>
Fuser Cleaner
O
Press { { { { T T T T } } } } or { { { { U U U U } } } } to display
"PCU", and then press { { { { #Enter} } } } .
<PCU>
Press # key
P
Press { { { { #Enter} } } } .
This performs the reinstall opera-
tion and the "Maintenance" menu
returns.
Q
Press { { { { On Line} } } } .
The normal display screen ap-
pears.
Replacing Consumables
j
j
l
4
71
