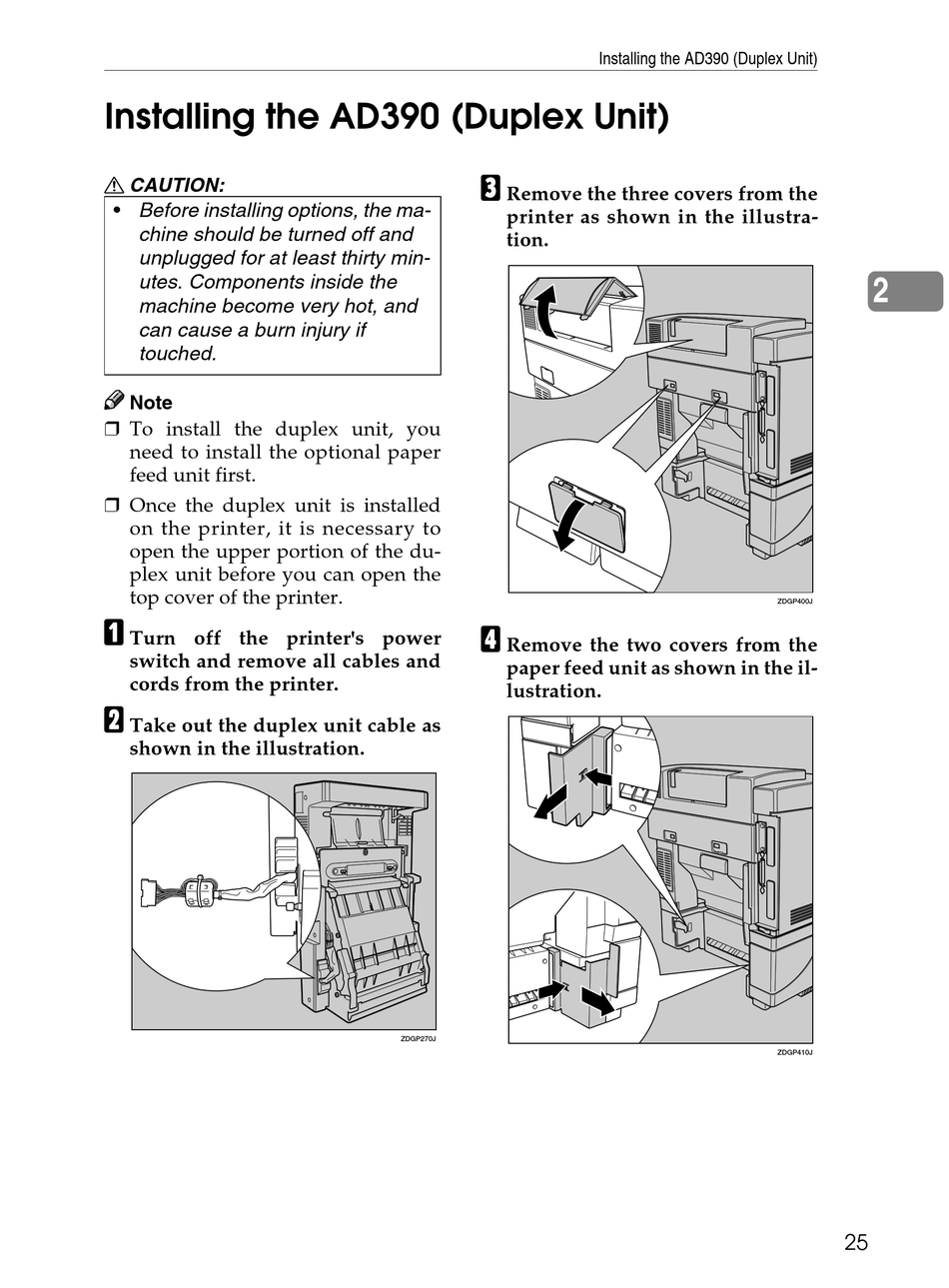

Installing the AD390 (Duplex Unit)

R CAUTION:
• Before installing options, the ma-
chine should be turned off and
unplugged for at least thirty min-
utes. Components inside the
machine become very hot, and
can cause a burn injury if
touched.
Note
❒ To install the duplex unit, you
need to install the optional paper
feed unit first.
❒ Once the duplex unit is installed
on the printer, it is necessary to
open the upper portion of the du-
plex unit before you can open the
top cover of the printer.
A
Turn off the printer's power
switch and remove all cables and
cords from the printer.
B
Take out the duplex unit cable as
shown in the illustration.
C
Remove the three covers from the
printer as shown in the illustra-
tion.
D
Remove the two covers from the
paper feed unit as shown in the il-
lustration.
ZDGP270J
Installing the AD390 (Duplex Unit)
2
ZDGP400J
ZDGP410J
25
